NZT7053

型号：

NZT7053

描述：

NPN达林顿晶体管[ NPN Darlington Transistor ]

品牌：

FAIRCHILD[ FAIRCHILD SEMICONDUCTOR ]

页数：

4 页

PDF大小：

45 K

下载PDF手册

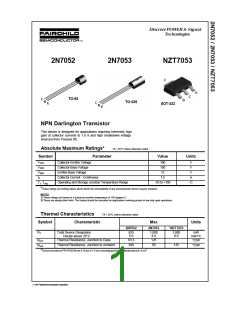

Discr ete P OWER & Sign a l
Tech n ologies
2N7052
2N7053
NZT7053
C
E
C
TO-92
C
B
B
TO-226
C
E
SOT-223
B
E
NPN Darlington Transistor
This device is designed for applications requiring extremely high
gain at collector currents to 1.0 A and high breakdown voltage.
Sourced from Process 06.
Absolute Maximum Ratings*
TA = 25°C unless otherwise noted
Symbol
Parameter
Value
Units
VCEO
VCBO
VEBO
IC
Collector-Emitter Voltage
100
100
V
V
V
A
Collector-Base Voltage
Emitter-Base Voltage
12
Collector Current - Continuous
Operating and Storage Junction Temperature Range
1.5
-55 to +150
C
°
TJ, Tstg
*These ratings are limiting values above which the serviceability of any semiconductor device may be impaired.
NOTES:
1) These ratings are based on a maximum junction temperature of 150 degrees C.
2) These are steady state limits. The factory should be consulted on applications involving pulsed or low duty cycle operations.
Thermal Characteristics
TA = 25°C unless otherwise noted
Symbol
Characteristic
Max
Units
2N7052
2N7053
*NZT7053
PD
Total Device Dissipation
Derate above 25°C
Thermal Resistance, Junction to Case
625
5.0
83.3
1,000
8.0
125
1,000
8.0
mW
mW/°C
°C/W
RθJC
RθJA
Thermal Resistance, Junction to Ambient
200
50
125
°C/W
*Device mounted on FR-4 PCB 36 mm X 18 mm X 1.5 mm; mounting pad for the collector lead min. 6 cm2.
ã 1997 Fairchild Semiconductor Corporation
NPN Darlington Transistor
(continued)
Electrical Characteristics
TA = 25°C unless otherwise noted
Symbol
Parameter
Test Conditions
Min
Max
Units
OFF CHARACTERISTICS
V(BR)CEO
V(BR)CBO
V(BR)EBO
ICBO
Collector-Emitter Breakdown Voltage* IC = 1.0 mA, IB = 0
100
100
12
V
V
V
Collector-Base Breakdown Voltage
Emitter-Base Breakdown Voltage
Collector-Cutoff Current
I = 100 A, I = 0
µ
C
E
IE = 1.0 mA, IC = 0
VCB = 80 V, IE = 0
VCE = 80 V, IE = 0
VEB = 7.0 V, IC = 0
0.1
0.2
0.1
A
A
A
µ
µ
µ
ICES
Collector-Cutoff Current
IEBO
Emitter-Cutoff Current
ON CHARACTERISTICS*
hFE
DC Current Gain
IC = 100 mA, VCE = 5.0 V
IC = 1.0 A, VCE = 5.0 V
IC = 100 mA, IB = 0.1 mA
10,000
1,000
20,000
1.5
Collector-Emitter Saturation Voltage
Base-Emitter On Voltage
V
VCE(sat)
VBE(on)
IC = 100 mA, VBE = 5.0 V
2.0
V
SMALL SIGNAL CHARACTERISTICS
Transition Frequency
IC = 100 mA, VCE = 5.0 V,
200
MHz
pF
FT
Collector-Base Capacitance
VCB = 10 V,f = 1.0 MHz
10
8.0
2N7052
2N7053
Ccb
*Pulse Test: Pulse Width £300 ms, Duty Cycle £1.0%
Typical Characteristics
Typical Pulsed Current Gain
Collector-Emitter Saturation
Voltage vs Collector Current
vs Collector Current
100
2
1.6
1.2
0.8
0.4
0
β = 1000
80
60
125 °C
- 40°C
40
25 °C
25 °C
125 °C
20
0
- 40°C
0.001
0.01
0.1
1
10
100
1000
IC - COLLECTOR CURRENT (A)
IC - COLLECTOR CURRENT (mA)
NPN Darlington Transistor
(continued)
Typical Characteristics (continued)
Base-Emitter Saturation
Voltage vs Collector Current
Base Emitter ON Voltage vs
Collector Current
2
2
1.6
1.2
0.8
0.4
0
β = 1000
- 40°C
1.6
- 40°C
25 °C
25 °C
1.2
125 °C
125 °C
0.8
VCE= 5V
0.4
0
10
100
1000
10
100
1000
IC - COLLECTOR CURRENT (mA)
I C - COLLECTOR CURRENT (mA)
Junction Capacitance vs
Reverse Bias Voltage
Collector-Cutoff Current
vs. Ambient Temperature
100
10
1
100
VCB = 80V
10
1
C
ib
0.1
0.01
C
cb
25
50
75
100
125
0.1
1
10
100
TA- AMBIENT TEMPERATURE (ºC)
REVERSE BIAS VOLTAGE (V)
Power Dissipation vs
Ambient Temperature
Typical Collector-Emitter Leakage
Current vs Temperature
1
0.75
0.5
0.25
0
1000
VCE = 80V
VBE = 0
SOT-223
100
10
1
TO-92
TO-226
0.1
0
40
80
120
160
0
25
50
75
100
125
150
TEMPERATURE (oC)
º
TJ - JUNCTION TEMPERATURE ( C)
TRADEMARKS
The following are registered and unregistered trademarks Fairchild Semiconductor owns or is authorized to use and is
not intended to be an exhaustive list of all such trademarks.
ACEx™
CoolFET™
ISOPLANAR™
MICROWIRE™
POP™
PowerTrench™
QS™
CROSSVOLT™
E2CMOSTM
FACT™
FACT Quiet Series™
Quiet Series™
SuperSOT™-3
SuperSOT™-6
SuperSOT™-8
TinyLogic™
FAST®
FASTr™
GTO™
HiSeC™
DISCLAIMER
FAIRCHILD SEMICONDUCTOR RESERVES THE RIGHT TO MAKE CHANGES WITHOUT FURTHER
NOTICE TO ANY PRODUCTS HEREIN TO IMPROVE RELIABILITY, FUNCTION OR DESIGN. FAIRCHILD
DOES NOT ASSUME ANY LIABILITY ARISING OUT OF THE APPLICATION OR USE OF ANY PRODUCT
OR CIRCUIT DESCRIBED HEREIN; NEITHER DOES IT CONVEY ANY LICENSE UNDER ITS PATENT
RIGHTS, NOR THE RIGHTS OF OTHERS.
LIFE SUPPORT POLICY
FAIRCHILD’S PRODUCTS ARE NOT AUTHORIZED FOR USE AS CRITICAL COMPONENTS IN LIFE SUPPORT
DEVICES OR SYSTEMS WITHOUT THE EXPRESS WRITTEN APPROVAL OF FAIRCHILD SEMICONDUCTOR CORPORATION.
As used herein:
1. Life support devices or systems are devices or
systems which, (a) are intended for surgical implant into
the body, or (b) support or sustain life, or (c) whose
failure to perform when properly used in accordance
with instructions for use provided in the labeling, can be
reasonably expected to result in significant injury to the
user.
2. A critical component is any component of a life
support device or system whose failure to perform can
be reasonably expected to cause the failure of the life
support device or system, or to affect its safety or
effectiveness.
PRODUCT STATUS DEFINITIONS
Definition of Terms
Datasheet Identification
Product Status
Definition
Advance Information
Formative or
In Design
This datasheet contains the design specifications for
product development. Specifications may change in
any manner without notice.
Preliminary
First Production
This datasheet contains preliminary data, and
supplementary data will be published at a later date.
Fairchild Semiconductor reserves the right to make
changes at any time without notice in order to improve
design.
No Identification Needed
Obsolete
Full Production
This datasheet contains final specifications. Fairchild
Semiconductor reserves the right to make changes at
any time without notice in order to improve design.
Not In Production
This datasheet contains specifications on a product
that has been discontinued by Fairchild semiconductor.
The datasheet is printed for reference information only.
