CYWB0120AB-BVXI

型号：

CYWB0120AB-BVXI

品牌：

CYPRESS[ CYPRESS ]

页数：

23 页

PDF大小：

425 K

下载PDF手册

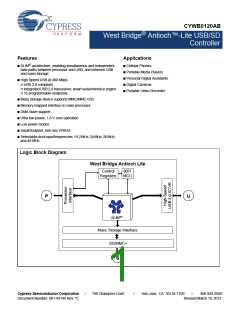

CYWB0120AB
West Bridge® Antioch™-Lite USB/SD
Controller
Features
Applications
■ SLIM® architecture, enabling simultaneous and independent
data paths between processor and USB, and between USB
and mass storage
■ Cellular Phones
■ Portable Media Players
■ Personal Digital Assistants
■ Digital Cameras
■ High Speed USB at 480 Mbps
❐ USB 2.0 compliant
❐ Integrated USB 2.0 transceiver, smart serial interface engine
❐ 16 programmable endpoints
■ Portable Video Recorder
■ Mass storage device supports MMC/MMC+/SD
■ Memory mapped interface to main processor
■ DMA slave support
■ Ultra low power, 1.8 V core operation
■ Low power modes
■ Small footprint, 6x6 mm VFBGA
■ Selectableclockinputfrequencies:19.2MHz,24MHz,26MHz,
and 48 MHz
Logic Block Diagram
West Bridge Antioch Lite
Control
Registers
8051
MCU
P
U
SLIMTM
Mass Storage Interface
SD/MMC+
S
Cypress Semiconductor Corporation
Document Number: 001-49144 Rev. *C
•
198 Champion Court
•
San Jose, CA 95134-1709
•
408-943-2600
Revised March 19, 2012
CYWB0120AB
Contents
Functional Overview ........................................................3
The SLIM® Architecture ..............................................3
8051 Microprocessor ...................................................3
Configuration and Status Registers .............................3
Processor Interface (P-Port) ........................................3
USB Interface (U-Port) ................................................3
Mass Storage Support (S-Port) ...................................3
Clocking .......................................................................3
Power Domains ...........................................................4
Power Modes ..............................................................5
Absolute Maximum Ratings ..........................................10
Operating Conditions .....................................................10
DC Characteristics .........................................................10
USB Transceiver .......................................................11
AC Characteristics .........................................................12
USB Transceiver .......................................................12
P-Port Interface .........................................................12
SD/MMC Parameters ................................................19
Reset and Standby Timing Parameters ....................20
Ordering Information ......................................................21
Ordering Code Definitions .........................................21
Package Diagrams ..........................................................21
Acronyms ........................................................................22
Document Conventions .................................................22
Units of Measure .......................................................22
Document History Page .................................................23
Sales, Solutions, and Legal Information ......................23
Worldwide Sales and Design Support .......................23
Products ....................................................................23
PSoC Solutions .........................................................23
Document Number: 001-49144 Rev. *C
Page 2 of 23
CYWB0120AB
It then performs the appropriate read or write operations on the
buffer through the processor interface. This way, the external
processor only deals with the buffers to access a multitude of
storage devices connected to Antioch.
Functional Overview
The SLIM® Architecture
The Simultaneous Link to Independent Multimedia (SLIM)
architecture allows three different interfaces (the P-port, the
S-port, and the U-port) to connect to one another independently.
With this architecture, using West Bridge® Antioch™ to connect
a device to a PC through an USB does not disturb any of the
functions of the device. It still accesses mass storage at the
same time the PC is synchronizing with the main processor.
In the Interrupt mode, Antioch communicates important buffer
status changes to the external processor using an interrupt
signal. The external processor then polls Antioch for the specific
buffers ready for read or write and performs the appropriate read
or write operations through the processor interface.
USB Interface (U-Port)
In accordance with the USB 2.0 specification, Antioch operates
in Full Speed USB mode in addition to High Speed USB mode.
The USB interface consists of the USB transceiver. The USB
interface accesses and also is accessed by both the P-port and
the S-port.
The SLIM architecture enables new usage models, in which a
PC accesses a mass storage device independent of the main
processor, or enumerates access to both the mass storage and
the main processor at the same time.
In a handset, this typically enables the user to use the phone as
a thumb drive or download media files to the phone while still
having full functionality available on the phone. The same phone
functions as a modem to connect the PC to the web.
The Antioch USB interface supports programmable
CONTROL/BULK/INTERRUPT/ISOCHRONOUS endpoints.
Mass Storage Support (S-Port)
8051 Microprocessor
The S-port is configured to support SD/MMC+ port.
The 8051 microprocessor embedded in Antioch does basic
transaction management for all the transactions between the
P-port, the S-port, and the U-port. The 8051 does not reside in
the data path; it manages the path. The data path is optimized
for performance. The 8051 executes firmware that supports SD
and MMC devices at the S-port.
SD/MMC Port (S-Port)
Antioch Lite is configured to support MMC/SD. This interface
supports:
■ The MultiMediaCard System Specification, MMCA Technical
Committee, Version 4.1
Configuration and Status Registers
■ SD Memory Card Specification - Part 1, Physical Layer
Specification, SD Group, Version 1.10, October 15, 2004, and
Version 2.0, November 9, 2005
The West Bridge Antioch device includes configuration and
status registers that are accessible as memory mapped registers
through the processor interface. The configuration registers
enable the system to specify specific behavior from Antioch. For
example, it masks some status registers from raising an
interrupt. The status registers convey the status of the different
parameters of Antioch, such as the addresses of buffers for read
operations.
West Bridge Antioch provides support for 1-bit and 4-bit SD
cards: 1-bit, 4-bit, and 8-bit MMC, and MMC+. For the SD,
MMC/MMC+ card, this block supports one card for one physical
bus interface.
Antioch supports SD commands including the multisector
program command that is handled by the API.
Processor Interface (P-Port)
Clocking
Communication with the external processor is realized through a
dedicated processor interface. This interface supports both
synchronous and asynchronous SRAM mapped memory
accesses. This ensures straightforward electrical
communications with the processor that also has other devices
connected on a shared memory bus. Asynchronous accesses
reach a bandwidth of up to 66.7 MBps. Synchronous accesses
are performed at 33 MHz across 16 bits for up to 66.7 MBps
bandwidth.
Antioch allows either to connect a crystal between the XTALIN
and XTALOUT balls or connect an external clock at the XTALIN
ball. The power supply level at the crystal supply XVDDQ
determines whether a crystal or a clock is provided. If XVDDQ is
detected as 1.8 V, Antioch assumes that a clock input is
provided. To connect a crystal, XVDDQ must be 3.3 V. Note that
the clock inputs at 3.3 V level are not supported.
CYWB0120AB supports crystals only at 19.2, 24, and 26 MHz.
At 48 MHz, only clock inputs are supported. Clock inputs are
supported at all frequencies.
The memory address is decoded to access any of the multiple
endpoint buffers inside Antioch. These endpoints serve as
buffers for data between each pair of ports, for example, between
the processor port and the USB port. The processor writes and
reads into these buffers through the memory interface.
Antioch has an on-chip oscillator circuit that uses an external
19.2/24/26 MHz (±150 ppm) crystal with the following
characteristics:
Access to these buffers is controlled by using either a DMA
protocol or an interrupt to the main processor. These two modes
are configured by the external processor.
■ Parallel resonant
■ Fundamental mode
■ 1 mW drive level
■ 12 pF (5% tolerance) load capacitors[1]
As a DMA slave, Antioch generates a DMA request signal to
signify to the main processor that it is ready to read from or write
to a specific buffer. The external processor monitors this signal
and polls Antioch for the specific buffers ready for read or write.
Note
1. Specified as typical for 24 MHz frequency. Load capacitance varies with crystal vendor specifications and frequency used.
Document Number: 001-49144 Rev. *C
Page 3 of 23
CYWB0120AB
Figure 1. Capacitor.
24 MHz
C1
C2
12 pF
12 pF
PLL
12 pF capacitor values assumes a trace capacitance
of 3 pF per side on a four-layer FR4 PCA
Table 1. External Clock Requirements
Parameter
Specification
Min Max
Description
Unit
PN_100Hz
PN_1k
Input phase noise at 100 Hz offset
–
–
–75
–104
–120
–128
–130
70
dBc/Hz
dBc/Hz
dBc/Hz
dBc/Hz
dBc/Hz
%
Input phase noise at 1 kHz offset
Input phase noise at 10 kHz offset
Input phase noise at 100 kHz offset
Input phase noise at 1 MHz offset
Duty cycle
PN_10k
PN_100k
PN_1M
–
–
–
30
–
Maximum frequency deviation
Overshoot
150
3
ppm
–
%
Undershoot
–
–3
%
This on-chip PLL multiplies the 19.2/24/26/48 MHz frequency up
to 480 MHz, as required by the transceiver/PHY. The internal
counters divide it down for use as the 8051 clock. The 8051 clock
frequency is 48 MHz. The XTALIN frequency is independent of
the clock/data rate of the 8051 microprocessor or any of the
device interfaces (including P-port and S-port). The internal PLL
applies the proper clock multiply option depending on the input
frequency.
UVDDQ: This is the 3.3 V nominal supply for the USB I/O and
some analog circuits. It also supplies power to the USB
transceiver.
VDD33: This supply is required for the power sequence control
circuits. For more information, see Table 2 on page 6.
VDD: This is the supply voltage for the logic core. The nominal
supply voltage level is 1.8 V. This supplies the core logic circuits.
The same supply is also used for AVDDQ.
For applications that use an external clock source to drive
XTALIN, the XTALOUT Ball is left floating. The external clock is
a square wave that conforms to high and low voltage levels
mentioned in Table 3 on page 10 and the rise and fall time speci-
fications in Figure 17 on page 20. The external clock source also
stops high or low and is not toggling to achieve the lowest
possible current consumption. The requirements for an external
clock source are shown in Table 4 on page 11.
AVDDQ: This is the 1.8 V supply for PLL and USB serializer
analog components. The same supply is also used for VDD. The
maximum noise permitted on AVDDQ is 20 mV p-p.
XVDDQ: This is the clock I/O supply. 3.3 V for XTAL or 1.8 V for
an external clock.
Figure 2. Antioch Power Supply Domains
VDD
UVDDQ
*VDDQ
Power Domains
Antioch has multiple power domains that serve different
purposes within the chip.
D+
I/O
D-CORE
USB-IO
D-
*VDDQ: This refers to a group of five independent supply
domains for the digital I/Os. The nominal voltage level on these
supplies are 1.8 V, 2.5 V, or 3.3 V. Specifically, the three separate
I/O power domains are:
■ PVDDQ – P-port processor interface I/O
■ SVDDQ – S-port SD interface I/O
■ GVDDQ – Other miscellaneous I/O
Document Number: 001-49144 Rev. *C
Page 4 of 23
CYWB0120AB
Noise guideline for all supplies except AVDDQ is a maximum of
100 mV p-p. All I/O supplies of Antioch are ON when a system
is active, even if Antioch is not used. The core VDD is also
deactivated at any time to preserve power, provided that there is
a minimum impedance of 1 kbetween the VDD Ball and ground.
All I/Os tristate when the core is disabled.
completed before Antioch enters Suspend mode (state of
outstanding transactions are not preserved).
■ The firmware resumes its operation from where it has
suspended, because the program counter is not reset.
■ The only inputs that are sensed are RESET#, GPIO[0], D+, and
CE#. The last three are wakeup sources (each is individually
enabled or disabled).
Power Supply Sequence
The power supplies are independently sequenced without
damaging the part. All power supplies are up and stable before
the device operates. If all supplies are not stable, the remaining
domains are in low power (standby) mode.
■ Hard reset is performed by asserting the RESET# input and
Antioch performs initialization.
Standby Mode
Flexible IOs
Standby mode is a low-power state. This is the lowest power
mode of Antioch while still maintaining external supply levels.
This mode is entered through the deassertion of the WAKEUP
input ball or through internal register settings. It is exited by
asserting the WAKEUP Ball if the mode is entered by
deasserting the WAKEUP Ball. Exiting Standby mode is also
accomplished by asserting CE# LOW or processor writes to
Internal registers.
Each of Antioch’s ports operates between 1.8 V and 3.3 V with
an adjustable slew rate for each port, and adjustable drive
strength for each port for the I/Os. The slew rate and drive
strength are controlled by registers.
Power Modes
In addition to the normal operating mode, Antioch contains
several low power modes when normal operation is not required.
In this mode, the following characteristics apply:
■ All Configuration register settings and program RAM contents
are preserved. However, data in the buffers or other parts of
the data path, if any, is not guaranteed in values. As a result,
the external processor ensures that the required data is read
before the Antioch is moved into this Standby mode.
Normal Mode
In this mode, Antioch is fully functional. This is the mode, in which
data transfer functions described in this datasheet are
performed.
❐ The program counter is reset upon waking up from Standby
mode.
Suspend Mode
This mode is entered internally by 8051 (external processor only
initiates entry into this mode through Mailbox commands). This
mode is exited by the D+ bus going low, GPIO[0] going to a
predetermined state, or by asserting CE# LOW.
❐ All outputs are tri-stated (except UVALID), and I/O is placed
in input only configuration. Values of IOs in Standby mode
are listed in the Table 2 on page 6.
❐ Core power supply is retained.
❐ Hard reset is performed by asserting the RESET# input, and
In Suspend mode of Antioch:
■ The clocks are shut off.
Antioch performs initialization.
❐ PLL is disabled.
■ All I/Os maintain their previous state.
■ Core power supply is retained.
Core Power Down Mode
The core power supply VDD is powered down in this mode.
AVDDQ is tied to the same supply as VDD and as a result, is also
powered down. The endpoint buffers, configuration registers,
and the program RAM do not maintain state. It is necessary to
reload the firmware upon exiting from this mode. All VDDQ
power supplies (except AVDDQ) must be on and not powered
down in this mode. VDD33 must remain ON and the requirement
of a minimum impedance of 1 kbetween the VDD ball and
ground remains unchanged.
■ The states of the Configuration registers, endpoint buffers, and
the program RAM are maintained. All transactions are
Document Number: 001-49144 Rev. *C
Page 5 of 23
CYWB0120AB
The Ball Assignment table for CYWB0120AB follows.[2, 3, 4]
Table 2. Ball Assignment
Power
Domain
VFBGA Ball Name
I/O
Ball Description
Standby Reset[5]
J2
G1
H3
H2
H1
J3
CLK
CE#
A[7]
A[6]
A[5]
A[4]
A[3]
A[2]
A[1]
I
I
I
I
I
I
I
I
I
I
Clock for P-port
–
–
–
–
–
–
–
–
–
–
Z
Z
Z
Z
Z
Z
Z
Z
Z
Z
Z
Z
Z
Z
Z
Z
–
–
–
–
–
–
–
–
–
–
–
Z
Z
Z
Z
Z
Z
Z
Z
Z
Z
Z
Z
Z
Z
Z
Z
–
Chip Select for P-port. Active LOW
Bit 7 of Address Bus for P-port
Bit 6 of Address Bus for P-port
Bit 5 of Address Bus for P-port
Bit 4 of Address Bus for P-port
Bit 3 of Address Bus for P-port
Bit 2 of Address Bus for P-port
Bit 1 of Address Bus for P-port
Bit 0 of Address Bus for P-port
J1
K3
K2
K1
G2
G3
F1
F2
F3
E1
E2
E3
D1
D2
D3
C1
C2
C3
B1
B2
A1
A[0]
DQ[15]
DQ[14]
DQ[13]
DQ[12]
DQ[11]
DQ[10]
DQ[9]
DQ[8]
DQ[7]
DQ[6]
DQ[5]
DQ[4]
DQ[3]
DQ[2]
DQ[1]
DQ[0]
ADV#
I/O Bit 15 of Data Bus for P-port
I/O Bit 14 of Data Bus for P-port
I/O Bit 13 of Data Bus for P-port
I/O Bit 12 of Data Bus for P-port
I/O Bit 11 of Data Bus for P-port
I/O Bit 10 of Data Bus for P-port
I/O Bit 9 of Data Bus for P-port
I/O Bit 8 of Data Bus for P-port
I/O Bit 7 of Data Bus for P-port
I/O Bit 6 of Data Bus for P-port
I/O Bit 5 of Data Bus for P-port
I/O Bit 4 of Data Bus for P-port
I/O Bit 3 of Data Bus for P-port
I/O Bit 2 of Data Bus for P-port
I/O Bit 1 of Data Bus for P-port
I/O Bit 0 of Data Bus for P-port
PVDDQ
VGND
P-port
I
Address Valid for P-port. Valid during asynchronous mode.
ADV# deassertion causes to latch the address.
Output Enable. Controls the data bus output drive. Ignored
during write cycle. Active LOW.
Write Enable. Signals a read (HIGH) or write (LOW) access
cycle.
Interrupt Request. Assertion indicates that an interrupt event
has occurred. Active LOW.
DMA Request. Assertion indicates to Processor that it is ready
to read or write one or more endpoints. It reflects register
CY_AN_MEM_P0_DRQ EPnDRQ assertions. Active LOW or
HIGH (programmable).
B3
A2
A3
A4
OE#
WE#
INT#
DRQ#
I
–
–
Z
Z
–
–
Z
Z
I
O
O
B4
DACK#
I
DMA Acknowledgement. Assertion indicates DMA
acknowledgement from processor. Is configured in ACK mode
(asserted throughout DMA transfer) or EOB mode (pulsed at
end of DMA transfer). Active LOW or HIGH (programmable).
–
–
Notes
2. Unused inputs: Must be connected to HIGH/VDD or LOW/GND (negligible difference in current drawn) logic level, through a single 10 K pull-up resistor. The only
exceptions are WAKEUP, SDCFG and CLK. WAKEUP is tied HIGH for normal operation.CLK is tied LOW for asynchronous P-port operation.
3. Unused I/Os: For lowest leakage, unused I/Os must be connected to a HIGH logic level. It is recommended that connection to the power supply is through a single
10 kpull-up resistor for all unused I/Os.
4. No Antioch balls have internal pull-up or pull-down resistors. Input/output balls may require external pull-up or pull-down resistors depending on the application. The
pull-up resistors used to indicate speed capability on the USB are included in Antioch and need not be connected externally.
5. The Reset column indicates the state of signals during reset (RESET# asserted). The Standby column indicates signal state during Standby (low power operating
mode through WAKEUP deassertion) or core V deactivation.
DD
Document Number: 001-49144 Rev. *C
Page 6 of 23
CYWB0120AB
Table 2. Ball Assignment (continued)
VFBGA Ball Name I/O
Power
Domain
Ball Description
Standby Reset[5]
G9
G10
F9
F10
E9
E10
D9
D10
F8
SD_D[7]
SD_D[6]
SD_D[5]
SD_D[4]
SD_D[3]
SD_D[2]
SD_D[1]
SD_D[0]
SD_CLK
I/O Serve as SD_D[7] for SD port
I/O Serve as SD_D[6] for SD port
I/O Serve as SD_D[5] for SD port
I/O Serve as SD_D[4] for SD port
I/O Serve as SD_D[3] for SD port
I/O Serve as SD_D[2] for SD port
I/O Serve as SD_D[1] for SD port
I/O Serve as SD_D[0] for SD port
Z
Z
Z
Z
Z
Z
Z
Z
Z
Z
Z
Z
Z
Z
Z
Z
Z
Z
SVDDQ
VGND
O
Clock output for the SD interface. Frequency is changed and
clock is disabled through firmware control.
G8
H8
SD_CMD
SD_POW
I/O SD Command/Response Ball.
Z
Z
Z
Z
O
SD Power Control. This GPIO is used to control SD/MMC card
power FET if present. HIGH indicates on, LOW indicates off.
SD Write Protection Detection. Connected to GPIO for
firmware detection. HIGH indicates that the device connected
to the SD port has write protect enabled.
H10
SD_WP
I
–
–
S-port
K7
K8
J8
K9
J9
H9
K10
J10
K6
J6
SD_RSV
SD_RSV
SD_RSV
SD_RSV
SD_RSV
SD_RSV
SD_RSV
SD_RSV
NC
I/O Connect to SVDDQ with 10 K pull-up resistor
I/O Connect to SVDDQ with 10 K pull-up resistor
I/O Connect to SVDDQ with 10 K pull-up resistor
I/O Connect to SVDDQ with 10 K pull-up resistor
I/O Connect to SVDDQ with 10 K pull-up resistor
I/O Connect to SVDDQ with 10 K pull-up resistor
I/O Connect to SVDDQ with 10 K pull-up resistor
I/O Connect to SVDDQ with 10 K pull-up resistor
Z
–
–
–
–
–
–
–
Z
Z
Z
Z
Z
Z
–
Z
Z
Z
–
–
–
–
–
–
–
Z
Z
Z
Z
Z
Z
–
Z
Z
SVDDQ
VGND
O
O
O
O
O
O
I
Left floating
Left floating
Left floating
Left floating
Left floating
Left floating
Connect to SVDDQ with 10 K pull-up resistor
Left floating
NC
NC
NC
NC
J5
K4
H6
J7
NC
J4
SD_RSV
NC
D+
D–
UVALID
K5
A5
A6
A7
O
I/O/Z USB D+
I/O/Z USB D–
Z
Low
Z
Low
UVDDQ
UVSSQ
U-port
O
External USB Switch Control. Reflects value of register
CY_AN_MEM_PMU_UPDATE.UVALID.
A8
B8
XTALIN
XTALOUT[6]
RESET#
I
Input for either crystal or clock signal. XVDDQ is 3.3 V for
crystal input; XVDDQ is 1.8 V for clock input.
Output to connect to feedback input of crystal. Is left floating
when external clock at XTALIN.
Reset. Asserted to place Antioch into reset mode and subse-
quent initialization. Active LOW.
Reset Out. Deasserted LOW when RESET# is asserted LOW.
Asserted HIGH after RESET# is deasserted and initialization
is complete. Reflects value of RSTCMPT bit.
–
Z
–
Z
–
Z
XVDDQ
VGND
O
I
C10
B10
–
RESETOUT
O
Low
Others
GVDDQ
VGND
C9
D8
GPIO[1]
GPIO[0]
I/O General purpose input/output
Z
Z
Z
Z
I/O General purpose input/output.GPIO[0] is used for SD Card
Detect with firmware detection. LOW indicates card is
inserted.
C7
WAKEUP[7]
I
Wake Up Signal. 1 = normal operation, 0 = low power “sleep”
mode. Is asserted for Antioch to initialize.
–
–
Notes
6. XTALOUT is driven HIGH during Standby mode. XTALOUT operates the same during RESET# assertion and Normal mode: fixed HIGH when XVDDQ is 1.8 V (ext
clock) and actively toggles when XVDDQ is 3.3 V (crystal).
7. When RESET# is asserted, the device enters reset state and WAKEUP is ignored.
Document Number: 001-49144 Rev. *C
Page 7 of 23
CYWB0120AB
Table 2. Ball Assignment (continued)
Power
Domain
VFBGA Ball Name
I/O
Ball Description
Standby Reset[5]
C5
XTALSLC[1]
I
Clock Select. For CYWB0120AB, XTALSLC[1:0] is decoded
as:
–
–
00 = 19.2 MHz, 01 = 24 MHz, 10 = 48 MHz, 11 = 26 MHz.
Clock Select. For CYWB0120AB, XTALSLC[1:0] is decoded
as:
C4
XTALSLC[0]
I
–
–
00 = 19.2 MHz, 01 = 24 MHz, 10 = 48 MHz, 11 = 26 MHz.
S-port Configuration. Must be set to ‘1’
Test mode selection. Is tied to VGND for normal operation
(CMOS level inputs).
C6
E8
SDCFG
TEST[2]
-
I
–
–
–
–
Config
C8
D7
TEST[1]
TEST[0]
I
I
Test mode selection. Is tied to VGND for normal operation
(CMOS level inputs).
Test mode selection. Is tied to VGND for normal operation
(CMOS level inputs).
–
–
–
–
D4, H4
H5
B5
H5, H7
D6
B9
PVDDQ
SVDDQ
UVDDQ
SVDDQ
GVDDQ
AVDDQ
XVDDQ
Power Power for P-port I/O. 1.8 V, 2.5 V, or 3.3 V nominal.
Power Power for SD port I/O. 1.8 V, 2.5 V, or 3.3 V nominal.
Power Power for USB I/O. 3.3 V nominal.
–
–
–
–
–
–
–
–
–
–
–
–
–
–
GVDDQ
VGND
Power Power for SD port
Power Power for miscellaneous I/O. 1.8 V, 2.5 V, or 3.3 V nominal.
Power Power for internal PLL and USB serializer. 1.8 V nominal.
Power Power for crystal or clock I/O. 1.8 V (clock) or 3.3 V (crystal)
nominal.
B7
D5, G4,
G5, G6,
G7, F7
A10
B6
A9
E4, E5,
E6, E7,
F4, F5,
F6
VDD
Power Power for core. 1.8 V nominal.
–
–
Power
VDD33[8] Power Power sequence control supply. 3.3 V nominal.
UVSSQ
AVSSQ
VGND
–
–
–
–
–
–
–
–
Power Ground for all USB
Power Ground for PLL
Power Ground for core
Note
8. VDD33: In CYWB0120AB, the Ball is no-connect internally. It handles power sequence control in future West Bridge products. When migrating to Astoria, it is connected
to the highest supply to the device. If USB is used, for example, then VDD33 is connected to nominal 3.3 V (because 3.3 V is required for USB). VDD33 is always
supplied in Astoria.
Document Number: 001-49144 Rev. *C
Page 8 of 23
CYWB0120AB
Figure 3. CYWB0120AB 100 VFBGA
Top View
1
2
3
4
5
6
7
8
9
10
A
B
C
D
E
F
ADV#
WE#
INT#
DRQ#
D+
D-
UVALID
XTALIN
AVSSQ
VDD33
A
B
C
D
E
F
DQ[1]
DQ[4]
DQ[7]
DQ[10]
DQ[13]
CE#
DQ[0]
DQ[3]
DQ[6]
DQ[9]
DQ[12]
DQ[15]
A[6]
OE#
DQ[2]
DQ[5]
DQ[8]
DQ[11]
DQ[14]
A[7]
DACK#
UVDDQ
UVSSQ
SDCFG
GVDDQ
VGND
VGND
VDD
XVDDQ
WAKEUP
TEST[0]
VGND
VDD
XTALOUT
TEST[1]
GPIO[0]
AVDDQ RESETOUT
XTALSLC[0] XTALSLC[1]
GPIO[1]
SD_D[1]
SD_D[3]
SD_D[5]
SD_D[7]
SD_RSV
SD_RSV
RESET#
SD_D[0]
SD_D[2]
SD_D[4]
SD_D[6]
SD_WP
SD_RSV
PVDDQ
VGND
VDD
VGND
VGND
VDD
TEST[2]
SD_CLK
SD_CMD
SD_POW
SD_RSV
VGND
G
H
J
VDD
VDD
G
H
J
A[5]
PVDDQ
SD_RSV
SVDDQ
NC
NC
SVDDQ
NC
A[3]
CLK
A[4]
NC
K
A[0]
1
A[1]
2
A[2]
3
NC
4
NC
5
NC
6
SD_RSV
7
SD_RSV
8
SD_RSV
9
SD_RSV
10
K
POWER DOMAIN KEY
UVDDQ
GVDDQ
SVDDQ
VGND
PVDDQ
Document Number: 001-49144 Rev. *C
Page 9 of 23
CYWB0120AB
Static Discharge Voltage (ESD) from JESD22-A114> 2,000 V
Latch-Up Current....................................................> 200 mA
Absolute Maximum Ratings
Exceeding maximum ratings may shorten the useful life of the
device. User guidelines are not tested.
Maximum Output Short Circuit Current
for all I/O Configurations. (Vout = 0 V)[9] ................. –100 mA
Storage Temperature............................... –65 °C to +150 °C
Operating Conditions
Ambient Temperature with
Power Supplied (Industrial) ....................... –40 °C to +85 °C
TA (Ambient Temperature Under Bias)
Industrial..................................................... –40 °C to +85 °C
Supply Voltage to Ground Potential
VDD, AVDDQ ...............................................–0.5 V to +2.0 V
VDD, AVDDQ Supply Voltage ..........................1.7 V to 1.9 V
UVDDQ Supply Voltage....................................3.0 V to 3.6 V
GVDDQ, PVDDQ, SVDDQ,
UVDDQ and VDD33 and XVDDQ ................–0.5 V to +4.0 V
PVDDQ, GVDDQ, SVDDQ
Supply Voltage..................................................1.7 V to 3.6 V
DC Input Voltage to Any Input Ball .................1.89 V to 3.6 V
(Depends on I/O supply voltage. Inputs are not over
voltage tolerant)
XVDDQ (Crystal I/O) Supply Voltage ...............3.0 V to 3.6 V
XVDDQ (Ext. Clock I/O) Supply Voltage ..........1.7 V to 1.9 V
DC Voltage Applied to
Outputs in High Z State ..................... –0.5 V to VDDQ+0.5 V
DC Characteristics
Table 3. DC Specifications for All Voltage Supplies
Parameter
VDD
Description
Core voltage supply
Analog voltage supply
Crystal voltage supply
Clock voltage supply
Processor interface I/O
Conditions
Min
1.7
1.7
3.0
1.7
1.7
Typ
1.8
Max
1.9
1.9
3.6
1.9
3.6
Unit
V
AVDDQ
XVDDQ
XVDDQ
1.8
V
3.3
V
1.8
V
PVDDQ[11]
GVDDQ[11]
1.8, 2.5, 3.3
V
Miscellaneous I/O voltage
supply
1.7
1.8, 2.5, 3.3
3.6
V
SVDDQ[10,11]
UVDDQ[13]
VDD33
S-port SD I/O voltage supply
USB voltage supply
1.7
3.0
3.0
1.8, 2.5, 3.3
3.6
3.6
3.6
V
V
V
3.3
3.3
Power sequence control
supply
[12]
Input HIGH voltage 1
Input HIGH voltage 2
All ports except USB, 2.0 V < VCC < 3.6 V 0.625*VCC
All ports except USB, 1.7 V < VCC < 2.0 V VCC – 0.4
–0.3
VCC + 0.3
VCC + 0.3
0.25*VCC
V
VIH1
[12]
VIH2
VIL
Input LOW voltage
V
V
VOH
VOL
IIX
Output HIGH voltage
Output LOW voltage
Input leakage current
Output leakage current
IOH(MAX) = –0.1 mA
IOL(MIN) = 0.1 mA
0.9*VCC
0.1*VCC
V
All I/O signals held at VDDQ
All I/O signals held at VDDQ
Outputs tristated
–1
–1
1
1
A
A
mA
IOZ
I
CC Core
Operating current of core
voltage supply (VDD) and
analog voltage supply
(AVDDQ)
110
Notes
9. Do not test more than one output at a time. Duration of the short circuit does not exceed 1 second. Tested initially, and after any redesign or process changes, may
affect these parameters.
10. The SVDDQ I/O voltage is dynamically changed (for example, from high range to low range) as long as the supply voltage undershoot does not surpass the lower
minimum voltage limit. SVDDQ levels for SD modes: 2.0 V–3.6 V, MMC modes: 1.7 V–3.6 V.
11. Interfaces with a voltage range are adjustable with respect to the I/O voltage and thus support multiple I/O voltages.
12. V = pertinent VDDQ value.
CC
13. When U-port is in a disabled state, UVDDQ goes down to 2.4 V, provided UVDDQ is still the highest supply voltage level.
Document Number: 001-49144 Rev. *C
Page 10 of 23
CYWB0120AB
Table 3. DC Specifications for All Voltage Supplies (continued)
Parameter
Description
Conditions
Min
Typ
Max
Unit
ICC Crystal
Operating current of crystal XTALOUT Floating
voltage supply (XVDDQ)[16]
5
mA
ICC USB
ISB1
Operating current of USB
Operating and terminated for High Speed
25
mA
voltage supply (UVDDQ)[16] mode
250[14]
Total standby current of
Antioch when device is in
suspend mode
1. *VDDQ = 3.3 V Nominal (3.0–3.6 V)
2500
A
2. Outputs and Bidirs High or Floating[15]
3. XTALOUT Floating
4. D+ Floating (no current drawn through
internal 1.5 kpull-up), D– Grounded,
UVALID Driven LOW
5. Device in Suspend Mode
ISB2
Total standby current of
Antioch when device is in
standby mode
1. *VDDQ = 3.3 V Nominal
(3.0–3.6 V)
25 °C
85 °C
45
A
A
2. Outputs and Bidirs High or
Floating[15]
290
3. XTALOUT Floating
4. D+ Floating, D– Grounded,
UVALID Driven LOW
ISB3
Total standby current of
Antioch when device is in
core power-down mode
1. Outputs and Bidirs High or
Floating[15]
2. XTALOUT Floating
3. D+ Floating, D– Grounded,
UVALID Driven LOW
4. Core Powered Down
25 °C
85 °C
25
139
Table 4. Capacitance
Parameter
Description
Conditions
Typ
Max
9
Unit
CIN
Input Ball Capacitance, Except D+/D– TA = 25 °C, f = 1 MHz,
pF
VCC = VCCIO
Input Ball Capacitance, D+/D–
15
10
COUT
Output Ball Capacitance
pF
USB Transceiver
USB 2.0 compliant in full speed and high speed modes.
Notes
14. Isb1 typical value is not a maximum specification but a typical value. Isb1 maximum current value specified for 85 °C.
15. The Outputs/Bidirs that are forced low in Standby mode increases I/O supply standby current beyond specified value.
16. Active Current Conditions:
-UVDDQ: USB transmitting 50% of the time, receiving 50% of the time.
-PVDDQ/SVDDQ/GVDDQ: Active Current Depends on IO activity, bus load, and supply level.
-XVDDQ: Assume highest frequency clock (48 MHz) or crystal (26 MHz).
Document Number: 001-49144 Rev. *C
Page 11 of 23
CYWB0120AB
AC Characteristics
USB Transceiver
USB 2.0 compliant in full speed and high speed modes.
P-Port Interface
Asynchronous Mode Timing Parameters
Table 5. Asynchronous Mode Timing Parameters
Parameter
Description
Min
Max
Unit
Read Timing Parameters
tAA
Address to data valid
–
3
–
–
5
30
–
ns
ns
ns
ns
ns
ns
tOH
Data output hold from address change
Chip enable to data valid
tEA
30
30
–
tAADV
tAVS
tAVH
ADV# to data valid access time
Address valid to ADV# HIGH
ADV# HIGH to address hold
2[18]
5
–
tCVS
tVPH
CE# Low setup time to ADV# HIGH
ADV# HIGH time
–
–
ns
ns
15[17]
tVP
ADV# pulse width LOW
OE# LOW to data valid
OE# LOW to Low Z
OE# HIGH to High Z
CE# LOW to Low Z
CE# HIGH to High Z
7.5
–
–
22.5
–
ns
ns
ns
ns
ns
ns
tOE
tOLZ
tOHZ
tLZ
3
0
22.5
–
3
tHZ
–
22.5
Write Timing Parameters
tCW
CE# LOW to write end
30
30
0
–
–
–
–
–
–
–
–
–
ns
ns
ns
ns
ns
ns
ns
ns
ns
tAW
Address valid to write end
Address setup to write start
ADV# setup to write start
WE# pulse width
tAS
tADVS
tWP
0
22
10
10
5
tWPH
tCPH
tAVS
tAVH
WE# HIGH time
CE# HIGH time
Address valid to ADV# HIGH
ADV# HIGH to address hold
2[18]
5
tCVS
tVPH
CE# LOW setup time to ADV# HIGH
ADV# HIGH time
–
–
ns
ns
15[17]
7.5
30
18
0
tVP
ADV# pulse width LOW
–
–
ns
ns
ns
ns
ns
ns
tVS
ADV# LOW to End of Write
Data setup to write end
tDW
tDH
–
Data hold from write end
WE# Low to DQ High Z output
WE# High to DQ Low Z output
–
tWHZ
tWLZ
–
22.5
–
3
Notes
17. In applications where access cycle time is at least 60 ns, t
is relaxed to 12 ns.
VPH
18. In applications where back-to-back accesses are not performed on different endpoint addresses, the minimum t
specification is relaxed to 0 ns.
AVH
Document Number: 001-49144 Rev. *C
Page 12 of 23
CYWB0120AB
Figure 4. Asynchronous Single Read Timing
Valid Address
tAA
A
tVPH
tAVS
tAVH
ADV#
CE#
tHZ
tVP
tAADV
tEA
tOE
OE#
tOHZ
WE#
DQ
tOLZ
High Z
Valid Output
tLZ
Figure 5. Asynchronous Back-to-Back Read Timing
Valid Address
tAA
Valid Address
tOH
A
tVPH
tAVS
tAVH
ADV#
CE#
tHZ
tVP
tAADV
tEA
OE#
tOHZ
WE#
DQ
High Z
Valid Output
Valid Output
tLZ
Document Number: 001-49144 Rev. *C
Page 13 of 23
CYWB0120AB
Figure 6. Asynchronous Back-to-Back Write Timing
Valid Address
Valid Address
A
tAVS
tVP
tAVH
tVPH
ADV#
CE#
tVS
tCW
OE#
WE#
tAW
tWPH
tWP
tOW
tAS
tADVS
tDH
tDW
High Z
Valid Input
Valid Input
DQ_IN
tWHZ
tLZ
DQ_OUT
Figure 7. Asynchronous Read to Write Timing
A
Valid Address
Valid Address
Valid Address
tAA
tAVS
tAVH
ADV#
tVPH
tVPH
tAVS
tAVH
tVP
tVP
tVS
tAADV
CE#
tEA
tOE
OE#
WE#
tOHZ
tAW
tWP
tOW
tDH
tDW
tAS
High Z
Valid Input
Valid Input
DQ_IN
tOLZ
tWHZ
High Z
DQ_OUT
Valid Output
tLZ
Document Number: 001-49144 Rev. *C
Page 14 of 23
CYWB0120AB
Figure 8. Asynchronous Write to Read Timing
Valid Address
tAVS
tVP
Valid Address
A
tAA
tAVH
tAVS
tAVH
ADV#
CE#
tVP
tVS
tAADV
tOE
OE#
WE#
tAW
tWP
tDH
tDW
tAS
Valid Input
DQ_IN
tOLZ
tWHZ
DQ_OUT
Valid Output
Synchronous Mode Timing Parameters
Table 6. Synchronous Mode Timing Parameters
Parameter
FREQ
Description
Interface clock frequency
Clock Period
Conditions
Min
Max
33
–
Unit
MHz
ns
–
30
12
12
7.5
1.5
–
tCLK
tCLKH
tCLKL
tS
Clock HIGH time
–
ns
Clock LOW time
–
ns
CE#/WE#/ADDR/DQ setup time
CE#/WE#/ADDR/DQ hold time
Clock to valid data
–
ns
tH
–
ns
tCO
18
–
ns
tOH
Clock to data hold time
OE# HIGH to data High Z
OE# LOW to data Low Z
OE# LOW to data valid
WE# Low to DQ High Z output
WE# High to DQ Low Z output
2
ns
tHZ
–
22.5
–
ns
tLZ
3
ns
tOE
–
22.5
22.5
–
ns
tWHZ
tWLZ
tCKHZ
–
ns
3
ns
Clock to Data High Z (Figure 12 on page 17) Measured from the rising edge of the
–
18
ns
second clock after the deassertion of
CE#islatchedbytherisingedgeofthe
clock.
tCKLZ
Clock to Data Low Z (Figure 14 on page 18)
3
–
ns
Document Number: 001-49144 Rev. *C
Page 15 of 23
CYWB0120AB
Figure 9. Synchronous Write Timing
tCLKH
tCLKL
tCLK
CLK
CE#
tH
tS
A[7:0]
An+1
An+2
An
An+3
WE#
OE#
DQ[15:0]
(input)
Dn+1
Dn+2
Dn
Dn+3
DQ[15:0] High Z
(output)
Note:
- Assumes previous cycle had CE# deselected
- OE# is don’t care during write operations
Figure 10. Synchronous Read Timing
tCLKH
tCLKL
tCLK
CLK
CE#
tH
tS
A[7:0]
An+1
An+2
An
An+3
An+4
WE#
OE#
High Z
High Z
DQ[15:0]
(input)
tLZ
tHZ
tOH
Dn
tCO
DQ[15:0]
(output)
Dn+1
tOE
Note:
- Assumes previous cycle had CE# deselected
Document Number: 001-49144 Rev. *C
Page 16 of 23
CYWB0120AB
Figure 11. Synchronous Read (OE# Fixed LOW) Timing
CLK
CE#
tH
tS
A[7:0]
Ax+1
Ax+2
Ax
WE#
OE#
tCKHZ
Dx+1
tOH
Dx-1
tCO
DQ[15:0]
(output)
Dx-2
Dx
Dx
Note:
- Assumes previous several cycles were Read
Figure 12. Synchronous Read to Write (OE# Controlled) Timing
tCLKH
tCLKL
tCLK
CLK
CE#
tH
tS
A[7:0]
Ax+1
An
An+2
Ax
An+1
Dn+1
WE#
OE#
tH
tS
Dn
High Z
Note:
DQ[15:0]
(input)
Dn+2
tOH
Dx-1
tCO
tHZ
Dx
DQ[15:0]
(output)
Dx-2
- Assumes previous several cycles were Read
- (Ax) and (Ax+1) cycles are turnaround. (Ax+1) operation does not cross pipeline.
Document Number: 001-49144 Rev. *C
Page 17 of 23
CYWB0120AB
Figure 13. Synchronous Read to Write (OE# Fixed LOW) Timing
tCLKH
tCLKL
tCLK
CLK
CE#
tH
tS
A[7:0]
Ax+1
Ax+2
Ax
An
An+1
Dn+1
WE#
OE#
tWHZ
tH
Dn
tS
High Z
DQ[15:0]
(input)
tCO
tOH
Dx-1
DQ[15:0]
(output)
Dx
Dx-2
tCO
Note:
- Assumes previous several cycles were Read
- In this scenario, OE# is held LOW
- (Ax) and (Ax+1) cycles are turnaround. (Ax+1) operation does not cross pipeline.
- No operation is performed during the Ax+2 cycle (true turnaround operation)
Figure 14. Synchronous Write to Read Timing
tCLKH
tCLKL
tCLK
CLK
CE#
tH
tH
tS
tS
A[7:0]
An+1
Dn+1
An+2
An+4
An
Dn
An+3
WE#
OE#
tWLZ
DQ[15:0]
(input)
tOH
tCO
High Z
DQ[15:0]
(output)
Dn+2
tCKLZ
Note:
- Assumes previous cycle has CE# deselected
- In this scenario, OE# is held LOW
Document Number: 001-49144 Rev. *C
Page 18 of 23
CYWB0120AB
SD/MMC Parameters
Figure 15. SD/MMC Timing Waveform - All Modes
tSDCLKH
tSDCLK
SD_CLK
tSDCLKL
tSDOS
tSDOH
tSDCKLZ
tSDCKHZ
SD_CMD/
SD_D0-D3
Output
SD_CMD/
SD_D0-D3
Input
tSDIH
tSDIS
Table 7. Common Timing Parameters for SD and MMC – During Identification Mode
Parameter
SDFREQ
tSDCLK
Description
SD_CLK interface clock frequency
Clock period
Min
–
Max
400
–
Unit
kHz
s
2.5
1.0
1.0
tSDCLKH
tSDCLKL
Clock high time
–
s
Clock low time
–
s
Table 8. Common Timing Parameters for SD and MMC – During Data Transfer Mode
Parameter
SDFREQ
tSDCLK
Description
SD_CLK interface clock frequency
Clock period
Min
5
Max
48
200
60
3
Unit
MHz
ns
20.8
40
–
tSDCLKOD
tSCLKR
Clock duty cycle
%
Clock rise time
ns
tSCLKF
Clock fall time
–
3
ns
Table 9. Timing Parameters for SD – All Modes
Parameter Description
tSDIS Input setup time
Min
4
Max
–
Unit
ns
tSDIH
Input hold time
2.5
7
–
ns
tSDOS
Output setup time
Output hold time
Clock to Data High Z
Clock to Data Low Z
–
ns
tSDOH
6
–
ns
tSDCKHZ
tSDCKLZ
–
18
–
ns
3
ns
Table 10. Timing Parameters for MMC – All Modes
Parameter Description
tSDIS Input setup time
Min
4
Max
–
Unit
ns
tSDIH
Input hold time
4
–
ns
tSDOS
Output setup time
Output hold time
Clock to Data High Z
Clock to Data Low Z
6
–
ns
tSDOH
6
–
ns
tSDCKHZ
tSDCKLZ
–
18
–
ns
3
ns
Document Number: 001-49144 Rev. *C
Page 19 of 23
CYWB0120AB
Reset and Standby Timing Parameters
Figure 16. Reset and Standby Timing Diagram
Core
Power-Down
VDD
(core)
VDDQ
(I/O)
XTALIN up & stable
before WAKEUP
asserted
XTALIN
tWPW
tWU
tWH
Standby
Mode
tRR
WAKEUP
Mandatory
Reset Pulse
Mandatory
Reset Pulse
tRH
Hard Reset
RESET#
Firmware Init
Complete
Firmware Init
Complete
Firmware Init
Complete
High-Z
tRPW
RESETOUT
UVALID
USB Switch
Disabled
USB Switch
Enabled
tSLP
CY_AN_MEM_PMU_UPDATE.UVALID
bit is set to ‘0’
CY_AN_MEM_PMU_UPDATE.UVALID
bit is set to ‘0’
CY_AN_MEM_PMU_UPDATE.UVALID
bit is set to ‘1’
Table 11. Reset and Standby Timing Parameters
Parameter
tSLP
Description
Conditions
Min
–
Max
1
Unit
ms
ms
ms
ms
ms
ms
ms
ms
ms
Sleep time
tWU
WAKEUP time from standby mode
Clock on XTALIN
1
–
Crystal on XTALIN-XTALOUT
5
5
5
5
1
5
1
–
tWH
WAKEUP high time
WAKEUP pulse width
RESET# high time
RESET# pulse width
–
tWPW
tRH
–
–
tRPW
Clock on XTALIN
–
Crystal on XTALIN-XTALOUT
–
tRR
RESET# recovery time
–
Figure 17. AC Test Loads and Waveforms
Document Number: 001-49144 Rev. *C
Page 20 of 23
CYWB0120AB
Ordering Information
Ordering Code
CYWB0120AB-BVXI
CYWB0120AB-BVXIT
Turbo-MTP Enabled
No
Package Type
Available Clock Input Frequencies (MHz)
19.2, 24, 26, 48
100 VFBGA – Pb-Free
Ordering Code Definitions
AB
I
T
BV X
CY WB 0120
Tape and Reel
Temperature range: I = Industrial
Pb-free
100-ball VFBGA
A generation
Antioch-lite Bridge
Family: West Bridge
Company ID: CY = Cypress
Package Diagrams
Figure 18. 100 VFBGA (6 x 6 x 1.0 MM) BZ100A
51-85209 *D
Document Number: 001-49144 Rev. *C
Page 21 of 23
CYWB0120AB
Acronyms
Document Conventions
Units of Measure
Acronym
DMA
MMC
MTP
PLL
Description
direct memory access
Symbol
°C
Unit of Measure
multimedia card
media transfer protocol
phase-locked loop
secure digital
degree Celsius
microampere
millisecond
milliampere
megabytes per second
megahertz
nanosecond
ohm
µA
ms
mA
Mbps
MHz
ns
SD
I/O
input / output
USB
universal serial bus
pF
picofarad
V
volt
Document Number: 001-49144 Rev. *C
Page 22 of 23
CYWB0120AB
Document History Page
Document Title: CYWB0120AB West Bridge® Antioch™-Lite USB/SD Controller
Document Number: 001-49144
Orig. of
Change
Submission
Date
Revision
ECN
Description of Change
**
*A
*B
2574764 OGC/AESA 11/11/2008 New release
2746360
3525332
OGC
07/30/2009 Replaced NC on ball map J4 with SD_RSV
PRVE
02/15/2012 Updated Ordering Information (CYWB0120AB-BVXIT).
Package Diagrams updated 51-85209 from Rev *B to *D.
Added Acronyms, Document Conventions, Ordering Code Definitions, and Table
of Contents.
*C
3555122
AASI
03/19/2012 Post the datasheet to Cypress.com.
Sales, Solutions, and Legal Information
Worldwide Sales and Design Support
Cypress maintains a worldwide network of offices, solution centers, manufacturer’s representatives, and distributors. To find the office
closest to you, visit us at Cypress Locations.
Products
PSoC Solutions
Automotive
cypress.com/go/automotive
cypress.com/go/clocks
cypress.com/go/interface
cypress.com/go/powerpsoc
cypress.com/go/plc
psoc.cypress.com/solutions
PSoC 1 | PSoC 3 | PSoC 5
Clocks & Buffers
Interface
Lighting & Power Control
Memory
cypress.com/go/memory
cypress.com/go/image
cypress.com/go/psoc
Optical & Image Sensing
PSoC
Touch Sensing
USB Controllers
Wireless/RF
cypress.com/go/touch
cypress.com/go/USB
cypress.com/go/wireless
© Cypress Semiconductor Corporation, 2005-2012. The information contained herein is subject to change without notice. Cypress Semiconductor Corporation assumes no responsibility for the use of
any circuitry other than circuitry embodied in a Cypress product. Nor does it convey or imply any license under patent or other rights. Cypress products are not warranted nor intended to be used for
medical, life support, life saving, critical control or safety applications, unless pursuant to an express written agreement with Cypress. Furthermore, Cypress does not authorize its products for use as
critical components in life-support systems where a malfunction or failure may reasonably be expected to result in significant injury to the user. The inclusion of Cypress products in life-support systems
application implies that the manufacturer assumes all risk of such use and in doing so indemnifies Cypress against all charges.
Any Source Code (software and/or firmware) is owned by Cypress Semiconductor Corporation (Cypress) and is protected by and subject to worldwide patent protection (United States and foreign),
United States copyright laws and international treaty provisions. Cypress hereby grants to licensee a personal, non-exclusive, non-transferable license to copy, use, modify, create derivative works of,
and compile the Cypress Source Code and derivative works for the sole purpose of creating custom software and or firmware in support of licensee product to be used only in conjunction with a Cypress
integrated circuit as specified in the applicable agreement. Any reproduction, modification, translation, compilation, or representation of this Source Code except as specified above is prohibited without
the express written permission of Cypress.
Disclaimer: CYPRESS MAKES NO WARRANTY OF ANY KIND, EXPRESS OR IMPLIED, WITH REGARD TO THIS MATERIAL, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES
OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE. Cypress reserves the right to make changes without further notice to the materials described herein. Cypress does not
assume any liability arising out of the application or use of any product or circuit described herein. Cypress does not authorize its products for use as critical components in life-support systems where
a malfunction or failure may reasonably be expected to result in significant injury to the user. The inclusion of Cypress’ product in a life-support systems application implies that the manufacturer
assumes all risk of such use and in doing so indemnifies Cypress against all charges.
Use may be limited by and subject to the applicable Cypress software license agreement.
Document Number: 001-49144 Rev. *C
Revised March 19, 2012
Page 23 of 23
Astoria™ is the trademark and PSoC® and West Bridge® are the registered trademarks of Cypress Semiconductor Corp. All products and company names mentioned in this document may be the
trademarks of their respective holders.
厂商 型号 描述 页数 下载

CYPRESS

 		CYW134MOXC 直接Rambus ™时钟发生器[ Direct Rambus⑩ Clock Generator ] 12 页

CYPRESS

 		CYW134MOXCT 直接Rambus ™时钟发生器[ Direct Rambus⑩ Clock Generator ] 12 页

CYPRESS

 		CYW134SOXC 直接Rambus ™时钟发生器[ Direct Rambus⑩ Clock Generator ] 12 页

CYPRESS

 		CYW134SOXCT 直接Rambus ™时钟发生器[ Direct Rambus⑩ Clock Generator ] 12 页

SPECTRALINEAR

 		CYW137OXC FTG移动440BX和全美达的Crusoe CPU[ FTG for Mobile 440BX & Transmeta’s Crusoe CPU ] 8 页

SPECTRALINEAR

 		CYW137OXCT FTG移动440BX和全美达的Crusoe CPU[ FTG for Mobile 440BX & Transmeta’s Crusoe CPU ] 8 页

SILICON

 		CYW150 [ 440BX AGPset Spread Spectrum Frequency Synthesizer ] 15 页

SILICON

 		CYW150OXC [ 440BX AGPset Spread Spectrum Frequency Synthesizer ] 15 页

SILICON

 		CYW150OXCT [ 440BX AGPset Spread Spectrum Frequency Synthesizer ] 15 页

CYPRESS

 		CYW15G0101DXB 单通道的HOTLink II ™收发器[ Single-channel HOTLink II⑩ Transceiver ] 39 页

购物指南

支付方式

配送服务

售后服务

发票须知

优惠券使用规则

特色服务

PCBA制造

国产品牌推荐

国产料号替代

质量保证

技术资料

行业资讯

关于我们

关于达普

联系我们

联系我们

服务热线：400-618-9990

企业邮箱：smail@ic72.com

服务时间：周一至周六 8:30-17:30

达普官方微信号

PDF索引：

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

X

Y

Z

0

1

2

3

4

5

6

7

8

9

IC型号索引：

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

X

Y

Z

0

1

2

3

4

5

6

7

8

9

Copyright 2024 gkzhan.com Al Rights Reserved 京ICP备06008810号-21 京

深圳网络警察报警平台
公共信息安全网络监察
经营性网站备案信息
不良信息举报中心
工商网监电子标识
全国公安机关备案
0.211477s
