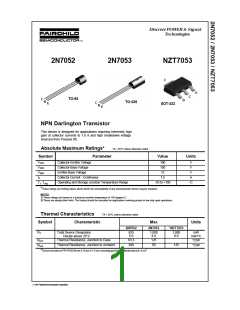

Discr ete P OWER & Sign a l
Tech n ologies
2N7052
2N7053
NZT7053
C
E
C
TO-92
C
B
B
TO-226
C
E
SOT-223
B
E
NPN Darlington Transistor
This device is designed for applications requiring extremely high
gain at collector currents to 1.0 A and high breakdown voltage.
Sourced from Process 06.
Absolute Maximum Ratings*
TA = 25°C unless otherwise noted
Symbol
Parameter
Value
Units
VCEO
VCBO
VEBO
IC
Collector-Emitter Voltage
100
100
V
V
V
A
Collector-Base Voltage
Emitter-Base Voltage
12
Collector Current - Continuous
Operating and Storage Junction Temperature Range
1.5
-55 to +150
C
°
TJ, Tstg
*These ratings are limiting values above which the serviceability of any semiconductor device may be impaired.
NOTES:
1) These ratings are based on a maximum junction temperature of 150 degrees C.
2) These are steady state limits. The factory should be consulted on applications involving pulsed or low duty cycle operations.
Thermal Characteristics
TA = 25°C unless otherwise noted
Symbol
Characteristic
Max
Units
2N7052
2N7053
*NZT7053
PD
Total Device Dissipation
Derate above 25°C
Thermal Resistance, Junction to Case
625
5.0
83.3
1,000
8.0
125
1,000
8.0
mW
mW/°C
°C/W
RθJC
RθJA
Thermal Resistance, Junction to Ambient
200
50
125
°C/W
*Device mounted on FR-4 PCB 36 mm X 18 mm X 1.5 mm; mounting pad for the collector lead min. 6 cm2.
ã 1997 Fairchild Semiconductor Corporation
NPN Darlington Transistor
(continued)
Electrical Characteristics
TA = 25°C unless otherwise noted
Symbol
Parameter
Test Conditions
Min
Max
Units
OFF CHARACTERISTICS
V(BR)CEO
V(BR)CBO
V(BR)EBO
ICBO
Collector-Emitter Breakdown Voltage* IC = 1.0 mA, IB = 0
100
100
12
V
V
V
Collector-Base Breakdown Voltage
Emitter-Base Breakdown Voltage
Collector-Cutoff Current
I = 100 A, I = 0
µ
C
E
IE = 1.0 mA, IC = 0
VCB = 80 V, IE = 0
VCE = 80 V, IE = 0
VEB = 7.0 V, IC = 0
0.1
0.2
0.1
A
A
A
µ
µ
µ
ICES
Collector-Cutoff Current
IEBO
Emitter-Cutoff Current
ON CHARACTERISTICS*
hFE
DC Current Gain
IC = 100 mA, VCE = 5.0 V
IC = 1.0 A, VCE = 5.0 V
IC = 100 mA, IB = 0.1 mA
10,000
1,000
20,000
1.5
Collector-Emitter Saturation Voltage
Base-Emitter On Voltage
V
VCE(sat)
VBE(on)
IC = 100 mA, VBE = 5.0 V
2.0
V
SMALL SIGNAL CHARACTERISTICS
Transition Frequency
IC = 100 mA, VCE = 5.0 V,
200
MHz
pF
FT
Collector-Base Capacitance
VCB = 10 V,f = 1.0 MHz
10
8.0
2N7052
2N7053
Ccb
*Pulse Test: Pulse Width £300 ms, Duty Cycle £1.0%
Typical Characteristics
Typical Pulsed Current Gain
Collector-Emitter Saturation
Voltage vs Collector Current
vs Collector Current
100
2
1.6
1.2
0.8
0.4
0
β
= 1000
80
60
125 °C
- 40°C
40
25 °C
25 °C
125 °C
20
0
- 40°C
0.001
0.01
0.1
1
10
100
IC - COLLECTOR CURRENT (mA)
1000
IC - COLLECTOR CURRENT (A)
NPN Darlington Transistor
(continued)
Typical Characteristics (continued)
Base-Emitter Saturation
Voltage vs Collector Current
Base Emitter ON Voltage vs
Collector Current
2
2
1.6
1.2
0.8
0.4
0
β = 1000
- 40°C
1.6
- 40°C
25 °C
25 °C
1.2
125 °C
125 °C
0.8
VCE= 5V
0.4
0
10
100
1000
10
100
1000
IC - COLLECTOR CURRENT (mA)
I C - COLLECTOR CURRENT (mA)
Junction Capacitance vs
Reverse Bias Voltage
Collector-Cutoff Current
vs. Ambient Temperature
100
10
1
100
VCB = 80V
10
1
C
ib
0.1
0.01
C
cb
25
50
75
100
125
0.1
1
10
100
TA- AMBIENT TEMPERATURE (ºC)
REVERSE BIAS VOLTAGE (V)
Power Dissipation vs
Ambient Temperature
Typical Collector-Emitter Leakage
Current vs Temperature
1
0.75
0.5
0.25
0
1000
VCE = 80V
VBE = 0
SOT-223
100
10
1
TO-92
TO-226
0.1
0
40
80
120
160
0
25
50
75
100
125
150
TEMPERATURE (oC)
º
TJ - JUNCTION TEMPERATURE ( C)
TO-92 Tape and Reel Data
TO-92 Packaging
Configuration: Figure 1.0
TAPE and REEL OPTION
See Fig 2.0 for various
Reeling Styles
FSCINT Label sample
FAIRCHILD SEMICONDUCTOR CORPORATION
HTB:B
QTY:
10000
LOT:
CBVK741B019
NSID:
D/C1:
SPEC:
PN2222N
FSCINT
Label
SPEC REV:
QA REV:
D9842
B2
5 Reels per
Intermediate Box
(FSCINT)
Customized
Label
F63TNR Label sample
LOT: CBVK741B019
F63TNR
Label
QTY: 2000
SPEC:
FSID: PN222N
Customized
Label
D/C1: D9842
D/C2:
QTY1:
QTY2:
SPEC REV:
CPN:
N/F: F
(F63TNR)3
375mm x 267mm x 375mm
Intermediate Box
TO-92 TNR/AMMO PACKING INFROMATION
AMMO PACK OPTION
See Fig 3.0 for 2 Ammo
Pack Options
Packing
Style
A
Quantity
2,000
EOL code
D26Z
Reel
E
2,000
D27Z
Ammo
M
2,000
D74Z
P
2,000
D75Z
FSCINT
Label
Unit weight
Reel weight with components
Ammo weight with components = 1.02 kg
= 0.22 gm
= 1.04 kg
Max quantity per intermediate box = 10,000 units
5 Ammo boxes per
Intermediate Box
327mm x 158mm x 135mm
Immediate Box
Customized
Label
F63TNR
Label
Customized
Label
333mm x 231mm x 183mm
Intermediate Box
(TO-92) BULK PACKING INFORMATION
BULK OPTION
See Bulk Packing
Information table
EOL
CODE
LEADCLIP
DESCRIPTION
QUANTITY
2.0 K / BOX
DIMENSION
J18Z
TO-18 OPTION STD
TO-5 OPTION STD
NO LEAD CLIP
Anti-static
Bubble Sheets
J05Z
NO LEAD CLIP
NO LEADCLIP
1.5 K / BOX
2.0 K / BOX
FSCINT Label
NO EOL
CODE
TO-92 STANDARD
STRAIGHT FOR: PKG 92,
94 (NON PROELECTRON
SERIES), 96
L34Z
TO-92 STANDARD
STRAIGHT FOR: PKG 94
NO LEADCLIP
2.0 K / BOX
(PROELECTRON SERIES
2000 units per
EO70 box for
std option
114mm x 102mm x 51mm
Immediate Box
BCXXX, BFXXX, BSRXXX),
97, 98
5 EO70 boxes per
intermediate Box
530mm x 130mm x 83mm
Intermediate box
Customized
Label
FSCINT Label
10,000 units maximum
per intermediate box
for std option
March 2001, Rev. B1
©2001 Fairchild Semiconductor Corporation
TO-92 Tape and Reel Data, continued
TO-92 Reeling Style
Configuration: Figure 2.0
Machine Option “A” (H)
Machine Option “E” (J)
Style “A”, D26Z, D70Z (s/h)
Style “E”, D27Z, D71Z (s/h)
TO-92 Radial Ammo Packaging
Configuration: Figure 3.0
FIRST WIRE OFF IS COLLECTOR
ADHESIVE TAPE IS ON THE TOP SIDE
FLAT OF TRANSISTOR IS ON TOP
FIRST WIRE OFF IS EMITTER
ADHESIVE TAPE IS ON THE TOP SIDE
FLAT OF TRANSISTOR IS ON BOTTOM
ORDER STYLE
D74Z (M)
ORDER STYLE
D75Z (P)
FIRST WIRE OFF IS COLLECTOR (ON PKG. 92)
ADHESIVE TAPE IS ON BOTTOM SIDE
FLAT OF TRANSISTOR IS ON TOP
FIRST WIRE OFF IS EMITTER (ON PKG. 92)
ADHESIVE TAPE IS ON BOTTOM SIDE
FLAT OF TRANSISTOR IS ON BOTTOM
September 1999, Rev. B
TO-92 Tape and Reel Data, continued
TO-92 Tape and Reel Taping
Dimension Configuration: Figure 4.0
Hd
P
Pd
b
Ha
W1
d
S
L
H1
HO
L1
WO
t
W2
W
t1
P1 F1
P2
DO
ITEM DESCRIPTION
SYMBOL
DIMENSION
PO
b
0.098 (max)
Base of Package to Lead Bend
Component Height
Ha
HO
H1
Pd
Hd
P
0.928 (+/- 0.025)
0.630 (+/- 0.020)
0.748 (+/- 0.020)
0.040 (max)
User Direction of Feed
Lead Clinch Height
Component Base Height
Component Alignment ( side/side )
Component Alignment ( front/back )
Component Pitch
0.031 (max)
0.500 (+/- 0.020)
0.500 (+/- 0.008)
0.150 (+0.009, -0.010)
0.247 (+/- 0.007)
0.104 (+/- 0 .010)
0.018 (+0.002, -0.003)
0.429 (max)
PO
P1
P2
F1/F2
d
Feed Hole Pitch
Hole Center to First Lead
Hole Center to Component Center
Lead Spread
Lead Thickness
L
Cut Lead Length
L1
t
0.209 (+0.051, -0.052)
0.032 (+/- 0.006)
0.021 (+/- 0.006)
0.708 (+0.020, -0.019)
0.236 (+/- 0.012)
0.035 (max)
Taped Lead Length
Taped Lead Thickness
Carrier Tape Thickness
Carrier Tape Width
t1
W
TO-92 Reel
Configuration: Figure 5.0
Hold - down Tape Width
Hold - down Tape position
Feed Hole Position
WO
W1
W2
DO
S
0.360 (+/- 0.025)
0.157 (+0.008, -0.007)
0.004 (max)
Sprocket Hole Diameter
Lead Spring Out
Note : All dimensions are in inches.
ELECTROSTATIC
SENSITIVE DEVICES
D4
D1
ITEM DESCRIPTION
SYSMBOL MINIMUM
MAXIMUM
D2
Reel Diameter
D1
D2
D2
D3
D4
W1
W2
W3
13.975
1.160
0.650
3.100
2.700
0.370
1.630
14.025
1.200
0.700
3.300
3.100
0.570
1.690
2.090
F63TNR Label
Arbor Hole Diameter (Standard)
(Small Hole)
Customized Label
Core Diameter
Hub Recess Inner Diameter
Hub Recess Depth
Flange to Flange Inner Width
Hub to Hub Center Width
W1
W3
W2
Note: All dimensions are inches
D3
July 1999, Rev. A
TO-92 Package Dimensions
TO-92 (FS PKG Code 92, 94, 96)
1:1
Scale 1:1 on letter size paper
Dimensions shown below are in:
inches [millimeters]
Part Weight per unit (gram): 0.1977
January 2000, Rev. B
©2000 Fairchild Semiconductor International
TRADEMARKS
The following are registered and unregistered trademarks Fairchild Semiconductor owns or is authorized to use and is
not intended to be an exhaustive list of all such trademarks.
PowerTrench
QFET™
QS™
SyncFET™
TinyLogic™
UHC™
ACEx™
FASTr™
GlobalOptoisolator™
GTO™
Bottomless™
CoolFET™
CROSSVOLT™
DOME™
QT Optoelectronics™
VCX™
HiSeC™
Quiet Series™
SILENT SWITCHER
SMART START™
SuperSOT™-3
SuperSOT™-6
SuperSOT™-8
ISOPLANAR™
MICROWIRE™
OPTOLOGIC™
OPTOPLANAR™
PACMAN™
POP™
E2CMOSTM
EnSignaTM
FACT™
FACT Quiet Series™
FAST
DISCLAIMER
FAIRCHILD SEMICONDUCTOR RESERVES THE RIGHT TO MAKE CHANGES WITHOUT FURTHER
NOTICE TOANY PRODUCTS HEREIN TO IMPROVE RELIABILITY, FUNCTION OR DESIGN. FAIRCHILD
DOES NOTASSUMEANY LIABILITYARISING OUT OF THEAPPLICATION OR USE OFANY PRODUCT
OR CIRCUIT DESCRIBED HEREIN; NEITHER DOES IT CONVEY ANY LICENSE UNDER ITS PATENT
RIGHTS, NOR THE RIGHTS OF OTHERS.
LIFE SUPPORT POLICY
FAIRCHILD’S PRODUCTS ARE NOT AUTHORIZED FOR USE AS CRITICAL COMPONENTS IN LIFE SUPPORT
DEVICES OR SYSTEMS WITHOUTTHE EXPRESS WRITTENAPPROVALOF FAIRCHILD SEMICONDUCTOR CORPORATION.
As used herein:
1. Life support devices or systems are devices or
systems which, (a) are intended for surgical implant into
the body, or (b) support or sustain life, or (c) whose
failure to perform when properly used in accordance
with instructions for use provided in the labeling, can be
reasonably expected to result in significant injury to the
user.
2. A critical component is any component of a life
support device or system whose failure to perform can
be reasonably expected to cause the failure of the life
support device or system, or to affect its safety or
effectiveness.
PRODUCT STATUS DEFINITIONS
Definition of Terms
Datasheet Identification
Product Status
Definition
Advance Information
Formative or
In Design
This datasheet contains the design specifications for
product development. Specifications may change in
any manner without notice.
Preliminary
First Production
This datasheet contains preliminary data, and
supplementary data will be published at a later date.
Fairchild Semiconductor reserves the right to make
changes at any time without notice in order to improve
design.
No Identification Needed
Obsolete
Full Production
This datasheet contains final specifications. Fairchild
Semiconductor reserves the right to make changes at
any time without notice in order to improve design.
Not In Production
This datasheet contains specifications on a product
that has been discontinued by Fairchild semiconductor.
The datasheet is printed for reference information only.
Rev. G
厂商 型号 描述 页数 下载

FAIRCHILD

 		NZT44H8 NPN功放[ NPN Power Amplifier ] 4 页

TI

 		NZT44H8-S62Z [ 8000 mA, 60 V, NPN, Si, SMALL SIGNAL TRANSISTOR, TO-261 ] 4 页

FAIRCHILD

 		NZT44H8D84Z [ Power Bipolar Transistor, 1-Element, Silicon, Plastic/Epoxy, 4 Pin, SOT-223, 4 PIN ] 4 页

FAIRCHILD

 		NZT44H8L99Z [ Power Bipolar Transistor, 1-Element, Silicon, Plastic/Epoxy, 4 Pin, SOT-223, 4 PIN ] 4 页

FAIRCHILD

 		NZT44H8S62Z [ Power Bipolar Transistor, 1-Element, Silicon, Plastic/Epoxy, 4 Pin, SOT-223, 4 PIN ] 4 页

FAIRCHILD

 		NZT44H8_NL [ Power Bipolar Transistor, 8A I(C), 60V V(BR)CEO, 1-Element, NPN, Silicon, Plastic/Epoxy, 4 Pin, SOT-223, 4 PIN ] 8 页

FAIRCHILD

 		NZT45C11 PNP电流驱动器晶体管[ PNP Current Driver Transistor ] 3 页

FAIRCHILD

 		NZT45C11D84Z [ Power Bipolar Transistor, 4A I(C), 60V V(BR)CEO, 1-Element, PNP, Silicon, Plastic/Epoxy, 4 Pin ] 3 页

FAIRCHILD

 		NZT45C11L99Z [ Power Bipolar Transistor, 4A I(C), 60V V(BR)CEO, 1-Element, PNP, Silicon, Plastic/Epoxy, 4 Pin ] 3 页

FAIRCHILD

 		NZT45H8 PNP功率放大器[ PNP Power Amplifier ] 4 页

购物指南

支付方式

配送服务

售后服务

发票须知

优惠券使用规则

特色服务

PCBA制造

国产品牌推荐

国产料号替代

质量保证

技术资料

行业资讯

关于我们

关于达普

联系我们

联系我们

服务热线：400-618-9990

企业邮箱：smail@ic72.com

服务时间：周一至周六 8:30-17:30

达普官方微信号

PDF索引：

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

X

Y

Z

0

1

2

3

4

5

6

7

8

9

IC型号索引：

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

X

Y

Z

0

1

2

3

4

5

6

7

8

9

Copyright 2024 gkzhan.com Al Rights Reserved 京ICP备06008810号-21 京

深圳网络警察报警平台
公共信息安全网络监察
经营性网站备案信息
不良信息举报中心
工商网监电子标识
全国公安机关备案
0.224889s
