UX2013

型号:

UX2013

描述:

TTL输出限幅放大器>TTL输出的限幅放大器(主放大器或者后置放大器)[ TTL output Limiting Amplifier TTL输出的限幅放大器(主放大器或者后置放大器) ]

品牌:

ETC[ ETC ]

页数:

5 页

PDF大小:

191 K

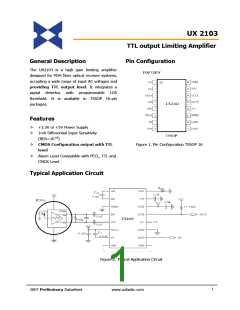

UX 2103
TTL output Limiting Amplifier
General Description
Pin Configuration
The UX2103 is a high gain limiting amplifier
designed for PDH fiber optical receiver systems,
accepting a wide range of input AC voltages and
providing TTL output level. It integrates a
signal detector, with programmable LOS
threshold. It is available in TSSOP 16-pin
packages.
Features
—
—
+3.3V or +5V Power Supply
1mV Differential Input Sensitivity
(BER=10-10)
—
—
CMOS Configuration output with TTL
level
Figure 1. Pin Configuration TSSOP 16
Alarm Level Compatible with PECL, TTL and
CMOS Level
Typical Application Circuit
Figure 2. Typical Application Circuit
1
2007 Preliminary Datasheet
www.uxfastic.com
UX 2103
TTL output Limiting Amplifier
Pin Description
Pin No.
Name
Function
Auto-zero capacitor pin. A capacitor connected between this pin and AZ2 sets the
time constant of the offset correction loop. The offset correction is disabled when
the AZ1 and AZ2 pins are shorted together.
1
AZ1
See AZ1.
2
3
4
5
6
7
AZ2
GNDA
INP
Analog Supply Ground. Must be at same potential as GNDE pin.
Positive data input
Negative data input
INN
Analog Supply Voltage. Must be at the same potential as the VCCE pin.
VCCA
CF
Level-detect filter capacitor pin. Connect a capacitor between this pin and VCCA.
The squelch function is disabled when JAM is connected to ground. The automatic
squelch function is enabled when JAM is connected to the LOSP.
8
JAM
Positive Loss-of-Signal output, CMOS level, compatible with PECL and TTL. LOSP is
low when the level of the input signal is above the preset threshold set by the VSET
input. LOSP is high when the signal level drops below the threshold. Normally
connected to JAM pin to enable automatic squelch function to operate.
Negative Loss-of-signal output, CMOS level, compatible with PECL and TTL. LOSN is
high when the level of the input signal is above the preset threshold set by the VSET
input. LOSN is low when the signal level drops below the threshold. Indicates Input
signal level status.
9
LOSP
10
LOSN
Digital Supply Ground. Must be the same potential as the GNDA pin.
11
12
13
14
GNDE
N.C.
No Connection.
Positive data output, CMOS Configuration with TTL level.
OUTP
VCCE
Digital Supply Voltage. Must be at the same potential as the VCCA pin.
5V to 3V conversion output pin.No connection or can connect a capacitor
between this pin and GND.
V3V
15
Loss-of-Signal Threshold Pin. Resistor (RSET) to ground sets the LOS threshold. This
pin can be left open if the LOS detect function is not required and JAM is connected
to ground, otherwise connect VSET to ground.
16
VSET
Absolute Maximum Ratings
Symbol
VCC
Parameter
Rating
6
Units
V
Power supply(Note 1)
Operating ambient
Storage temperature
TA
-40 to +85
-65 to +150
°C
TSTG
°C
2
2007 Preliminary Datasheet
www.uxfastic.com
UX 2103
TTL output Limiting Amplifier
Recommended Operating Conditions
Symbol
VCC
Parameter
Power supply(Note 1)
Operating ambient
Rating
3.0 to 5.5
-40 to +85
Units
V
TA
°C
Note 1: Related to Ground
DC Characteristics
Symbol
Parameter
Min
Typ
VCC
Max
Units
mV
mVP-P
V
VOS
VTH
Equivalent input Offset Voltage
LOS Sensitivity Range
High output
50
20
2
VOH
VOL
HYS
Low output
GND
0.5
V
LOS Hysteresis (Note 2)
1
2
4
dB
ICC
Power-Supply Current (Note 3)
25.3
mA
Note 2: Optical, 10log (VDEASSERT/VASSERT).
Note 3: LOSN is at CMOS level, no load terminated to the outputs, with I/O current in the output buffer.
AC Characteristics
(VCC=+3.0V to +5.5V, Typical values are at VCC = +5V, TA = +25°C, unless otherwise noted.)
Symbol
Parameter
Single ended
Differential
Min
0.5
1
Typ
20
Max
800
Units
VIN
Input signal voltage
mV
1600
RIN
CIN
Input Resistance
Input Capacitance
K
pF
ps
ps
μs
2
TR, TF
TPWD
TLOS
Data Output Transition Time (Note 5)
Pulse-Width Distortion(Note 6)
LOS Assert/Deassert Time
780
1900
150
100
Note 4: Single ended; the output buffer is CMOS structure, shown in Figure3.
Note 5: 20% to 80%
Note 6: TPWD= [(width of wider pulse)-(width of narrower pulse)]/2.
3
2007 Preliminary Datasheet
www.uxfastic.com
UX 2103
TTL output Limiting Amplifier
Applications Information
TTL output
CMOS structure.,but it operates TTL level,usually
teminated by a pull up resistor (4.710K), see
Figure3.
Figure 3. TTL Termination Circuit at OUT
terminated by a pull up resistor (4.710K), see
Figure4, it compatible with TTL level; When
terminated by 50to (VCC-2V), see Figure5, it
compatible with PECL level. The corresponding
logic states list in table LOS Level Status.
LOS Output Terminations
In UX2103, the LOS interface operates three logic
states with different termination techniques
respectively. When LOSN is connected directly to
external circuits, it operates CMOS level; When
Figure 4. Equivalent TTL Termination Circuit
at LOSN
Figure 5. Equivalent PECL Termination
Circuit at LOSN
LOS level status
Logic State
High
CMOS
VCC
PECL
TTL
VCC
VCC-0.9V
VCC-2.2V
Low
Ground
Ground to 0.5V
4
2007 Preliminary Datasheet
www.uxfastic.com
UX 2103
TTL output Limiting Amplifier
Package Outline
Details of ‘A’ part
Figure 6. TSSOP16 Package
5
2007 Preliminary Datasheet
www.uxfastic.com
