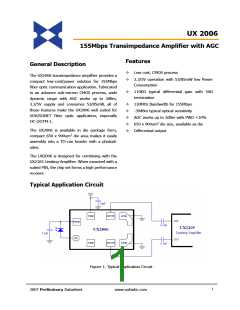

UX 2006
155Mbps Transimpedance Amplifier with AGC
Features
General Description
Low cost, CMOS process
The UX2006 transimpedance amplifier provides a
compact low-cost/power solution for 155Mbps
fiber optic communication application. Fabricated
in an advance sub-micron CMOS process, wide
dynamic range with AGC works up to 3dBm,
3.3/5V supply and consumes 53/85mW, all of
these features make the UX2006 well suited for
SDH/SONET fiber optic application, especially
OC-3/STM-1.
3.3/5V operation with 53/85mW low Power
Consumption
110KΩ typical differential gain with 50Ω
termination
130MHz Bandwidth for 155Mbps
-39dBm typical optical sensitivity
AGC works up to 3dBm with PWD <10%
650 x 900um2 die size, available as die
Differential output
The UX2006 is available in die package form,
compact 650 x 900um2 die area makes it easily
assembly into a TO-can header with a photodi-
odes.
The UX2006 is designed for combining with the
UX2105 Limiting-Amplifier. When mounted with a
suited PIN, the chip set forms a high performance
receiver.
Typical Application Circuit
Figure 1. Typical Application Circuit
