CYT6166

型号:

CYT6166

描述:

- 12号的铝制车身绘( RAL 7032 )

品牌:

ETC[ ETC ]

页数:

5 页

PDF大小:

244 K

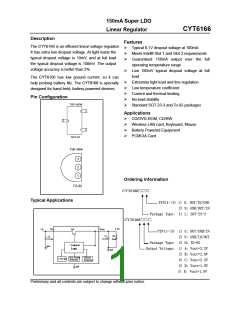

150mA Super LDO
Linear Regulator
CYT6166
Description
Features
The CYT6166 is an efficient linear voltage regulator.
It has extra low dropout voltage. At light loads the
typical dropout voltage is 10mV, and at full load
the typical dropout voltage is 100mV. The output
voltage accuracy is better than 2%.
¾
¾
¾
Typical 0.1V dropout voltage at 100mA.
Meets Intel® Slot 1 and Slot 2 requirements
Guaranteed 150mA output over the full
operating temperature range
¾
Low 180mV typical dropout voltage at full
load
The CYT6166 has low ground current, so it can
help prolong battery life. The CYT6166 is specially
designed for hand-held, battery-powered devices.
¾
¾
¾
¾
¾
Extremely tight load and line regulation
Low temperature coefficient
Current and thermal limiting
No-load stability
Standard SOT-23-3 and To-92 packages
Pin Configuration
TOP-VIEW
2
Applications
¾
¾
¾
¾
CD/DVD-ROM, CD/RW
3
Wireless LAN card, Keyboard, Mouse
Battery Powered Equipment
PCMCIA Card
1
SOT-23
Top view
3
2
1
Ordering information
TO-92
CYT6166□□□
Typical Applications
PIN(1->3) 1) G: OUT/IN/GND
2) N: GND/OUT/IN
Package Type: 1) L: SOT-23-3
CYT6166□□□
3.3V
Vin
Vout
M0
5V
PIN(1->3) 1) G: OUT/GND/IN
2) N: GND/IN/OUT
C1
C=10u
R2
rload
C0
C=10u
Package Type: 2) H: TO-92
Output Voltage: 1) A: Vout=3.3V
2) B: Vout=2.8V
Control
Logic
gnd
gnd
Over Current
Protection
Thermal
1.25V Ref
Protection
3) C: Vout=2.5V
4) D: Vout=1.8V
gnd
5) E: Vout=1.5V
Preliminary and all contents are subject to change without prior notice.
150mA Super LDO
Linear Regulator
CYT6166
Absolute Maximum Ratings (Note 1)
Supply Input Voltage (VIN) ..……… -0.7V to +7V
Power Dissipation (PD)...Internally Limited, Note 3
Junction Temperature (TJ)…….…..0to +125℃
Lead Temperature (soldering, 5 sec.)….….260℃
Storage Temperature (TS)……….-10to +150℃
Operating Ratings (Note2)
Supply Input Voltage (VIN) ……...… +2.5V to +6V
Junction Temperature (TJ)…….…..0to +125℃
Package Thermal
Resistance…………………………………..Note 3
Electrical Characteristics
VIN = VOUT + 1.0V; COUT = 4.7µF, IOUT =100µA; TJ =25, bold values indicate -0TJ +75unless noted.
Symbol
Parameter
Conditions
Min Typical Max Units
10mAIOUT150mA TA=25,
VOUT
Output Voltage
Accuracy
1.470
1.764
2.450
2.744
3.234
1.5
1.8
2.5
2.8
3.3
1.530
1.836
2.550
2.856
3.366
V
V
V
V
V
CYT6166-1.5, 2.5VV 5.5V
IN
CYT6166-1.8, 2.8VV 5.5V
IN
CYT6166-2.5, 3.5VV 5.5V
IN
CYT6166-2.8, 3.8VV 5.5V
IN
CYT6166-3.3, 4.3VV 5.5V
IN
ppm/
Output Voltage
VOUT /T
Note 4
40
Temperature Coefficient
VOUT / VOUT Line Regulation
VOUT / VOUT Load Regulation
VIN = VOUT + 1V to 5.5V
0.3
0.5
9
%
I
OUT =10mA to 150mA, Note 5
IOUT =10mA
OUT =150mA
VOUT>2V IOUT =10mA
OUT =150mA
%
VIN - VOUT
Dropout
Voltage,
Note 6
VOUT<2V
mV
I
175
4.6
90
mV
I
Thermal Protection
Thermal Protection Temperature
Protection Hysterisys
f =120Hz
TPROTECTION
150
30
PSRR
IGROUND
ILIMIT
Ripple Rejection
Ground Current
Current Limit
75
DB
mA
A
IOUT=10mA
1
VOUT =0V
1.5
Note 1: Exceeding the absolute maximum rating may damage the device.
Note 2: The device is not guaranteed to function outside its operating rating.
Note 3: The maximum allowable power dissipation at any TA (ambient temperature) is calculated using: PD(max) = (TJ(max)
-
TA)/θJA. Exceeding the maximum allowable power dissipation will result in excessive die temperature, and the
regulator will go into thermal shutdown. See Table 1 and the “Thermal Considerations” section for details.
Note 4: Output voltage temperature coefficient is the worst case voltage change divided by the total temperature range.
Note 5: Regulation is measured at constant junction temperature using low duty cycle pulse testing. Parts are tested for
load regulation in the load range from 100µA to 300mA. Changes in output voltage due to heating effects are
covered by the thermal regulation specification.
Note 6: Dropout voltage is defined as the input to output differential at which the output voltage drops 2% below its
nominal value measured at 1V differential.
Preliminary and all contents are subject to change without prior notice.
150mA Super LDO
Linear Regulator
CYT6166
Thermal Considerations:
Application Hints:
Like any Low drop out regulator, CYT6166 requires
external capacitors to ensure stability. The
external capacitors must be carefully selected to
ensure the performances.
It is important that the thermal limit of the package
should not be exceeded. The CYT6166 has built-in
thermal protection. When the thermal limit is
exceeded, the IC will enter protection, and the
Vout will be reset to zero. The power dissipation
for a given application can be calculated as
follows:
Input Capacitor:
An Input Capacitor of at least 10uF is required.
Ceramic or Tantalum can be used. The value can
be increased without upper limit.
The Power Dissipation (PD) is
PD = IOUT * [VIN – VOUT
]
Output Capacitor:
An Output Capacitor is required for look stability. It
must be located no more than 1cm away from the
Vout pin, and connected directly between Vout
and GND pins. The minimum value is 10uF but
once again its value can be increased without
limit.
The thermal limit of the package is then limited to
PD(max) = [TJ – TA]/θJA where TJ is the junction
temperature, TA is ambient temperature, and θJA is
around 220C/W for CYT6166. CYT6166 is designed
to enter thermal protection at 150C. For example,
if TA is 50C then the max PD is limited to about
0.45W. In other words, if IOUT(max) = 150mA, then
[VIN – VOUT] can not exceed 3V.
TYPICAL PERFORMANCE CHARACTERISTICS
(Vin=5V,Vout=3.3V,Cin=1uF;Cout=10uF,TA=25,unless otherwise noted.)
Vout Vs I l oad
4
3
2
1
0
0
100
200
300
400
500
600
Il oad(mA)
Preliminary and all contents are subject to change without prior notice.
150mA Super LDO
Linear Regulator
CYT6166
Line Transient
Load Transient
Load Transient
Load Transient
Preliminary and all contents are subject to change without prior notice.
150mA Super LDO
Linear Regulator
CYT6166
OUTLINE DRAWING SOT-23
C
B
J
H
DIMENSIONS
INCHES
MM
MIN MAX
DIMN
MIN MAX
0.110 0.120
0.047 0.055
0.083 0.104
0.035 0.040
0.070 0.080
0.018 0.024
0.015 0.020
D
2.80
1.20
2.10
0.89
1.78
0.45
0.37
3.04
1.40
2.64
1.03
2.05
0.60
0.51
0.10
1.02
0.18
0.69
A
B
C
D
E
F
G
H
J
A
E
G
F
0.0005 0.004 0.013
0.034 0.040 0.887
0.003 0.007 0.085
K
K
L
L
-
0.027
-
OUTLINE DRAWING TO-92
A
DIMENSIONS
INCHES
MM
N
B
D
DIM
MIN MAX MIN MAX
0.175 0.205 4.445 5.207
0.170 0.210 4.318 5.334
0.500 0.610 12.70 15.50
0.016 0.021 0.407 0.533
0.045 0.055 1.143 1.397
0.095 0.105 2.413 2.667
0.080 0.105 2.032 2.667
0.125 0.165 3.175 4.191
A
B
E
F
G
H
J
E
G
F
H
K
K
J
Preliminary and all contents are subject to change without prior notice.
