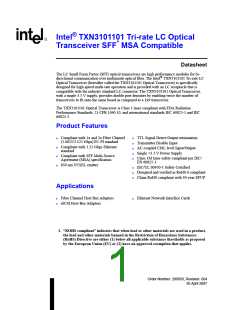

Intel® TXN3101101 Tri-rate LC Optical
Transceiver SFF* MSA Compatible
Datasheet
The LC Small Form Factor (SFF) optical transceivers are high performance modules for bi-
directional communication over multimode optical fiber. The Intel® TXN3101101 Tri-rate LC
Optical Transceiver (hereafter called the TXN3101101 Optical Transceiver) is specifically
designed for high-speed multi-rate operation and is provided with an LC receptacle that is
compatible with the industry standard LC connector. The TXN3101101 Optical Transceiver,
with a single 3.3 V supply, provides double port densities by enabling twice the number of
transceivers to fit onto the same board as compared to a 1x9 transceiver.
The TXN3101101 Optical Transceiver is Class 1 laser compliant with FDA Radiation
Performance Standards, 21 CFR 1040.10, and international standards IEC 60825-1 and IEC
60825-2.
Product Features
n
n
n
n
Compliant with 1x and 2x Fibre Channel
(1.0625/2.125 Gbps) FC-PI standard
Compliant with 1.25 Gbps Ethernet
standard
Compliant with SFF Multi-Source
Agreement (MSA) specification
850 nm VCSEL emitter
n
n
n
n
n
TTL Signal Detect Output termination
Transmitter Disable Input
AC-coupled CML level Input/Output
Single +3.3 V Power Supply
Class 1M laser safety compliant per IEC/
EN 60825-1
IEC/UL 60950-1 Safety Certified
n
n
n
Designed and verified as RoHS 6 compliant
China RoHS compliant with 30-year EFUP
Applications
n
n
Fibre Channel Host Bus Adapters
iSCSI Host Bus Adapters
n
Ethernet Network Interface Cards
1. “ROHS compliant” indicates that when lead or other materials are used in a product,
the lead and other materials banned in the Restriction of Hazardous Substances
(RoHS) Directive are either (1) below all applicable substance thresholds as proposed
by the European Union (EU) or (2) have an approved exemption that applies.
Order Number: 280050, Revision: 004
26 April 2007
Legal Lines and Disclaimers
INFORMATION IN THIS DOCUMENT IS PROVIDED IN CONNECTION WITH INTEL® PRODUCTS. NO LICENSE, EXPRESS OR IMPLIED, BY
ESTOPPEL OR OTHERWISE, TO ANY INTELLECTUAL PROPERTY RIGHTS IS GRANTED BY THIS DOCUMENT. EXCEPT AS PROVIDED IN
INTEL'S TERMS AND CONDITIONS OF SALE FOR SUCH PRODUCTS, INTEL ASSUMES NO LIABILITY WHATSOEVER, AND INTEL DISCLAIMS
ANY EXPRESS OR IMPLIED WARRANTY, RELATING TO SALE AND/OR USE OF INTEL PRODUCTS INCLUDING LIABILITY OR WARRANTIES
RELATING TO FITNESS FOR A PARTICULAR PURPOSE, MERCHANTABILITY, OR INFRINGEMENT OF ANY PATENT, COPYRIGHT OR OTHER
INTELLECTUAL PROPERTY RIGHT. Intel products are not intended for use in medical, life saving, life sustaining, critical control or safety systems, or
in nuclear facility applications.
Intel may make changes to specifications and product descriptions at any time, without notice.
Intel Corporation may have patents or pending patent applications, trademarks, copyrights, or other intellectual property rights that relate to the
presented subject matter. The furnishing of documents and other materials and information does not provide any license, express or implied, by
estoppel or otherwise, to any such patents, trademarks, copyrights, or other intellectual property rights.
The Intel® TXN3101101 Tri-rate LC Optical Transceiver Compliant with SFF* MSA and RoHS may contain design defects or errors known as errata
which may cause the product to deviate from published specifications. Current characterized errata are available on request.
Contact your local Intel sales office or your distributor to obtain the latest specifications and before placing your product order.
Copies of documents which have an order number and are referenced in this document, or other Intel literature may be obtained by calling
1-800-548-4725 or by visiting Intel's website at http://www.intel.com.
Intel and the Intel logo are registered trademarks of Intel Corporation in the U.S. and other countries.
*Other names and brands may be claimed as the property of others.
Copyright © 2007, Intel Corporation. All Rights Reserved.
26 April 2007 Intel® TXN3101101 Tri-rate LC Optical Transceiver SFF* MSA Compatible
Order Number: 280050, Revision: 004
Datasheet
2
Intel® TXN3101101 Tri-rate LC Optical Transceiver
Contents
1.0 Specifications ................................................................................................................................8
1.1
1.2
Specifications - Electrical.............................................................................................................. 9
Specifications – Optical .............................................................................................................. 10
2.0 Electrical Interface.......................................................................................................................11
3.0 Termination..................................................................................................................................12
3.1
CML Termination ........................................................................................................................ 12
4.0 EMI and Grounding Scheme.......................................................................................................14
5.0 Mechanical Specification............................................................................................................16
6.0 Regulatory Compliance ..............................................................................................................17
6.1
6.2
6.3
6.4
6.5
Electromagnetic Compatibility Compliance ................................................................................ 17
Safety Compliance...................................................................................................................... 18
Lead-Free Conformance............................................................................................................. 18
Compliance with Restriction of Hazardous Substances (RoHS) ................................................ 19
Management Methods on Control of Pollution from Electronic Information Products
(a.k.a. China RoHS)...................................................................................................................19
6.6
Product Certification Markings and Compliance Statements...................................................... 21
7.0 Ordering Information...................................................................................................................22
8.0 Acronyms.....................................................................................................................................23
Datasheet
Intel® TXN3101101 Tri-rate LC Optical Transceiver
Order Number: 280050, Revision: 004
26 April 2007
3
Intel® TXN3101101 Tri-rate LC Optical Transceiver
Figures
1
2
3
4
5
Pin Layout...................................................................................................... 11
Circuit Diagram for CML Termination on Receiver Output............................ 12
Circuit Diagram for CML Termination on Transmitter Input........................... 13
Proper Grounding.......................................................................................... 15
Mechanical Specifications ............................................................................. 16
Tables
1
Absolute Maximum Ratings............................................................................. 8
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
Recommended Operating Conditions ............................................................. 8
Electrical Characteristics ................................................................................. 8
Transmitter - Electrical..................................................................................... 9
Receiver - Electrical........................................................................................ 9
Fiber Length .................................................................................................. 10
Transmitter - Optical...................................................................................... 10
Receiver - Optical.......................................................................................... 10
Pin Assignment.............................................................................................. 11
Electromagnetic Compatibility Compliance ................................................... 17
Safety Compliance ........................................................................................ 18
Lead-Free 2nd-Level Interconnect Markings.................................................. 19
Hazardous Substances Table ....................................................................... 20
Product Certification Markings and Compliance Statements ........................ 21
Ordering Information...................................................................................... 22
Acronyms....................................................................................................... 23
