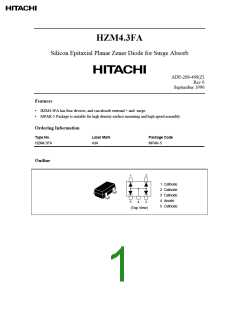

HZM4.3FA
Absolute Maximum Ratings (Ta = 25°C)
Item
Symbol
Pd *1
Tj
Value
200
Unit
mW
°C
Power dissipation
Junction temperature
Storage temperature
150
Tstg
-55 to +150
°C
Note 1. Four device total, With P.C board.
Electrical Characteristics (Ta = 25°C) *1
Item
Symbol Min
Typ Max Unit Test Condition
Zener voltage
Reverse current
Capacitance
VZ
IR
C
4.01 Å\
4.48
10
V
IZ = 5 mA, 40ms pulse
VR = 1V
Å\
Å\
Å\
30
Å\
Å\
Å\
Å\
µA
pF
Ω
150
130
Å\
VR = 0V, f = 1 MHz
IZ = 5 mA
Dynamic resistance r d
ESD-Capability Å\
kV
C =150pF, R = 330 Ω, Both forward and
reverse direction 10 pulse *2
Notes 1. Per one device.
2. Failure criterion ; IRÅÑ10 µA at VR = 1V.
