FZT560A

型号:

FZT560A

品牌:

ETC[ ETC ]

页数:

12 页

PDF大小:

169 K

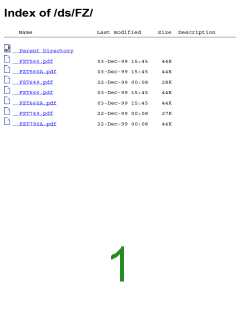

Index of /ds/FZ/
Name
Last modified
Size Description
Parent Directory
FZT560.pdf
03-Dec-99 15:45 44K
03-Dec-99 15:45 44K
22-Dec-99 00:08 28K
03-Dec-99 15:45 44K
03-Dec-99 15:45 44K
22-Dec-99 00:08 27K
22-Dec-99 00:08 44K
FZT560A.pdf
FZT649.pdf
FZT660.pdf
FZT660A.pdf
FZT749.pdf
FZT790A.pdf
Discrete Power & Signal
Technologies
July 1998
FZT560 / FZT560A
C
E
C
B
SOT-223
NPN Low Saturation Transistor
These devices are designed with high current gain and low saturation voltage with collector currents up to 3A
continuous.
Absolute Maximum Ratings*
TA = 25°C unless otherwise noted
FZT560/FZT560A
Symbol
VCEO
VCBO
VEBO
IC
Parameter
Units
Collector-Emitter Voltage
60
V
Collector-Base Voltage
Emitter-Base Voltage
80
V
V
5
Collector Current - Continuous
3
A
Operating and Storage Junction Temperature Range
-55 to +150
°C
TJ, Tstg
*These ratings are limiting values above which the serviceability of any semiconductor device may be impaired.
NOTES:
1) These ratings are based on a maximum junction temperature of 150°C.
2) These are steady state limits. The factory should be consulted on applications involving pulsed or low duty cycle operations.
Thermal Characteristics
TA = 25°C unless otherwise noted
Max
Characteristic
Symbol
Units
FZT560/FZT560A
Total Device Dissipation
2
W
PD
Thermal Resistance, Junction to Ambient
62.5
°C/W
RqJA
ã
1998 Fairchild Semiconductor Corporation
Page 1 of 2
fzt560.lwpPrNA 7/10/98 revC

NPN Low Saturation Transistor
(continued)
Electrical Characteristics
TA = 25°C unless otherwise noted
Symbol
Parameter
Test Conditions
Min
Max
Units
OFF CHARACTERISTICS
Collector-Emitter Breakdown Voltage
Collector-Base Breakdown Voltage
Emitter-Base Breakdown Voltage
Collector Cutoff Current
60
80
5
V
V
V
BVCEO
BVCBO
BVEBO
ICBO
IC = 10 mA
IC = 100 mA
IE = 100 mA
100
10
nA
uA
VCB = 30 V
VCB = 30 V, TA=100°C
Emitter Cutoff Current
100
nA
IEBO
VEB = 4V
ON CHARACTERISTICS*
DC Current Gain
hFE
70
100
250
80
-
IC = 100 mA, VCE = 2 V
300
550
IC = 500 mA, VCE = 2 V FZT560
FZT560A
IC = 1 A, VCE = 2 V
IC = 3 A, VCE = 2 V
25
Collector-Emitter Saturation Voltage
300
450
400
1.25
mV
VCE(sat)
IC = 1 A, IB = 100 mA
IC = 3 A, IB = 300 mA FZT560
FZT560A
Base-Emitter Saturation Voltage
Base-Emitter On Voltage
V
V
VBE(sat)
VBE(on)
IC = 1 A, IB = 100 mA
IC = 1 A, VCE = 2 V
1
SMALL SIGNAL CHARACTERISTICS
Output Capacitance
Cobo
30
pF
-
VCB = 10 V, IE = 0, f = 1MHz
Transition Frequency
fT
75
IC = 100 mA,VCE = 5 V, f=100MHz
*Pulse Test: Pulse Width £ 300 ms, Duty Cycle £ 2.0%
ã
1998 Fairchild Semiconductor Corporation
Page 2 of 2
fzt560.lwpPrNA 7/10/98 revC
Discrete Power & Signal
Technologies
July 1998
FZT649
E
B
SOT-223
NPN Low Saturation Transistor
These devices are designed with high current gain and low saturation voltage with collector currents up to 3A
continuous.
Absolute Maximum Ratings*
TA = 25°C unless otherwise noted
FZT649
Symbol
Parameter
Units
Collector-Emitter Voltage
25
V
VCEO
Collector-Base Voltage
Emitter-Base Voltage
35
5
V
V
VCBO
VEBO
Collector Current - Continuous
3
A
IC
Operating and Storage Junction Temperature Range
-55 to +150
°C
TJ, Tstg
*These ratings are limiting values above which the serviceability of any semiconductor device may be impaired.
NOTES:
1) These ratings are based on a maximum junction temperature of 150°C.
2) These are steady state limits. The factory should be consulted on applications involving pulsed or low duty cycle operations.
Thermal Characteristics
TA = 25°C unless otherwise noted
Max
Characteristic
Symbol
Units
FZT649
Total Device Dissipation
Thermal Resistance, Junction to Ambient
2
W
PD
62.5
°C/W
RqJA
Page 1 of 2
ã
1998 Fairchild Semiconductor Corporation
fzt649.lwpPrNC 7/10/98 revB

NPN Low Saturation Transistor
(continued)
Electrical Characteristics
TA = 25°C unless otherwise noted
Symbol
Parameter
Test Conditions
Min
Max
Units
OFF CHARACTERISTICS
Collector-Emitter Breakdown Voltage
Collector-Base Breakdown Voltage
Emitter-Base Breakdown Voltage
Collector Cutoff Current
25
35
5
V
V
V
BVCEO
BVCBO
BVEBO
ICBO
IC = 10 mA
IC = 100 mA
IE = 100 mA
100
10
nA
uA
VCB = 30 V
VCB = 30 V, TA=100°C
Emitter Cutoff Current
100
nA
IEBO
VEB = 4V
ON CHARACTERISTICS*
DC Current Gain
hFE
70
100
75
-
IC = 50 mA, VCE = 2 V
IC = 1 A, VCE = 2 V
IC = 2 A, VCE = 2 V
IC = 6 A, VCE = 2 V
300
15
Collector-Emitter Saturation Voltage
300
600
mV
VCE(sat)
IC = 1 A, IB = 100 mA
IC = 3 A, IB = 300 mA
Base-Emitter Saturation Voltage
Base-Emitter On Voltage
1.25
1
V
V
VBE(sat)
VBE(on)
IC = 1 A, IB = 100 mA
IC = 1 A, VCE = 2 V
SMALL SIGNAL CHARACTERISTICS
Output Capacitance
Cobo
50
pF
-
VCB = 10 V, IE = 0, f = 1MHz
Transition Frequency
fT
150
IC = 100 mA,VCE = 5 V, f=100MHz
*Pulse Test: Pulse Width £ 300 ms, Duty Cycle £ 2.0%
Page 2 of 2
ã
1998 Fairchild Semiconductor Corporation
fzt649.lwpPrNC 7/10/98 revB
Page 3 of 2
ã
1998 Fairchild Semiconductor Corporation
fzt649.lwpPrNC 7/10/98 revB
Discrete Power & Signal
Technologies
July 1998
FZT660 / FZT660A
E
B
SOT-223
PNP Low Saturation Transistor
These devices are designed with high current gain and low saturation voltage with collector currents up to 3A
continuous.
Absolute Maximum Ratings*
TA = 25°C unless otherwise noted
FZT660/FZT660A
Symbol
VCEO
VCBO
VEBO
IC
Parameter
Units
Collector-Emitter Voltage
60
V
Collector-Base Voltage
Emitter-Base Voltage
80
V
V
5
Collector Current - Continuous
3
A
Operating and Storage Junction Temperature Range
-55 to +150
°C
TJ, Tstg
*These ratings are limiting values above which the serviceability of any semiconductor device may be impaired.
NOTES:
1) These ratings are based on a maximum junction temperature of 150°C.
2) These are steady state limits. The factory should be consulted on applications involving pulsed or low duty cycle operations.
Thermal Characteristics
TA = 25°C unless otherwise noted
Max
Characteristic
Symbol
Units
FZT660/FZT660A
Total Device Dissipation
2
W
PD
Thermal Resistance, Junction to Ambient
62.5
°C/W
RqJA
ã
1998 Fairchild Semiconductor Corporation
Page 1 of 2
fzt660.lwpPrPA 7/10/98 revC

PNP Low Saturation Transistor
(continued)
Electrical Characteristics
TA = 25°C unless otherwise noted
Symbol
Parameter
Test Conditions
Min
Max
Units
OFF CHARACTERISTICS
Collector-Emitter Breakdown Voltage
Collector-Base Breakdown Voltage
Emitter-Base Breakdown Voltage
Collector Cutoff Current
60
80
5
V
V
V
BVCEO
BVCBO
BVEBO
ICBO
IC = 10 mA
IC = 100 mA
IE = 100 mA
100
10
nA
uA
VCB = 30 V
VCB = 30 V, TA=100°C
Emitter Cutoff Current
100
nA
IEBO
VEB = 4V
ON CHARACTERISTICS*
DC Current Gain
hFE
70
100
250
80
-
IC = 100 mA, VCE = 2 V
300
550
IC = 500 mA, VCE = 2 V FZT660
FZT660A
IC = 1 A, VCE = 2 V
IC = 3 A, VCE = 2 V
25
Collector-Emitter Saturation Voltage
300
550
500
1.25
mV
VCE(sat)
IC = 1 A, IB = 100 mA
IC = 3 A, IB = 300 mA FZT660
FZT660A
Base-Emitter Saturation Voltage
Base-Emitter On Voltage
V
V
VBE(sat)
VBE(on)
IC = 1 A, IB = 100 mA
IC = 1 A, VCE = 2 V
1
SMALL SIGNAL CHARACTERISTICS
Output Capacitance
Cobo
45
pF
-
VCB = 10 V, IE = 0, f = 1MHz
Transition Frequency
fT
75
IC = 100 mA,VCE = 5 V, f=100MHz
*Pulse Test: Pulse Width £ 300 ms, Duty Cycle £ 2.0%
Page 2 of 2
fzt660.lwpPrPA 7/10/98 revC
Discrete Power & Signal
Technologies
July 1998
FZT749
E
B
SOT-223
PNP Low Saturation Transistor
These devices are designed with high current gain and low saturation voltage with collector currents up to 3A
continuous.
Absolute Maximum Ratings*
TA = 25°C unless otherwise noted
FZT749
Symbol
Parameter
Units
Collector-Emitter Voltage
25
V
VCEO
Collector-Base Voltage
Emitter-Base Voltage
35
5
V
V
VCBO
VEBO
Collector Current - Continuous
3
A
IC
Operating and Storage Junction Temperature Range
-55 to +150
°C
TJ, Tstg
*These ratings are limiting values above which the serviceability of any semiconductor device may be impaired.
NOTES:
1) These ratings are based on a maximum junction temperature of 150°C.
2) These are steady state limits. The factory should be consulted on applications involving pulsed or low duty cycle operations.
Thermal Characteristics
TA = 25°C unless otherwise noted
Max
Characteristic
Symbol
Units
FZT749
Total Device Dissipation
Thermal Resistance, Junction to Ambient
2
W
PD
62.5
°C/W
RqJA
ã
1998 Fairchild Semiconductor Corporation
Page 1 of 2
fzt749.lwpPrPC 7/10/98 revB

PNP Low Saturation Transistor
(continued)
Electrical Characteristics
TA = 25°C unless otherwise noted
Symbol
Parameter
Test Conditions
Min
Max
Units
OFF CHARACTERISTICS
Collector-Emitter Breakdown Voltage
Collector-Base Breakdown Voltage
Emitter-Base Breakdown Voltage
Collector Cutoff Current
25
35
5
V
V
V
BVCEO
BVCBO
BVEBO
ICBO
IC = 10 mA
IC = 100 mA
IE = 100 mA
100
10
nA
uA
VCB = 30 V
VCB = 30 V, TA=100°C
Emitter Cutoff Current
100
nA
IEBO
VEB = 4V
ON CHARACTERISTICS*
DC Current Gain
hFE
70
100
75
-
IC = 50 mA, VCE = 2 V
IC = 1 A, VCE = 2 V
IC = 2 A, VCE = 2 V
IC = 6 A, VCE = 2 V
300
15
Collector-Emitter Saturation Voltage
300
600
mV
VCE(sat)
IC = 1 A, IB = 100 mA
IC = 3 A, IB = 300 mA
Base-Emitter Saturation Voltage
Base-Emitter On Voltage
1.25
1
V
V
VBE(sat)
VBE(on)
IC = 1 A, IB = 100 mA
IC = 1 A, VCE = 2 V
SMALL SIGNAL CHARACTERISTICS
Output Capacitance
Cobo
100
pF
-
VCB = 10 V, IE = 0, f = 1MHz
Transition Frequency
fT
100
IC = 100 mA,VCE = 5 V, f=100MHz
*Pulse Test: Pulse Width £ 300 ms, Duty Cycle £ 2.0%
Page 2 of 2
fzt749.lwpPrPC 7/10/98 revB
Discrete Power & Signal
Technologies
July 1998
FZT790A
C
E
C
B
SOT-223
PNP Low Saturation Transistor
These devices are designed with high current gain and low saturation voltage with collector currents up to 3A
continuous.
Absolute Maximum Ratings*
TA = 25°C unless otherwise noted
FZT790A
Symbol
VCEO
VCBO
VEBO
IC
Parameter
Units
Collector-Emitter Voltage
40
V
Collector-Base Voltage
Emitter-Base Voltage
50
V
V
5
Collector Current - Continuous
3
A
Operating and Storage Junction Temperature Range
-55 to +150
°C
TJ, Tstg
*These ratings are limiting values above which the serviceability of any semiconductor device may be impaired.
NOTES:
1) These ratings are based on a maximum junction temperature of 150°C.
2) These are steady state limits. The factory should be consulted on applications involving pulsed or low duty cycle operations.
Thermal Characteristics
TA = 25°C unless otherwise noted
Max
Characteristic
Symbol
Units
FZT790A
Total Device Dissipation
2
W
PD
Thermal Resistance, Junction to Ambient
62.5
°C/W
RqJA
ã
1998 Fairchild Semiconductor Corporation
Page 1 of 2
fzt790a.lwpPrPA 7/10/98 revB

PNP Low Saturation Transistor
(continued)
Electrical Characteristics
TA = 25°C unless otherwise noted
Symbol
Parameter
Test Conditions
Min
Max
Units
OFF CHARACTERISTICS
Collector-Emitter Breakdown Voltage
Collector-Base Breakdown Voltage
Emitter-Base Breakdown Voltage
Collector Cutoff Current
40
50
5
V
V
V
BVCEO
BVCBO
BVEBO
ICBO
IC = 10 mA
IC = 100 mA
IE = 100 mA
100
10
nA
uA
VCB = 30 V
VCB = 30 V, TA=100°C
Emitter Cutoff Current
100
nA
IEBO
VEB = 4V
ON CHARACTERISTICS*
DC Current Gain
hFE
300
250
200
150
800
-
IC = 10 mA, VCE = 2 V
IC = 500 mA, VCE = 2 V
IC = 1 A, VCE = 2 V
IC = 2 A, VCE = 2 V
Collector-Emitter Saturation Voltage
250
450
750
mV
VCE(sat)
IC = 500 mA, IB = 5 mA
IC = 1 A, IB = 10 mA
IC = 2 A, IB = 50 mA
Base-Emitter Saturation Voltage
1
V
-
VBE(sat)
IC = 1 A, IB = 10 mA
SMALL SIGNAL CHARACTERISTICS
Transition Frequency
fT
100
IC = 50 mA,VCE = 5 V, f=50MHz
*Pulse Test: Pulse Width £ 300 ms, Duty Cycle £ 2.0%
Page 2 of 2
fzt790a.lwpPrPA 7/10/98 revB
厂商 型号 描述 页数 下载

ZETEX

FZT1047A NPN硅平面中功率高增益晶体管[ NPN SILICON PLANAR MEDIUM POWER HIGH GAIN TRANSISTOR ] 4 页

KEXIN

FZT1047A NPN硅平面中功率高增益晶体管[ NPN Silicon Planar Medium Power High Gain Transistor ] 2 页

DIODES

FZT1047A SOT223 NPN硅平面[ SOT223 NPN SILICON PLANAR ] 4 页

TYSEMI

FZT1047A 5安培连续电流20安培的脉冲电流。[ 5 Amp continuous current, 20 Amp pulse current. ] 2 页

DIODES

FZT1047ATA [ 暂无描述 ] 4 页

ZETEX

FZT1047ATA [ Power Bipolar Transistor, 5A I(C), 10V V(BR)CEO, 1-Element, NPN, Silicon, Plastic/Epoxy, 4 Pin, SOT-223, 4 PIN ] 4 页

DIODES

FZT1047ATC [ Power Bipolar Transistor, 5A I(C), 10V V(BR)CEO, 1-Element, NPN, Silicon, Plastic/Epoxy, 4 Pin, SOT-223, 4 PIN ] 4 页

DIODES

FZT1048 [ 暂无描述 ] 3 页

ZETEX

FZT1048A NPN硅平面中功率高增益晶体管[ NPN SILICON PLANAR MEDIUM POWER HIGH GAIN TRANSISTOR ] 3 页

KEXIN

FZT1048A NPN硅平面中功率高增益晶体管[ NPN Silicon Planar Medium Power High Gain Transistor ] 2 页

PDF索引:

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

X

Y

Z

0

1

2

3

4

5

6

7

8

9

IC型号索引:

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

X

Y

Z

0

1

2

3

4

5

6

7

8

9

Copyright 2024 gkzhan.com Al Rights Reserved 京ICP备06008810号-21 京

0.277648s
