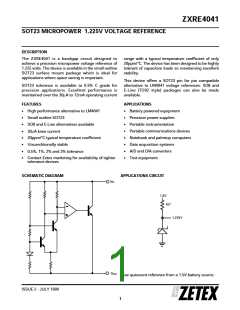

ZXRE4041
SOT23 MICROPOWER 1.225V VOLTAGE REFERENCE
DESCRIPTION
range with a typical tem perature coefficient of only
20ppm /°C. The device has been designed to be highly
tolerant of capacitive loads so maintaining excellent
stability.
The ZXRE4041 is a bandgap circuit designed to
achieve a precision m icropower voltage reference of
1.225 volts. The device is available in the small outline
SOT23 surface m ount package which is ideal for
applications where space saving is important.
This device offers a SOT23 pin for pin compatible
alternative to LM4041 voltage references. SO8 and
E-Line (TO92 style) packages can also be m ade
available.
SOT23 tolerance is available to 0.5% C grade for
pre cision applications. Excellent perform ance is
m aintained over the 30 A to 12mA operating current
FEATURES
APPLICATIONS
High perform ance alternative to LM4041
Sm all outline SOT23
Battery powered equipm ent
Precision power supplies
Portable instrum entation
Portable comm unications devices
Notebook and palmtop com puters
Data acquisition systems
A/D and D/A converters
Test equipm ent
SO8 and E-Line alternatives available
30 A knee current
20ppm /°C typical tem perature coefficient
Unconditionally stable
0.5%, 1%, 2% and 3% tolerance
Contact Zetex marketing for availability of tighter
tolerance devices
SCHEMATIC DIAGRAM
APPLICATIONS CIRCUIT
V
R
G
nd
Low quiescent reference from a 1.5V battery source.
ISSUE 2 - J ULY 1999
1
