UZXMN6A11GTA

型号：

UZXMN6A11GTA

品牌：

ZETEX[ ZETEX SEMICONDUCTORS ]

页数：

8 页

PDF大小：

589 K

下载PDF手册

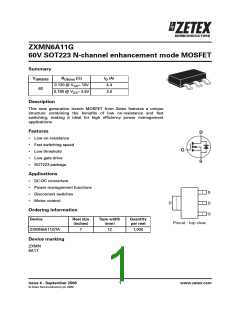

ZXMN6A11G
60V SOT223 N-channel enhancement mode MOSFET
Summary
V
R
(⍀)
I (A)
(BR)DSS
DS(on)
D
0.120 @ V = 10V
4.4
3.5
GS
60
0.180 @ V = 4.5V
GS
Description
This new generation trench MOSFET from Zetex features a unique
structure combining the benefits of low on-resistance and fast
switching, making it ideal for high efficiency power management
applications.
Features
D
S
•
•
•
•
•
Low on-resistance
Fast switching speed
Low threshold
G
Low gate drive
SOT223 package
Applications
•
•
•
•
DC-DC converters
Power management functions
Disconnect switches
Motor control
S
D
G
D
Ordering information
Device
Reel size
(inches)
Tape width
(mm)
Quantity
per reel
Pinout - top view
ZXMN6A11GTA
Device marking
7
12
1,000
ZXMN
6A11
Issue 4 - September 2006
© Zetex Semiconductors plc 2006
1
www.zetex.com
ZXMN6A11G
Absolute maximum ratings
Parameter
Symbol
V
Limit
Unit
Drain-source voltage
60
V
DSS
Gate-source voltage
V
20
V
A
GS
(b)
(b)
(a)
I
4.4
Continuous drain current @ V = 10V; T
=25°C
=70°C
=25°C
D
GS
amb
amb
amb
3.5
3.1
@ V = 10V; T
GS
@ V = 10V; T
GS
(c)
I
15.6
5
A
A
Pulsed drain current
DM
(b)
I
Continuous source current (body diode)
S
(c)
I
15.6
2.0
A
Pulsed source current (body diode)
SM
(a)
P
W
Power dissipation at T
Linear derating factor
Power dissipation at T
Linear derating factor
=25°C
D
amb
16
mW/°C
W
(b)
P
3.9
=25°C
D
amb
31
mW/°C
°C
Operating and storage temperature range
T , T
-55 to +150
j
stg
Thermal resistance
Parameter
Symbol
Limit
Unit
(a)
R
62.5
°C/W
Junction to ambient
⍜JA
(b)
R
32
°C/W
Junction to ambient
⍜JA
NOTES:
(a) For a device surface mounted on 25mm x 25mm FR4 PCB with high coverage of single sided 1oz copper, in still air
conditions.
(b)For a device surface mounted on FR4 PCB measured at t Յ10 sec.
(c) Repetitive rating - 25mm x 25mm FR4 PCB, D=0.02, pulse width 300␮s - pulse width limited by maximum junction
temperature.
Issue 4 - September 2006
© Zetex Semiconductors plc 2006
2
www.zetex.com
ZXMN6A11G
Typical characteristics
Issue 4 - September 2006
© Zetex Semiconductors plc 2006
3
www.zetex.com
ZXMN6A11G
Electrical characteristics (at T
= 25°C unless otherwise stated)
amb
Parameter
Symbol Min. Typ. Max. Unit Conditions
Static
Drain-source breakdown voltage V
60
V
␮A
nA
V
I = 250␮A, V =0V
D GS
(BR)DSS
Zero gate voltage drain current
Gate-body leakage
I
I
1.0
V
= 60V, V =0V
GS
DSS
DS
GS
100
V
= 20V, V =0V
DS
GSS
Gate-source threshold voltage
Static drain-source on-state
resistance
V
R
1.0
I = 250␮A, V =VGS
D DS
GS(th)
DS(on)
0.120
0.180
⍀
V
= 10V, I = 2.5A
D
GS
GS
DS
(*)
⍀
V
V
= 4.5V, I = 2A
D
(*)(‡)
g
4.9
S
= 15V, I = 2.5A
Forward transconductance
fs
D
(‡)
Dynamic
Input capacitance
C
330
35.2
17.1
pF
pF
pF
V
= 40V, V =0V
DS GS
iss
f=1MHz
Output capacitance
C
oss
rss
Reverse transfer capacitance
C
(†) (‡)
Switching
Turn-on-delay time
Rise time
t
t
t
t
1.95
3.5
8.2
4.6
3.0
ns
ns
ns
ns
nC
V
= 30V, I = 2.5A
DD D
d(on)
R ≅6.0⍀, V = 10V
G
GS
r
Turn-off delay time
Fall time
d(off)
f
Gate charge
Q
V
= 15V, V = 5V
DS GS
g
I = 2.5A
D
Total gate charge
Gate-source charge
Gate drain charge
Source-drain diode
Q
Q
Q
5.7
nC
nC
nC
V
= 15V, V = 10V
DS GS
g
I = 2.5A
D
1.25
0.86
gs
gd
(*)
V
0.85 0.95
V
T =25°C, I = 2.8A,
Diode forward voltage
SD
j
S
V
=0V
GS
(‡)
t
21.5
20.5
ns T =25°C, I = 2.5A,
j S
Reverse recovery time
rr
di/dt=100A/␮s
(‡)
Q
nC
Reverse recovery charge
rr
NOTES:
(*) Measured under pulsed conditions. Pulse width Յ300␮s; duty cycle Յ2%.
(†) Switching characteristics are independent of operating junction temperature.
(‡) For design aid only, not subject to production testing.
Issue 4 - September 2006
© Zetex Semiconductors plc 2006
4
www.zetex.com
ZXMN6A11G
Typical characteristics
Issue 4 - September 2006
© Zetex Semiconductors plc 2006
5
www.zetex.com
ZXMN6A11G
Typical characteristics
Current
regulator
QG
50k
Same as
D.U.T
12V
QGS
QGD
VG
VDS
IG
D.U.T
ID
VGS
Charge
Basic gate charge waveform
Gate charge test circuit
VDS
90%
RD
VGS
VDS
RG
VCC
10%
VGS
td(on)
tr
td(off)
tr
t(on)
t(on)
Switching time waveforms
Switching time test circuit
Issue 4 - September 2006
© Zetex Semiconductors plc 2006
6
www.zetex.com
ZXMN6A11G
Intentionally left blank
Issue 4 - September 2006
© Zetex Semiconductors plc 2006
7
www.zetex.com
ZXMN6A11G
Package outline - SOT223
DIM
Millimeters
Min Max
Inches
Min
DIM
Millimeters
Min Max
2.30 BSC
4.60 BSC
Inches
Min Max
Max
0.071
0.004
0.033
0.122
0.013
0.264
A
A1
b
-
1.80
0.10
0.84
3.10
0.33
6.70
-
e
e1
E
0.0905 BSC
0.181 BSC
0.02
0.66
2.90
0.23
6.30
0.0008
0.026
0.114
0.009
0.248
6.70
7.30
0.264
0.287
b2
C
E1
L
3.30
0.90
-
3.70
0.130
0.355
-
0.146
-
-
-
-
D
-
Note: Controlling dimensions are in millimeters. Approximate dimensions are provided in inches
Europe
Americas
Asia Pacific
Corporate Headquarters
Zetex GmbH
Kustermann-park
Balanstraße 59
D-81541 München
Germany
Zetex Inc
Zetex (Asia Ltd)
Zetex Semiconductors plc
Zetex Technology Park, Chadderton
Oldham, OL9 9LL
700 Veterans Memorial Highway
Hauppauge, NY 11788
USA
3701-04 Metroplaza Tower 1
Hing Fong Road, Kwai Fong
Hong Kong
United Kingdom
Telefon: (49) 89 45 49 49 0
Fax: (49) 89 45 49 49 49
europe.sales@zetex.com
Telephone: (1) 631 360 2222
Fax: (1) 631 360 8222
usa.sales@zetex.com
Telephone: (852) 26100 611
Fax: (852) 24250 494
asia.sales@zetex.com
Telephone: (44) 161 622 4444
Fax: (44) 161 622 4446
hq@zetex.com
For international sales offices visit www.zetex.com/offices
Zetex products are distributed worldwide. For details, see www.zetex.com/salesnetwork
This publication is issued to provide outline information only which (unless agreed by the company in writing) may not be used, applied or
reproduced for any purpose or form part of any order or contact or be regarded as a representation relating to the products or services concerned.
The company reserves the right to alter without notice the specification, design, price or conditions of supply of any product or service.
Issue 4 - September 2006
© Zetex Semiconductors plc 2006
8
www.zetex.com
