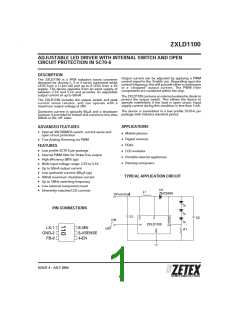

ZXLD1100
ADJ USTABLE LED DRIVER WITH INTERNAL SWITCH AND OPEN
CIRCUIT PROTECTION IN SC70-6
DESCRIPTION
Output current can be adjusted by applying a PWM
control signal to the 'Enable' pin. Depending upon the
control frequency, this will provide either a continuous
o r a ' ch o p p e d ' o u tp u t cu rre n t. Th e PWM filte r
com ponents are contained within the chip.
The ZXLD1100 is a PFM inductive boost converter
designed for driving 2, 3 or 4 series connected white
LEDs from a Li-Ion cell and up to 8 LEDs from a 5V
supply. The device operates from an input supply of
between 2.5V and 5.5V and provides an adjustable
output current of up to 50m A.
The ZXLD1100 contains an internal avalanche diode to
protect the output switch. This allows the device to
operate indefinitely if the load is open circuit. Input
supply current during this condition is less than 1m A.
The ZXLD1100 includes the output switch and peak
cu rre n t s e n s e re s is to r, a n d ca n o p e ra te w ith
m axim um output voltage of 28V.
a
The device is assem bled in a low profile SC70-6 pin
package with industry standard pinout.
Quiescent current is typically 60␮A and a shutdown
function is provided to reduce this current to less than
500nA in the 'off' state.
APPLICATIONS
ADVANCED FEATURES
• Internal 30V NDMOS switch, current sense and
• Mobile phones
• Digital cam eras
• PDAs
open circuit protection
• True Analog Dim m ing via PWM
FEATURES
• Low profile SC70 6 pin package
• Internal PWM filter for flicker free output
• High efficiency (80% typ)
• Wide input voltage range: 2.5V to 5.5V
• Up to 50m A output current
• LCD m odules
• Portable internet appliances
• Palm top com puters
• Low quiescent current: (60␮A typ)
• 500nA m axim um shutdown current
• Up to 1MHz switching frequency
• Low external com ponent count
• Inherently m atched LED currents
TYPICAL APPLICATION CIRCUIT
PIN CONNECTIONS
ISSUE 4 - J ULY 2004
S E M IC O N D U C T O R S
1
ZXLD1100
ORDERING INFORMATION
DEVICE
DEVICE DESCRIPTION
TEMPERATURE RANGE
PART MARK
TAPING
OPTIONS
ZXLD1100H6
Boost convertor in SC70-6
-40 to +85°C
110
TA, TC
ZXLD1100H6TA = 7” reel of 3,000 devices
ZXLD1100H6TC = 13” reel of 10,000 devices
ABSOLUTE MAXIMUM RATINGS (Voltages to GND unless otherwise stated)
PARAMETER
S YMBOL
LIMIT
7
UNIT
V
In p u t vo lta g e
(V )
IN
LX o u tp u t vo lta g e
S w itch o u tp u t cu rre n t
Po w e r d is s ip a tio n
Op e ra tin g te m p e ra tu re
S to ra g e te m p e ra tu re
J u n ctio n te m p e ra tu re
(V
)
30
V
LX
(I
)
500
m A
m W
°C
LX
(PD)
300
(T
(T
(T
)
)
-40 to 85
-55 to 150
125
OP
S T
°C
)
°C
j MAX
ISSUE 4 - J ULY 2004
S E M IC O N D U C T O R S
2
ZXLD1100
ELECTRICAL CHARACTERISTICS (at VIN = 3V, Tam b = 25°C unless otherwise stated(1)
)
S YMBOL PARAMETER
CONDITIONS
MIN.
TYP. MAX. UNIT
V
In p u t vo lta g e
S u p p ly cu rre n t
Qu ie s ce n t
2.5
5.5
V
IN
I
IN
V
= V , I = 0,
60
100
␮A
EN
IN LX
Ou tp u t n o t s w itch in g
V = 0V
EN
S h u td o w n
500
109.5
100
1
nA
m V
nA
V
FB p in co n tro l vo lta g e
FB p in in p u t cu rre n t
Op e ra tin g fre q u e n cy
90.5
350
FB
I
FB
LX
f
L=10␮H, V
=10V,
=10V,
0.35
500
MHz
OUT
I
=20m A
OUT
T
T
LX o u tp u t 'OFF' tim e
ns
µs
OFF
ON
(2)
LX o u tp u t 'ON' tim e
5
I
S w itch p e a k cu rre n t lim it
L=10␮H, V
=20m A
320
1.5
m A
LXp k
OUT
I
OUT
R
S w itch 'On ' re s is ta n ce
S w itch le a ka g e cu rre n t
Co n tro lle r o u tp u t vo lta g e
⍀
µA
V
LX
I
V
=20V
1
LX(le a k)
LX
V
No rm a l o p e ra tio n
VS ENS E p in
28
OUT
o p e n -circu it o r
g ro u n d e d
V
Co n tro lle r o u tp u t vo lta g e w ith o u tp u t
o p e n circu it
VS ENS E co n n e cte d to
Vo u t
25
30
V
OUT(MAX)
(3)
V
V
EN p in Hig h le ve l In p u t vo lta g e
EN p in Lo w le ve l In p u t vo lta g e
EN p in Lo w le ve l in p u t cu rre n t
EN p in Hig h le ve l in p u t cu rre n t
De vice a ctive
1.5
V
V
V
ENH
ENL
ENL
ENH
IN
De vice in s h u td o w n
0.4
-100
1
I
I
V
V
V
=0V
nA
␮A
µs
EN
EN
EN
=V
IN
(4)
T
EN p in tu rn o ff d e la y
s w itch e d fro m
120
EN(h o ld )
h ig h to lo w
PWM d u ty cycle ra n g e a t ‘EN’ in p u t fo r
filte re d PWM co n tro l
10kHz < f < 100kHz,
20
100
%
∆T/T
(5)
V
=V
ENH IN
f
In te rn a l PWM lo w p a s s filte r cu t-o ff
fre q u e n cy
4
kHz
dB
LPF
A
Filte r a tte n u a tio n
f=30kHz
52.5
LPF
NOTES:
(1) Production testing of the device is perform ed at 25°C. Functional operation of the device over a -40°C to +85°C tem perature range is
guaranteed by design, characterization and process control.
(2) Nom inal 'on' tim e (T
) is defined by the input voltage (V ), coil inductance (L) and peak current (I
) according to the expression:
ONnom
IN
LXpkdc
T
= {I
) x L/V } +200ns.
ONnom
LX(pkdc IN
(3) When using the open circuit protection feature, the m axim um output voltage under norm al operation should be m aintained below the
m inim um value specified, in order to prevent possible disturbance of the current control loop.
(4) This is the tim e for which the device rem ains active after the EN pin has been asserted low. This delay is necessary to allow the output to be
m aintained during dc PWM m ode operation.
(5) The m inim um PWM signal frequency during this m ode of operation is to ensure that the device rem ains active during PWM control. This
provides a continuous dc output current. For lower frequencies, the device will be gated 'on' and 'off' during PWM control.
(6) The m axim um PWM signal frequency during this m ode of operation should be kept as low as possible to m inim ize errors due to the turn-off
delay of the device (see Enable pin turn-off delay).
ISSUE 4 - J ULY 2004
S E M IC O N D U C T O R S
3
ZXLD1100
PIN DESCRIPTION
PIN NO.
NAME
LX
DES CRIPTION
1
2
3
Ou tp u t o f NDMOS s w itch
Gro u n d (0V)
GND
FB
Fe e d b a ck p in fo r cu rre n t co n tro l lo o p (co n n e ct re s is to r R1
fro m th is p in to GND fo r o u tp u t cu rre n t I=100m V/ R1)
4
EN
En a b le in p u t (a ctive h ig h to tu rn o n d e vice )
Als o u s e d to a d ju s t o u tp u t cu rre n t b y PWM s ig n a l.
Co n n e ct to V fo r p e rm a n e n t o p e ra tio n .
in
5
6
VS ENS E
Ou tp u t vo lta g e s e n s e (u s e d fo r o p e n circu it p ro te ctio n ).
Co n n e ct to GND if n o t re q u ire d .
V
In p u t vo lta g e (2.5V to 5.5V). De co u p le w ith ca p a cito r clo s e
to d e vice .
IN
BLOCK DIAGRAM
ISSUE 4 - J ULY 2004
S E M IC O N D U C T O R S
4
ZXLD1100
DEVICE DESCRIPTION
The device is a PFM flyback dc-dc boost converter,
working in discontinuous m ode.
Filtered PWM operation
The input of an internal low pass filter is switched to
VREF when the EN pin is high and switched to ground
when the EN pin is low. The output of this filter drives
the com parator within the control loop. A continuous
high state on EN therefore provides a filtered voltage of
value VREF to the com parator. However, by varying the
duty cycle of the EN signal at a suitably high frequency
(f>10kHz), the control loop will see a voltage, that has
an average value equal to the duty cycle m ultiplied by
With reference to the chip block diagram and typical
application circuit, the operation of the device is as
follows:
Control loop
When 'EN' is high, the control circuits becom e active
and the low side of the coil (L1) is switched to ground
via NDMOS transistor (MN). The current in L1 is
allowed to build up to an internally defined level
(nom inally 320m A) before MN is turned off. The energy
stored in L1 is then transferred to the output capacitor
(C2) via schottky diode (D1). When the voltage on C2
has risen above the threshold voltage of the series
connected LEDs, current will flow through external
sense resistor R1. The voltage developed across R1 is
sensed at pin 'FB' and com pared to a 100m V reference
vo lta g e (VREF). A co m p a ra to r s e n s e s w h e n th e
feedback voltage is above VREF and its output is used to
control the 'off' tim e of the output switch. The control
loop is self-oscillating, producing pulses of up to 5␮s
m axim um duration (switch 'on'), at a frequency that
varies in proportion to the LED current. The feedback
loop m aintains a voltage of VREF at the FB pin and
therefore defines a m axim um LED current equal to VREF
divided by R1. The m inim um 'off' tim e of the output
switch is fixed at 0.5␮s nom inal, to allow tim e for the
coil's energy to be dissipated before the switch is
turned on again. This m aintains stable and efficient
operation in discontinuous m ode.
VREF. This provides a m eans of adjusting the output
current to a lower value. It also allows the device to be
both turned on and adjusted with a single signal at the
'EN' pin. The output during this m ode of operation will
be a dc current equal to (VREF/R1) x duty cycle
Gated PWM operation
The internal circuitry of the ZXLD1100 is turned off
when no signal is present on the 'EN' pin for m ore than
120␮s (nom inal). A low frequency signal applied to the
EN pin will therefore gate the device 'on' and 'off' at the
gating frequency and the duty cycle of this signal can
be varied to provide a 'chopped' output current equal
to (VREF/R1) x duty cycle. For best accuracy, the gating
frequency should be m ade as low as possible (e.g.
below 1kHz), such that the turn off delay of the chip is
only a sm all proportion of the gating period
Further details of setting output current are given in the
applications section under brightness control.
Open circuit protection
There is an internal avalanche diode between the
VSENSE and FB pins of the device. This diode, together
with the associated resistors provides open circuit
protection when the VSENSE pin is connected to the
o u tp u t vo lta g e . In th e e ve n t o f a n o p e n circu it
condition, the output voltage will rise above the
breakdown voltage of the internal diode, which will
then conduct and override the control signal from the
current sense resistor. This m aintains the output
voltage at a level below the breakdown voltage of the
output switch. Supply current in this condition will fall
to a low value as the control loop provides only the bias
current for the diode.
ISSUE 4 - J ULY 2004
S E M IC O N D U C T O R S
5
ZXLD1100
TYPICAL CHARACTERISTICS
(For typical application circuit at VIN=3V and TA=25 °C unless otherwise stated)
ISSUE 4 - J ULY 2004
S E M IC O N D U C T O R S
6
ZXLD1100
TYPICAL OPERATING CHARACTERISTICS
(For typical applications circuit at VIN=3V, L=10␮H Coilcraft DO1608C Series, 3 series LEDs,
LED=15m A, TA=25 °C unless otherwise stated)
I
ISSUE 4 - J ULY 2004
S E M IC O N D U C T O R S
7
ZXLD1100
APPLICATIONS
Program m ing the m axim um LED current
Dim m ing Control using a DC voltage
The m axim um LED current is program m ed by adding a For applications where the EN pin is not available a DC
single resistor in series with the LED chain. The current voltage can be used to control dim m ing. By adding
is determ ined by the resistor value and feedback resistors R2 and R3 and applying a DC voltage, the LED
voltage and is given by:
current can be adjusted from 100% to 0%. As the DC
voltage increases, the voltage drop across R2 increases
and the voltage drop across R1 decreases, thus
reducing the current through the LEDs. Selection of R2
and R3 should ensure that the current from the DC
voltage is m uch less than the LED current and m uch
larger than the feedback current. The com ponent
values in the diagram below represent 0% to 100%
dim m ing control from a 0 to 2V DC voltage.
ILED = VFB/R1
where VFB=100m V
The table below gives recom m ended resistor values
for required LED currents:
LED Cu rre n t
10m A
R1 Va lu e
10⍀
15m A
6.8⍀
5⍀
20m A
30m A
3.3⍀
Dim m ing Control via a PWM signal on the EN pin
A Pulse Width Modulated (PWM) signal can be applied
to the EN pin in order to adjust the output current to a
value below the m axim um LED current. Two m odes of
adjustm ent are possible as described below.
Dim m ing Control using a logic signal
True Analog Dim m ing - Filtered ‘DC’ m ode
For applications where the LED current needs to be
adjusted in discrete steps a logic signal can be applied
as shown in the diagram below. When Q1 os ‘off’, R1
sets the m inim um LED current. When Q1 is ‘on’, R2 sets
the LED current that will be added to the m inim um LED
current. The form ula for selecting values for R1 and R2
are given below:
If a PWM signal of 10kHz or higher is applied to the EN
pin, the device will rem ain active when the EN pin is
low. However, the input to the internal low pass filter
will be switched alternately from VREF to ground, with a
duty cycle (D) corresponding to that of the PWM signal.
This will present a filtered dc voltage equal to the duty
cycle m ultiplied by VREF to the control loop and will
produce a dc output current lower than the m axim um
set value. This current is given by:
IOUTdc = 0.1D/R1
This m ode of adjustm ent m inim izes flicker in the light
output and system noise.
Pulsed Dim m ing - Gated Mode
If a lower frequency of 1kHz or less is applied to the EN
pin, the device will be gated ‘on’ and ‘off’ at a duty cycle
(D) corresponding to that of the input signal. The
average output current is then given by:
MOSFET ‘off’
IOUTavg » 0.1D/R1
VFB
ILED(MIN )
This m ode m ay be preferred over dc current control if
the purest white output is required. However, note the
120␮s nom inal turn-off delay of the device, when using
the device in this m ode.
RLED
MOSFET ‘on’
VFB
ILED(MAX )
ILED(MIN )
RLED
where VFB = 100m V
ISSUE 4 - J ULY 2004
S E M IC O N D U C T O R S
8
ZXLD1100
Open circuit protection
The voltage sense pin (VSENSE) can be connected to the For m axim um stability over tem perature, capacitors
output to provide open circuit protection for the device with X7R dielectric are recom m ended, as these have a
and external circuits when driving series connected m uch sm aller tem perature coefficient than other types.
LEDs, thus elim inating the need for an external Zener
diode. Protection is provided by the internal avalanche
diode (ZD), which lim its the m axim um output voltage
to a value below the breakdown voltage of the output
switch when the connection to the diodes is broken.
A table of recom m ended m anufacturers is provided
below:
Ma n u fa ct u re r
Mu ra ta
We b s it e
Capacitor selection
w w w .m u ra ta .co m
w w w .t-yu d e n .co m
w w w .ke m e n t.co m
w w w .a vxco rp .co m
A ceram ic capacitor grounded close to the GND pin of
the package is recom m ended at the output of the
d e v ic e . S u r fa c e m o u n t t y p e s o ffe r t h e b e s t
p e rfo rm a n ce d u e to th e ir lo w e r in d u cta n ce . A
m inim um value of 0.22␮F is advised, although higher
values will lower switching frequency and im prove
efficiency especially at lower load currents. A higher
value will also m inim ize ripple when using the device
to provide an adjustable dc output current.
Ta iyo Yu d e n
Ke m e t
AVX
A good quality, low ESR capacitor should also be used
for input decoupling, as the ESR of this capacitor is
effectively in series with the source im pedance and
lowers overall efficiency. This capacitor has to supply
the relatively high peak current to the coil and sm ooth
the current ripple on the input supply. A m inim um
value of 1␮F is acceptable if the input source is close to
the device, but higher values will im prove perform ance
at lower input voltages, when the source im pedance is
high. The input capacitor should be m ounted as close
as possible to the IC
ISSUE 4 - J ULY 2004
S E M IC O N D U C T O R S
9
ZXLD1100
Inductor selection
The choice of inductor will depend on available board
space as well as required perform ance. Sm all value
inductors have the advantage of sm aller physical size
and m ay offer lower series resistance and higher
saturation current com pared to larger values. A
disadvantage of lower inductor values is that they result
in higher frequency switching, which in turn causes
reduced efficiency due to switch losses. Higher inductor
values can provide better perform ance at lower supply
voltages. However, if the inductance is too high, the
output power will be lim ited by the internal oscillator,
which will prevent the coil current from reaching its
peak value. This condition will arise whenever the ram p
tim e (ILX(p e a k) x L/VIN) exceeds the nom inal 5␮s
m axim um ‘on’ tim e lim it for the LX output.
The graphs opposite show the ZXLD1100 perform ance
for given inductor values and different m anufacturers.
Recom m ended inductor values for the ZXLD1100 are
in the range 6.8␮H to 22␮H. The inductor should be
m ounted as close to the device as possible with low
resistance connections to the LX and VIN pins.
Suitable coils for use with the ZXLD1100 are shown in
the table below:
L
H)
DCR
( )
I
S AT
(A)
Pa rt No .
Ma n u fa ct u re r
(
CMD4D11-100MC 10
0.457 0.5
S u m id a
w w w .s u m id a .co m
DO1608-103
LQH31CN100
10
10
0.16 1.1
Co ilcra ft
www.coilcraft.com
1.3
0.5
0.23 Mu ra ta
w w w .m u ra ta .co m
LB2012Y100MR 10
0.1
Ta iyo Yu d e n
w w w .t-yu d e n .co m
Diode selection
Layout considerations
Th e re ctifie r d io d e (D1) s h o u ld b e
a fa s t lo w
PCB tracks should be kept as short as possible to
m inim ize ground bounce, and the ground pin of the
device should be soldered directly to the ground plane.
It is particularly im portant to m ount the coil and the
input/output capacitors close to the device to m inim ize
p a ra s itic re s is ta n ce a n d in d u cta n ce , w h ich w ill
degrade efficiency. The FB pin is a high im pedance
input so PCB track lengths to this should also be kept as
short as possible to reduce noise pickup. Excess
capacitance from the FB pin to ground should be
avoided.
capacitance schottky diode with low reverse leakage at
the working voltage. It should also have a peak current
rating above the peak coil current and a continuous
current rating higher than the m axim um output load
current.
The table below gives som e typical characteristics for
diodes that can be used with the ZXLD1100:
Dio d e
V
@ 100m A (m V)
I
(m A)
Ic (m A)
400
I a t 30V ( A)
R
Pa cka g e
S OD323
S OT23
F
FS M
ZHCS 400
ZHCS 500
300
300
1000
1000
15
15
500
ISSUE 4 - J ULY 2004
S E M IC O N D U C T O R S
10
ZXLD1100
REFERENCE DESIGNS
3 LED Driver for Handset LCD Backlight
Circuit Diagram
Note: LED current is set to 15m A
Bill of m aterials
Re f
U1
D1
L1
Va lu e
Pa cka g e
S C70-6
Pa rt Nu m b e r
ZXLD1100H6
ZHCS 400
Ma n u fa ct u re r
Ze te x
No t e s
LED Drive r IC
400m A
10␮H
6.8⍀
S OD323
Ze te x
400m A S ch o ttky Dio d e
1m m He ig h t Pro file
CMD4D11-100MC
Ge n e ric
S u m id a
Ge n e ric
Ge n e ric
Ge n e ric
Ge n e ric
Nich ia
R1
0603
0603
0603
0603
1
R2
100k⍀
1␮F
Ge n e ric
C1
Ge n e ric
C2
1␮F
Ge n e ric
LEDs
NS CW215
3p cs p e r b o a rd
Note: R2 is optional. If EN is floating add R2 to shutdown the ZXLD1100 and LEDs. If EN pin can be driven low, R2 is not necessary.
Perform ance Graphs
ISSUE 4 - J ULY 2004
S E M IC O N D U C T O R S
11
ZXLD1100
4 LED Driver for Handset LCD Backlight
Circuit Diagram
Note: LED current is set to 15m A
Bill of m aterials
Re f
U1
D1
L1
Va lu e
Pa cka g e
S C70-6
Pa rt Nu m b e r
ZXLD1100H6
ZHCS 400
Ma n u fa ct u re r
Ze te x
No t e s
LED Drive r IC
400m A
10␮H
6.8⍀
S OD323
Ze te x
400m A S ch o ttky Dio d e
1m m He ig h t Pro file
CMD4D11-100MC
Ge n e ric
S u m id a
Ge n e ric
Ge n e ric
Ge n e ric
Ge n e ric
Nich ia
R1
0603
0603
0603
0603
1
R2
100k⍀
1␮F
Ge n e ric
C1
Ge n e ric
C2
1␮F
Ge n e ric
LEDs
NS CW215
4p cs p e r b o a rd
Note: R2 is optional. If EN is floating add R2 to shutdown the ZXLD1100 and LEDs. If EN pin can be driven low, R2 is not necessary.
Perform ance Graphs
ISSUE 4 - J ULY 2004
S E M IC O N D U C T O R S
12
ZXLD1100
5 LED Driver for Handset Main and Sub Display LCD Backlight
Circuit Diagram
Note: LED current is set to 15m A
Bill of m aterials
Re f
U1
D1
L1
Va lu e
Pa cka g e
S C70-6
Pa rt Nu m b e r
ZXLD1100H6
ZHCS 400
Ma n u fa ct u re r
Ze te x
No t e s
LED Drive r IC
400m A
10␮H
6.8⍀
S OD323
Ze te x
400m A S ch o ttky Dio d e
1m m He ig h t Pro file
CMD4D11-100MC
Ge n e ric
S u m id a
Ge n e ric
Ge n e ric
Ge n e ric
Ge n e ric
Nich ia
R1
0603
0603
0603
0603
1
R2
100k⍀
1␮F
Ge n e ric
C1
Ge n e ric
C2
1␮F
Ge n e ric
LEDs
NS CW215
5p cs p e r b o a rd
Note: R2 is optional. If EN is floating add R2 to shutdown the ZXLD1100 and LEDs. If EN pin can be driven low, R2 is not necessary.
Perform ance Graphs
ISSUE 4 - J ULY 2004
S E M IC O N D U C T O R S
13
ZXLD1100
6 LED Driver for LCD Backlight
Circuit Diagram
Note: LED current is set to 15m A
Bill of m aterials
Re f
U1
D1
L1
Va lu e
Pa cka g e
S C70-6
Pa rt Nu m b e r
ZXLD1100H6
ZHCS 400
Ma n u fa ct u re r
Ze te x
No t e s
LED Drive r IC
400m A
10␮H
6.8⍀
S OD323
Ze te x
400m A S ch o ttky Dio d e
1m m He ig h t Pro file
CMD4D11-100MC
Ge n e ric
S u m id a
Ge n e ric
Ge n e ric
Ge n e ric
Ge n e ric
Nich ia
R1
0603
0603
0603
0603
1
R2
100k⍀
1␮F
Ge n e ric
C1
Ge n e ric
C2
1␮F
Ge n e ric
LEDs
NS CW215
6p cs p e r b o a rd
Note: R2 is optional. If EN is floating add R2 to shutdown the ZXLD1100 and LEDs. If EN pin can be driven low, R2 is not necessary.
Perform ance Graphs
ISSUE 4 - J ULY 2004
S E M IC O N D U C T O R S
14
ZXLD1100
ISSUE 4 - J ULY 2004
S E M IC O N D U C T O R S
15
ZXLD1100
PACKAGE OUTLINE - SC70-6
Controlling dim ensions are in m illim eters. Approxim ate conversions are given in inches
PACKAGE DIMENSIONS
Millim eters
Inches
Min Max
0.0315 0.0433
0.0039
0.0315 0.0394
0.006 0.0118
Millim eters
Min Max
2.10BSC
1.25 1.35
0.65 BSC
1.30 BSC
Inches
Min Max
DIM
DIM
Min
0.80
-
Max
A
A1
A2
b
1.10
0.10
1.00
0.30
0.25
E
E1
e
0.0826 BSC
0.0492 0.0531
0.0255 BSC
-
0.80
0.15
0.08
e1
L
0.0511 BSC
C
0.0031 0.0098
0.0787 BSC
0.26
0°
0.46
8°
0.0102 0.0181
D
2.00 BSC
a°
0°
8°
© Zetex plc 2003
Europe
Am ericas
Asia Pacific
Zetex plc
Zetex Gm bH
Zetex Inc
Zetex (Asia) Ltd
Fields New Road
Chadderton
Streitfeldstraß e 19
D-81673 München
700 Veterans Mem orial Hwy
Hauppauge, NY 11788
3701-04 Metroplaza Tower 1
Hing Fong Road
Oldham , OL9 8NP
United Kingdom
Kwai Fong
Hong Kong
Germ any
USA
Telephone (44) 161 622 4444
Fax: (44) 161 622 4446
hq@zetex.com
Telefon: (49) 89 45 49 49 0
Fax: (49) 89 45 49 49 49
europe.sales@zetex.com
Telephone: (1) 631 360 2222
Fax: (1) 631 360 8222
usa.sales@zetex.com
Telephone: (852) 26100 611
Fax: (852) 24250 494
asia.sales@zetex.com
Th e s e o ffice s a re s u p p o rte d b y a g e n ts a n d d is trib u to rs in m a jo r co u n trie s w o rld -w id e .
This publication is issued to provide outline inform ation only which (unless agreed by the Com pany in writing) m ay not be used, applied or reproduced
for any purpose or form part of any order or contract or be regarded as a representation relating to the products or services concerned. The Com pany
reserves the right to alter without notice the specification, design, price or conditions of supply of any product or service.
For the latest product inform ation, log on to w w w .zetex.com
ISSUE 4 - J ULY 2004
S E M IC O N D U C T O R S
SCZXLD1100DS2
16
厂商 型号 描述 页数 下载

DIODES

 		UZX3CD2S1M832TA [ Small Signal Bipolar Transistor, 3.5A I(C), 20V V(BR)CEO, 1-Element, PNP, Silicon, 3 X 2 MM, MLP832, 10 PIN ] 9 页

DIODES

 		UZX3CD2S1M832TC [ Small Signal Bipolar Transistor, 3.5A I(C), 20V V(BR)CEO, 1-Element, PNP, Silicon, 3 X 2 MM, MLP832, 10 PIN ] 9 页

DIODES

 		UZX3CDBS1M832TA [ Small Signal Bipolar Transistor, 4.5A I(C), 20V V(BR)CEO, 1-Element, NPN, Silicon, 3 X 2 MM, MLP832, 10 PIN ] 9 页

DIODES

 		UZX3CDBS1M832TC [ Small Signal Bipolar Transistor, 4.5A I(C), 20V V(BR)CEO, 1-Element, NPN, Silicon, 3 X 2 MM, MLP832, 10 PIN ] 9 页

DIODES

 		UZX5T2E6TA [ Small Signal Bipolar Transistor, 3.5A I(C), 20V V(BR)CEO, 1-Element, PNP, Silicon, SOT-23, 6 PIN ] 6 页

DIODES

 		UZX5T2E6TC [ Small Signal Bipolar Transistor, 3.5A I(C), 20V V(BR)CEO, 1-Element, PNP, Silicon, SOT-23, 6 PIN ] 6 页

DIODES

 		UZX5T849GTA [ Power Bipolar Transistor, 7A I(C), 30V V(BR)CEO, 1-Element, NPN, Silicon, Plastic/Epoxy, 4 Pin, SOT-223, 4 PIN ] 6 页

DIODES

 		UZX5T849GTC [ Power Bipolar Transistor, 7A I(C), 30V V(BR)CEO, 1-Element, NPN, Silicon, Plastic/Epoxy, 4 Pin, SOT-223, 4 PIN ] 6 页

DIODES

 		UZX5T853GTA [ Power Bipolar Transistor, 6A I(C), 100V V(BR)CEO, 1-Element, NPN, Silicon, Plastic/Epoxy, 4 Pin, SOT-223, 4 PIN ] 6 页

DIODES

 		UZX5T853GTC [ Power Bipolar Transistor, 6A I(C), 100V V(BR)CEO, 1-Element, NPN, Silicon, Plastic/Epoxy, 4 Pin, SOT-223, 4 PIN ] 6 页

购物指南

支付方式

配送服务

售后服务

发票须知

优惠券使用规则

特色服务

PCBA制造

国产品牌推荐

国产料号替代

质量保证

技术资料

行业资讯

关于我们

关于达普

联系我们

联系我们

服务热线：400-618-9990

企业邮箱：smail@ic72.com

服务时间：周一至周六 8:30-17:30

达普官方微信号

PDF索引：

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

X

Y

Z

0

1

2

3

4

5

6

7

8

9

IC型号索引：

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

X

Y

Z

0

1

2

3

4

5

6

7

8

9

Copyright 2024 gkzhan.com Al Rights Reserved 京ICP备06008810号-21 京

深圳网络警察报警平台
公共信息安全网络监察
经营性网站备案信息
不良信息举报中心
工商网监电子标识
全国公安机关备案
0.234548s
