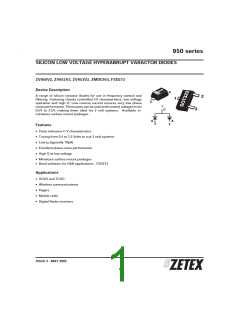

950 series
SILICON LOW VOLTAGE HYPERABRUPT VARACTOR DIODES
ZV950V2, ZV952V2, ZV953V2, ZMDC953, FSD273
Device Description
A range of silicon varactor diodes for use in frequency control and
filtering. Featuring closely controlled CV characteristics, low voltage
operation and high Q. Low reverse current ensures very low phase
noise perform ance. These parts can be used with control voltages from
0.5V to 2.5V, m aking them ideal for 3 volt system s. Available in
m iniature surface m ount packages.
Features
• Close tolerance C-V characteristics
• Tuning from 0.5 to 2.5 Volts to suit 3 volt system s
• Low IR (typically 10pA)
• Excellent phase noise perform ance
• High Q at low voltage
• Miniature surface m ount packages
• Band selection for DAB applications - FSD273
Applications
• VCXO and TCXO
• Wireless com m unications
• Pagers
• Mobile radio
• Digital Radio receivers
ISSUE 2 - MAY 2002
1
950 series
TUNING CHARACTERISTICS at T
= 25 C
am b
PART
CAPACITANCE p F
CAPACITANCE p F
=1.5V, f=1MHz
CAPACITANCE
RATIO C / C
Min im u m Q
=0.5V
f=50MHz
V
R
0.5
2.5
V
=0.5V, f=1MHz
V
R
R
f=1MHz
Min
2.0
Min
9.5
19
Min
6.3
12.7
30
Ma x
7.8
15.7
37
ZV950V2
250
250
200
250
ZV952V2
2.0
ZV953V2
45
2.0
ZMDC953(DUAL)
45
30
37
2.0
ZMDC953 is available banded to tighter capacitance range. This product has the order code FSD273TA.
Measured at VR=1.5V the bands are
Band A = 30.0 to 32.5
Band B = 32.3 to 34.7
Band C = 34.5 to 37.0
Product is supplied in reels. A banded reel will only contain a single band. Shipm ents containing several reels
m ay have reels in different bands. It is not possible to supply a specific band as processing affects which bands
are available
ABSOLUTE MAXIMUM RATINGS
PARAMETER
S YMBOL
MAX
12
UNIT
V
Re ve rs e vo lta g e
V
R
Fo rw a rd cu rre n t
I
100
250
300
m A
m W
m W
F
Po w e r d is s ip a tio n a t Ta m b = 25ЊC S OD523
Po w e r d is s ip a tio n a t Ta m b = 25ЊC S OT323
P
P
to t
to t
ELECTRICAL CHARACTERISTICS at Tam b = 25°C
PARAMETER
CONDITIONS
MIN.
TYP.
MAX.
UNIT
Re ve rs e b re a kd o w n vo lta g e
Re ve rs e vo lta g e le a ka g e
I
= 10u A
12
V
R
V
= 8V
0.010
20
n A
R
ISSUE 2 - MAY 2002
2
950 series
TYPICAL CHARACTERISTICS
100
10
1
1.4
1.2
1.0
0.8
0.6
0.4
0.2
0.0
T = 25°C
j
ZV950V2
ZV953V2
ZMDC953
ZV952V2
ZV953V2
ZV952V2
ZV950V2
T = 25°C
f =j 1MHz
ZMDC953
1000
0.1
1
10
10
100
V Reverse Voltage (V)
Frequency (MHz)
R
Capacitance v Reverse Voltage
Series Resistance v Frequency
1.08
1.06
1.04
1.02
1.00
0.98
0.96
0.94
0.92
1000
800
600
400
200
0
T = -55°C to +85°C
f = 1MHz
T = 85°C
j
j
T = 55°C
j
T = 25°C
j
T = -15°C
j
T = -55°C
j
0
2
4
6
0
1
2
3
4
5
6
1 V Reverse3Voltage (V) 5
V Reverse Voltage (V)
R
R
C Temperature Coefficient v V
Normalised Capacitance v Voltage
J
R
1000
+85°C
+55°C
+25°C
100
10
1
0
2
4
6
8
10
12
V Reverse Voltage (V)
R
Leakage v Reverse Voltage
ISSUE 2 - MAY 2002
3
950 series
ORDER CODES AND PART MARKING
SOD523
SOT323
ORDER CODE
PART
ORDER CODE
PART
MARK
MARK
ZV950V2TA
ZV952V2TA
ZV953V2TA
50
52
53
ZMDC953TA
FS D273TA
FS D273TA
FS D273TA
54
55
56
57
Ba n d A
Ba n d B
Ba n d C
FSD273 is a band selected version of the ZMDC953. Product is supplied in reels containing a
single capacitance band. Shipm ents of several reels m ay contain reels of different bands. It is
not possible for custom ers to specify a particular band, because availability is process depend-
ent.
TAPE AND REEL INFORMATION
REEL CODE
REEL S IZE
TAPE WIDTH
QUANTITY PER REEL
TA
7 in ch (180m m )
8m m
3000
ISSUE 2 - MAY 2002
4
950 series
SOD523 PACKAGE DIMENSIONS
MILLIMETRES
MIN.
ᎏ
MAX
0.800
0.100
0.800
0.300
0.220
0.900
1.700
1.300
0.400
0.230
10Њ
A
A1
A2
b 1
c
0.000
0.600
0.160
0.080
0.700
1.500
1.100
0.200
0.170
4Њ
D
E
E1
L
L1
⍜1Њ
SOT323 PACKAGE DIMENSIONS
DIM
Millim e t re s
In ch e s
MIN
1.8
1.15
0.8
0.2
0.1
1.2
-
MAX
2.2
MIN
0.071
0.045
0.031
0.008
0.004
0.047
-
MAX
0.087
0.053
0.039
0.016
0.01
A
B
C
D
F
1.35
1.0
0.4
0.25
1.4
G
K
L
0.055
0.004
0.087
0.028
0.1
2.0
0.60
2.2
0.079
0.023
N
0.70
ISSUE 2 - MAY 2002
5
950 series
© Zetex plc 2001
Zetex plc
Zetex Gm bH
Zetex Inc
Zetex (Asia) Ltd
Fields New Road
Chadderton
Streitfeldstraß e 19
D-81673 München
700 Veterans Mem orial Hwy
Hauppauge, NY11788
3701-04 Metroplaza, Tower 1
Hing Fong Road
Oldham , OL9 8NP
United Kingdom
Telephone (44) 161 622 4422
Fax: (44) 161 622 4420
Kwai Fong
Hong Kong
Telephone: (852) 26100 611
Fax: (852) 24250 494
Germ any
Telefon: (49) 89 45 49 49 0
Fax: (49) 89 45 49 49 49
USA
Telephone: (631) 360 2222
Fax: (631) 360 8222
Th e s e o ffice s a re s u p p o rte d b y a g e n ts a n d d is trib u to rs in m a jo r co u n trie s w o rld -w id e .
This publication is issued to provide outline inform ation only which (unless agreed by the Com pany in writing) m ay not be used, applied or reproduced
for any purpose or form part of any order or contract or be regarded as a representation relating to the products or services concerned. The Com pany
reserves the right to alter without notice the specification, design, price or conditions of supply of any product or service.
For the latest product inform ation, log on to w w w .zetex.com
ISSUE 2 - MAY 2002
6
