UZXTD09N50DE6TC

型号：

UZXTD09N50DE6TC

品牌：

DIODES[ DIODES INCORPORATED ]

页数：

8 页

PDF大小：

286 K

下载PDF手册

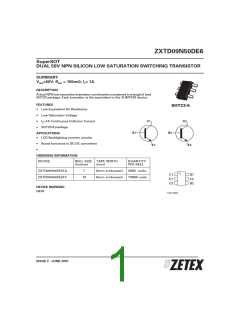

ZXTD09N50DE6
SuperSOT
DUAL 50V NPN SILICON LOW SATURATION SWITCHING TRANSISTOR
SUMMARY
V
CEO=50V; RSAT = 160m ; IC= 1A
DESCRIPTION
A dual NPN low saturation transistor combination contained in a single 6 lead
SOT23 package. Each transistor is the equivalent to the ZUMT619 device.
FEATURES
SOT23-6
•
•
•
•
Low Equivalent On Resistance
Low Saturation Voltage
C1
C2
IC=1A Continuous Collector Current
SOT23-6 package
B1
B2
APPLICATIONS
•
•
•
LCD Backlighting inverter circuits
Boost functions in DC-DC converters
E1
E2
ORDERING INFORMATION
DEVICE
REEL SIZE TAPE WIDTH
QUANTITY
PER REEL
(inches)
(mm)
ZXTD09N50DE6TA
ZXTD09N50DE6TC
7
8mm embossed
8mm embossed
3000 units
10000 units
C1
E1
C2
B1
E2
B2
13
DEVICE MARKING
D619
Top View
ISSUE 2 - JUNE 2001
1
ZXTD09N50DE6
ABSOLUTE MAXIMUM RATINGS.
PARAMETER
SYMBOL
LIMIT
50
UNIT
V
Collector-Base Voltage
Collector-Emitter Voltage
Emitter-Base Voltage
Peak Pulse Current
V
V
V
CBO
CEO
EBO
50
V
5
V
I
I
I
2
A
CM
Continuous Collector Current
Base Current
1.0
200
A
C
B
mA
Power Dissipation at TA=25°C (a)(d)
Linear Derating Factor
P
P
P
0.90
7.2
W
D
D
D
mW/°C
Power Dissipation at TA=25°C (a)(e)
Linear Derating Factor
1.1
8.8
W
mW/°C
Power Dissipation at TA=25°C (b)(d)
Linear Derating Factor
1.7
13.6
W
mW/°C
Operating and Storage Temperature Range
T :T
-55 to +150
°C
j
stg
THERMAL RESISTANCE
PARAMETER
SYMBOL
VALUE
UNIT
Junction to Ambient (a)(d)
Junction to Ambient (b)(d)
Junction to Ambient (a)(e)
R
R
R
139
73
°C/W
°C/W
°C/W
θJA
θJA
θJA
113
NOTES
(a) For a device surface mounted on 25mm x 25mm FR4 PCB with high coverage of single sided 1oz copper,
in still air conditions
(b) For a device surface mounted on FR4 PCB measured at tр5 secs.
(c) Repetitive rating - pulse width limited by maximum junction temperature. Refer to Transient Thermal
Impedance graph.
(d) For device with one active die.
(e) For device with two active die running at equal power.
ISSUE 2 - JUNE 2001
2
ZXTD09N50DE6
ELECTRICAL CHARACTERISTICS (at Tamb = 25°C unless otherwise stated).
PARAMETER
SYMBOL
MIN.
TYP.
MAX.
UNIT
CONDITIONS.
Collector-Base
Breakdown Voltage
V
50
V
I = 100µA
(BR)CBO
C
Collector-Emitter
V
50
5
V
I = 10mA*
C
(BR)CEO
(BR)EBO
CBO
Breakdown Voltage
Emitter-Base Breakdown V
Voltage
V
I = 100µA
E
Collector Cut-Off Current I
10
nA
V
= 40V
CB
EB
Emitter Cut-Off Current
I
I
10
10
nA
nA
V
V
= 4V
= 40V
EBO
CES
Collector Emitter Cut-Off
Current
CES
Collector-Emitter
Saturation Voltage
V
24
35
mV
mV
mV
mV
I = 100mA, I = 10mA*
C B
CE(sat)
60
80
I = 250mA, I = 10mA*
C B
120
160
200
270
I = 500mA, I = 10mA*
C B
I = 1A, I = 50mA*
C
B
Base-Emitter
V
V
h
940
1100
mV
I = 1A, I = 50mA*
C B
BE(sat)
BE(on)
FE
Saturation Voltage
Base-Emitter Turn-On
Voltage
850
1100
mV
I = 1A, V = 2V*
CE
C
Static Forward Current
Transfer
Ratio
200
300
200
75
420
450
350
130
60
I =10mA, V = 2V*
C CE
I = 100mA, V =2 V*
C
CE
I = 500mA, V =2V*
C CE
I = 1A, V = 2V*
C
CE
20
I = 1.5A, V =2 V*
C CE
Transition
Frequency
f
215
MHz
I = 50mA, V =10V
T
C
CE
f= 100MHz
Output Capacitance
Turn-On Time
C
10
pF
ns
ns
V
= 10V, f=1MHz
CB
obo
(on)
(off)
t
t
150
425
V
=10 V, I = 1A
CC C
=I =100mA
I
B1 B2
Turn-Off Time
*Measured under pulsed conditions. Pulse width=300µs. Duty cycle ≤ 2%
ISSUE 2 - JUNE 2001
3
ZXTD09N50DE6
TYPICAL CHARACTERISTICS
0.4
0.4
+25°C
IC/IB=50
0.3
0.2
0.1
0
0.3
IC/IB=10
IC/IB=50
IC/IB=100
-55°C
+25°C
+100°C
+150°C
0.2
0.1
0
1m
10m
100m
1
10
1m
10m
100m
1
10
IC
- Collector Current (A)
IC
- Collector Current (A)
VCE(sat) v I
C
VCE(sat) v IC
1.0
0.8
0.6
0.4
0.2
0
IC/IB=50
VCE=2V
800
600
400
200
0
+100°C
+25°C
-55°C
-55°C
+25°C
+100°C
+150°C
1m
10m
100m
1
10
1m
10m
100m
1
10
10
4
IC
- Collector Current (A)
IC - Collector Current (A)
h
FE v I
C
V
BE(sat) v I
C
1.15
0.9
10
1
0.6
0.3
0
DC
1s
100m
-55°C
+25°C
+100°C
+150°C
100ms
10ms
1ms
100µs
10m
100m
1
10
100
1m
10m
100m
1
IC
- Collector Current (A)
BE(on) v I
VCE - Collector Emitter Voltage (V)
V
C
Safe Operating Area
ISSUE 2 - JUNE 2001
ZXTD09N50DE6
ISSUE 2 - JUNE 2001
5
ZXTD09N50DE6
ISSUE 2 - JUNE 2001
6
ZXTD09N50DE6
ISSUE 2 - JUNE 2001
7
ZXTD09N50DE6
PACKAGE DIMENSIONS
PAD LAYOUT DETAILS
b
e
2
L
E1
E
DATUM A
a
e1
D
A
A2
A1
DIM Millimetres
Inches
Min
Min
Max
1.45
0.15
1.30
0.50
0.20
3.00
3.00
1.75
0.60
Max
A
0.90
0.35
0.057
0.006
0.051
0.019
0.008
0.118
0.118
0.069
0.002
A1
A2
b
0.00
0
0.90
0.035
0.014
0.0035
0.110
0.102
0.059
0.004
0.35
C
0.09
D
2.80
E
2.60
E1
L
1.50
0.10
e
0.95 REF
1.90 REF
0°
0.037 REF
0.074 REF
0°
e1
L
10°
10°
Zetex plc.
Fields New Road, Chadderton, Oldham, OL9-8NP, United Kingdom.
Telephone: (44)161 622 4422 (Sales), (44)161 622 4444 (General Enquiries)
Fax: (44)161 622 4420
Zetex GmbH
Zetex Inc.
Suite 315
Zetex (Asia) Ltd.
3701-04 Metroplaza, Tower 1 agents and distributors in
These are supported by
Streitfeldstraße 19
D-81673 München
Germany
700 Veterans Memorial Highway Hing Fong Road,
Hauppauge NY11788
USA
major countries world-wide
Zetex plc 2001
Kwai Fong
Hong Kong
Telefon: (49) 89 45 49 49 0
Fax: (49) 89 45 49 49 49
Telephone: (631) 543-7100
Fax: (631) 864-7630
Telephone:(852) 26100 611
Fax: (852) 24250 494
www.zetex.com
This publication is issued to provide outline information only which (unless agreed by the Company in writing) may not be used, applied or reproduced for
any purpose or form part of any order or contract or be regarded as a representation relating to the products or services concerned. The Company reserves
the right to alter without notice the specification, design, price or conditions of supply of any product or service.
ISSUE 2 - JUNE 2001
8
