CZSH10-40CTR13LEADFREE

型号：

CZSH10-40CTR13LEADFREE

品牌：

CENTRAL[ CENTRAL SEMICONDUCTOR CORP ]

页数：

3 页

PDF大小：

328 K

下载PDF手册

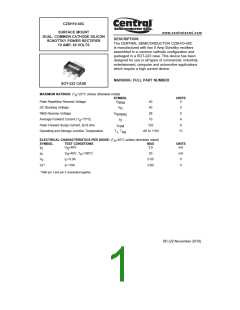

CZSH10-40C
SURFACE MOUNT
DUAL, COMMON CATHODE SILICON
SCHOTTKY POWER RECTIFIER
10 AMP, 40 VOLTS
www.centralsemi.com
DESCRIPTION:
The CENTRAL SEMICONDUCTOR CZSH10-40C
is manufactured with two 5 Amp Schottky rectifiers
assembled in a common cathode configuration and
packaged in a SOT-223 case. This device has been
designed for use in all types of commercial, industrial,
entertainment, computer and automotive applications
which require a high current device.
MARKING: FULL PART NUMBER
SOT-223 CASE
MAXIMUM RATINGS: (T =25°C unless otherwise noted)
A
SYMBOL
UNITS
Peak Repetitive Reverse Voltage
DC Blocking Voltage
V
40
V
RRM
V
40
28
V
V
R
RMS Reverse Voltage
V
R(RMS)
Average Forward Current (T =75°C)
A
I
10
A
O
Peak Forward Surge Current, tp=8.3ms
I
125
A
FSM
Operating and Storage Junction Temperature
T
T
-65 to +150
°C
J, stg
ELECTRICAL CHARACTERISTICS PER DIODE: (T =25°C unless otherwise noted)
A
SYMBOL
TEST CONDITIONS
V =40V
MAX
3.0
UNITS
mA
I
R
R
I
V =40V, T =100°C
20
mA
V
R
R
A
V
I =5.0A
0.55
0.60
F
F
V *
I =10A
V
F
F
* With pin 1 and pin 3 connected together.
R0 (22-November 2010)
CZSH10-40C
SURFACE MOUNT
DUAL, COMMON CATHODE SILICON
SCHOTTKY POWER RECTIFIER
10 AMP, 40 VOLTS
SOT-223 CASE - MECHANICAL OUTLINE
PIN CONFIGURATION
LEAD CODE:
1) Anode D1
2) Cathode D1, D2
3) Anode D2
4) Cathode D1, D2
Pin 2 and Pin 4 are common.
MARKING:
FULL PART NUMBER
R0 (22-November 2010)
www.centralsemi.com
CZSH10-40C :: Item Details :: SMD Schottky Rectifier Dual: Common Cathode :: Centra... Page 1 of 1
0 Items, (0 Pieces)
You are logged in as :: Anonymous
Registered user login
Return to Home Page
CZSH10-40C
SMD Schottky Rectifier Dual: Common Cathode
Documentation Links:
Part Datasheet
Case & Material Composition Datasheet
Part Availability:
Central Semiconductor Part # :
CZSH10-40C BK
Packaging Base:
Box@350
Availability :
Please Call
In Stock
Part Marking:
CZSH10-40C TR
Reel@1,000
CZSH10-40C
Additional Documentation Links:
Analytical Test Report:Sn plating
Analytical Test Report:Au bond wire
Analytical Test Report:Encapsulation LMC400SRM
Analytical Test Report:Leadframe PMC90 AG
Analytical Test Report:Au Bond Wire
Analytical Test Report:Cu Alloy Lead Frame-Alloy A194
Analytical Test Report:Sn Plating SNTITE-24
Analytical Test Report:Halogen-Free EMC for SOT-223
Requested Plating
Any
Request Samples
(qty)
Request sample of this item:
PbFree
PbSn
In order to better serve you, we have created a new web based request system.
Click here to access our new inquiry page. Login to the website is required.
First time users please use the quick and easy one time website registration.
For further assistance using the new web based request system, click here.
Return to Home Page ::
