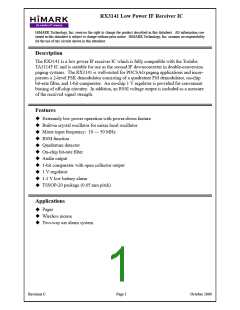

RX3141 Low Power IF Receiver IC
the wireless IC company
HiMARK Technology, Inc. reserves the right to change the product described in this datasheet. All information con-
tained in this datasheet is subject to change without prior notice. HiMARK Technology, Inc. assumes no responsibility
for the use of any circuits shown in this datasheet.
Description
The RX3141 is a low power IF receiver IC which is fully compatible with the Toshiba
TA31145 IC and is suitable for use as the second IF downconverter in double-conversion
paging systems. The RX3141 is well-suited for POCSAG paging applications and incor-
porates a 2-level FSK demodulator consisting of a quadrature FM demodulator, on-chip
bit-rate filter, and 1-bit comparator. An on-chip 1 V regulator is provided for convenient
biasing of off-chip circuitry. In addition, an RSSI voltage output is included as a measure
of the received signal strength.
Features
! Extremely low power operation with power-down feature
! Built-in crystal oscillator for mixer local oscillator
! Mixer input frequency: 10 — 50 MHz
! RSSI function
! Quadrature detector
! On-chip bit-rate filter
! Audio output
! 1-bit comparator with open collector output
! 1 V regulator
! 1.1 V low battery alarm
! TSSOP-20 package (0.65 mm pitch)
Applications
! Pager
! Wireless mouse
! Two-way car alarm system
Revision C
Page 1
October 2000
RX3141
the wireless IC company
Block Diagram and Pin Assignment
20
19
18
17
16
15
14
13
12
11
MIX
IN
VSS
REG
OUT
REG
CON
ALM
FSK
OUT
CHA
RGE
BS
LPF
OUT
LPF
IN
LOW
BATTERY
ALARM
CHARGE/
DISCHARGE
CIRCUIT
1.0 V
1-BIT
COMPARATOR
REGULATOR
MIXER
QUAD
DETECTOR
OSCILLATOR
RSSI
IFAMP
DEC
AF
OSC
IN
OSC
OUT
2
MIX
OUT
FSK
REF
RSSI
10
QUAD OUT
VCC
IFIN
5
1
3
4
6
7
8 9
Revision C
Page 2
October 2000
RX3141
the wireless IC company
Package and Pin Assignment: 20L, TSSOP
OSCIN
MIXIN
OSCOUT
MIXOUT
VCC
VSS
REGOUT
REGCON
ALM
IFIN
DEC
FSKOUT
FSKREF
QUAD
AFOUT
RSSI
CHARGE
BS
LPFOUT
LPFIN
Dimensions in mm
Dimensions in inch
Symbols
MIN.
---
NOM.
---
MAX.
1.20
0.15
1.05
0.30
0.20
6.60
---
MIN.
---
NOM.
---
MAX.
0.048
0.006
0.041
0.012
0.008
0.260
---
A
A1
A2
b
0.05
0.80
0.19
0.09
6.40
---
---
0.002
0.031
0.007
0.004
0.252
---
---
1.00
---
0.039
---
C
---
---
D
E
6.50
6.40
4.40
0.65
0.60
---
0.256
0.252
0.173
0.026
0.024
---
E1
e
4.30
---
4.50
---
0.169
---
0.177
---
L
0.45
---
0.75
0.10
8°
0.018
---
0.030
0.004
8°
y
θ
0°
---
0°
---
Revision C
Page 3
October 2000
RX3141
the wireless IC company
Pin Descriptions
Number
Name
OSCIN
OSCOUT
MIXOUT
VCC
I/O
Description
1
2
I
Oscillator input (base)
O
Oscillator output (emitter)
3
O
Mixer output (2 KΩ output impedance)
Nominal 1.4 V supply
4
POWER
5
IFIN
I
I
IF amplifier input (2 KΩ input impedance)
IF amplifier de-coupling capacitor connection
1-bit comparator reference input (requires external capacitor)
Quadrature FM demodulator input
Quadrature FM demodulator output
RSSI voltage output
6
DEC
7
FSKREF
QUAD
AFOUT
RSSI
I
8
I
9
O
O
I
10
11
12
LPFIN
LPFOUT
LPF operational amplifier input
O
LPF operational amplifier output
Two-state logic input to control receiver power up/down.
(BS = high = normal operation; BS = low = stand-by mode)
13
14
BS
I
I
Two-state logic input to control charge-discharge circuit.
(CHARGE = high = fast charge; CHARGE = low = slow charge)
CHARGE
15
16
17
18
19
20
FSKOUT
ALM
O
Open collector NRZ comparator output (requires pull-up resistor)
Open collector low battery alarm output (requires pull-up resistor)
O
REGCON
REGOUT
VSS
O
1.0 V regulator control output for connection to external PNP base
1.0 V regulator input for connection to external PNP collector
Ground
I
GND
I
MIXIN
Mixer input (5 KΩ input impedance)
Revision C
Page 4
October 2000
RX3141
the wireless IC company
Absolute Maximum Ratings
VSS = 0 V
Parameter
Symbol
VCC
Rating
VSS – 0.3 to VSS + 3.5
–30 to 85
Unit
V
Supply voltage
TOPR
TSTG
TSLD
tSLD
Operating temperature range
Storage temperature range
Soldering temperature range
Soldering time range
°C
°C
°C
s
–55 to 150
255
10
Recommended Operating Conditions
VSS = 0 V
Value
Parameter
Symbol
Unit
min.
1.1
typ.
max.
1.6
VCC1
fMIXIN
TA
Supply voltage range
MIXIN input frequency
Operating temperature
1.35
V
50
MHz
–10
25
60
°C
Revision C
Page 5
October 2000
RX3141
the wireless IC company
Electrical Characteristics
(VCC = 1.4 V, VSS = 0 V, TA = 25 °C, BS = high unless otherwise noted)
Value
typ.
Parameter
Symbol
Condition
Unit
min.
max.
ICC,total
Quiescent current consumption
Standby current consumption
1.2
1.7
5
mA
ICC,standby
VBS = 0 V
µA
measured after 455 KHz
ceramic filter
GC
Mixer conversion gain
9
12.5
16
dB
Mixer input intermodulation intercept point
Mixer input resistance
Mixer output resistance
IF amplifier input resistance
S/N ratio 1
IIP3
Rin,MIX
Rout,MIX
Rin,IF
–10
5
dBm
KΩ
2
KΩ
2
KΩ
dB
SN1
–53 dBm at MIXIN
–53 dBm at IFIN
–91 dBm at IFIN
–53 dBm at IFIN
63
63
25
45
S/N ratio 2
SN2
dB
S/N ratio 3
SN3
dB
mVrms
Demodulation output level
VOD
–53 dBm at IFIN,
AM=30 %
AM rejection ratio
AMR
50
dB
FSK output duty ratio
DR
VALM
40
50
1.1
1.0
0.60
82
60
%
V
Low battery alarm threshold voltage
Regulator output voltage
RSSI output voltage
1.05
0.95
0.45
1.15
1.05
0.80
VREGOUT
VRSSI
430 Ω load resistor
V
–53 dBm at IFIN
V
RRSSI
RSSI output resistance
KΩ
VFSKREF = 0 V,
ICH
Charging/discharging current
35
70
110
µA
VLPFOUT = 0.18 V
IOH,ALM
ALM logic HIGH output current
ALM logic LOW output voltage
2
µA
VOL,ALM
0.4
V
IOH,FSK-
OUT
FSKOUT logic HIGH output current
FSKOUT logic LOW output voltage
2
µA
VOL,FSK-
OUT
0.4
V
Revision C
Page 6
October 2000
RX3141
the wireless IC company
Functional Description
The RX3141 IF receiver IC incorporates a mixer, crystal-based local oscillator, IF ampli-
fier, quadrature FM demodulator, bit-rate filter, and 1-bit comparator and is capable of
demodulating 2-level FSK input signals. In addition, 1.0 V regulator and 1.1 V low bat-
tery alarm functions are provided.
Power-down Function
The entire receiver IC may be powered up and down through the control of the BS input
(pin 13). During power down operation, the quiescent current consumption of the IC
drops to approximately 0 A. The high input impedance of the BS pin allows for direct
µ
interfacing with the CMOS output of an off-chip microcontroller.
RSSI Function
A dc potential, which corresponds to the input signal level received at the IFIN input (pin
5), is developed across an internal 82 K resistor. This potential is a measure of the
Ω
received signal strength and is provided at the RSSI output (pin 10).
Charge/Discharge Circuitry
The function of the charge/discharge circuitry is for both fast and slow charging/discharg-
ing of the capacitor used for storing the voltage reference level of the FSKREF pin. The
CHARGE input (pin 14) should be enabled (CHARGE = high = fast charge) immediately
after transition of the receiver IC from power-down to normal operation in order to reduce
the charging/discharging time for coarse adjustment of the FSKREF voltage to the appro-
priate dc level (i.e. dc level of the LPFOUT pin) and consequently to minimize the errone-
ous output of the 1-bit comparator. During actual data reception, the CHARGE pin should
be set to low (CHARGE = low = slow charge) for fine adjustment of the FSKREF voltage.
1-bit Comparator
The integrated 1-bit comparator operates as a data slicer and “squares up” the bit-rate fil-
tered output from the quadrature demodulator. The decision threshold voltage level for
the 1-bit comparator is stored on an external capacitor connected to the FSKREF pin.
Regulator
The on-chip 1.0 V regulator requires a suitable off-chip PNP transistor to achieve regula-
tion. The external PNP transistor should have an h > 200 for V
0. 1 V .
≥
CE
FE
Low Battery Alarm
The low battery alarm output, ALM, is normally low, but rises to 1.1 V ( VCC) when the
≈
VCC voltage falls below approximately 1.1 V.
Revision C
Page 7
October 2000
RX3141
the wireless IC company
Typical Performance Characteristics
2
1.8
1.6
1.4
1.2
1
0
-5
-10
-15
-20
VCC=1.4 V
T=300 K
0.8
VCC=1.4 V
0.6
IFIN=-53 dBm
T=300 K
CHARGE=H
fmod=600 Hz
0.4
f=4 KHz
∆
0 dB=158 mVpk-pk
0.2
0
0
1
2
3
440
445
450
IFIN (KHz)
455
460
465
470
VCC (V)
1.4
0.4
0.35
0.3
1.2
1
0.25
0.2
0.8
0.6
0.4
0.2
0
VCC=1.4 V
T=300 K
0.15
0.1
IF=-53 dBm
fmod=600 Hz
0.05
0
f=4 KHz
∆
0
0.5
1
1.5
2
2.5
3
440
445
450
455
460
465
470
VCC (V)
IFIN (KHz)
80
60
40
20
0
1.4
1.2
VCC=1.4 V
T=300 K
MIXIN=21.4 MHz
1
0.8
0.6
0.4
0.2
0
-20
VCC=1.4 V
T=300 K
-40
-60
-80
0
0.1
0.2
0.3
0.4
0.5
-110 -100 -90 -80 -70 -60 -50 -40 -30 -20 -10
0
FSKREF (V)
M IXIN (dBm)
Revision C
Page 8
October 2000
RX3141
the wireless IC company
Test Circuit
VREGOUT
VALM
VFSKOUT
VOD
0.01 µF
20
19
18
17
16
15
14
13
12
11
VSS
REG
OUT
REG
CON
ALM
FSK
OUT
BS
MIX
IN
CHA
RGE
LPF
OUT
LPF
IN
LOW
BATTERY
ALARM
CHARGE/
DISCHARGE
CIRCUIT
1.0 V
1-BIT
COMPARATOR
REGULATOR
MIXER
QUAD
DETECTOR
OSCILLATOR
RSSI
IFAMP
DEC
AF
OUT
OSC
OUT
2
MIX
OUT
FSK
REF
OSC
IN
RSSI
10
QUAD
VCC
IFIN
5
1
3
4
6
7
8
9
VCC
56 pF
VRSSI
22 KΩ
39 pF
GC
MURATA
CFVM455E
VCC
Revision C
Page 9
October 2000
RX3141
the wireless IC company
Application Circuit
OSCIN
OSCOUT
MIXOUT
VCC
MIXIN
VSS
1st IF
amplifier
LNA
1st mixer
REGOUT
REGCON
ALM
IFIN
DEC
FSKOUT
CHARGE
BS
FSKREF
QUAD
AFOUT
RSSI
Frequency
multiplier (×2,3)
LPFOUT
LPFIN
1st LO
XIN
XOUT
VDD2
DB
TEST
NC
RAM
ROM
OPR
LE
DO
DATA
CLK
LD
CPU
Decoder
VSS
FIN
VDD1
NC
LCD driver
LCD
Driver
DC/DC
converter
Revision C
Page 10
October 2000
厂商 型号 描述 页数 下载

RUBYCON

 		RX30 小型铝电解电容器[ MINIATURE ALUMINUM ELECTROLYTIC CAPACITORS ] 4 页

FUJITSU

 		RX300 富士通PRIMERGY RX300 S6双插槽2 U机架式服务器[ Fujitsu PRIMERGY RX300 S6 Dual socket 2 U rack server ] 10 页

ETC

 		RX30000 RX4000安装|用户手册[ 10/2001 ]\n[ RX4000 Installation | User＇s Manual[10/2001] ] 111 页

RICHCO

 		RX3030-0 电缆，光纤管理[ CABLE & FIBER MANAGEMENT ] 1 页

RICHCO

 		RX3030-4 电缆，光纤管理[ CABLE & FIBER MANAGEMENT ] 1 页

ETC

 		RX3034B70W 双极NPN UHF /微波Transisitor\n[ Bipolar NPN UHF/Microwave Transisitor ] 5 页

RUBYCON

 		RX30_1 小型铝电解电容器[ MINIATURE ALUMINUM ELECTROLYTIC CAPACITORS ] 2 页

PTC

 		RX3140 RX3140低功耗IF接收机IC[ RX3140 Low Power IF Receiver IC ] 9 页

TE

 		RX314005 电源PCB继电器[ Power PCB Relay ] 4 页

TE

 		RX314005C 电源PCB继电器[ Power PCB Relay ] 4 页

购物指南

支付方式

配送服务

售后服务

发票须知

优惠券使用规则

特色服务

PCBA制造

国产品牌推荐

国产料号替代

质量保证

技术资料

行业资讯

关于我们

关于达普

联系我们

联系我们

服务热线：400-618-9990

企业邮箱：smail@ic72.com

服务时间：周一至周六 8:30-17:30

达普官方微信号

PDF索引：

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

X

Y

Z

0

1

2

3

4

5

6

7

8

9

IC型号索引：

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

X

Y

Z

0

1

2

3

4

5

6

7

8

9

Copyright 2024 gkzhan.com Al Rights Reserved 京ICP备06008810号-21 京

深圳网络警察报警平台
公共信息安全网络监察
经营性网站备案信息
不良信息举报中心
工商网监电子标识
全国公安机关备案
0.201869s
