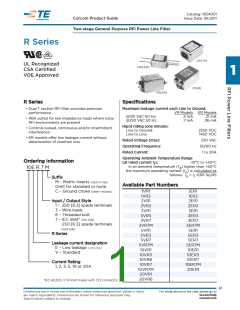

Corcom Product Guide
Two-stage General Purpose RFI Power Line Filter
R Series
VR7/7M
UL Recognized
CSA Certified
VDE Approved
VR3/ER3
1
10VR6
VR1/ER1
R Series
Specifications
• Dual T section RFI filter provides premium
performance
Maximum leakage current each Line to Ground:
VR Models ER Models
@120 VAC 60 Hz:
@250 VAC 50 Hz:
.4 mA
.7 mA
.21 mA
.36 mA
• Well suited for low impedance loads where noisy
RFI environments are present
Hipot rating (one minute):
Line to Ground:
Line to Line:
• Controls pulsed, continuous and/or intermittent
interference
2250 VDC
1450 VDC
• ER models offer low leakage current without
deterioration of insertion loss
Rated Voltage (max):
Operating Frequency:
Rated Current:
250 VAC
50/60 Hz
1 to 20A
Operating Ambient Temperature Range
(at rated current I ): -10°C to +40°C
Ordering Information
10E R 7 M
r
In an ambient temperature (T ) higher than +40°C
a
the maximum operating current (I ) is calculated as
o
follows: I = I (85-Ta)/45
o
r
Suffix
M – Metric inserts (style 8 only)
Omit for standard or none
C – Ground choke (select models)
Available Part Numbers
1VR1
1VR3
2VR1
2VR3
3VR1
1ER1
1ER3
2ER1
2ER3
3ER1
Input / Output Style
1 – .250 [6.3] spade terminals
3 – Wire leads
6 – Threaded bolt
7 – IEC inlet* (line side)
.250 [6.3] spade terminals
(load side)
3VR3
3VR7
3VR7M
5VR1
3ER3
3ER7
3ER7M
5ER1
5ER3
R Series
5VR3
5VR7
5ER7
Leakage current designation
E – Low leakage (<0.5 mA)
V – Standard
5VR7M
10VR1
10VR3
10VR6
10VR7
10VR7M
20VR1
20VR6
5ER7M
10ER1
10ER3
10ER7
10ER7M
20ER1
Current Rating
1, 2, 3, 5, 10 or 20A
*IEC 60320-1 C14 inlet mates with C13 connector
61
Dimensions are in inches and millimeters unless otherwise specified. Values in italics
are metric equivalents. Dimensions are shown for reference purposes only.
Specifications subject to change.
