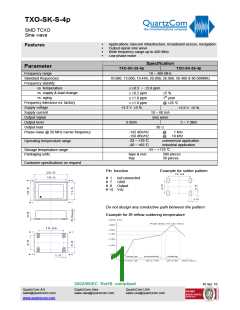

TXO-SK-S-4p
SMD TCXO
Sine wave
ꢀ
ꢀ
ꢀ
ꢀ
Applications: telecom infrastructure, broadband access, navigation
Output signal sine wave
Wide frequency range up to 400 MHz
Low phase noise
Features
Specification
Parameter
TXO-SK-3S-4p
TXO-SK-5S-4p
Frequency range
10 ~ 400 MHz
Standard frequencies
Frequency stability:
vs. temperature
10.000, 13.000, 19.440, 20.000, 26.000, 50.400 & 80.000MHz
≤ ±0.5 ~ ±5.0 ppm
vs. supply & load change
vs. aging
≤ ±0.2 ppm
≤ ±1.0 ppm
≤ ±1.0 ppm
±5 %
1st year
Frequency tolerance ex. factory
Supply voltage
@ +25 °C
+3.3 V ±5 %
+5.0 V ±5 %
Supply current
10 ~ 60 mA
Output signal
sine wave
Output level
0 dBm
3 ~ 7 dBm
Output load
50 Ω
Phase noise @ 50 MHz carrier frequency
-142 dBc/Hz
-150 dBc/Hz
@
@
1 kHz
10 kHz
-20 ~ +70 °C
-40 ~ +85 °C
commercial application
industrial application
Operating temperature range
Storage temperature range
Packaging units
-55 ~ +125 °C
tape & reel
tray
500 pieces
50 pieces
Customer specifications on request
Pin function
Example for solder pattern
# 1 not connected
# 7 GND
# 8 Output
# 14 Vdc
Do not design any conductive path between the pattern
Example for IR reflow soldering temperature
2002/95/EC RoHS compliant
