TXS4555

型号：

TXS4555

描述：

1.8V / 3V SIM卡电源，具有电平转换器[ 1.8V/3V SIM Card Power Supply With Level Translator ]

品牌：

TI[ TEXAS INSTRUMENTS ]

页数：

16 页

PDF大小：

578 K

下载PDF手册

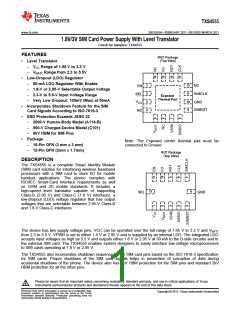

TXS4555
www.ti.com
SBOS550A –FEBRUARY 2011–REVISED MARCH 2011
1.8V/3V SIM Card Power Supply With Level Translator
Check for Samples: TXS4555
1
FEATURES
RGT Package
(Top View)
•
Level Translator
–
–
VCC Range of 1.65 V to 3.3 V
VBATT Range from 2.3 to 5.5V
•
Low-Dropout (LDO) Regulator
–
–
–
–
50-mA LDO Regulator With Enable
1
2
3
4
12
11
10
9
NC
EN
1.8-V or 2.95-V Selectable Output Voltage
2.3-V to 5.5-V Input Voltage Range
SIMCLK
GND
SEL
VCC
Exposed
Thermal Pad
Very Low Dropout: 100mV (Max) at 50mA
•
•
Incorporates Shutdown Feature for the SIM
Card Signals According to ISO-7816-3
SIMRST
NC
ESD Protection Exceeds JESD 22
–
–
–
2000-V Human-Body Model (A114-B)
500-V Charged-Device Model (C101)
8kV HBM for SIM Pins
•
Package
Note: The Exposed center thermal pad must be
connected to Ground
–
–
16-Pin QFN (3 mm x 3 mm)
12-Pin QFN (2mm x 1.7mm)
RUT Package
(Top View)
DESCRIPTION
The TXS4555 is a complete Smart Identity Module
(SIM) card solution for interfacing wireless baseband
processors with a SIM card to store I/O for mobile
handset applications. The device complies with
ISO/IEC Smart-Card Interface requirements as well
as GSM and 3G mobile standards. It includes a
high-speed level translator capable of supporting
Class-B (2.95 V) and Class-C (1.8 V) interfaces, a
low-dropout (LDO) voltage regulator that has output
voltages that are selectable between 2.95-V Class-B
and 1.8-V Class-C interfaces.
12
6
SEL
GND
The device has two supply voltage pins. VCC can be operated over the full range of 1.65 V to 3.3 V and VBATT
from 2.3 to 5.5 V. VPWR is set to either 1.8 V or 2.95 V and is supplied by an internal LDO. The integrated LDO
accepts input voltages as high as 5.5 V and outputs either 1.8 V or 2.95 V at 50 mA to the B-side circuitry and to
the external SIM card. The TXS4555 enables system designers to easily interface low-voltage microprocessors
to SIM cards operating at 1.8 V or 2.95 V.
The TXS4555 also incorporates shutdown sequence for the SIM card pins based on the ISO 7816-3 specification
for SIM cards. Proper shutdown of the SIM card signals helps in prevention of corruption of data during
accidental shutdown of the phone. The device also has 8kV HBM protection for the SIM pins and standard 2kV
HBM protection for all the other pins.
1
Please be aware that an important notice concerning availability, standard warranty, and use in critical applications of Texas
Instruments semiconductor products and disclaimers thereto appears at the end of this data sheet.
PRODUCTION DATA information is current as of publication date.
Copyright © 2011, Texas Instruments Incorporated
Products conform to specifications per the terms of the Texas
Instruments standard warranty. Production processing does not
necessarily include testing of all parameters.
TXS4555
SBOS550A –FEBRUARY 2011–REVISED MARCH 2011
www.ti.com
This integrated circuit can be damaged by ESD. Texas Instruments recommends that all integrated circuits be handled with
appropriate precautions. Failure to observe proper handling and installation procedures can cause damage.
ESD damage can range from subtle performance degradation to complete device failure. Precision integrated circuits may be more
susceptible to damage because very small parametric changes could cause the device not to meet its published specifications.
ORDERING INFORMATION(1)
ORDERABLE PART
TA
PACKAGE(2)
TOP-SIDE MARKING
NUMBER
QFN – RGT (pin 1, quadrant 1)
QFN – RUT (pin 1, quadrant 1)
TXS4555RGTR
TXS4555RUTR
TBD
TBD
–40°C to 85°C
Tape and reel
(1) For the most current package and ordering information, see the Package Option Addendum at the end of this document, or see the TI
web site at www.ti.com.
(2) Package drawings, thermal data, and symbolization are available at www.ti.com/packaging.
VBATT
(2.3 to 5.5 V)
Core Supply
VCC (1.65 to 3.3 V)
2.95 V or 1.8 V,
50 mA
Vcc
RST
CLK
NC
GND
Vpp
I/O
LDO
Baseband
Reset
CLK
Translator
NC
I/O
Figure 1. Interfacing with SIM Card
PIN FUNCTIONS
PIN NO.
PIN NAME
TYPE(1)
DESCRIPTION
RGT
RUT
EN
1
11
I
Enable/disable control input. Pull EN low to place all outputs in Hi-Z state and to disable the
LDO. Referenced to VCC.
SEL
2
3
12
1
I
P
Pin to program VSIM value (Low = 1.8V, High = 2.95V)
Power supply voltage which powers all A-port I/Os and control inputs
Battery power supply
Vcc
VBATT
VSIM
SIM_I/O
SIM_RST
GND
5
2
P
7
3
O
I/O
O
G
O
I
SIM card Power-Supply pin (1.8V or 2.95V)
8
4
Bidirectional SIM I/O pin which connected to I/O pin of the SIM card connector
SIM Reset pin which connects to RESET pin of the SIM card connector
Ground
9
5
10
11
13
14
15
6
SIM_CLK
CLK
7
Clock signal pin which connects to CLK pin of the SIM card connector
Clock signal pin connected from baseband processor
SIM Reset pin connected from baseband processor
Bidirectional SIM I/O pin which connected from baseband processor
No Connects
8
RST
9
I
I/O
10
–
I/O
NC
NC
4, 6, 12,
16
(1) G = Ground, I = Input, O = Output, P = Power
2
Submit Documentation Feedback
Copyright © 2011, Texas Instruments Incorporated
Product Folder Link(s): TXS4555
TXS4555
www.ti.com
SBOS550A –FEBRUARY 2011–REVISED MARCH 2011
Figure 2. Block Diagram
V
BATT
Cin = 1 mF
V
SIM
Vref
R
1
Cout = 1 mF
R
2
GND
Figure 3. Block Diagram of the LDO
Copyright © 2011, Texas Instruments Incorporated
Submit Documentation Feedback
3
Product Folder Link(s): TXS4555
TXS4555
SBOS550A –FEBRUARY 2011–REVISED MARCH 2011
www.ti.com
EN
SIM_RST
SIM_CLK
Active Data
SIM_I/O
VSIM
Figure 4. Shutdown Sequence for SIM_RST, SIM_CLK, SIM_IO and VSIM
The shutdown sequence for the SIM signals is based on the ISO 7816-3 specification. The shutdown sequence
of these signals helps to properly disable these channels and not have any corruption of data accidently. Also,
this is also helpful when the SIM card is present in a hot swap slot and when pulling out the SIM card, the orderly
shutdown of these signals help avoid any improper write/corruption of data.
When EN is taken low, the shutdown sequence happens by powering of the SIM_RST channel. Once that is
achieved, SIM_CLK, SIM_I/O and VSIM are powered sequentially one by one. There is an internal 2K pull-down
value on the SIM pins and helps to pull these channels low. The shutdown time sequence is in the order of a few
microseconds. It is important that EN is taken low before VBAT and VCC supplies go low so that the shutdown
sequence can be initiated properly.
4
Submit Documentation Feedback
Copyright © 2011, Texas Instruments Incorporated
Product Folder Link(s): TXS4555
TXS4555
www.ti.com
SBOS550A –FEBRUARY 2011–REVISED MARCH 2011
ABSOLUTE MAXIMUM RATINGS(1)
over operating free-air temperature range (unless otherwise noted)
VALUE
UNIT
MIN
MAX
LEVEL TRANSLATOR
VCC
Supply voltage range
–0.3
–0.5
–0.5
–0.5
–0.5
–0.5
–0.5
–0.5
–0.5
–0.5
4.0
4.6
V
V
VCC-port
VI
Input voltage range
SIM-port
4.6
Control inputs
VCC -port
4.6
4.6
Voltage range applied to any output in the
high-impedance or power-off state
VO
VSIM-port
Control inputs
VCC-port
4.6
V
V
4.6
4.6
Voltage range applied to any output in the
high or low state
VO
SIM-port
4.6
Control inputs
VI < 0
4.6
IIK
IOK
IO
Input clamp current
–50
–50
±50
±100
150
mA
mA
mA
mA
°C
Output clamp current
VO < 0
Continuous output current
Continuous current through VCCA or GND
Storage temperature range
Tstg
–65
LDO
VBAT Input voltage range
–0.3
–0.3
TBD
6
6
V
V
VOUT
Output voltage range
Peak output current
mA
Continuous total power dissipation
Junction temperature range
Storage temperature range
TBD
150
150
2
TJ
–55
–55
°C
°C
kV
V
Tstg
Human-Body Model (HBM)
Charged-Device Model (CDM)
Human-Body Model (HBM)
ESD rating (host side)
ESD rating (SIM side)
500
8
kV
(1) Stresses beyond those listed under “absolute maximum ratings” may cause permanent damage to the device. These are stress ratings
only, and functional operation of the device at these or any other conditions beyond those indicated under “recommended operating
conditions” is not implied. Exposure to absolute-maximum-rated conditions for extended periods may affect device reliability.
THERMAL INFORMATION
TXS4555
THERMAL METRIC(1)
RGT
16 PINS
47
RUT
12 PINS
87.2
UNITS
θJA
θJB
ψJT
Junction-to-ambient thermal resistance
Junction-to-board thermal resistance
25.12
1.3
N/A
°C/W
Junction-to-top characterization parameter
1.7
θJCbot Junction-to-case (bottom) thermal resistance
3.6
n/A
(1) For more information about traditional and new thermal metrics, see the IC Package Thermal Metrics application report, SPRA953.
RECOMMENDED OPERATING CONDITIONS(1)
MIN
MAX UNIT
LEVEL TRANSLATOR
VCC Supply voltage
1.65
3.3
V
(1) All unused data inputs of the device must be held at VCCI or GND to ensure proper device operation. Refer to the TI application report,
Implications of Slow or Floating CMOS Inputs, literature number SCBA004.
Copyright © 2011, Texas Instruments Incorporated
Submit Documentation Feedback
5
Product Folder Link(s): TXS4555
TXS4555
SBOS550A –FEBRUARY 2011–REVISED MARCH 2011
www.ti.com
MAX UNIT
RECOMMENDED OPERATING CONDITIONS(1) (continued)
MIN
CC × 0.7
0
VIH
VIL
High-level input voltage
Low-level input voltage
V
VCC
CC × 0.3
5
V
V
EN, SEL
V
Δt/Δv Input transition rise or fall rate
TA Operating free-air temperature
ns/V
°C
–40
85
ELECTRICAL CHARACTERISTICS – LEVEL TRANSLATOR
over recommended operating free-air temperature range (unless otherwise noted)
PARAMETER
SIM_RST
SIM_CLK
SIM_I/O
I/O
TEST CONDITIONS
IOH = –1mA
VCC
VSIM
MIN TYP(1)
SIM × 0.8
MAX UNIT
(2)
(2)
(2)
1.65 V to 3.3 V 1.8 V / 2.95 V
1.65 V to 3.3 V 1.8 V / 2.95 V
1.65 V to 3.3 V 1.8 V / 2.95 V
V
V
V
V
IOH = –1mA
SIM × 0.8
SIM × 0.8
VOH
IOH = –20 µA
IOH = –20 µA
IOL = 1 mA
VCC × 0.8
SIM_RST
SIM_CLK
SIM_I/O
I/O
V
SIM × 0.2
SIM × 0.2
0.3
V
IOL = 1mA
V
VOL
IOL = 1 mA
IOL = 1 mA
0.3
II
Control inputs
I/O
VI = EN, 1.8V/3V
VI = VCCI, IO = 0
±1
µA
µA
pF
ICC
1.65 V to 3.3 V 1.8 V / 2.95 V(2)
±5
I/O port
8
4
4
Cio
Ci
SIM ports
Control inputs
VI = VCC or GND
pF
(1) All typical values are at TA = 25°C.
(2) (Supplied by LDO)
LDO ELECTRICAL CHARACTERISTICS
PARAMETER
TEST CONDITIONS
MIN TYP(1) MAX UNIT
VBAT
VSIM
Input voltage
2.3
2.85
1.7
5.5
V
V
Output voltage
Class-B Mode (SEL = VCC
)
2.95 3.05
Class-C Mode (SEL = 0)
IOUT = 50 mA
1.8
1.9
VDO
IGND
Dropout voltage
100 mV
Ground-pin current
IOUT = 0 mA
35 µA
Shutdown current
(IGND)
ISHDN
VENx ≤ 0.4 V, (VSIM + VDO) ≤ VBAT ≤ 5.5 V, TJ = 85°C
3.5 µA
IOUT(SC)
COUT
Short-circuit current
Output Capacitor
RL = 0 Ω
145
1
mA
µF
f = 1 kHz
50
40
VBAT = 3.25 V, VSIM = 1.8 V or 2.95 V,
COUT = 1 µF, IOUT = 50 mA
Power-supply rejection
ratio
PSRR
dB
f = 10 kHz
TSTR
TJ
Start-up time
VSIM = 1.8 V or 2.95 V, IOUT = 50 mA, COUT = 1 µF
400 µS
125 °C
Operating junction
temperature
–40
(1) All typical values are at TA = 25°C.
GENERAL ELECTRICAL CHARACTERISTICS
over operating free-air temperature range (unless otherwise noted)
PARAMETER
I/O pull-up
TEST CONDITIONS
MIN TYP MAX UNIT
RI/OPU
16
10
20
14
24 kΩ
18 kΩ
RSIMPU
SIM_I/O pull-up
6
Submit Documentation Feedback
Copyright © 2011, Texas Instruments Incorporated
Product Folder Link(s): TXS4555

TXS4555
www.ti.com
SBOS550A –FEBRUARY 2011–REVISED MARCH 2011
GENERAL ELECTRICAL CHARACTERISTICS (continued)
over operating free-air temperature range (unless otherwise noted)
PARAMETER
TEST CONDITIONS
MIN TYP MAX UNIT
Active pull-downs are connected to the VSIM regulator output to the
SIM_CLK, SIM_RST, SIM_I/O when EN = 0
RSIMPD
SIM_I/O pull-down
3
kΩ
SWITCHING CHARACTERISTICS
over recommended operating free-air temperature range (unless otherwise noted)
VCC = 1.8 V ± 0.15 V
UNIT
PARAMETER
TEST CONDITIONS
MIN
MAX
VSIM = 1.8 V or 2.95 V SUPPLIED BY INTERNAL LDO
trA
SIM_I/O
SIM_RST
SIM_CLK
SIM_I/O
1
1
µs
µs
trB
18 ns
CL = 50 pF
1
us
fmax
SIM_CLK
SIM_CLK
25 MHz
60%
Duty Cycle
40%
OPERATING CHARACTERISTICS
TA = 25°C, VSIM = 1.8 V
Vcc TYP
UNIT
PARAMETER
TEST CONDITIONS
1.8 V
13
Class B
(1)
CpdA
CL = 0, f = 5 MHz, tr = tf = 1 ns
pF
Class C
11
(1) Power dissipation capacitance per transceiver.
Copyright © 2011, Texas Instruments Incorporated
Submit Documentation Feedback
7
Product Folder Link(s): TXS4555
TXS4555
SBOS550A –FEBRUARY 2011–REVISED MARCH 2011
www.ti.com
TYPICAL CHARACTERISTICS
110
-90
VBAT = 3.25 V,
= 50 mA
V
= 5.5 V
BAT
100
90
I
-80
-70
-60
LOAD
1.8 V Vsim
85°C Vsim
80
70
25°C Vsim
2.95 V Vsim
-50
-40
-30
-20
60
50
40
30
20
-40°C Vsim
-10
0
10
0
100
1k
10k
100k
1M
0
5
10 15 20
25 30 35 40 45 50
f - Frequency - Hz
I
Output Current - mA
OUT
Figure 5. PSRR
Figure 6. Dropout Voltage vs Output Current
1
0.8
0.6
0
I
= 50 mA
O
-0.2
-0.4
0.4
0.2
-100 mA, Vism
-40°C Vsim
-0.6
-0.8
-1
0
-0.2
-0.4
-0.6
-0.8
-1
85°C Vsim
-1.2
-1.4
-1.6
-1.2
-1.4
-1.6
-1.8
-50 mA, Vism
25°C Vsim
-2
-2.2
-1.8
-2
-2.4
-40 -30 -20 -10
0
10 20 30 40 50 60 70 80
- Temperature - °C
0
5
10 15 20
25 30 35 40 45 50
T
I
Output Current - mA
A
OUT
Figure 7. Output Voltage vs Temperature, Class-B/C
Figure 8. Load Regulation, Iout = 50 mA, Class-C
8
Submit Documentation Feedback
Copyright © 2011, Texas Instruments Incorporated
Product Folder Link(s): TXS4555
TXS4555
www.ti.com
SBOS550A –FEBRUARY 2011–REVISED MARCH 2011
APPLICATION INFORMATION
The LDO’s included on the TXS4555 achieve ultra-wide bandwidth and high loop gain, resulting in extremely
high PSRR at very low headroom (VBAT – VSIM). The TXS4555 provides fixed regulation at 1.8V or 2.95V. Low
noise, enable, low ground pin current make it ideal for portable applications. The device offers sub-bandgap
output voltages, current limit and thermal protection, and is fully specified from –40°C to 125°C.
VSIM
V
CC
TXS4555
VBAT
1 mF
GND
1 mF
0.1 mF
Figure 9. Typical Application Circuit for TXS4555
INPUT AND OUTPUT CAPACITOR REQUIREMENTS
It is good analog design practice to connect a 1.0 µF low equivalent series resistance (ESR) capacitor across the
input supply (VBAT) near the regulator. Also, a 0.1µF is required for the logic core supply (VDDIO).
This capacitor will counteract reactive input sources and improve transient response, noise rejection, and ripple
rejection. A higher-value capacitor may be necessary if large, fast rise-time load transients are anticipated or if
the device is located several inches from the power source. The LDO’s are designed to be stable with standard
ceramic capacitors of values 1.0 µF or larger. X5R- and X7R-type capacitors are best because they have
minimal variation in value and ESR over temperature. Maximum ESR should be < 1.0 Ω.
OUTPUT NOISE
In most LDO’s, the bandgap is the dominant noise source. To improve ac performance such as PSRR, output
noise, and transient response, it is recommended that the board be designed with separate ground planes for VIN
and VOUT, with each ground plane connected only at the GND pin of the device. In addition, the ground
connection for the bypass capacitor should connect directly to the GND pin of the device.
INTERNAL CURRENT LIMIT
The TXS4555 internal current limit helps protect the regulator during fault conditions. During current limit, the
output sources a fixed amount of current that is largely independent of output voltage. For reliable operation, the
device should not be operated in a current limit state for extended periods of time.
The PMOS pass element in the TXS4555 has a built-in body diode that conducts current when the voltage at
VSIM exceeds the voltage at VBAT. This current is not limited, so if extended reverse voltage operation is
anticipated, external limiting may be appropriate.
DROPOUT VOLTAGE
The TXS4555 uses a PMOS pass transistor to achieve low dropout. When (VBAT – VSIM) is less than the dropout
voltage (VDO), the PMOS pass device is in its linear region of operation and the input-to-output resistance is the
RDS(ON) of the PMOS pass element. VDO will approximately scale with output current because the PMOS device
behaves like a resistor in dropout.
STARTUP
The TXS4555 uses a quick-start circuit which allows the combination of very low output noise and fast start-up
times.
Copyright © 2011, Texas Instruments Incorporated
Submit Documentation Feedback
9
Product Folder Link(s): TXS4555
TXS4555
SBOS550A –FEBRUARY 2011–REVISED MARCH 2011
www.ti.com
TRANSIENT RESPONSE
As with any regulator, increasing the size of the output capacitor reduces over/undershoot magnitude but
increases duration of the transient response.
MINIMUM LOAD
The TXS4555 is stable and well-behaved with no output load. Traditional PMOS LDO regulators suffer from
lower loop gain at very light output loads. The TXS4555 employs an innovative low-current mode circuit to
increase loop gain under very light or no-load conditions, resulting in improved output voltage regulation
performance down to zero output current.
THERMAL INFORMATION
Thermal Protection
Thermal protection disables the output when the junction temperature rises to approximately +160°C, allowing
the device to cool. When the junction temperature cools to approximately +140°C the output circuitry is again
enabled. Depending on power dissipation, thermal resistance, and ambient temperature, the thermal protection
circuit may cycle on and off. This cycling limits the dissipation of the regulator, protecting it from damage
because of overheating.
Any tendency to activate the thermal protection circuit indicates excessive power dissipation or an inadequate
heat sink. For reliable operation, junction temperature should be limited to +125°C maximum. To estimate the
margin of safety in a complete design (including heat sink), increase the ambient temperature until the thermal
protection is triggered; use worst-case loads and signal conditions. For good reliability, thermal protection should
trigger at least +35°C above the maximum expected ambient condition of your particular application. This
configuration produces a worst-case junction temperature of +125°C at the highest expected ambient
temperature and worst-case load.
The internal protection circuitry of the TXS4555 has been designed to protect against overload conditions. It was
not intended to replace proper heat sinking. Continuously running the TXS4555 into thermal shutdown will
degrade device reliability.
10
Submit Documentation Feedback
Copyright © 2011, Texas Instruments Incorporated
Product Folder Link(s): TXS4555
PACKAGE OPTION ADDENDUM
www.ti.com
4-Apr-2011
PACKAGING INFORMATION
Status (1)
Eco Plan (2)
MSL Peak Temp (3)
Samples
Orderable Device
Package Type Package
Drawing
Pins
Package Qty
Lead/
Ball Finish
(Requires Login)
TXS4555RGTR
TXS4555RUTR
ACTIVE
QFN
RGT
RUT
16
12
3000
3000
Green (RoHS
& no Sb/Br)
CU NIPDAU Level-2-260C-1 YEAR
PREVIEW
UQFN
TBD
Call TI
Call TI
(1) The marketing status values are defined as follows:
ACTIVE: Product device recommended for new designs.
LIFEBUY: TI has announced that the device will be discontinued, and a lifetime-buy period is in effect.
NRND: Not recommended for new designs. Device is in production to support existing customers, but TI does not recommend using this part in a new design.
PREVIEW: Device has been announced but is not in production. Samples may or may not be available.
OBSOLETE: TI has discontinued the production of the device.
(2) Eco Plan - The planned eco-friendly classification: Pb-Free (RoHS), Pb-Free (RoHS Exempt), or Green (RoHS & no Sb/Br) - please check http://www.ti.com/productcontent for the latest availability
information and additional product content details.
TBD: The Pb-Free/Green conversion plan has not been defined.
Pb-Free (RoHS): TI's terms "Lead-Free" or "Pb-Free" mean semiconductor products that are compatible with the current RoHS requirements for all 6 substances, including the requirement that
lead not exceed 0.1% by weight in homogeneous materials. Where designed to be soldered at high temperatures, TI Pb-Free products are suitable for use in specified lead-free processes.
Pb-Free (RoHS Exempt): This component has a RoHS exemption for either 1) lead-based flip-chip solder bumps used between the die and package, or 2) lead-based die adhesive used between
the die and leadframe. The component is otherwise considered Pb-Free (RoHS compatible) as defined above.
Green (RoHS & no Sb/Br): TI defines "Green" to mean Pb-Free (RoHS compatible), and free of Bromine (Br) and Antimony (Sb) based flame retardants (Br or Sb do not exceed 0.1% by weight
in homogeneous material)
(3) MSL, Peak Temp. -- The Moisture Sensitivity Level rating according to the JEDEC industry standard classifications, and peak solder temperature.
Important Information and Disclaimer:The information provided on this page represents TI's knowledge and belief as of the date that it is provided. TI bases its knowledge and belief on information
provided by third parties, and makes no representation or warranty as to the accuracy of such information. Efforts are underway to better integrate information from third parties. TI has taken and
continues to take reasonable steps to provide representative and accurate information but may not have conducted destructive testing or chemical analysis on incoming materials and chemicals.
TI and TI suppliers consider certain information to be proprietary, and thus CAS numbers and other limited information may not be available for release.
In no event shall TI's liability arising out of such information exceed the total purchase price of the TI part(s) at issue in this document sold by TI to Customer on an annual basis.
Addendum-Page 1
IMPORTANT NOTICE
Texas Instruments Incorporated and its subsidiaries (TI) reserve the right to make corrections, modifications, enhancements, improvements,
and other changes to its products and services at any time and to discontinue any product or service without notice. Customers should
obtain the latest relevant information before placing orders and should verify that such information is current and complete. All products are
sold subject to TI’s terms and conditions of sale supplied at the time of order acknowledgment.
TI warrants performance of its hardware products to the specifications applicable at the time of sale in accordance with TI’s standard
warranty. Testing and other quality control techniques are used to the extent TI deems necessary to support this warranty. Except where
mandated by government requirements, testing of all parameters of each product is not necessarily performed.
TI assumes no liability for applications assistance or customer product design. Customers are responsible for their products and
applications using TI components. To minimize the risks associated with customer products and applications, customers should provide
adequate design and operating safeguards.
TI does not warrant or represent that any license, either express or implied, is granted under any TI patent right, copyright, mask work right,
or other TI intellectual property right relating to any combination, machine, or process in which TI products or services are used. Information
published by TI regarding third-party products or services does not constitute a license from TI to use such products or services or a
warranty or endorsement thereof. Use of such information may require a license from a third party under the patents or other intellectual
property of the third party, or a license from TI under the patents or other intellectual property of TI.
Reproduction of TI information in TI data books or data sheets is permissible only if reproduction is without alteration and is accompanied
by all associated warranties, conditions, limitations, and notices. Reproduction of this information with alteration is an unfair and deceptive
business practice. TI is not responsible or liable for such altered documentation. Information of third parties may be subject to additional
restrictions.
Resale of TI products or services with statements different from or beyond the parameters stated by TI for that product or service voids all
express and any implied warranties for the associated TI product or service and is an unfair and deceptive business practice. TI is not
responsible or liable for any such statements.
TI products are not authorized for use in safety-critical applications (such as life support) where a failure of the TI product would reasonably
be expected to cause severe personal injury or death, unless officers of the parties have executed an agreement specifically governing
such use. Buyers represent that they have all necessary expertise in the safety and regulatory ramifications of their applications, and
acknowledge and agree that they are solely responsible for all legal, regulatory and safety-related requirements concerning their products
and any use of TI products in such safety-critical applications, notwithstanding any applications-related information or support that may be
provided by TI. Further, Buyers must fully indemnify TI and its representatives against any damages arising out of the use of TI products in
such safety-critical applications.
TI products are neither designed nor intended for use in military/aerospace applications or environments unless the TI products are
specifically designated by TI as military-grade or "enhanced plastic." Only products designated by TI as military-grade meet military
specifications. Buyers acknowledge and agree that any such use of TI products which TI has not designated as military-grade is solely at
the Buyer's risk, and that they are solely responsible for compliance with all legal and regulatory requirements in connection with such use.
TI products are neither designed nor intended for use in automotive applications or environments unless the specific TI products are
designated by TI as compliant with ISO/TS 16949 requirements. Buyers acknowledge and agree that, if they use any non-designated
products in automotive applications, TI will not be responsible for any failure to meet such requirements.
Following are URLs where you can obtain information on other Texas Instruments products and application solutions:
Products
Applications
Audio
www.ti.com/audio
amplifier.ti.com
dataconverter.ti.com
www.dlp.com
Communications and Telecom www.ti.com/communications
Amplifiers
Data Converters
DLP® Products
DSP
Computers and Peripherals
Consumer Electronics
Energy and Lighting
Industrial
www.ti.com/computers
www.ti.com/consumer-apps
www.ti.com/energy
dsp.ti.com
www.ti.com/industrial
www.ti.com/medical
www.ti.com/security
Clocks and Timers
Interface
www.ti.com/clocks
interface.ti.com
logic.ti.com
Medical
Security
Logic
Space, Avionics and Defense www.ti.com/space-avionics-defense
Power Mgmt
power.ti.com
Transportation and
Automotive
www.ti.com/automotive
Microcontrollers
RFID
microcontroller.ti.com
www.ti-rfid.com
Video and Imaging
Wireless
www.ti.com/video
www.ti.com/wireless-apps
RF/IF and ZigBee® Solutions www.ti.com/lprf
TI E2E Community Home Page
e2e.ti.com
Mailing Address: Texas Instruments, Post Office Box 655303, Dallas, Texas 75265
Copyright © 2011, Texas Instruments Incorporated
厂商 型号 描述 页数 下载

TI

 		TXS0101 1位双向电压电平转换为漏极开路应用[ 1-BIT BIDIRECTIONAL VOLTAGE-LEVEL TRANSLATOR FOR OPEN-DRAIN APPLICATIONS ] 18 页

TI

 		TXS0101DBVR 1位双向电压电平转换为漏极开路应用[ 1-BIT BIDIRECTIONAL VOLTAGE-LEVEL TRANSLATOR FOR OPEN-DRAIN APPLICATIONS ] 18 页

TI

 		TXS0101DBVRG4 1位双向电压电平转换为漏极开路应用[ 1-BIT BIDIRECTIONAL VOLTAGE-LEVEL TRANSLATOR FOR OPEN-DRAIN APPLICATIONS ] 18 页

TI

 		TXS0101DBVT 1位双向电压电平转换为漏极开路应用[ 1-BIT BIDIRECTIONAL VOLTAGE-LEVEL TRANSLATOR FOR OPEN-DRAIN APPLICATIONS ] 18 页

TI

 		TXS0101DBVTG4 1位双向电压电平转换为漏极开路应用[ 1-BIT BIDIRECTIONAL VOLTAGE-LEVEL TRANSLATOR FOR OPEN-DRAIN APPLICATIONS ] 18 页

TI

 		TXS0101DCKR 1位双向电压电平转换为漏极开路应用[ 1-BIT BIDIRECTIONAL VOLTAGE-LEVEL TRANSLATOR FOR OPEN-DRAIN APPLICATIONS ] 18 页

TI

 		TXS0101DCKRG4 1位双向电压电平转换为漏极开路应用[ 1-BIT BIDIRECTIONAL VOLTAGE-LEVEL TRANSLATOR FOR OPEN-DRAIN APPLICATIONS ] 18 页

TI

 		TXS0101DCKT 1位双向电压电平转换为漏极开路应用[ 1-BIT BIDIRECTIONAL VOLTAGE-LEVEL TRANSLATOR FOR OPEN-DRAIN APPLICATIONS ] 18 页

TI

 		TXS0101DCKTG4 1位双向电压电平转换为漏极开路应用[ 1-BIT BIDIRECTIONAL VOLTAGE-LEVEL TRANSLATOR FOR OPEN-DRAIN APPLICATIONS ] 18 页

TI

 		TXS0101DRLR 1位双向电压电平转换为漏极开路应用[ 1-BIT BIDIRECTIONAL VOLTAGE-LEVEL TRANSLATOR FOR OPEN-DRAIN APPLICATIONS ] 18 页

购物指南

支付方式

配送服务

售后服务

发票须知

优惠券使用规则

特色服务

PCBA制造

国产品牌推荐

国产料号替代

质量保证

技术资料

行业资讯

关于我们

关于达普

联系我们

联系我们

服务热线：400-618-9990

企业邮箱：smail@ic72.com

服务时间：周一至周六 8:30-17:30

达普官方微信号

PDF索引：

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

X

Y

Z

0

1

2

3

4

5

6

7

8

9

IC型号索引：

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

X

Y

Z

0

1

2

3

4

5

6

7

8

9

Copyright 2024 gkzhan.com Al Rights Reserved 京ICP备06008810号-21 京

深圳网络警察报警平台
公共信息安全网络监察
经营性网站备案信息
不良信息举报中心
工商网监电子标识
全国公安机关备案
0.187601s
