TZA3026U

型号：

TZA3026U

描述：

SDH / SONET STM4 / OC12跨阻放大器器[ SDH/SONET STM4/OC12 transimpedance amplifier ]

品牌：

NXP[ NXP ]

页数：

15 页

PDF大小：

76 K

下载PDF手册

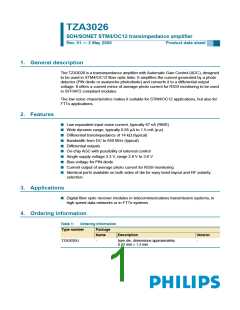

TZA3026
SDH/SONET STM4/OC12 transimpedance amplifier
Rev. 01 — 2 May 2005
Product data sheet
1. General description
The TZA3026 is a transimpedance amplifier with Automatic Gain Control (AGC), designed
to be used in STM4/OC12 fiber optic links. It amplifies the current generated by a photo
detector (PIN diode or avalanche photodiode) and converts it to a differential output
voltage. It offers a current mirror of average photo current for RSSI monitoring to be used
in SFF8472 compliant modules.
The low noise characteristics makes it suitable for STM4/OC12 applications, but also for
FTTx applications.
2. Features
■ Low equivalent input noise current, typically 67 nA (RMS)
■ Wide dynamic range, typically 0.85 µA to 1.5 mA (p-p)
■ Differential transimpedance of 14 kΩ (typical)
■ Bandwidth from DC to 650 MHz (typical)
■ Differential outputs
■ On-chip AGC with possibility of external control
■ Single supply voltage 3.3 V, range 2.9 V to 3.6 V
■ Bias voltage for PIN diode
■ Current output of average photo current for RSSI monitoring
■ Identical ports available on both sides of die for easy bond layout and RF polarity
selection
3. Applications
■ Digital fiber optic receiver modules in telecommunications transmission systems, in
high speed data networks or in FTTx systems
4. Ordering information
Table 1:
Ordering information
Type number
Package
Name
-
Description
Version
TZA3026U
bare die, dimensions approximately
-
0.82 mm × 1.3 mm
TZA3026
Philips Semiconductors
SDH/SONET STM4/OC12 transimpedance amplifier
5. Block diagram
V
AGC
CC
C
VCC
4 or 17 6 or 15
TZA3026
0.2 × I
I
DREF
DREF
I
MON
IDREF_MON 5 or 16
BIASING
R
DREF
300 Ω
DREF 1 or 3
GAIN
CONTROL
R
C
DREF
D
IDREF_MON
PEAK DETECTOR
output
buffers
single-ended to
differential converter
I
PD
7 or 13 OUTQ
IPHOTO
2
low noise
amplifier
8 or 14 OUT
9, 10, 11, 12
GND
001aac617
Fig 1. Block diagram
9397 750 14763
© Koninklijke Philips Electronics N.V. 2005. All rights reserved.
Product data sheet
Rev. 01 — 2 May 2005
2 of 15
TZA3026
Philips Semiconductors
SDH/SONET STM4/OC12 transimpedance amplifier
6. Pinning information
6.1 Pinning
3
2
1
V
4
5
17
16
V
CC
CC
IDREF_MON
AGC
IDREF_MON
AGC
6
15
TZA3026
OUTQ
OUT
7
14
OUT
8
13
OUTQ
GND
GND
9
12
GND
10
11
GND
001aac618
Fig 2. Pad configuration
6.2 Pin description
Table 2:
Bonding pad description
Bonding pad locations with respect to the center of the die (see Figure 10), X and Y are in µm.
Symbol
Pad
X
Y
Type
Description
DREF
1
−493.6 140
output
bias voltage output for PIN diode; connect cathode of PIN diode to
pad 1 or pad 3
IPHOTO
DREF
2
3
−493.6
0
input
current input; anode of PIN diode should be connected to this pad
−493.6 −140
output
bias voltage output for PIN diode; connect cathode of PIN diode to
pad 1 or pad 3
VCC
4
5
−353.6 −278.6 supply
−213.6 −278.6 output
supply voltage; connect supply voltage to pad 4 or pad 17
IDREF_MON
current output for RSSI measurements; connect a resistor to pad 5
or pad 16 and ground
AGC
OUTQ
OUT
6
7
8
9
−73.6
66.4
−278.6 input
−278.6 output
−278.6 output
−278.6 ground
AGC voltage; use pad 6 or pad 15
data output; complement of pad OUT; use pad 7 or pad 13
data output; use pad 8 or pad 14[1]
206.4
346.4
GND
ground; connect together pads 9, 10, 11 and pad 12 as many as
possible
GND
10
486.4
−278.6 ground
ground; connect together pads 9, 10, 11 and pad 12 as many as
possible
9397 750 14763
© Koninklijke Philips Electronics N.V. 2005. All rights reserved.
Product data sheet
Rev. 01 — 2 May 2005
3 of 15
TZA3026
Philips Semiconductors
SDH/SONET STM4/OC12 transimpedance amplifier
Table 2:
Bonding pad description …continued
Bonding pad locations with respect to the center of the die (see Figure 10), X and Y are in µm.
Symbol
Pad
X
Y
Type
Description
GND
11
486.4
278.6
ground
ground; connect together pads 9, 10, 11 and pad 12 as many as
possible
GND
12
346.4
278.6
ground
ground; connect together pads 9, 10, 11 and pad 12 as many as
possible
OUTQ
OUT
13
14
15
206.4
66.4
278.6
278.6
278.6
output
output
input
data output; complement of pad OUT; use pad 7 or pad 13
data output; use pad 8 or pad 14[1]
AGC
−73.6
AGC voltage; use pad 6 or pad 15
IDREF_MON 16
−213.6 278.6
output
current output for RSSI measurements; connect a resistor to pad 5
or pad 16 and ground
VCC 17
−353.6 278.6
supply
supply voltage; connect supply voltage to pad 4 or pad 17
[1] These pads go HIGH when current flows into pad IPHOTO.
7. Functional description
The TZA3026 is a TransImpedance Amplifier (TIA) intended for use in fiber optic receivers
for signal recovery in STM4/OC12 or FTTx applications. It amplifies the current generated
by a photo detector (PIN diode or avalanche photodiode) and converts it to a differential
output voltage.
The most important characteristics of the TZA3026 are high receiver sensitivity, wide
dynamic range and large bandwidth. Excellent receiver sensitivity is achieved by
minimizing transimpedance amplifier noise.
The TZA3026 has a wide dynamic range to handle the signal current generated by the
PIN diode which can vary from 0.85 µA to 1.5 mA (p-p). This is implemented by an AGC
loop which reduces the preamplifier feedback resistance so that the amplifier remains
linear over the whole input range. The AGC loop hold capacitor is integrated on-chip, so
an external capacitor is not required.
The bandwidth of TZA3026 is optimized for STM4/OC12 application. It works from DC
onward due to the absence of offset control loops. Therefore the amount of Consecutive
Identical Digits (CID) will not effect the output waveform. A differential amplifier converts
the output of the preamplifier to a differential voltage.
7.1 PIN diode connections
The performance of an optical receiver is largely determined by the combined effect of the
transimpedance amplifier and the PIN diode. In particular, the method used to connect the
PIN diode to the input (pad IPHOTO) and the layout around the input pad strongly
influences the main parameters of a transimpedance amplifier, such as sensitivity,
bandwidth, and PSRR.
Sensitivity is most affected by the value of the total capacitance at the input pad.
Therefore, to obtain the highest possible sensitivity the total capacitance should be as low
as possible.
9397 750 14763
© Koninklijke Philips Electronics N.V. 2005. All rights reserved.
Product data sheet
Rev. 01 — 2 May 2005
4 of 15
TZA3026
Philips Semiconductors
SDH/SONET STM4/OC12 transimpedance amplifier
The parasitic capacitance can be minimized through:
1. Reducing the capacitance of the PIN diode. This is achieved by proper choice of PIN
diode and typically a high reverse voltage.
2. Reducing the parasitics around the input pad. This is achieved by placing the PIN
diode as close as possible to the TIA.
The PIN diode can be biased with a positive or a negative voltage. Figure 3 shows the PIN
diode biased positively, using the on-chip bias pad DREF. The voltage at DREF is derived
from VCC by a low-pass filter comprising internal resistor RDREF and external capacitor C2
which decouples any supply voltage noise. The value of external capacitor C2 affects the
value of PSRR and should have a minimum value of 470 pF. Increasing this value
improves the value of PSRR. The current through RDREF is measured and sourced at pad
IDREF_MON, see Section 7.3.
If the biasing for the PIN diode is done external to the IC, pad DREF can be left
unconnected. If a negative bias voltage is used, the configuration shown in Figure 4 can
be used. In this configuration, the direction of the signal current is reversed to that shown
in Figure 3. It is essential that in these applications, the PIN diode bias voltage is filtered to
achieve the best sensitivity.
For maximum freedom on bonding location, 2 outputs are available for DREF (pads 1
and 3). These are internally connected. Both outputs can be used if necessary. If only one
is used, the other can be left open.
V
CC
V
CC
4 or 17
4 or 17
R
DREF
DREF 1 or 3
R
DREF
DREF 1 or 3
300 Ω
I
300 Ω
PD
C2
470 pF
IPHOTO
2
IPHOTO
2
I
PD
TZA3026
TZA3026
negative
bias voltage
001aac619
001aac620
Fig 3. The PIN diode connected between
the input and pad DREF
Fig 4. The PIN diode connected between
the input and a negative supply
voltage
9397 750 14763
© Koninklijke Philips Electronics N.V. 2005. All rights reserved.
Product data sheet
Rev. 01 — 2 May 2005
5 of 15
TZA3026
Philips Semiconductors
SDH/SONET STM4/OC12 transimpedance amplifier
7.2 Automatic gain control
The TZA3026 transimpedance amplifier can handle input currents from 0.85 µA to 1.5 mA
which is equivalent to a dynamic range of 65 dB (electrical equivalent with 32.5 dB
optical). At low input currents, the transimpedance must be high to obtain enough output
voltage, and the noise should be low enough to guarantee a minimum bit error rate. At
high input currents however, the transimpedance should be low to prevent excessive
distortion at the output stage. To achieve the dynamic range, the gain of the amplifier
depends on the level of the input signal. This is achieved in the TZA3026 by an AGC loop.
The AGC loop comprises a peak detector and a gain control circuit. The peak detector
detects the amplitude of the signal and stores it on a hold capacitor. The hold capacitor
voltage is compared to a threshold voltage. The AGC is only active when the input signal
level is larger than the threshold level and is inactive when the input signal is smaller than
the threshold level.
When the AGC is inactive, the transimpedance is at its maximum. When the AGC is
active, the feedback resistor value of the transimpedance amplifier is reduced, reducing its
transimpedance, to keep the output voltage constant. Figure 5 shows the transimpedance
as function of the input current.
To reduce sensitivity to offsets and output loads, the AGC detector senses the output just
before the output buffer. Figure 6 shows the AGC voltage as function of the input current.
001aac621
001aac622
2
10
4
V
(V)
AGC
transimpedance
(kΩ)
3
2
1
0
10
1
−1
10
2
3
4
2
3
4
1
10
10
10
10
1
10
10
10
10
I
(µA)
I
(µA)
PD
PD
Fig 5. Transimpedance as function of the input
current
Fig 6. AGC voltage as function of the input current
9397 750 14763
© Koninklijke Philips Electronics N.V. 2005. All rights reserved.
Product data sheet
Rev. 01 — 2 May 2005
6 of 15
TZA3026
Philips Semiconductors
SDH/SONET STM4/OC12 transimpedance amplifier
For applications where the transimpedance is controlled by the TIA it is advised to leave
the AGC pads unconnected to achieve fast attack and decay times.
The AGC function can be overruled by applying a voltage to pad AGC. In this
configuration, connecting pad AGC to ground gives maximum transimpedance and
connecting it to VCC gives minimum transimpedance. This is depicted in Figure 7. The
AGC voltage should be derived from the VCC for proper functioning.
For maximum freedom on bonding location, 2 pads are available for AGC (pads 6 and 15).
These pads are internally connected. Both pads can be used if necessary.
001aac623
2
10
transimpedance
(kΩ)
10
1
−1
10
0.3V
0.5V
0.7V
0.9V
CC
(V)
CC
CC
CC
V
AGC
Fig 7. Transimpedance as function of the AGC voltage
7.3 Monitoring RSSI via IDREF_MON
To facilitate RSSI monitoring in modules (e.g. SFF8472 compliant SFP modules), a
current output is provided. This output gives a current which is 20 % of the average DREF
current through the 300 Ω bias resistor. By connecting a resistor to the IDREF_MON
output, a voltage proportional with the average input power can be obtained.
The RSSI monitoring is implemented by measuring the voltage over the 300 Ω bias
resistor. This method is preferred over simple current mirror because at small photo
currents the voltage drop over the resistor is very small. This gives a higher bias voltage
yielding better performance of the photodiode.
For maximum freedom on bonding location, 2 pads are available for IDREF_MON (pads 5
and 16). These pads are internally connected. Both pads can be used if necessary. If only
one is used, the other can be left open.
9397 750 14763
© Koninklijke Philips Electronics N.V. 2005. All rights reserved.
Product data sheet
Rev. 01 — 2 May 2005
7 of 15
TZA3026
Philips Semiconductors
SDH/SONET STM4/OC12 transimpedance amplifier
8. Limiting values
Table 3:
Limiting values
In accordance with the Absolute Maximum Rating System (IEC 60134).
Symbol Parameter
Conditions
Min
Max
Unit
VCC
Vn
supply voltage
pad DC voltage
−0.5
+3.8
V
pad
IPHOTO
−0.5
−0.5
−0.5
−0.5
+2.0
V
V
V
V
OUT, OUTQ
AGC, IDREF_MON
DREF
VCC + 0.5
VCC + 0.5
VCC + 0.5
In
pad DC current
pad
IPHOTO
−4.0
−10
−0.2
−4.0
-
+4.0
+10
+0.2
+4.0
300
mA
mA
mA
mA
mW
°C
OUT, OUTQ
AGC, IDREF_MON
DREF
Ptot
Tamb
Tj
total power dissipation
ambient temperature
junction temperature
storage temperature
−40
-
+85
150
°C
Tstg
−65
+150
°C
9. Characteristics
Table 4:
Characteristics
Typical values at Tj = 25 °C and VCC = 3.3 V; minimum and maximum values are valid over the entire ambient temperature
range and supply voltage range; all voltages are measured with respect to ground; unless otherwise specified.
Symbol
VCC
Parameter
Conditions
Min
2.9
-
Typ
3.3
18
Max
3.6
21
Unit
V
supply voltage
supply current
ICC
AC-coupled; RL(dif) = 100 Ω;
mA
excluding IDREF and IIDREF_MON
Ptot
Tj
total power dissipation
junction temperature
ambient temperature
-
60
-
76
mW
°C
−40
−40
9.5
+125
+85
19
Tamb
Rtr
+25
14
°C
small-signal
measured differentially;
kΩ
transresistance of the
receiver
AC-coupled, RL(dif) = 100 Ω
f-3dB(h)
high frequency −3 dB point CPD = 0.7 pF; VCC = 3.3 V
440
-
650
67
-
MHz
nA
[1]
In(tot)(rms)
total integrated RMS noise referenced to input;
79
current over bandwidth
CPD = 0.7 pF; ∆fi = 450 MHz
third-order Bessel filter
Automatic gain control loop: pad AGC
tatt
attack time
decay time
AGC pad unconnected
AGC pad unconnected
-
-
-
14
-
-
-
µs
tdecay
40
µs
VO(data)(p-p)
data output voltage
(peak-to-peak value)
referenced to output;
measured differentially
125
mV
9397 750 14763
© Koninklijke Philips Electronics N.V. 2005. All rights reserved.
Product data sheet
Rev. 01 — 2 May 2005
8 of 15
TZA3026
Philips Semiconductors
SDH/SONET STM4/OC12 transimpedance amplifier
Table 4:
Characteristics …continued
Typical values at Tj = 25 °C and VCC = 3.3 V; minimum and maximum values are valid over the entire ambient temperature
range and supply voltage range; all voltages are measured with respect to ground; unless otherwise specified.
Symbol
Parameter
Conditions
Min
Typ
Max
Unit
Bias voltage: pad DREF
RDREF
resistance between pad
DREF and pad VCC
tested at DC level;
Tamb = 25 °C
250
-
300
350
-
Ω
TCRDREF
temperature coefficient
RDREF
0.33
Ω/°C
Input: pad IPHOTO
[2]
[1]
IPD(p-p)
input current (peak-to-peak
value)
−1500 -
+1500
1000
µA
Vbias
input bias voltage
700
850
mV
Monitor: pad IDREF_MON
VMON
monitor voltage
0
-
VCC − 0.4 V
AMON
monitor current ratio
monitor offset current
ratio IDREF_MON / IDREF
19.5
20
10
30
20.5
20
-
%
IMON(offset)
TCMON(offset)
Tamb = 25 °C
0
-
µA
temperature coefficient
monitor offset current
nA/°C
Data outputs: pads OUT and OUTQ
Vo(cm)
common mode output
voltage
AC-coupled; RL(dif) = 100 Ω
-
V
CC − 1.2 -
V
Vo(dif)(p-p)
differential load output
voltage (peak-to-peak
value)
AC-coupled; RL(dif) = 100 Ω
IPD = 0.84 µA (p-p) × Rtr
IPD = 100 µA (p-p)
8
-
12
-
mV
mV
mV
Ω
125
250
100
-
IPD = 1500 µA (p-p)
tested at DC level
-
500
-
RO(dif)
differential output
resistance
-
tr
tf
rise time
20 % to 80 %;
-
-
300
300
-
-
ps
ps
I
PD = 100 µA(p-p)
80 % to 20 %;
PD = 100 µA (p-p)
fall time
I
[1] Guaranteed by design.
[2] The input current range is determined by the allowed Pulse Width Distortion (PWD), which is <5 % over the whole input current range.
pulse width
The PWD is defined as: PWD =
– (0.5) × 100 % , where T is the clock period.
------------------------------
T
9397 750 14763
© Koninklijke Philips Electronics N.V. 2005. All rights reserved.
Product data sheet
Rev. 01 — 2 May 2005
9 of 15
TZA3026
Philips Semiconductors
SDH/SONET STM4/OC12 transimpedance amplifier
10. Application information
For maximum freedom on bonding location, 2 outputs are available for OUT and OUTQ.
The outputs should be used in pairs: pad 14 with pad 7 or pad 8 with pad 13. Pad 8 is
internally connected with pad 14, pad 7 is internally connected with pad 13. The device is
guaranteed with only one pair used. The other pair should be left open. Two examples of
the bonding possibilities are shown in Figure 8.
V
V
CC
CC
IDREF_MON
IDREF_MON
C
C
PIN
PIN
C
C
TZA3026U
TZA3026U
OUT
OUTQ
OUTQ
OUT
GND
GND
001aac624
001aac625
Fig 8. Application diagram highlighting flexible pad lay out
9397 750 14763
© Koninklijke Philips Electronics N.V. 2005. All rights reserved.
Product data sheet
Rev. 01 — 2 May 2005
10 of 15
xxxx xxxxxxxxxxxxxxxxxxxxxxxxxxxxxx x xxxxxxxxxxxxxx xxxxxxxxxx xxx xxxxxx xxxxxxxxxxxxxxxxxxxxxxx xxxxxxxxxxxxxxxxxxxxxx
xxxxx xxxxxx xx xxxxxxxxxxxxxxxxxxxxxxxxxxxxx xxxxxxxxxxxxxxxxxxxxxx xxxxxxxxxxx xxxxxxx xxxxxxxxxxxxxxxxxxx
xxxxxxxxxxxxxxxx xxxxxxxxxxxxxx xxxxxx xx xxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxx xxxxxxxxxxxxxxxxxxxxxxxx xxxxxxx
xxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxx xxxxxxxxxxx xxxxx x x
NETWORK ANALYZER
S-PARAMETER TEST SET
PORT1
PORT2
Z
= 50 Ω
Z = 50 Ω
O
O
V
CC
SAMPLING OSCILLOSCOPE
DC-IN
4 or 17
8 or 14
22 nF
22 nF
OUT
TRIGGER
INPUT
1
2
8.2
kΩ
Z
= 50 Ω
O
TZA3026
22 nF
330 Ω
IPHOTO
PATTERN
GENERATOR
2
OUTQ
R
7 or 13
DATA
55 Ω
9, 10, 11, 12
GND
CLOCK
001aac626
Total impedance of the test circuit (ZT) is calculated by the equation ZT = s21 × (R + ZIN) × 2, where s21 is the insertion loss of ports 1 and 2.
Typical values: R = 330 Ω, ZIN = 75 Ω.
Fig 9. Test circuit
TZA3026
Philips Semiconductors
SDH/SONET STM4/OC12 transimpedance amplifier
12. Bare die information
17
16
15
14
13
12
11
1
2
3
Y
X
(0,0)
4
5
6
7
8
9
10
001aac627
Origin is center of die.
Fig 10. Bonding pad locations
Table 5:
Physical characteristics of the bare die
Value
Parameter
Glass passivation
0.3 µm PSG (PhosphoSilicate Glass) on top of 0.8 µm silicon nitride
Bonding pad
dimension
minimum dimension of exposed metallization is 90 µm × 90 µm
(pad size = 100 µm × 100 µm) except pads 2 and 3 which have exposed
metallization of 80 µm × 80 µm (pad size = 90 µm × 90 µm)
Metallization
Thickness
2.8 µm AlCu
380 µm nominal
Die dimension
Backing
820 µm × 1300 µm (± 20 µm2)
silicon; electrically connected to GND potential through substrate contacts
<440 °C; recommended die attach is glue
<15 s
Attach temperature
Attach time
13. Package outline
Not applicable.
9397 750 14763
© Koninklijke Philips Electronics N.V. 2005. All rights reserved.
Product data sheet
Rev. 01 — 2 May 2005
12 of 15
TZA3026
Philips Semiconductors
SDH/SONET STM4/OC12 transimpedance amplifier
14. Handling information
14.1 General
Inputs and outputs are protected against electrostatic discharge in normal handling.
However, to be completely safe, it is desirable to take normal precautions appropriate to
handling MOS devices; see JESD625-A and/or IEC61340-5.
14.2 Additional information
Pad IPHOTO has limited protection to ensure good RF performance. This pad should be
handled with extreme care.
15. Revision history
Table 6:
Revision history
Document ID
Release date Data sheet status
20050502 Product data sheet
Change notice Doc. number
9397 750 14763
Supersedes
TZA3026_1
-
-
9397 750 14763
© Koninklijke Philips Electronics N.V. 2005. All rights reserved.
Product data sheet
Rev. 01 — 2 May 2005
13 of 15
TZA3026
Philips Semiconductors
SDH/SONET STM4/OC12 transimpedance amplifier
16. Data sheet status
Level Data sheet status[1] Product status[2] [3]
Definition
I
Objective data
Development
This data sheet contains data from the objective specification for product development. Philips
Semiconductors reserves the right to change the specification in any manner without notice.
II
Preliminary data
Qualification
This data sheet contains data from the preliminary specification. Supplementary data will be published
at a later date. Philips Semiconductors reserves the right to change the specification without notice, in
order to improve the design and supply the best possible product.
III
Product data
Production
This data sheet contains data from the product specification. Philips Semiconductors reserves the
right to make changes at any time in order to improve the design, manufacturing and supply. Relevant
changes will be communicated via a Customer Product/Process Change Notification (CPCN).
[1]
[2]
Please consult the most recently issued data sheet before initiating or completing a design.
The product status of the device(s) described in this data sheet may have changed since this data sheet was published. The latest information is available on the Internet at
URL http://www.semiconductors.philips.com.
[3]
For data sheets describing multiple type numbers, the highest-level product status determines the data sheet status.
Right to make changes — Philips Semiconductors reserves the right to
17. Definitions
make changes in the products - including circuits, standard cells, and/or
software - described or contained herein in order to improve design and/or
performance. When the product is in full production (status ‘Production’),
relevant changes will be communicated via a Customer Product/Process
Change Notification (CPCN). Philips Semiconductors assumes no
responsibility or liability for the use of any of these products, conveys no
license or title under any patent, copyright, or mask work right to these
products, and makes no representations or warranties that these products are
free from patent, copyright, or mask work right infringement, unless otherwise
specified.
Short-form specification — The data in a short-form specification is
extracted from a full data sheet with the same type number and title. For
detailed information see the relevant data sheet or data handbook.
Limiting values definition — Limiting values given are in accordance with
the Absolute Maximum Rating System (IEC 60134). Stress above one or
more of the limiting values may cause permanent damage to the device.
These are stress ratings only and operation of the device at these or at any
other conditions above those given in the Characteristics sections of the
specification is not implied. Exposure to limiting values for extended periods
may affect device reliability.
Bare die — All die are tested and are guaranteed to comply with all data
sheet limits up to the point of wafer sawing for a period of ninety (90) days
from the date of Philips' delivery. If there are data sheet limits not guaranteed,
these will be separately indicated in the data sheet. There are no post
packing tests performed on individual die or wafer. Philips Semiconductors
has no control of third party procedures in the sawing, handling, packing or
assembly of the die. Accordingly, Philips Semiconductors assumes no liability
for device functionality or performance of the die or systems after third party
sawing, handling, packing or assembly of the die. It is the responsibility of the
customer to test and qualify their application in which the die is used.
Application information — Applications that are described herein for any
of these products are for illustrative purposes only. Philips Semiconductors
make no representation or warranty that such applications will be suitable for
the specified use without further testing or modification.
18. Disclaimers
Life support — These products are not designed for use in life support
appliances, devices, or systems where malfunction of these products can
reasonably be expected to result in personal injury. Philips Semiconductors
customers using or selling these products for use in such applications do so
at their own risk and agree to fully indemnify Philips Semiconductors for any
damages resulting from such application.
19. Trademarks
Notice — All referenced brands, product names, service names and
trademarks are the property of their respective owners.
20. Contact information
For additional information, please visit: http://www.semiconductors.philips.com
For sales office addresses, send an email to: sales.addresses@www.semiconductors.philips.com
9397 750 14763
© Koninklijke Philips Electronics N.V. 2005. All rights reserved.
Product data sheet
Rev. 01 — 2 May 2005
14 of 15
TZA3026
Philips Semiconductors
SDH/SONET STM4/OC12 transimpedance amplifier
21. Contents
1
2
3
4
5
General description . . . . . . . . . . . . . . . . . . . . . . 1
Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
Applications . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
Ordering information. . . . . . . . . . . . . . . . . . . . . 1
Block diagram . . . . . . . . . . . . . . . . . . . . . . . . . . 2
6
6.1
6.2
Pinning information. . . . . . . . . . . . . . . . . . . . . . 3
Pinning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Pin description . . . . . . . . . . . . . . . . . . . . . . . . . 3
7
Functional description . . . . . . . . . . . . . . . . . . . 4
PIN diode connections . . . . . . . . . . . . . . . . . . . 4
Automatic gain control . . . . . . . . . . . . . . . . . . . 6
Monitoring RSSI via IDREF_MON . . . . . . . . . . 7
7.1
7.2
7.3
8
Limiting values. . . . . . . . . . . . . . . . . . . . . . . . . . 8
Characteristics. . . . . . . . . . . . . . . . . . . . . . . . . . 8
Application information. . . . . . . . . . . . . . . . . . 10
Test information. . . . . . . . . . . . . . . . . . . . . . . . 11
Bare die information . . . . . . . . . . . . . . . . . . . . 12
Package outline . . . . . . . . . . . . . . . . . . . . . . . . 12
9
10
11
12
13
14
14.1
14.2
Handling information. . . . . . . . . . . . . . . . . . . . 13
General. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Additional information . . . . . . . . . . . . . . . . . . . 13
15
16
17
18
19
20
Revision history. . . . . . . . . . . . . . . . . . . . . . . . 13
Data sheet status . . . . . . . . . . . . . . . . . . . . . . . 14
Definitions . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Disclaimers. . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Trademarks. . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Contact information . . . . . . . . . . . . . . . . . . . . 14
© Koninklijke Philips Electronics N.V. 2005
All rights are reserved. Reproduction in whole or in part is prohibited without the prior
written consent of the copyright owner. The information presented in this document does
not form part of any quotation or contract, is believed to be accurate and reliable and may
be changed without notice. No liability will be accepted by the publisher for any
consequence of its use. Publication thereof does not convey nor imply any license under
patent- or other industrial or intellectual property rights.
Date of release: 2 May 2005
Document number: 9397 750 14763
Published in The Netherlands
厂商 型号 描述 页数 下载

RHOMBUS-IND

 		TZA1-10 TZA / TYA系列5抽头高性能无源延时模块[ TZA / TYA Series 5-Tap High Performance Passive Delay Modules ] 1 页

RHOMBUS-IND

 		TZA1-20 TZA / TYA系列5抽头高性能无源延时模块[ TZA / TYA Series 5-Tap High Performance Passive Delay Modules ] 1 页

RHOMBUS-IND

 		TZA1-5 TZA / TYA系列5抽头高性能无源延时模块[ TZA / TYA Series 5-Tap High Performance Passive Delay Modules ] 1 页

RHOMBUS-IND

 		TZA1-7 TZA / TYA系列5抽头高性能无源延时模块[ TZA / TYA Series 5-Tap High Performance Passive Delay Modules ] 1 页

RHOMBUS-IND

 		TZA10-10 TZA / TYA系列5抽头高性能无源延时模块[ TZA / TYA Series 5-Tap High Performance Passive Delay Modules ] 1 页

RHOMBUS-IND

 		TZA10-20 TZA / TYA系列5抽头高性能无源延时模块[ TZA / TYA Series 5-Tap High Performance Passive Delay Modules ] 1 页

RHOMBUS-IND

 		TZA10-5 TZA / TYA系列5抽头高性能无源延时模块[ TZA / TYA Series 5-Tap High Performance Passive Delay Modules ] 1 页

RHOMBUS-IND

 		TZA10-7 TZA / TYA系列5抽头高性能无源延时模块[ TZA / TYA Series 5-Tap High Performance Passive Delay Modules ] 1 页

NXP

 		TZA1000 QIC读写放大器[ QIC read-write amplifier ] 24 页

NXP

 		TZA1000T/N3 [ IC 1 CHANNEL READ WRITE AMPLIFIER CIRCUIT, PDSO24, 7.50 MM, PLASTIC, SOT-137-1, SOP-24, Drive Electronics ] 26 页

购物指南

支付方式

配送服务

售后服务

发票须知

优惠券使用规则

特色服务

PCBA制造

国产品牌推荐

国产料号替代

质量保证

技术资料

行业资讯

关于我们

关于达普

联系我们

联系我们

服务热线：400-618-9990

企业邮箱：smail@ic72.com

服务时间：周一至周六 8:30-17:30

达普官方微信号

PDF索引：

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

X

Y

Z

0

1

2

3

4

5

6

7

8

9

IC型号索引：

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

X

Y

Z

0

1

2

3

4

5

6

7

8

9

Copyright 2024 gkzhan.com Al Rights Reserved 京ICP备06008810号-21 京

深圳网络警察报警平台
公共信息安全网络监察
经营性网站备案信息
不良信息举报中心
工商网监电子标识
全国公安机关备案
0.274326s
