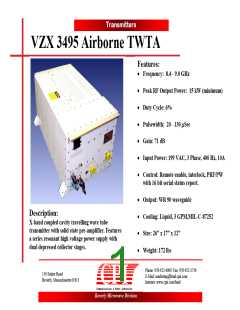

Transmitters
VZX 3495 Airborne TWTA
Features:
S Frequency: 8.4 - 9.0 GHz
S Peak RF Output Power: 15 kW (minimum)
S Duty Cycle: 6%
S Pulsewidth: 20 - 130 ꢀSec
S Gain: 71 dB
S Input Power: 199 VAC, 3 Phase, 400 Hz, 10A
S Control: Remote enable, interlock, PRF/PW
with 16 bit serial status report.
S Output: WR 90 waveguide
S Cooling: Liquid, 3 GPM,MIL-C-87252
S Size: 26” x 17” x 12”
Description:
X-band coupled cavity travelling wave tube
transmitter with solid state pre-amplifier. Features
a series resonant high voltage power supply with
dual depressed collector stages.
S Weight: 172 lbs
