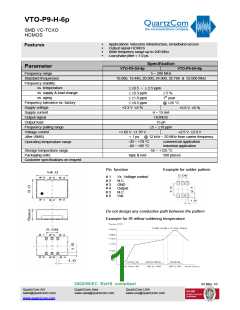

VTO-P9-H-6p
SMD VC-TCXO
HCMOS
Applications: telecoms infrastructure, broadband access
Output signal HCMOS
Wide frequency range up to 200 MHz
Low phase jitter < 1.0 ps
Features
Specification
Parameter
VTO-P9-3H-6p
VTO-P9-5H-6p
Frequency range
Standard frequencies
Frequency stability:
vs. temperature
5 ~ 200 MHz
10.000, 19.440, 20.000, 24.000, 32.768 & 52.000 MHz
≤ ±0.5 ~ ± 2.5 ppm
vs. supply & load change
vs. aging
≤ ±0.3 ppm
≤ ±1.0 ppm
≤ ±0.5 ppm
± 5 %
1st year
@ +25 °C
Frequency tolerance ex. factory
Supply voltage
+3.3 V ±5 %
+5.0 V ±5 %
Supply current
4 ~ 15 mA
Output signal
HCMOS
15 pF
Output load
Frequency pulling range
Voltage control
±5 ~ ±10 ppm
+1.65 V ±1.35 V
+2.5 V ±2.0 V
Jitter (RMS)
< 1 ps @ 12 kHz ~ 20 MHz from carrier frequency
-20 ~ +70 °C
-40 ~ +85 °C
commercial application
industrial application
Operating temperature range
Storage temperature range
Packaging units
-55 ~ +125 °C
tape & reel
500 pieces
Customer specifications on request
Pin function
Example for solder pattern
# 1
# 2
# 3
# 4
# 5
# 6
Vc Voltage control
N.C.
GND
Output
N.C.
Vdc
Do not design any conductive path between the pattern
Example for IR reflow soldering temperature
2002/95/EC RoHS compliant
02 May. 10
