T1/CEPT (E1) / ISDN-PRI TRANSFORMER

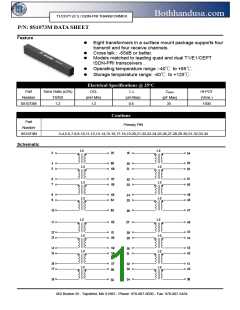

P/N: 8S1073M DATA SHEET
Feature
ꢀ
Eight transformers in a surface mount package supports four
transmit and four receive channels.
ꢀ
ꢀ
Cross talk : -65dB or better.
Models matched to leading quad and dual T1/E1/CEPT
ISDN-PRI transceivers .
ꢀ
ꢀ
Operating temperature range :-40℃ to +85℃.
Storage temperature range: -40℃ to +125℃.
Electrical Specifications @ 25°C
Part
Turns Ratio (±2%)
OCL
L.L
(uH Max)
0.6
CW/W
(pF Max)
35
HI-POT
(Vrms )
1500
Number
8S1073M
TX/RX
1:2
(mH Min)
1.2
Continue
Part
Primary PIN
Number
8S1073M
3-4,5-6,7-8,9-10,11-12,13-14,15-16,17-18,19-20,21-22,23-24,25-26,27-28,29-30,31-32,33-34
Schematic
