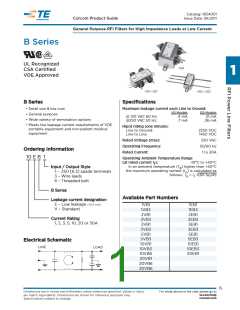

Catalog: 1654001
Issue Date: 06.2011
Corcom Product Guide
General Purpose RFI Filters for High Impedance Loads at Low Current
B Series
UL Recognized
CSA Certified
VDE Approved
VB6
1
VB1 / EB1
VB3 / EB3
B Series
Specifications
• Small size & low cost
Maximum leakage current each Line to Ground:
VB Models
.4 mA
EB Models
• General purpose
@ 120 VAC 60 Hz:
@250 VAC 50 Hz:
.21 mA
.36 mA
• Wide variety of termination options
.7 mA
• Meets low leakage current requirements of VDE
portable equipment and non-patient medical
equipment
Hipot rating (one minute):
Line to Ground:
Line to Line:
2250 VDC
1450 VDC
Rated Voltage (max):
Operating Frequency:
Rated Current:
250 VAC
50/60 Hz
1 to 30A
Ordering Information
10 E B 1
Operating Ambient Temperature Range
(at rated current I ): -10°C to +40°C
r
In an ambient temperature (T ) higher than +40°C
Input / Output Style
1 – .250 [6.3] spade terminals
3 – Wire leads
a
the maximum operating current (I ) is calculated as
o
follows: I = I (85-Ta)/45
o
r
6 – Threaded bolt
B Series
Available Part Numbers
Leakage current designation
E – Low leakage (<0.5 mA)
V – Standard
1VB1
1VB3
1EB1
1EB3
2EB1
2EB3
3EB1
2VB1
2VB3
3VB1
Current Rating
1, 2, 3, 5, 10, 20 or 30A
3VB3
5VB1
3EB3
5EB1
5VB3
10VB1
10VB3
10VB6
20VB1
20VB6
30VB6
5EB3
10EB1
10EB3
20EB1
Electrical Schematic
LINE
LOAD
15
Dimensions are in inches and millimeters unless otherwise specified. Values in italics
are metric equivalents. Dimensions are shown for reference purposes only.
Specifications subject to change.
