0REB-80T15L

型号：

0REB-80T15L

描述：

隔离式DC / DC转换器[ ISOLATED DC/DC CONVERTERS ]

品牌：

BEL[ BEL FUSE INC. ]

页数：

16 页

PDF大小：

305 K

下载PDF手册

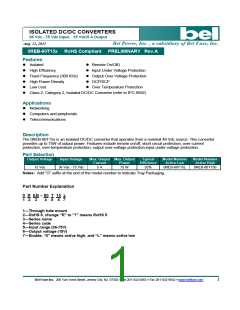

ISOLATED DC/DC CONVERTERS
36 Vdc - 75 Vdc Input, 15 Vdc/5 A Output
Aug. 22, 2011
Bel Power, Inc. , a subsidiary of Bel Fuse, Inc.
0REB-80T15x RoHS Compliant PRELIMINARY Rev.A
Features
Isolated
Remote On/Off)
High Efficiency
Fixed Frequency (300 KHz)
High Power Density
Low Cost
Input Under Voltage Protection
Output Over Voltage Protection
OCP/SCP
Over Temperature Protection
Class 2, Category 2, Isolated DC/DC Converter (refer to IPC-9592)
Applications
Networking
Computers and peripherals
Telecommunications
Description
The 0REB-80T15x is an isolated DC/DC converter that operates from a nominal 48 Vdc source. This converter
provides up to 75W of output power. Features include remote on/off, short circuit protection, over current
protection, over-temperature protection, output over-voltage protection,input under-voltage protection.
Part Selection
Output Voltage
Input Voltage
Max. Output Max. Output
Typical
Efficiency
Model Number
Active Low
Model Number
Active High
Current
Power
15 Vdc
36 Vdc - 75 Vdc
5 A
75 W
92%
0REB-80T15L
0REB-80T150
Notes: Add “G” suffix at the end of the model number to indicate Tray Packaging.
Part Number Explanation
0 R EB – 80 T 15 x
1
2
3
4
5
6 7
1---Through hole mount
2---RoHS 6, change “R” to “7” means RoHS 5
3---Series name
4---Series code
5---Input range (36-75V)
6---Output voltage (15V)
7---Enable, “0” means active high, and “L” means active low
Bel Fuse Inc. 206 Van Vorst Street, Jersey City, NJ 07302 Tel 201-432-0463 Fax 201-432-9542 www.belfuse.com
1
ISOLATED DC/DC CONVERTERS
36 Vdc - 75 Vdc Input, 15 Vdc/5 A Output
Aug. 22, 2011
Bel Power, Inc. , a subsidiary of Bel Fuse, Inc.
Absolute Maximum Ratings
Unit
Parameter
Min
Typ
Max
Notes
Continuous non-operating Input
Voltage
-0.3
-
80
V
Input Transient Voltage
Remote On/Off
-
-
-
-
-
-
100
18
V
V
100mS maximum
-0.3
-
I/O isolation voltage
Ambient Temperature
Storage Temperature
1500
85
V
-40
-55
C
C
125
Note: Ratings used beyond the maximum ratings may cause a reliability degradation of the converter or may
permanently damage the device.
Input Specifications
Parameter
Min
Typ
Max
Unit
Notes
Operating Input Voltage
36
48
75
V
Input Current (full load)
Input Current (no load)
Remote Off Input Current
-
-
-
-
60
5
2.8
100
10
A
mA
mA
Input Reflected Ripple Current
(rms)
With simulated source impedance of
10uH, 5Hz to 20MHz. Use a
100uF/100V electrolytic capacitor with
ESR=1 ohm max, at 200KHz@25°C.
-
-
2
5
mA
Input Reflected Ripple Current
(pk-pk)
10
20
mA
I2t Inrush Current Transient
Turn-on Voltage Threshold
Turn-off Voltage Threshold
Other information:
-
-
1
A2s
V
34.5
33
35
35.5
34
33.5
V
Input C-L-C filter
0.47uF-2.2uH-4.4uF
4
-
CAUTION:This converter is not
internally fused. An input line fuse
must be used in application.
Recommended input fast-acting
fuse on system board
-
-
A
CAUTION: This converter is not internally fused. An input line fuse must be used in application.
Recommend a fast-acting fuse with maximum rating of 4A on system board. Refer to the fuse
manufacture’s datasheet for further information.
Notes: 1. This converter has internal C-L-C (0.47uF-2.2uH-4.4uF) filter.
2. All specifications are typical at 25 C unless otherwise stated.
Bel Fuse Inc. 206 Van Vorst Street, Jersey City, NJ 07302 Tel 201-432-0463 Fax 201-432-9542 www.belfuse.com
2
ISOLATED DC/DC CONVERTERS
36 Vdc - 75 Vdc Input, 15 Vdc/5 A Output
Aug. 22, 2011
Bel Power, Inc. , a subsidiary of Bel Fuse, Inc.
Output Specifications
Parameter
Min
Typ
Max
Unit
Notes
Vin=48V, Io=50% load at 25oC
ambient.
Output Voltage Set Point
Load Regulation
14.85
15
15.15
V
Vin=48V, Io=0~100% load at
25oC ambient.
-
-
-
-
-
0.1
0.1
-
0.2
0.2
1
%
%
Vin=36~75V,Io=100% load at
25oC ambient
Line Regulation
Regulation Over Temperature
(-40deg.C-85deg.C)
%
Vin=48V, Io=100%load at 25oC
ambient, 0-20MHz BW, with a
1µF ceramic capacitor and a
100uF Electrolytic cap at
output.
Ripple and Noise (pk-pk)
Ripple and Noise (rms)
60
15
100
30
mV
mV
over all operating input voltage,
load and ambient temperature
condition
Ripple and Noise(Pk-Pk) under
worst case
-
-
-
150
5
mV
A
Output Current Range
0
Output DC Current Limit
Short Circuit Surge Transient
Rise time
5.5
-
6
-
6.5
A
TBD
A2s
-
-
-
-
-
-
10
40
20
ms
ms
ms
Turn on Time
Overshoot at Turn on
Output Capacitance
-
0
-
3
%
0
1000
uF
Transient Response
△V 50% - 75% of Max Load
Settling Time
-
-
-
-
250
400
250
400
300
500
300
500
mV
uS
di/dt=0.1A/us, Vin=48Vdc,
Ta=25°C, with a 1µF ceramic
capacitor and a 100uF
△V 75% - 50% of Max Load
Settling Time
mV
uS
Electrolytic cap at output.
Note: All specifications are typical at nominal input, full load at 25°C unless noted.
Bel Fuse Inc. 206 Van Vorst Street, Jersey City, NJ 07302 Tel 201-432-0463 Fax 201-432-9542 www.belfuse.com
3
ISOLATED DC/DC CONVERTERS
36 Vdc - 75 Vdc Input, 15 Vdc/5 A Output
Aug. 22, 2011
Bel Power, Inc. , a subsidiary of Bel Fuse, Inc.
General Specifications
Parameter
Min
Typ
Max
Unit
Notes
The efficiency is measured at
Vin=48V, full load and Ta=25°C.
Efficiency
90
92
-
%
Switching Frequency
290
80
300
-
310
110
kHz
%
Output Voltage Trim Range
Calculated Per Bell Core SR-332
(Vin=48 V, Vo=15 V, Io=5 A, Ta =
25C, FIT=109/MTBF)
FIT2
-
TBD
-
-
Over Temperature Protection
Over Voltage Protection(Static)
-
-
125
-
-
℃
This voltage is achieved by trimming
up output slowly.
18
V
The transient over voltage is achieved
by connecting the Trim pin to Vout+
pin through a 332K resistor.
Over Voltage Protection (Dynamic)
-
-
-
18
-
V
g
Weight
TBD
Isolation characteristics
Input to Output
-
10M
-
-
-
1500
V
Isolation Resistance
Isolation Capacitance
-
-
Ohm
pF
2700
Note: All specifications are typical at 25 C unless otherwise stated.
Efficiency Data
95.0%
90.0%
85.0%
80.0%
75.0%
70.0%
65.0%
60.0%
36 V
48 V
75 V
0.5A
1.25A
2.5A
3.75A
5A
OUTPUT CURRENT(A)
Bel Fuse Inc. 206 Van Vorst Street, Jersey City, NJ 07302 Tel 201-432-0463 Fax 201-432-9542 www.belfuse.com
4
ISOLATED DC/DC CONVERTERS
36 Vdc - 75 Vdc Input, 15 Vdc/5 A Output
Aug. 22, 2011
Bel Power, Inc. , a subsidiary of Bel Fuse, Inc.
Remote On/Off
Parameter
Min
Typ
Max
Unit
Notes
Signal Low (Unit On)
Signal High (Unit Off)
Signal Low (Unit Off)
Signal High (Unit On)
Current Sink
-0.3
-
0.8
V
Remote On/Off pin is open, the module
is off.
Active Low
Active High
2.4
-0.3
2.4
0
-
-
-
-
18
0.8
18
1
V
V
Remote On/Off pin is open, the module
is on.
V
mA
Recommended remote on/off circuit for active low
Vin+
Vin+
On/off
Vin-
On/off
Vin-
Control with open collector/drain circuit
Control with photocoupler circuit
Vin+
Vin+
Vcc
On/off
Vin-
On/off
Vin-
Control with logic circuit
Permanently on
Recommended remote on/off circuit for active high
Vin+
Vin+
On/off
On/off
Vin-
Vin-
Control with open collector/drain circuit
Control with photocoupler circuit
Vin+
Vin+
Vcc
On/off
On/off
Vin-
Vin-
Control with logic circuit
Permanently on
Bel Fuse Inc. 206 Van Vorst Street, Jersey City, NJ 07302 Tel 201-432-0463 Fax 201-432-9542 www.belfuse.com
5
ISOLATED DC/DC CONVERTERS
36 Vdc - 75 Vdc Input, 15 Vdc/5 A Output
Aug. 22, 2011
Bel Power, Inc. , a subsidiary of Bel Fuse, Inc.
Output Trim Equations
Equations for calculating the trim resistor are shown below. The Trim Down resistor should be connected
between the Trim pin and Sense (-) pin. The Trim Up resistor should be connected between the Trim pin and the
Sense (+). Only one of the resistors should be used for any given
Minimum trim down voltage is 12V
Maximum trim up voltage is 16.5V.
The total voltage increased by trim and remote sense should not exceed 10% of the nominal output voltage.
Vout
+sense
511
R
10.2[k ]
Trim
trimdown
%
Rtrim_down
Rtrim_up
-sense
GND
Vout
+sense
5.11V 
100 %
510
o
R
10.2
k
trimup
1.225%
%
Trim
-sense
GND
Note:
VDES Vo
% 
100
Vo
Vo_req=Desired (trimmed) output voltage [V]
Output voltage Vo=15.000 V
3
3
3
3
3
3
3
3
3
3
210
710
3
1.810
6.310
5.610
4.910
4.210
3.510
2.810
2.110
1.410
3
1.610
3
1.410
3
1.210
3
110
800
600
400
200
0
.
700
0
12 12.3 12.6 12.9 13.2 13.5 13.8 14.1 14.4 14.7
15
15 15.15 15.3 15.45 15.6 15.75 15.9 16.05 16.2 16.35 16.5
Adjusted output voltage Vo,adj (V)
Adjusted output voltage Vo,adj(V)
Bel Fuse Inc. 206 Van Vorst Street, Jersey City, NJ 07302 Tel 201-432-0463 Fax 201-432-9542 www.belfuse.com
6
ISOLATED DC/DC CONVERTERS
36 Vdc - 75 Vdc Input, 15 Vdc/5 A Output
Aug. 22, 2011
Bel Power, Inc. , a subsidiary of Bel Fuse, Inc.
Remote Sense
This module has remote sense compensation feature. It can minimize the effects of resistance between
module’s output and load in system layout and facilitates accurate voltage regulation at load terminals or
other selected point.
1. The remote sense lines carries very little current and hence do not require a large cross-sectional area.
2. This module compensates for a maximum drop of 10% of the nominal output voltage.
3. If the unit is already trimmed up, the available remote sense compensation range should be
correspondingly reduced. The total voltage increased by trim and remote sense should not exceed 10%
of the nominal output voltage.
4. When using remote sense compensation, all the resistance, parasitic inductance and capacitance of the
system are incorpotated within the feedback loop of this module. The can make an effect on the
module's compensation, affecting the stability and dynamic response. A 0.1uF ceramic capacitor can be
connected at the point of load to de-couple noise on the sense wires.
5. Recommend the connection of remote sense compensation as below figure. There are a resistor RS+
(51.1 ohm) from Vo+ to Sense+ and a resistor RS- (51.1 ohm)) from Vo- to Sense- inside of this module.
Vo+
Sense+
Load
Sense-
Vo-
6. If not using remote sense compensation, please connect sense directly to output at module's pin, that is,
connect sense+ to Vo+ and sense- to Vo- at module's pin, the shorter the better. See below figure.
Vo+
Sense+
Load
Sense-
Vo-
Bel Fuse Inc. 206 Van Vorst Street, Jersey City, NJ 07302 Tel 201-432-0463 Fax 201-432-9542 www.belfuse.com
7
ISOLATED DC/DC CONVERTERS
36 Vdc - 75 Vdc Input, 15 Vdc/5 A Output
Aug. 22, 2011
Bel Power, Inc. , a subsidiary of Bel Fuse, Inc.
Over Current Protection
To provide protection in a fault output overload condition, the module is equipped with internal current-limiting
circuitry and can endure current limiting for a few mili-seconds. If the overcurrent condition persists beyond a few
milliseconds, the module will shut down into hiccup mode and restart once every 500mS. The module operates
normally when the output current goes into specified range. The typical average output current is 215mA during
hiccup.
Expansion of on time portion of above figure
Vin=48V
CH4: Output current waveform
Over Voltage Protection
The output overvoltage protection consists of circuitry that monitors the voltage on the output terminals. If the
voltage on the output terminals exceeds the over voltage protection threshold, the module will shutdown.
Test setup:
Waveform: CH1: Output voltage waveform
R=332K
Vo+
K
Trim
Vo-
R
Sense+
K
Trim
R
Sense-
Bel Fuse Inc. 206 Van Vorst Street, Jersey City, NJ 07302 Tel 201-432-0463 Fax 201-432-9542 www.belfuse.com
8
ISOLATED DC/DC CONVERTERS
36 Vdc - 75 Vdc Input, 15 Vdc/5 A Output
Aug. 22, 2011
Bel Power, Inc. , a subsidiary of Bel Fuse, Inc.
Input Under-voltage Lockout
Under-voltage Lockout
Voltage Falling
V1=33V
V2=35V
Voltage Rising
Input Voltage (V)
V1
V2
Ripple and Noise Waveform
48Vdc input, 15Vdc/5A output
Note: Ripple and noise at full load, with a 1uF ceramic cap and a 100uF electrolytic cap at output, Ta=25 deg C.
Bel Fuse Inc. 206 Van Vorst Street, Jersey City, NJ 07302 Tel 201-432-0463 Fax 201-432-9542 www.belfuse.com
9
ISOLATED DC/DC CONVERTERS
36 Vdc - 75 Vdc Input, 15 Vdc/5 A Output
Aug. 22, 2011
Bel Power, Inc. , a subsidiary of Bel Fuse, Inc.
Transient Response Waveforms
Vout= 15V 50%-75% Load Transients
Vout= 15V 75%-50% Load Transients
Note: Transient Response :di/dt=0.1A/uS, 1uF ceramic cap and 100uF electrolytic cap at output.
Startup & Shutdown
Rise Time
Vin=48V, Vo=15V, Io=5A
Bel Fuse Inc. 206 Van Vorst Street, Jersey City, NJ 07302 Tel 201-432-0463 Fax 201-432-9542 www.belfuse.com
10
ISOLATED DC/DC CONVERTERS
36 Vdc - 75 Vdc Input, 15 Vdc/5 A Output
Aug. 22, 2011
Bel Power, Inc. , a subsidiary of Bel Fuse, Inc.
Startup time
Startup from on/off
Ch1: Vo
Ch3: on/off
Startup from Vin
Ch1: Vo
Ch3: Vin
Vin=48V, Vo=15V, Io=5A
Vin=48V, Vo=15V, Io=5A
Startup & Shutdown (continued)
Shutdown
Vin=48V, Vo=15V, Io=5A
Bel Fuse Inc. 206 Van Vorst Street, Jersey City, NJ 07302 Tel 201-432-0463 Fax 201-432-9542 www.belfuse.com
11
ISOLATED DC/DC CONVERTERS
36 Vdc - 75 Vdc Input, 15 Vdc/5 A Output
Aug. 22, 2011
Bel Power, Inc. , a subsidiary of Bel Fuse, Inc.
Thermal Derating Curve
The OTP is achieved by thermistor R12 and the threshold is set at 125C in non-latch mode; the hottest
component Q1 reaches 125C with 100LFM air flow correspondingly. It will restart automatically when the
temperature falls down to 100C. The protecting point will be varied a little under different conditions (air flow,
ambient temperature,input voltage, load...).
Maximum junction temperature of semiconductors derated to 120 degree C.
Derating curve under normal input
Thermal Derating Curve (continued)
Temperature reference points on top side
Bel Fuse Inc. 206 Van Vorst Street, Jersey City, NJ 07302 Tel 201-432-0463 Fax 201-432-9542 www.belfuse.com
12
ISOLATED DC/DC CONVERTERS
36 Vdc - 75 Vdc Input, 15 Vdc/5 A Output
Aug. 22, 2011
Bel Power, Inc. , a subsidiary of Bel Fuse, Inc.
Safety & EMC
Safety
1. Material flammability UL94V-0
2. TUV Certification
3. UL Certification
EN60950-1
UL60950-1
EMC
1. Surge
2. DC-DIP
3. Conductive EMI
IEC61000-4-5
IEC61000-4-29
EN55022 class A
Compliance to EN55022 class A (both q.peak and average) with the following inductive and capacitive filter
Setup:
C4
+Vin
-Vin
T1
T1
Conv.positive
input
C1
C2
C3
Conv.negative
input
C5
Item
Designator
Parameter
1uF/100V,ceramic
0.1uF/100V, ceramic
220uF/100V, AL cap
Vendor
Vendor P/N
GRM32ER72A105KA01L
C3216X7R2A104K
1
2
3
C1
C2
C3
Murata
TDK
Nichicon
UHE2A221MHD6
22nF/1000V,ceramic
+0.022uF/250V,safety
Johanson
Epcos
631S41W223KV4E
B32022B3223+
4
C4
22nF/1000V,ceramic
+0.022uF/250V,safety
Johanson
Epcos
631S41W223KV4E
B32022B3223+
5
6
C5
T1
1.3mH, common mode
Pulse
P0402NL
Bel Fuse Inc. 206 Van Vorst Street, Jersey City, NJ 07302 Tel 201-432-0463 Fax 201-432-9542 www.belfuse.com
13
ISOLATED DC/DC CONVERTERS
36 Vdc - 75 Vdc Input, 15 Vdc/5 A Output
Aug. 22, 2011
Bel Power, Inc. , a subsidiary of Bel Fuse, Inc.
Safety & EMC (continued)
Positive:
Negative:
Bel Fuse Inc. 206 Van Vorst Street, Jersey City, NJ 07302 Tel 201-432-0463 Fax 201-432-9542 www.belfuse.com
14
ISOLATED DC/DC CONVERTERS
36 Vdc - 75 Vdc Input, 15 Vdc/5 A Output
Aug. 22, 2011
Bel Power, Inc. , a subsidiary of Bel Fuse, Inc.
Mechanical Outline
Note: This module is recommended and compatible with Pb-Free Wave Soldering and must be soldered
using a peak solder temperature of no more than 260 ºC for less than 5 seconds.
Bel Fuse Inc. 206 Van Vorst Street, Jersey City, NJ 07302 Tel 201-432-0463 Fax 201-432-9542 www.belfuse.com
15
ISOLATED DC/DC CONVERTERS
36 Vdc - 75 Vdc Input, 12 Vdc/6.5 A Output
Aug. 22, 2011
Bel Power, Inc. , a subsidiary of Bel Fuse, Inc.
Revision History
Date
Revision
Changes Detail
Approval
2011-8-22
A
First release
JZ Wang
RoHS Compliance
Complies with the European Directive 2002/95/EC, calling for the elimination of lead and
other hazardous substances from electronic products.
2011 Bel Fuse Inc. Specifications subject to change without notice. 082211
16
CORPORATE
FAR EAST
EUROPE
Bel Fuse Inc.
Bel Fuse Ltd.
Bel Fuse Europe Ltd.
206 Van Vorst Street
Jersey City, NJ 07302
Tel 201-432-0463
Fax 201-432-9542
www.belfuse.com
8F/ 8 Luk Hop Street
San Po Kong
Kowloon, Hong Kong
Tel 852-2328-5515
Fax 852-2352-3706
www.belfuse.com
Preston Technology Management Centre
Marsh Lane, Suite G7, Preston
Lancashire, PR1 8UD, U.K.
Tel 44-1772-556601
Fax 44-1772-888366
www.belfuse.com
厂商 型号 描述 页数 下载

BEL

 		0REB-80T12 隔离式DC / DC转换器[ ISOLATED DC/DC CONVERTERS ] 17 页

BEL

 		0REB-80T120 隔离式DC / DC转换器[ ISOLATED DC/DC CONVERTERS ] 17 页

BEL

 		0REB-80T12L 隔离式DC / DC转换器[ ISOLATED DC/DC CONVERTERS ] 17 页

BEL

 		0REB-80T12LG [ DC-DC Regulated Power Supply Module, 1 Output, 80W, Hybrid, ROHS COMPLIANT, EIGHTH BRICK PACKAGE-8 ] 17 页

BEL

 		0REB-80T12_12 隔离式DC / DC转换器[ ISOLATED DC/DC CONVERTERS ] 17 页

BEL

 		0REB-80T15 隔离式DC / DC转换器[ ISOLATED DC/DC CONVERTERS ] 16 页

BEL

 		0REB-80T150 隔离式DC / DC转换器[ ISOLATED DC/DC CONVERTERS ] 16 页

BEL

 		0REB-80T150G [ DC-DC Regulated Power Supply Module, 1 Output, 75W, Hybrid, ROHS COMPLIANT PACKAGE-8 ] 16 页

BEL

 		0REB-80T15LG [ DC-DC Regulated Power Supply Module, 1 Output, 75W, Hybrid, ROHS COMPLIANT PACKAGE-8 ] 16 页

购物指南

支付方式

配送服务

售后服务

发票须知

优惠券使用规则

特色服务

PCBA制造

国产品牌推荐

国产料号替代

质量保证

技术资料

行业资讯

关于我们

关于达普

联系我们

联系我们

服务热线：400-618-9990

企业邮箱：smail@ic72.com

服务时间：周一至周六 8:30-17:30

达普官方微信号

PDF索引：

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

X

Y

Z

0

1

2

3

4

5

6

7

8

9

IC型号索引：

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

X

Y

Z

0

1

2

3

4

5

6

7

8

9

Copyright 2024 gkzhan.com Al Rights Reserved 京ICP备06008810号-21 京

深圳网络警察报警平台
公共信息安全网络监察
经营性网站备案信息
不良信息举报中心
工商网监电子标识
全国公安机关备案
0.222852s
