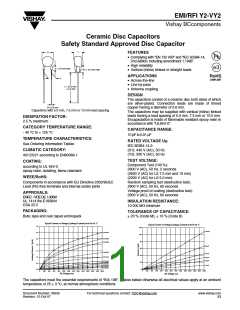

EMI/RFI Y2-VY2
Vishay BCcomponents
Ceramic Disc Capacitors
Safety Standard Approved Disc Capacitor
D
T
FEATURES
• Complying with “EN 132 400” and “IEC 60384-14,
2nd edition, including amendment 1.1995”
• High reliability
• Vertical (inline) kinked or straight leads
e3
e = 3.0 mm max
SH = 4.0 mm max
APPLICATIONS
• Across-the-line
• Line by-pass
RoHS
F
COMPLIANT
L = 30.0 mm
ꢀ.0 mm
• Antenna coupling
DESIGN
The capacitors consist of a ceramic disc both sides of which
are silver-plated. Connection leads are made of tinned
copper having a diameter of 0.6 mm.
The capacitors may be supplied with vertical (inline) kinked
leads having a lead spacing of 5.0 mm. 7.5 mm or 10.0 mm.
Encapsulation is made of flammable resistant epoxy resin in
accordance with “UL94V-0”.
Ø d 0.6 mm
Capacitors with 5.0 mm, 7.5 mm or 10 mm lead spacing
DISSIPATION FACTOR:
2.5 % maximum
CATEGORY TEMPERATURE RANGE:
- 40 °C to + 125 °C
CAPACITANCE RANGE:
10 pF to 0.01 µF
TEMPERATURE CHARACTERISTICS:
See Ordering Information Tables
RATED VOLTAGE UR:
IEC 60384-14.2:
CLIMATIC CATEGORY:
40/125/21 according to EN60068-1
(X1): 440 V (AC), 50 Hz
(Y2): 300 V (AC), 50 Hz
TEST VOLTAGE:
Component Test (100 %):
2600 V (AC), 50 Hz, 2 seconds
(2600 V (AC) for LS 7.5 mm and 10 mm)
(2200 V (AC) for LS 5.0 mm)
COATING:
according to UL 94V-0
epoxy resin, isolating, flame retardant
WEEE/RoHS:
Random sampling test (destructive test):
2600 V (AC), 50 Hz, 60 seconds
Voltage proof of coating (destructive test):
2600 V (AC), 50 Hz, 60 seconds
Components in accordance with EU Directive 2002/95/EC
Lead (Pb)-free terminals and internal solder joints
APPROVALS:
ENEC - VDE DE 1-30691
UL 1414 file E183844
CSA 22.2
INSULATION RESISTANCE:
10 000 MΩ minimum
PACKAGING:
TOLERANCE OF CAPACITANCE:
20 % (Code M); 10 % (Code K)
Bulk; tape and reel; taped ammopack
Typical Current vs Voltage (Leakage Current) at 60 Hz 25 °C
3.5
Typical Current vs Voltage (Leakage Current) at 60 Hz 25 °C
120
100 pF
3.0
2.5
2.0
1.5
1.0
0.5
0.0
VY2-472
100
VY2-392
VY2-332
80
68 pF
60
VY2-222
VY2-152
47 pF
40
33 pF
22 pF
VY2-102
VY2-681
VY2-471
VY2-331
VY2-221
VY2-151
20
10 pF
0
0
200
400
600
800
1000 1200 1400 1600 1800 2000 2200 2400 2600
AC Voltage rms
0
200
400
600
800 1000 1200 1400 1600 1800 2000 2200 2400 2600
AC Voltage rms
The capacitors meet the essential requirements of “EIA 198”. Unless stated otherwise all electrical values apply at an ambient
temperature of 25 3 °C, at normal atmospheric conditions
Document Number: 28535
Revision: 12-Oct-07
For technical questions contact: CDC@vishay.com
www.vishay.com
83
