JYOC0678

型号:

JYOC0678

描述:

专为表面安装微型芯片类型[ miniature chip type designed for surface mounting ]

品牌:

IDEA[ IDEA.LNC. ]

页数:

2 页

PDF大小:

31 K

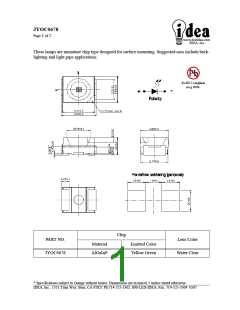

JYOC0678
Page 1 of 2
These lamps are miniature chip type designed for surface mounting. Suggested uses include back-
lighting and light pipe applications.
Chip
PART NO.
JYOC0678
Lens Color
Water Clear
Material
AlGaInP
Emitted Color
Yellow Green
* Specifications subject to change without notice. Dimensions are in mm±0.1 unless stated otherwise.
IDEA, Inc., 1351 Titan Way, Brea, CA 92821 Ph:714-525-3302, 800-LED-IDEA; Fax: 714-525-3304 0507
JYOC0678
Page 2 of 2
Absolute Maximum Ratings at Ta = 25 °C
Parameter
Symbol
IF
Rating
Units
Forward Current
25
-40 to +85
-40 to +100
260 (for 5 seconds)
2000
mA
°C
Topr
Tstg
Operating Temperature
Storage Temperature
Soldering Temperature
Electrostatic Discharge
Power Dissipation
°C
Tsol
°C
ESD
Pd
V
60
mW
Peak Forward Current
(Duty 1/10 @ 1KHz)
IF (Peak)
60
5
mA
V
VR
Reverse Voltage
Electronic Optical CharacElectronic Optical Characteristics
Parameter
Luminous Intensity
Viewing Angle
Symbol
Min. Typ. Max. Units
Condition
JYOC0678
JYOC0678-3
JYOC0678-4
JYOC0678-5
JYOC0678-6
JYOC0678-7
JYOC0678-8
2θ1/2
40
50
55
85
63
106
133
177
215
251
120
IV
IF = 20 mA
80
mcd
100
125
140
IF = 20 mA
IF = 20 mA
deg
nm
Peak
Wavelength
λp
λd
611
605
17
Dominant
Wavelength
IF = 20 mA
IF = 20 mA
nm
nm
Spectrum Radiation
Bandwidth
∆λ
VF
IR
IF = 20 mA
VR = 5 V
Forward Voltage
Reverse Current
2.0
2.4
10
V
µA
* Specifications subject to change without notice. Dimensions are in mm±0.1 unless stated otherwise.
IDEA, Inc., 1351 Titan Way, Brea, CA 92821 Ph:714-525-3302, 800-LED-IDEA; Fax: 714-525-3304 0507
