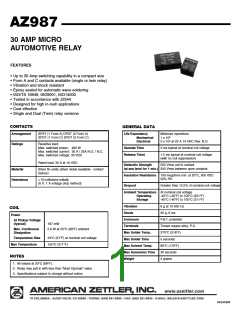

AZ987
30 AMP MICRO
AUTOMOTIVE RELAY
FEATURES
• Up to 30 Amp switching capability in a compact size
• Form A and C contacts available (single or twin relay)
• Vibration and shock resistant
• Epoxy sealed for automatic wave soldering
• ISO/TS 16949, ISO9001, ISO14000
• Tested in accordance with J2544
• Designed for high in-rush applications
• Cost effective
• Single and Dual (Twin) relay versions
CONTACTS
GENERAL DATA
Arrangement
SPST (1 Form A) DPST (2 Form A)
SPDT (1 Form C) DPDT (2 Form C)
Life Expectancy
Mechanical
Electrical
Minimum operations
1 x 106
3 x 105 at 20 A 14 VDC Res. N.O.
Ratings
Resistive load:
Max. switched power: 480 W
Max. switched current: 30 A / 25A N.O. / N.C.
Max. switched voltage: 30 VDC
Operate Time
Release Time)
3 ms typical at nominal coil voltage
1.5 ms typical at nominal coil voltage
(with no coil suppression)
Rated load: 30 A at 16 VDC
Dielectric Strength
500 Vrms coil to contact
(at sea level for 1 min.) 500 Vrms between open contacts
Material
Silver tin oxide (silver nickel available - contact
factory)
Insulation Resistance 100 megohms min. at 20°C, 500 VDC
50% RH
Resistance
< 50 milliohms initially
(6 V, 1 A voltage drop method)
Dropout
Greater than 12.5% of nominal coil voltage
Ambient Temperature At nominal coil voltage
Operating
Storage
-40°C (-40°F) to 105°C (221°F)
-40°C (-40°F) to 155°C (311°F)
6 g at 10-500 Hz
30 g, 6 ms
Vibration
COIL
Shock
Power
Enclosure
P.B.T. polyester
Tinned copper alloy, P.C.
270°C (518°F)
5 seconds
At Pickup Voltage
(typical)
187 mW
Terminals
Max. Continuous
Dissipation
2.6 W at 20°C (68°F) ambient
Max Solder Temp.
Max Solder Time
Max Solvent Temp.
Max Immersion Time
Weight
Temperature Rise
Max Temperature
34°C (61°F) at nominal coil voltage
155°C (311°F)
80°C (176°F)
30 seconds
NOTES
4 grams
1. All values at 20°C (68°F).
2. Relay may pull in with less than “Must Operate” value.
3. Specifications subject to change without notice.
04/04/08W
