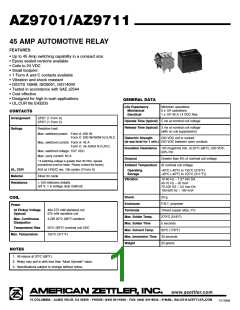

AZ9701/AZ9711
45 AMP AUTOMOTIVE RELAY
FEATURES
• Up to 45 Amp switching capability in a compact size
• Epoxy sealed versions available
• Coils to 24 VDC
• Small footprint
• 1 Form A and C contacts available
• Vibration and shock resistant
• ISO/TS 16949, ISO9001, ISO14000
• Tested in accordance with SAE J2544
• Cost effective
• Designed for high in-rush applications
• UL,CUR file E43203
GENERAL DATA
Life Expectancy
Mechanical
Electrical
Minimum operations
5 x 106 operations
1 x 105 40 A 14 VDC Res.
CONTACTS
Arrangement
SPST (1 Form A)
SPDT (1 Form C)
Operate Time (typical) 5 ms at nominal coil voltage
Release Time (typical) 3 ms at nominal coil voltage
Ratings
Resistive load:
(with no coil suppression)
Max. switched power: Form A: 630 W
Form C: 630 W/420W N.O./N.C.
Max. switched current: Form A: 45 A
Form C: 45 A/30A N.O./N.C.
Dielectric Strength
(at sea level for 1 min.) 500 VDC between open contacts
500 VDC coil to contact
Insulation Resistance 100 megohms min. at 20°C (68°F), 500 VDC,
Max. switched voltage: 150* VDC
Max. carry current: 60 A
50% RH
Dropout
Greater than 6% of nominal coil voltage
* If switching voltage is greater than 30 VDC, special
precautions must be taken. Please contact the factory.
Ambient Temperature At nominal coil voltage
UL, CUR
Material
45A at 14VDC res. 10k cycles (1Form A)
Silver tin oxide
Operating
Storage
-40°C (-40°F) to 135°C (275°F)
-40°C (-40°F) to 155°C (311°F))
Vibration
10-40 Hz – 1.27 mm DA
40-70 Hz – 50 m/s2
70-100 HZ – 0.5 mm DA
100-500 Hz – 100 m/s2
Resistance
< 100 milliohms initially
(24 V, 1 A voltage drop method)
Shock
20 g
COIL
Enclosure
P.B.T. polyester
Tinned copper alloy, P.C.
270°C (518°F)
5 seconds
Power
At Pickup Voltage
(typical)
484-573 mW standard coil
675 mW sensitive coil
Terminals
Max. Solder Temp.
Max. Solder Time
Max. Solvent Temp.
Max. Continuous
Dissipation
4.2W 20°C (68°F) ambient
Temperature Rise
Max. Temperature
50°C (90°F) nominal coil VDC
155°C (311°F)
80°C (176°F)
Max. Immersion Time 30 seconds
Weight 20 grams
NOTES
1. All values at 20°C (68°F).
2. Relay may pull in with less than “Must Operate” value.
3. Specifications subject to change without notice.
7/17/08W
