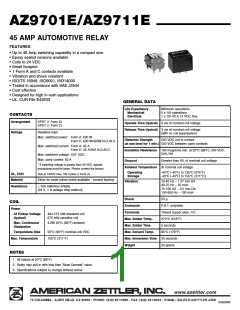

AZ9701E/AZ9711E
45 AMP AUTOMOTIVE RELAY
FEATURES
• Up to 45 Amp switching capability in a compact size
• Epoxy sealed versions available
• Coils to 24 VDC
• Small footprint
• 1 Form A and C contacts available
• Vibration and shock resistant
• ISO/TS 16949, ISO9001, ISO14000
• Tested in accordance with SAE J2544
• Cost effective
• Designed for high in-rush applications
• UL, CUR File E43203
GENERAL DATA
Life Expectancy
Mechanical
Electrical
Minimum operations
5 x 106 operations
1 x 105 40 A 14 VDC Res.
CONTACTS
Arrangement
SPST (1 Form A)
SPDT (1 Form C)
Operate Time (typical) 5 ms at nominal coil voltage
Release Time (typical) 3 ms at nominal coil voltage
Ratings
Resistive load:
(with no coil suppression)
Max. switched power: Form A: 630 W
Dielectric Strength
(at sea level for 1 min.) 500 VDC between open contacts
500 VDC coil to contact
Form C: 630 W/420W N.O./N.C.
Max. switched current: Form A: 45 A
Form C: 45 A/30A N.O./N.C.
Insulation Resistance 100 megohms min. at 20°C (68°F), 500 VDC,
50% RH
Max. switched voltage: 150* VDC
Max. carry current: 60 A
Dropout
Greater than 6% of nominal coil voltage
* If switching voltage is greater than 30 VDC, special
precautions must be taken. Please contact the factory.
Ambient Temperature At nominal coil voltage
Operating
Storage
-40°C (-40°F) to 135°C (275°F)
-40°C (-40°F) to 155°C (311°F))
UL, CUR
Material
45A at 14VDC Res. 10k cycles (1 Form A)
Silver tin oxide (silver nickel available - contact factory)
Vibration
10-40 Hz – 1.27 mm DA
40-70 Hz – 50 m/s2
70-100 HZ – 0.5 mm DA
100-500 Hz – 100 m/s2
Resistance
< 100 milliohms initially
(24 V, 1 A voltage drop method)
Shock
20 g
COIL
Enclosure
P.B.T. polyester
Tinned copper alloy, P.C.
270°C (518°F)
5 seconds
Power
Terminals
At Pickup Voltage
(typical)
484-573 mW standard coil
675 mW sensitive coil
Max. Solder Temp.
Max. Solder Time
Max. Solvent Temp.
Max. Continuous
Dissipation
4.2W 20°C (68°F) ambient
Temperature Rise
Max. Temperature
50°C (90°F) nominal coil VDC
155°C (311°F)
80°C (176°F)
Max. Immersion Time 30 seconds
Weight 20 grams
NOTES
1. All values at 20°C (68°F).
2. Relay may pull in with less than “Must Operate” value.
3. Specifications subject to change without notice.
6/29/06W
