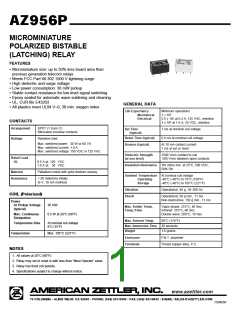

AZ9 5 6 P
MICROMINIATURE
POLARIZED BISTABLE
(LATCHING) RELAY
FEATURES
• Microminiature size: up to 50% less board area than
previous generation telecom relays
• Meets FCC Part 68.302 1500 V lightning surge
• High dielectric and surge voltage:
• Low power consumption: 36 mW pickup
• Stable contact resistance for low level signal switching
• Epoxy sealed for automatic wave soldering and cleaning
• UL, CUR file E43203
GENERAL DATA
• All plastics meet UL94 V–0, 30 min. oxygen index
Life Expectancy
Mechanical
Electrical
Minimum operations
1 x 109
2.5 x 105 at 0.4 A, 125 VAC, resistive
3 x 106 at 1.0 A, 24 VDC, resistive
CONTACTS
Arrangement
SPDT (1 Form C)
Bifurcated crossbar contacts
Set Time
(typical)
1 ms at nominal coil voltage
0.9 ms at nominal coil voltage
Reset Time (typical)
Bounce (typical)
Ratings
Resistive load:
Max. switched power: 30 W or 60 VA
Max. switched current: 1.0 A
Max. switched voltage: 150 VDC or 125 VAC
At 10 mA contact current
1 ms at set or reset
Dielectric Strength
(at sea level)
1500 Vrms contact to coil
500 Vrms between open contacts
Rated Load
UL
0.5 A at 120 VAC
1.0 A at 30 VDC
Insulation Resistance 109 ohms min. at 25°C, 500 VDC,
50% RH
Material
Palladium nickel with gold-rhodium overlay
Ambient Temperature At nominal coil voltage
Resistance
< 50 milliohms initally
(6 V, 10 mA method)
Operating
Storage
-40°C (-40°F) to 70°C (158°F)
-40°C (-40°F) to 105°C (221°F)
Vibration
Operational, 40 g, 10–200 Hz
COIL (Pola rize d)
Shock
Operational, 50 g min., 11 ms
Non-destructive, 150 g min., 11 ms
Power
At Pickup Voltage
(typical)
36 mW
Max. Solder Temp.
Temp./Time
Vapor phase: 215°C, 40 Sec.
Infrared: 215°C, 40 Sec.
Max. Continuous
Dissipation
0.5 W at 20°C (68°F)
Double wave: 260°C, 10 Sec.
Max. Solvent Temp.
80°C (176°F)
Temperature Rise
At nominal coil voltage
8°C (15°F)
Max. Immersion Time 30 seconds
Weight
1.8 grams
Temperature
Max. 105°C (221°F)
Enclosure
Terminals
P.B.T. polyester
Tinned copper alloy, P.C.
NOTES
1. All values at 20°C (68°F).
2. Relay may set or reset in with less than “Must Operate” value.
3. Relay has fixed coil polarity.
4. Specifications subject to change without notice.
