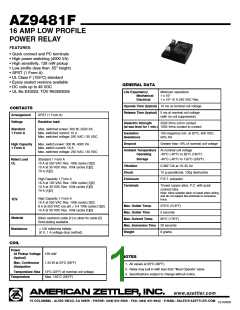

AZ9481F
16 AMP LOW PROFILE
POWER RELAY
FEATURES
• Quick connect and PC terminals
• High power switching (4000 VA)
• High sensitivity, 128 mW pickup
• Low profile (less than .55" height)
• SPST (1 Form A)
• UL Class F (155°C) standard
• Epoxy sealed versions available
• DC coils up to 48 VDC
GENERAL DATA
• UL file E43203, TÜV R50053055
Life Expectancy
Mechanical
Electrical
Minimum operations
1 x 107
1 x 105 10 A 250 VAC Res.
Operate Time (typical) 10 ms at nominal coil voltage
CONTACTS
Release Time (typical) 5 ms at nominal coil voltage
Arrangement
Ratings
SPST (1 Form A)
(with no coil suppression)
Resistive load:
Dielectric Strength
2500 Vrms coil to contact
(at sea level for 1 min.) 1000 Vrms contact to contact
Standard
1 Form A
Max. switched power: 300 W, 2500 VA
Max. switched current: 10 A
Max. switched voltage: 250 VAC / 30 VDC
Insulation
100 megohms min. at 20°C, 500 VDC,
50% RH
Resistance
Dropout
Greater than 10% of nominal coil voltage
High Capacity
1 Form A
Max. switch power: 300 W, 4000 VA
Max. switch current: 16 A
Max. switched voltage: 250 VAC / 30 VDC
Ambient Temperature At nominal coil voltage
Operating
-40°C (-40°F) to 85°C (185°F)
Storage
-40°C (-40°F) to 155°C (333°F)
Rated Load
UL
Standard 1 Form A
10 A at 250 VAC Res. 100k cycles [1][2]
10 A at 30 VDC Res. 100k cycles [1][2]
TV-5 [1][2]
Vibration
0.062" DA at 10–55 Hz
Shock
10 g operational, 100g destructive
P.B.T. polyester
Enclosure
Terminals
High Capacity 1 Form A
16 A at 125 VAC Res. 100k cycles [1][2]
10 A at 30 VDC Res. 100k cycles [1][2]
TV-5 [1][2]
Tinned copper alloy, P.C. with quick
connect tabs
Note: Allow suitable slack on leads when wiring,
and do not subject the terminals to excessive
force.
High Capacity 1 Form A
TÜV
16 A at 250 VAC Res. 100k cycles [1][2]
8 A at 250 VAC cos phi = 0.4 100k cycles [1][2]
10 A at 30 VDC Res. 100k cycles [1][2]
Max. Solder Temp.
Max. Solder Time
Max. Solvent Temp.
270°C (518°F)
5 seconds
Material
Silver cadmium oxide [1] or silver tin oxide [2]
Gold plating available.
80°C (176°F)
Max. Immersion Time 30 seconds
Resistance
< 100 milliohms initially
(6 V, 1 A voltage drop method)
Weight
8 grams
COIL
Power
At Pickup Voltage 128 mW
(typical)
NOTES
Max. Continuous
Dissipation
1.34 W at 20°C (68°F)
1. All values at 20°C (68°F).
2. Relay may pull in with less than “Must Operate” value.
3. Specifications subject to change without notice.
Temperature Rise 13°C (23°F) at nominal coil voltage
Temperature
Max. 155°C (333°F)
12/14/05W
