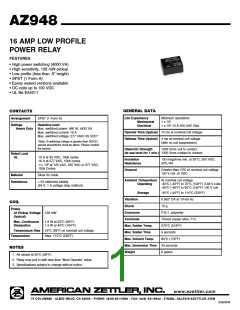

AZ948
16 AMP LOW PROFILE
POWER RELAY
FEATURES
• High power switching (4000 VA)
• High sensitivity, 128 mW pickup
• Low profile (less than .5" height)
• SPST (1 Form A)
• Epoxy sealed versions available
• DC coils up to 100 VDC
• UL file E44211
GENERAL DATA
CONTACTS
Life Expectancy
Mechanical
Electrical
Minimum operations
1 x 107
Arrangement
SPST (1 Form A)
Ratings
Resistive load:
1 x 105 10 A 250 VAC Res.
Heavy Duty Max. switched power: 480 W, 4432 VA
Max. switched current: 16 A
Operate Time (typical) 10 ms at nominal coil voltage
Max. switched voltage: 277 VAC/125 VDC*
Release Time (typical) 4 ms at nominal coil voltage
*Note: If switching voltage is greater than 30VDC,
special precautions must be taken. Please contact
the factory.
(with no coil suppression)
Dielectric Strength
1500 Vrms coil to contact
(at sea level for 1 min.) 1000 Vrms contact to contact
Rated Load
UL
10 A at 30 VDC, 100k cycles
16 A at 277 VAC, 100k cycles
1/10 HP at 125 VAC, 250 VAC or 277 VAC,
100k Cycles
Insulation
Resistance
100 megohms min. at 20°C, 500 VDC,
50% RH
Dropout
Greater than 10% of nominal coil voltage
100 V coil ‡6 VDC
Material
Silver tin oxide
Ambient Temperature At nominal coil voltage
Resistance
< 50 milliohms initially
(24 V, 1 A voltage drop method)
Operating
-40°C (-40°F) to 70°C (158°F) 3-48 V coils
-40°C (-48°F) to 60°C (140°F) 100 V coil
Storage
-40°C (-40°F) to 115°C (239°F)
Vibration
0.062" DA at 10–55 Hz
10 g
COIL
Shock
Power
Enclosure
P.B.T. polyester
Tinned copper alloy, P.C.
270°C (518°F)
5 seconds
At Pickup Voltage 128 mW
(typical)
Terminals
Max. Continuous
Dissipation
1.8 W at 20°C (68°F)
1.3 W at 40°C (104°F)
Max. Solder Temp.
Max. Solder Time
Max. Solvent Temp.
Temperature Rise 16°C (29°F) at nominal coil voltage
Temperature
Max. 115°C (239°F)
80°C (176°F)
Max. Immersion Time 30 seconds
Weight 8 grams
NOTES
1. All values at 20°C (68°F).
2. Relay may pull in with less than “Must Operate” value.
3. Specifications subject to change without notice.
6/28/05W
