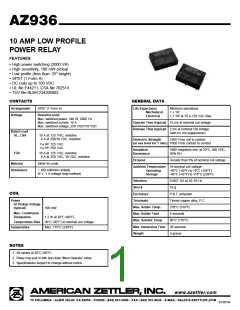

AZ936
10 AMP LOW PROFILE
POWER RELAY
FEATURES
• High power switching (2000 VA)
• High sensitivity, 190 mW pickup
• Low profile (less than .25" height)
• SPST (1 Form A)
• DC coils up to 100 VDC
• UL file E44211, CSA file 702514
• TÜV file BL991234205002
CONTACTS
GENERAL DATA
Arrangement
Ratings
SPST (1 Form A)
Life Expectancy
Mechanical
Electrical
Minimum operations
1 x 107
Resistive load:
Max. switched power: 240 W, 2000 VA
Max. switched current: 10 A
1 x 105 at 10 A 120 VAC Res.
Operate Time (typical) 10 ms at nominal coil voltage
Max. switched voltage: 250 VAC/110 VDC
Release Time (typical) 2 ms at nominal coil voltage
Rated Load
UL, CSA
(with no coil suppression)
10 A at 125 VAC, resistive
8 A at 250/30 VDC, resistive
Dielectric Strength
1500 Vrms coil to contact
(at sea level for 1 min.) 1000 Vrms contact to contact
1/10 HP 125 VAC
1/10 HP 250 VAC
Insulation
1000 megohms min. at 20°C, 500 VDC,
TÜV
10 A at 125 VAC, resistive
8 A at 250 VAC, 30 VDC, resistive
Resistance
50% RH
Dropout
Greater than 5% of nominal coil voltage
Material
Silver tin oxide
Ambient Temperature At nominal coil voltage
Resistance
< 100 milliohms initially
(6 V, 1 A voltage drop method)
Operating
Storage
-40°C (-40°F) to 70°C (158°F)
-40°C (-42°F) to 115°C (239°F)
Vibration
0.062" DA at 10–55 Hz
10 g
Shock
COIL
Enclosure
P.B.T. polyester
Tinned copper alloy, P.C.
270°C (518°F)
5 seconds
Power
At Pickup Voltage
(typical)
Terminals
Max. Solder Temp.
Max. Solder Time
Max. Solvent Temp.
190 mW
Max. Continuous
Dissipation
1.2 W at 20°C (68°F)
80°C (176°F)
Temperature Rise 20°C (36°F) at nominal coil voltage
Max. Immersion Time 30 seconds
Weight 5 grams
Temperature
Max. 115°C (239°F)
NOTES
1. All values at 20°C (68°F).
2. Relay may pull in with less than “Must Operate” value.
3. Specifications subject to change without notice.
3/14/01W
