8TQ100PBF

型号：

8TQ100PBF

描述：

肖特基整流器， 8的[ Schottky Rectifier, 8 A ]

品牌：

VISHAY[ VISHAY ]

页数：

6 页

PDF大小：

115 K

下载PDF手册

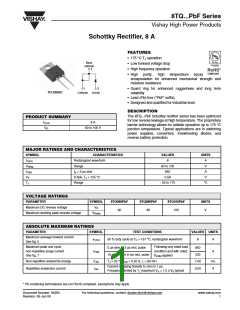

8TQ...PbF Series
Vishay High Power Products
Schottky Rectifier, 8 A
FEATURES
• 175 °C TJ operation
Pb-free
Base
cathode
2
• Low forward voltage drop
• High frequency operation
• High purity, high temperature epoxy
Available
RoHS*
COMPLIANT
encapsulation for enhanced mechanical strength and
moisture resistance
1
3
• Guard ring for enhanced ruggedness and long term
reliability
TO-220AC
Cathode Anode
• Lead (Pb)-free (“PbF” suffix)
• Designed and qualified for industrial level
DESCRIPTION
The 8TQ...PbF Schottky rectifier series has been optimized
for low reverse leakage at high temperature. The proprietary
barrier technology allows for reliable operation up to 175 °C
junction temperature. Typical applications are in switching
power supplies, converters, freewheeling diodes, and
reverse battery protection.
PRODUCT SUMMARY
IF(AV)
8 A
VR
60 to 100 V
MAJOR RATINGS AND CHARACTERISTICS
SYMBOL
IF(AV)
VRRM
IFSM
CHARACTERISTICS
VALUES
8
UNITS
Rectangular waveform
A
V
Range
60 to 100
850
tp = 5 µs sine
8 Apk, TJ = 125 °C
Range
A
VF
0.58
V
TJ
- 55 to 175
°C
VOLTAGE RATINGS
PARAMETER
SYMBOL
8TQ060PbF
8TQ080PbF
8TQ100PbF
100
UNITS
Maximum DC reverse voltage
VR
60
80
V
Maximum working peak reverse voltage
VRWM
ABSOLUTE MAXIMUM RATINGS
PARAMETER
SYMBOL
TEST CONDITIONS
VALUES UNITS
Maximum average forward current
See fig. 5
IF(AV)
50 % duty cycle at TC = 157 °C, rectangular waveform
8
A
Maximum peak one cycle
non-repetitive surge current
See fig. 7
Following any rated load
condition and with rated
5 µs sine or 3 µs rect. pulse
850
IFSM
A
10 ms sine or 6 ms rect. pulse
230
V
RRM applied
Non-repetitive avalanche energy
Repetitive avalanche current
EAS
IAR
TJ = 25 °C, IAS = 0.50 A, L = 60 mH
7.50
mJ
A
Current decaying linearly to zero in 1 µs
Frequency limited by TJ maximum VA = 1.5 x VR typical
0.50
* Pb containing terminations are not RoHS compliant, exemptions may apply
Document Number: 94265
Revision: 06-Jun-08
For technical questions, contact: diodes-tech@vishay.com
www.vishay.com
1
8TQ...PbF Series
Schottky Rectifier, 8 A
Vishay High Power Products
ELECTRICAL SPECIFICATIONS
PARAMETER
SYMBOL
TEST CONDITIONS
VALUES
0.72
0.88
0.58
0.69
0.55
7
UNITS
8 A
TJ = 25 °C
16 A
Maximum forward voltage drop
See fig. 1
(1)
VFM
V
8 A
TJ = 125 °C
16 A
TJ = 25 °C
TJ = 125 °C
Maximum reverse leakage current
See fig. 2
(1)
IRM
V
R = rated VR
mA
Maximum junction capacitance
Typical series inductance
CT
LS
VR = 5 VDC (test signal range 100 kHz to 1 MHz) 25 °C
Measured lead to lead 5 mm from package body
Rated VR
500
pF
nH
8
Maximum voltage rate of change
dV/dt
10 000
V/µs
Note
(1)
Pulse width < 300 µs, duty cycle < 2 %
THERMAL - MECHANICAL SPECIFICATIONS
PARAMETER
SYMBOL
TEST CONDITIONS
VALUES
UNITS
Maximum junction and storage
temperature range
TJ, TStg
- 55 to 175
°C
Maximum thermal resistance,
junction to case
DC operation
See fig. 4
RthJC
RthCS
2.0
°C/W
Typical thermal resistance,
case to heatsink
Mounting surface, smooth and greased
0.50
2
g
Approximate weight
0.07
oz.
minimum
maximum
6 (5)
12 (10)
kgf · cm
(lbf · in)
Mounting torque
Marking device
8TQ060
Case style TO-220AC
8TQ080
8TQ100
www.vishay.com
2
For technical questions, contact: diodes-tech@vishay.com
Document Number: 94265
Revision: 06-Jun-08
8TQ...PbF Series
Schottky Rectifier, 8 A
Vishay High Power Products
1000
100
10
100
10
TJ = 175 °C
TJ = 150 °C
TJ = 125 °C
1
TJ = 100 °C
TJ = 75 °C
TJ = 175 °C
TJ = 125 °C
TJ = 25 °C
0.1
0.01
TJ = 50 °C
1
0.001
TJ = 25 °C
0.1
0.0001
0
0.2 0.4 0.6 0.8 1.0 1.2 1.4 1.6 1.8 2.0 2.2
0
20
40
60
80
100
VFM - Forward Voltage Drop (V)
VR - Reverse Voltage (V)
Fig. 1 - Maximum Forward Voltage Drop Characteristics
Fig. 2 - Typical Values of Reverse Current vs.
Reverse Voltage
1000
TJ = 25 °C
100
10 20 30 40 50 60 70 80 90 100 110
VR - Reverse Voltage (V)
Fig. 3 - Typical Junction Capacitance vs. Reverse Voltage
10
1
D = 0.75
D = 0.50
D = 0.33
D = 0.25
Single pulse
(thermal resistance)
D = 0.20
0.1
0.0001
0.001
0.01
0.1
1
t1 - Rectangular Pulse Duration (s)
Fig. 4 - Maximum Thermal Impedance ZthJC Characteristics
Document Number: 94265
Revision: 06-Jun-08
For technical questions, contact: diodes-tech@vishay.com
www.vishay.com
3
8TQ...PbF Series
Schottky Rectifier, 8 A
Vishay High Power Products
180
7
6
5
4
3
2
1
0
D = 0.20
D = 0.25
D = 0.33
D = 0.50
D = 0.75
175
DC
170
165
160
155
150
145
140
RMS limit
Square wave (D = 0.50)
80 % rated VR applied
DC
See note (1)
0
2
4
6
8
10
12
0
2
4
6
8
10
12
IF(AV) - Average Forward Current (A)
IF(AV) - Average Forward Current (A)
Fig. 6 - Forward Power Loss Characteristics
Fig. 5 - Maximum Allowable Case Temperature vs.
Average Forward Current
1000
At any rated load condition and
with rated VRRM applied
following surge
100
10
100
1000
10 000
tp - Square Wave Pulse Duration (µs)
Fig. 7 - Maximum Non-Repetitive Surge Current
L
High-speed
switch
IRFP460
D.U.T.
Freewheel
diode
Rg = 25 Ω
V
d = 25 V
+
Current
monitor
40HFL40S02
Fig. 8 - Unclamped Inductive Test Circuit
Note
(1)
Formula used: TC = TJ - (Pd + PdREV) x RthJC
;
Pd = Forward power loss = IF(AV) x VFM at (IF(AV)/D) (see fig. 6);
PdREV = Inverse power loss = VR1 x IR (1 - D); IR at VR1 = 80 % rated VR
www.vishay.com
4
For technical questions, contact: diodes-tech@vishay.com
Document Number: 94265
Revision: 06-Jun-08
8TQ...PbF Series
Schottky Rectifier, 8 A
Vishay High Power Products
ORDERING INFORMATION TABLE
Device code
8
T
Q
100 PbF
1
2
3
4
5
1
2
-
-
Current rating (8 = 8 A)
Package:
T = TO-220
3
4
5
-
-
-
Schottky "Q" series
Voltage ratings
060 = 60 V
080 = 80 V
100 = 100 V
None = Standard production
PbF = Lead (Pb)-free
Tube standard pack quantity: 50 pieces
LINKS TO RELATED DOCUMENTS
Dimensions
http://www.vishay.com/doc?95221
http://www.vishay.com/doc?95224
Part marking information
Document Number: 94265
Revision: 06-Jun-08
For technical questions, contact: diodes-tech@vishay.com
www.vishay.com
5
