8TQ100GPBF

型号：

8TQ100GPBF

描述：

肖特基整流器， 8的[ Schottky Rectifier, 8 A ]

品牌：

VISHAY[ VISHAY ]

页数：

6 页

PDF大小：

112 K

下载PDF手册

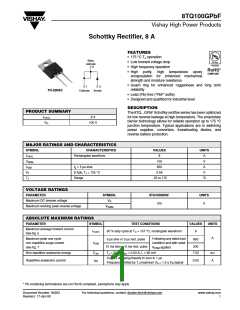

8TQ100GPbF
Vishay High Power Products
Schottky Rectifier, 8 A
FEATURES
• 175 °C TJ operation
• Low forward voltage drop
• High frequency operation
• High purity, high temperature epoxy
encapsulation for enhanced mechanical
strength and moisture resistance
Base
cathode
2
Pb-free
Available
RoHS*
COMPLIANT
• Guard ring for enhanced ruggedness and long term
reliability
1
3
TO-220AC
Cathode Anode
• Lead (Pb)-free (“PbF” suffix)
• Designed and qualified for industrial level
DESCRIPTION
PRODUCT SUMMARY
The 8TQ...GPbF Schottky rectifier series has been optimized
for low reverse leakage at high temperature. The proprietary
barrier technology allows for reliable operation up to 175 °C
junction temperature. Typical applications are in switching
power supplies, converters, freewheeling diodes, and
reverse battery protection.
IF(AV)
8 A
VR
100 V
MAJOR RATINGS AND CHARACTERISTICS
SYMBOL
IF(AV)
VRRM
IFSM
CHARACTERISTICS
VALUES
8
UNITS
Rectangular waveform
A
V
100
tp = 5 µs sine
8 Apk, TJ = 125 °C
Range
850
A
VF
0.58
V
TJ
- 55 to 175
°C
VOLTAGE RATINGS
PARAMETER
SYMBOL
VR
8TQ100GPbF
UNITS
Maximum DC reverse voltage
100
V
Maximum working peak reverse voltage
VRWM
ABSOLUTE MAXIMUM RATINGS
PARAMETER
SYMBOL
TEST CONDITIONS
50 % duty cycle at TC = 157 °C, rectangular waveform
VALUES
UNITS
Maximum average forward current
See fig. 5
IF(AV)
8
A
Maximum peak one cycle
non-repetitive surge current
See fig. 7
Following any rated load
condition and with rated
5 µs sine or 3 µs rect. pulse
10 ms sine or 6 ms rect. pulse
850
IFSM
230
V
RRM applied
Non-repetitive avalanche energy
Repetitive avalanche current
EAS
IAR
TJ = 25 °C, IAS = 0.50 A, L = 60 mH
7.50
mJ
A
Current decaying linearly to zero in 1 µs
Frequency limited by TJ maximum VA = 1.5 x VR typical
0.50
* Pb containing terminations are not RoHS compliant, exemptions may apply
Document Number: 94263
Revision: 17-Apr-08
For technical questions, contact: diodes-tech@vishay.com
www.vishay.com
1
8TQ100GPbF
Schottky Rectifier, 8 A
Vishay High Power Products
ELECTRICAL SPECIFICATIONS
PARAMETER
SYMBOL
TEST CONDITIONS
VALUES
0.72
0.88
0.58
0.69
0.28
7
UNITS
8 A
TJ = 25 °C
16 A
Maximum forward voltage drop
See fig. 1
(1)
VFM
V
8 A
TJ = 125 °C
16 A
TJ = 25 °C
Maximum reverse leakage curent
See fig. 2
(1)
IRM
V
R = Rated VR
mA
TJ = 125 °C
Maximum junction capacitance
Typical series inductance
CT
LS
VR = 5 VDC (test signal range 100 kHz to 1 MHz) 25 °C
Measured lead to lead 5 mm from package body
Rated VR
500
pF
nH
8
Maximum voltage rate of change
dV/dt
10 000
V/µs
Note
(1)
Pulse width < 300 µs, duty cycle < 2 %
THERMAL - MECHANICAL SPECIFICATIONS
PARAMETER
SYMBOL
TEST CONDITIONS
VALUES
UNITS
Maximum junction and
storage temperature range
TJ, TStg
- 55 to 175
°C
Maximum thermal resistance,
junction to case
DC operation
See fig. 4
RthJC
RthCS
2.0
°C/W
Typical thermal resistance,
case to heatsink
Mounting surface, smooth and greased
0.50
2
g
Approximate weight
0.07
oz.
minimum
maximum
6 (5)
12 (10)
kgf · cm
(lbf · in)
Mounting torque
Marking device
Case style TO-220AC
8TQ100G
www.vishay.com
2
For technical questions, contact: diodes-tech@vishay.com
Document Number: 94263
Revision: 17-Apr-08
8TQ100GPbF
Schottky Rectifier, 8 A
Vishay High Power Products
1000
100
10
100
10
TJ = 175 °C
TJ = 150 °C
TJ = 125 °C
TJ = 100 °C
1
0.1
TJ = 75 °C
TJ = 50 °C
0.01
0.001
TJ = 175 °C
TJ = 125 °C
TJ = 25 °C
1
TJ = 25 °C
0.1
0.0001
0
20
40
60
80
100
0
0.2 0.4 0.6 0.8 1.0 1.2 1.4 1.6 1.8 2.0 2.2
VR - Reverse Voltage (V)
VFM - Forward Voltage Drop (V)
Fig. 1 - Maximum Forward Voltage Drop Characteristics
Fig. 2 - Typical Values of Reverse Current vs.
Reverse Voltage
1000
TJ = 25 °C
100
0
10 20 30 40 50 60 70 80 90 100
110
VR - Reverse Voltage (V)
Fig. 3 - Typical Junction Capacitance vs. Reverse Voltage
10
D = 0.75
D = 0.50
D = 0.33
D = 0.25
D = 0.20
1
Single pulse
(thermal resistance)
0.1
0.0001
0.001
0.01
0.1
1
t1 - Rectangular Pulse Duration (s)
Fig. 4 - Maximum Thermal Impedance ZthJC Characteristics
Document Number: 94263
Revision: 17-Apr-08
For technical questions, contact: diodes-tech@vishay.com
www.vishay.com
3
8TQ100GPbF
Schottky Rectifier, 8 A
Vishay High Power Products
180
7
6
5
4
3
2
1
0
D = 0.20
D = 0.25
D = 0.33
D = 0.50
D = 0.75
175
DC
170
165
RMS limit
160
Square wave (D = 0.50)
80 % rated VR applied
155
DC
150
145
See note (1)
140
0
2
4
6
8
10
12
0
2
4
6
8
10
12
IF(AV) - Average Forward Current (A)
IF(AV) - Average Forward Current (A)
Fig. 6 - Forward Power Loss Characteristics
Fig. 5 - Maximum Allowable Case Temperature vs.
Average Forward Current
1000
At any rated load condition
and with rated VRRM applied
following surge
100
10
100
1000
10 000
tp - Square Wave Pulse Duration (µs)
Fig. 7 - Maximum Non-Repetitive Surge Current
L
High-speed
switch
IRFP460
D.U.T.
Freewheel
diode
Rg = 25 Ω
Vd = 25 V
+
Current
monitor
40HFL40S02
Fig. 8 - Unclamped Inductive Test Circuit
Note
(1)
Formula used: TC = TJ - (Pd + PdREV) x RthJC
;
Pd = Forward power loss = IF(AV) x VFM at (IF(AV)/D) (see fig. 6);
PdREV = Inverse power loss = VR1 x IR (1 - D); IR at VR1 = 80 % rated VR
www.vishay.com
4
For technical questions, contact: diodes-tech@vishay.com
Document Number: 94263
Revision: 17-Apr-08
8TQ100GPbF
Schottky Rectifier, 8 A
Vishay High Power Products
ORDERING INFORMATION TABLE
Device code
8
T
Q
100
G
PbF
1
2
3
4
5
6
-
-
-
-
-
-
Current rating (8 = 8 A)
T = TO-220
1
2
3
4
5
Q = Schottky “Q” series
Voltage rating (100 = 100 V)
G = Schottky generation
6
None = Standard production
PbF = Lead (Pb)-free
Tube standard pack quantity: 50 pieces
LINKS TO RELATED DOCUMENTS
Dimensions
http://www.vishay.com/doc?95221
http://www.vishay.com/doc?95224
http://www.vishay.com/doc?95291
Part marking information
SPICE model
Document Number: 94263
Revision: 17-Apr-08
For technical questions, contact: diodes-tech@vishay.com
www.vishay.com
5
