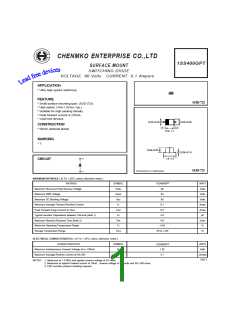

CHENMKO ENTERPRISE CO.,LTD
1SS400GPT
SURFACE MOUNT
SWITCHING DIODE
VOLTAGE 90 Volts CURRENT 0.1 Ampere
APPLICATION
* Ultra high speed switching
FEATURE
SOD-723
* Small surface mounting type. (SOD-723)
* High speed. (TRR=1.2nSec Typ.)
* Suitable for high packing density.
* Peak forward current is 225mA.
* Lead free devices
0.25~0.35
0.55~0.65
CONSTRUCTION
(1)
(2)
* Silicon epitaxial planar
0.9~1.1
MARKING
* 7
0.49~0.65
0.08~0.15
(2)
1.3~1.5
CIRCUIT
SOD-723
(1)
Dimensions in millimeters
MAXIMUM RATINGES ( At TA = 25oC unless otherwise noted )
RATINGS
SYMBOL
VRRM
VRMS
VDC
1SS400GPT
UNITS
Volts
Volts
Volts
Amps
Amps
pF
Maximum Recurrent Peak Reverse Voltage
Maximum RMS Voltage
90
63
Maximum DC Blocking Voltage
80
0.1
Maximum Average Forward Rectified Current
Peak Forward Surge Current at 1Sec.
IO
IFSM
0.5
Typical Junction Capacitance between Terminal (Note 1)
Maximum Reverse Recovery Time (Note 2)
Maximum Operating Temperature Range
CJ
TRR
TJ
3.0
4.0
nSec
oC
+125
oC
Storage Temperature Range
TSTG
-55 to +125
ELECTRICAL CHARACTERISTICS ( At TA = 25oC unless otherwise noted )
CHARACTERISTICS
SYMBOL
UNITS
Volts
1SS400GPT
1.20
Maximum Instantaneous Forward Voltage at IF= 100mA
Maximum Average Reverse Current at VR= 80V
VF
IR
0.1
uAmps
2003-5
NOTES : 1. Measured at 1.0 MHZ and applied reverse voltage of 0.5 volts.
2. Measured at applied froward current of 10mA , reverse voltage of 6.0 volts and RL=100 ohms.
3. ESD sensitive product handling required.
