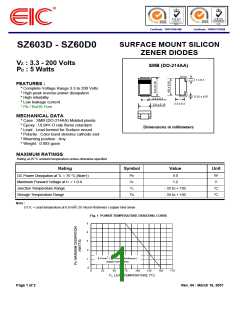

Certificate: TH97/10561QM
Certificate: TW00/17276EM
SURFACE MOUNT SILICON
ZENER DIODES
SZ603D - SZ60D0
VZ : 3.3 - 200 Volts
PD : 5 Watts
SMB (DO-214AA)
1.1 ± 0.3
FEATURES :
* Complete Voltage Range 3.3 to 200 Volts
* High peak reverse power dissipation
* High reliability
0.22 ± 0.07
2.0 ± 0.1
* Low leakage current
2.3 ± 0.2
3.6 ± 0.15
* Pb / RoHS Free
MECHANICAL DATA
* Case : SMB (DO-214AA) Molded plastic
* Epoxy : UL94V-O rate flame retardant
* Lead : Lead formed for Surface mount
* Polarity : Color band denotes cathode end
* Mounting position : Any
Dimensions in millimeters
* Weight : 0.093 gram
MAXIMUM RATINGS
Rating at 25°C ambient temperature unless otherwise specified
Rating
Symbol
Value
Unit
PD
VF
TJ
5.0
W
V
DC Power Dissipation at TL = 75 °C (Note1)
Maximum Forward Voltage at IF = 1.0 A
Junction Temperature Range
1.2
- 55 to + 150
- 55 to + 150
°C
°C
Storage Temperature Range
Ts
Note :
2
(1) TL = Lead temperature at 6.0 mm ( 35 micron thickness ) copper land areas
Fig. 1 POWER TEMPERATURE DERATING CURVE
5
4
3
2
1
6.0 mm2 ( 35 micron thickness )
copper land areas.
0
0
25
50
75
100
125
150
175
TL, LEAD TEMPERATURE (°C)
Page 1 of 2
Rev. 04 : March 16, 2007
