TZL100-4812

型号：

TZL100-4812

描述：

开关电源[ Switching Power Supplies ]

品牌：

TRACOPOWER[ TRACO ELECTRONIC AG ]

页数：

5 页

PDF大小：

904 K

下载PDF手册

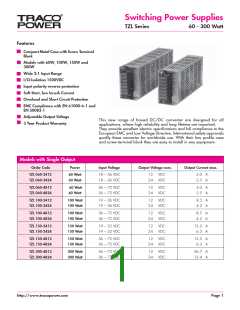

Switching Power Supplies
TZL Series
60 - 300 Watt
Features
Compact Metal Case with Screw Terminal
Block
Models with 60W, 100W, 150W and
300W
Wide 2:1 Input Range
I/O-Isolation 1500VDC
Input polarity reverse protection
Soft Start, low Inrush Current
Overload and Short Circuit Protection
EMC Compliance with EN 61000-6-1 and
EN 50082-1
Adjustable Output Voltage
3 Year Product Warranty
This new range of boxed DC/DC converter are designed for all
applications, where high reliability and long lifetime are important.
They provide excellent electric specifications and full compliance to the
European EMC and Low Voltage Directive. International safety approvals
qualify these converter for worldwide use. With their low profile case
and screw terminal block they are easy to install in any equipment.
Models with Single Output
Order Code
Power
Input Voltage
Output Voltage nom.
Output Current max.
TZL 060-2412
TZL 060-2424
60 Watt
60 Watt
18 – 36 VDC
18 – 36 VDC
12 VDC
24 VDC
5.0 A
2.5 A
TZL 060-4812
TZL 060-4824
60 Watt
60 Watt
36 – 72 VDC
36 – 72 VDC
12 VDC
24 VDC
5.0 A
2.5 A
TZL 100-2412
TZL 100-2424
100 Watt
100 Watt
19 – 36 VDC
19 – 36 VDC
12 VDC
24 VDC
8.5 A
4.2 A
TZL 100-4812
TZL 100-4824
100 Watt
100 Watt
36 – 72 VDC
36 – 72 VDC
12 VDC
24 VDC
8.5 A
4.2 A
TZL 150-2412
TZL 150-2424
150 Watt
150 Watt
19 – 32 VDC
19 – 32 VDC
12 VDC
24 VDC
12.5 A
6.3 A
TZL 150-4812
TZL 150-4824
150 Watt
150 Watt
36 – 72 VDC
36 – 72 VDC
12 VDC
24 VDC
12.5 A
6.3 A
TZL 300-4812
TZL 300-4824
300 Watt
300 Watt
36 – 72 VDC
36 – 72 VDC
12 VDC
24 VDC
26.7 A
13.4 A
http://www.tracopower.com
Page 1
Switching Power Supplies
TZL Series
60 – 300 Watt
Input Specifications
Input voltage range
24VDC input models:
48VDC input models:
18/19 - 32/36VDC
36-72VDC
Input current (at full load)
19(24)Vin 36(48)Vin
TZL 060 models
TZL 100 models
TZL 150 models
TXL 300 models
4.6A
8.0A
12A
--
2.4A
4.0A
6.3A
30A
Input current (at no load)
19(24)Vin 36(48)Vin
TZL 060 models
TZL 100 models
TZL 150 models
TXL 300 models
max. 0.3A max. 0.2A
max. 0.2A max. 0.15A
max. 0.2A max. 0.2A
--
max. 0.15A
Output Specifications
Output voltage adjustment range
Regulation
10%
– Input variation
– Load variation (10–100%)
1 % max.
1 % max.
Ripple and noise (20Mhz Bandwidth)
12VDC output
24VDC output
< 100mV
< 150mV
Output current limitation
Overload protection mode
Over voltage protection
105 % – 150% of Iout max.
Fold back, automatic recovery
115 % – 140 % of Vout nom.
Capacitive load, max.
TXL 060: 12VDC /24VDC output models
TXL 100: 12VDC /24VDC output models
TXL 150: 12VDC /24VDC output models
TXL 300: 12VDC /24VDC output models
11’000µF / 2’000µF
14’200µF / 1’000µF
8’600µF / 470µF
2’700µF / 1’000µF
All specifications valid at nominal input voltage, full load and +25°C after warm-up time unless otherwise stated.
http://www.tracopower.com
Page 2
Switching Power Supplies
TZL Series
60 – 300 Watt
General Specifications
Temperature ranges
– Operating
– Load derating above 45°C
– Storage (non operating)
– 10 °C…+70 °C
2% /°K
– 10 °C…+75 °C
0.03 % / °C
Temperature coefficient
Efficiency
70 – 80 % (depending on model)
85 % rel max. (non condensing)
50 kHz typ. (pulse width modulation)
Humidity (non condensing)
Switching frequency
Isolation voltage
– Input / output
– Input / case
– Output / case
1‘500 VAC
1‘500 VAC
500 VAC
Reliability /calculated MTBF (MIL-HDBK-217F)
> 250’000 h @ 25°C typ.
Electromagnetic compatibility (EMC), conducted emission
EN 61000-4-2 (8kV/4kV perf. criteria A)
EN 61000-4-3 (3V/m perf. criteria A)
EN 61000-4-4 (1kV perf. criteria A)
EN 61000-4-6 (3V/m perf. criteria A)
EN 61000-4-8 (3V/m; 900 Mhz)
EN 50204 (3V/m; 900 Mhz)
Electromagnets compatibility (EMC), radiated emission
Safety standards
EN 55022, class B
meets UL/IEC/EN60950
nickel plated steel
Case material
Cover:
Chassis:
natural aluminum
All specifications valid at nominal input voltage, full load and +25°C after warm-up time unless otherwise stated.
http://www.tracopower.com
Page 3
Switching Power Supplies
TZL Series
60 – 300 Watt
TZL 060 - Series
160 ± 0.8
(6.30 ± 0.03)
10 max.
(0.39 max.)
M3 thread
(bottom)
+Vin
- Vin
GND
-
-
+
Vout
+
37.5 ± 0.5
24
(0.95)
78 ± 0.5
(3.07 ± 0.02)
(1.48 ± 0.02
)
M3 thread
118± 0.5
(4.65 ± 0.02
22
(0.87)
Weight: 0.6 kg (20 oz)
)
TZL 100 - Series
198 ± 0.8
10 max.
(0.39 max.)
(7.80 ± 0.03)
+Vin
- Vin
GND
-
-
+
4 x M3 thread
(bottom)
Vout
+
38 ± 0.5
(1.50 ± 0.02
62
(2.44)
120 ± 0.8
(4.72 ± 0.03
)
)
M3 thread
Weight: 0.7 kg (25 oz)
20
(0.79)
158± 0.5
(6.22 ± 0.02)
Weight:
0.8 kg (28 oz)
Specifications can be changed without notice
http://www.tracopower.com
Page 4
Switching Power Supplies
TZL Series
60 – 300 Watt
198 ±0.8
(7.83 ±0.03)
13 max.
(0.51 max.)
TZL 150 - Series
+
+
-
5 x M3 thread
(bottom)
Vout
-
GND
-Vin
+Vin
133 ±0.8
11
(0.43)
50 ±0.5
(1.97 ±0.02
(5.24 ±0.03
)
)
168 ±0.8
(6.61 ±0.03
)
M4 thread
Weight: 0.9 kg (30 oz)
25
(0.98)
117±0.5
(4.61 ±0.02)
212 0.8
12 max.
(0.47 max.)
TZL 300 - Series
(8.35 0.03
)
150 0.8
29.5
(5.91 0.03
)
(1.16)
+
+
+
-
-
-
Vout
4 x M4 thread
(bottom)
GND
-Vin
+Vin
5 x M3 thread
(bottom)
87.5 0.8
50 0.5
(1.97 0.02)
(3.44 0.03
)
177.5 0.8
7
(0.28)
(6.99 0.03
)
Weight: 1.2 kg (40 oz)
150 0.8
(5.91 0.03
29.5
(1.16)
)
Specifications can be changed without notice
11/08
Jenatschstrasse 1 • CH-8002 Zurich • Switzerland
Tel. +41-43 311 45 11 • Fax +41-43 311 45 45 • info traco.ch •www.tracopower.com
Page 5
@
