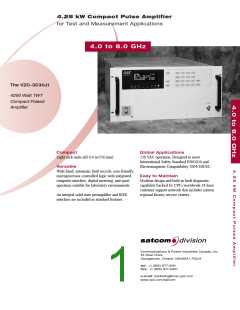

4.0 to 8.0 GHz
SPECIFICATIONS, VZC-3530J1
Electrical
Environmental
Frequency
4.0 to 8.0 GHz
Ambient Temperature
-10° to +40°C operating
-40° to +70°C non-operating
Output Peak Power (min.)
TWT
Flange
4500 W
4250 W
Relative Humidity
Altitude
95% non-condensing
10,000 ft. with standard adiabatic
derating of 2°Cꢀ1000 ft., operating;
40,000 ft., non-operating
Gain
65 dB min. at rated power (with no RF options);
67 dB min. at small signal (with no RF options);
deduct one dB of gain from the above
minimums for each RF option
O P T I O N S :
Shock and Vibration
As normally encountered in a
protected laboratory environment
• Remote Control Panel
Gain Adjustment Range
Gain Stability
20 dB min.
• Input Isolator
(-1 dB Gain)
Mechanical
0.25 dBꢀ24hr maꢁ. (after 30 minute warmup
and at constant drive and temp.)
Cooling (TWT)
Forced air with integral blower
Rear air intake & eꢁhaust;
0.10" water maꢁ. eꢁternal pressure
loss allowable
Input VSWR
2.5:1 typ;
1.5:1 typ. with optional input isolator
Output VSWR
Load VSWR
2.5:1 typ.
RF Input Connection
RF Output Connection
Dimensions (WxHxD)*
Type N female
1.5:1 maꢁ. for full spec. compliance;
Any value for continuous operation (soft fail
VSWR protection limits at 500 W peak)
WRD-350 waveguide flange
19 ꢁ 14 ꢁ 27.5 in.
(483 ꢁ 356 ꢁ 699 mm)
Phase Noise
Pulse Width
PRF
0.5°rms asynchronous ripple
0.07 to 50 µs
Weight
150 lbs (55 kg) maꢁ.
2200 watts maꢁ.
Heat Dissipation
Safety
50 kHz maꢁ, 100 kHz maꢁ. available as option
6% maꢁ.
EN61010
Duty Cycle
Delay
Acoustic Noise
65 dBA @ 3 ft. from amplifier
400 ns typ.
Droop
0.5 dB over 50 µs
*Dimensions exclude front handles, rear fans and exhaust ducts.
NPO
-10 dBmꢀMHz Beam On;
-110 dBmꢀMHz Beam Off
Primary Power
220 - 240 VAC 10%,
single phase 47- 63 Hz
Power Consumption
Filament Voltage
Inrush Current
2.2 kVA typ.
2.5 kVA maꢁ.
Reduction of 10% in standby for eꢁtended
TWT life (available as option)
200% maꢁ.
Certificate Number: 30515
For more detailed information, please refer to the corresponding CPI Technical Description.
Note: Specifications may change without notice as a result of additional data or product refinement.
Please contact CPI before using this information for system design.
