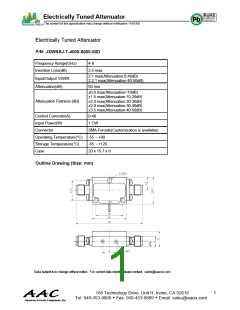

Electrically Tuned Attenuator
The content of this specification may change without notification 11/01/09
Electrically Tuned Attenuator
P/N: JXWBSJ-T-4000-8000-50D
Frequency Range(GHz)
Insertion Loss(dB)
4-8
2.5 max
2:1 max(Attenuation:0-40dB)
2.2:1 max(Attenuation:40-50dB)
Input/Output VSWR
Attenuation(dB)
50 min
±0.6 max(Attenuation<10dB)
±1.5 max(Attenuation:10-20dB)
±2.3 max(Attenuation:20-30dB)
±2.8 max(Attenuation:30-40dB)
±3.5 max(Attenuation:40-50dB)
Attenuation Flatness (dB)
Control Current(mA)
Input Power(W)
Connector
0-40
1 CW
SMA-Female(Customization is available)
Operating Temperature(°C) -55 ~ +80
Storage Temperature(°C)
Case
-65 ~ +120
20 x 15.7 x 9
Outline Drawing (Size: mm)
Data subject is to change without notice. For current data sheets, please contact: sales@aacix.com
1
