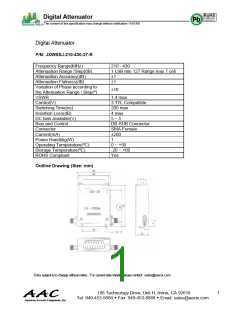

Digital Attenuator
The content of this specification may change without notification 11/01/09
Digital Attenuator
P/N: JXWBSJ-210-430-27-R
Frequency Range(MHz)
Attenuation Range /Step(dB)
Attenuation Accuracy(dB)
Attenuation Flatness(dB)
Variation of Phase according to
the Attenuation Range / Step(º)
VSWR
Control(V)
Switching Time(ns)
Insertion Loss(dB)
210 - 430
1 LSB min 127 Range max 7 cell
±1
±1
±10
1.4 max
3 TTL Compatible
200 max
4 max
DC bias available(V)
Bias and Control
Connector
5 – 5
DB-SUB Connector
SMA-Female
±200
Current(mA)
Power Handling(W)
Operating Temperature(ºC)
Storage Temperature(ºC)
ROHS Compliant
1
0 ~ +50
-20 ~ +60
Yes
Outline Drawing (Size: mm)
Data subject is to change without notice. For current data sheets, please contact: sales@aacix.com
1
188 Technology Drive, Unit H, Irvine, CA 92618
Tel: 949-453-9888 Fax: 949-453-8889 Email: sales@aacix.com
American Accurate Components, Inc.
