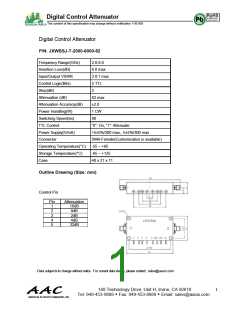

Digital Control Attenuator
The content of this specification may change without notification 11/01/09
Digital Control Attenuator
P/N: JXWBSJ-T-2000-8000-62
Frequency Range(GHz)
Insertion Loss(dB)
Input/Output VSWR
Control Logic(Bits)
Step(dB)
2.0-8.0
6.0 max
2.0:1 max
5 TTL
2
Attenuation (dB)
Attenuation Accuracy(dB)
Power Handling(W)
Switching Speed(ns)
TTL Control
62 max
±2.0
1 CW
80
“0”: On, “1”: Attenuate
Power Supply(V/mA)
Connector
+5±5%/300 max, -5±5%/300 max
SMA-Female(Customization is available)
Operating Temperature(°C) -55 ~ +85
Storage Temperature(°C)
Case
-65 ~ +125
40 x 21 x 11
Outline Drawing (Size: mm)
Control Pin
Pin
1
2
Attenuation
16dB
8dB
3
2dB
4
4dB
5
32dB
Data subject is to change without notice. For current data sheets, please contact: sales@aacix.com
188 Technology Drive, Unit H, Irvine, CA 92618
1
Tel: 949-453-9888 Fax: 949-453-8889 Email: sales@aacix.com
American Accurate Components, Inc.
