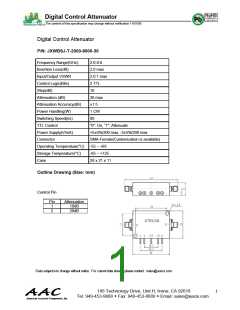

Digital Control Attenuator
The content of this specification may change without notification 11/01/09
Digital Control Attenuator
P/N: JXWBSJ-T-2000-8000-30
Frequency Range(GHz)
Insertion Loss(dB)
Input/Output VSWR
Control Logic(Bits)
Step(dB)
2.0-8.0
2.0 max
2.0:1 max
2 TTL
10
Attenuation (dB)
Attenuation Accuracy(dB)
Power Handling(W)
Switching Speed(ns)
TTL Control
30 max
±1.5
1 CW
80
“0”: On, “1”: Attenuate
Power Supply(V/mA)
Connector
+5±5%/200 max, -5±5%/200 max
SMA-Female(Customization is available)
Operating Temperature(°C) -55 ~ +85
Storage Temperature(°C)
Case
-65 ~ +125
28 x 21 x 11
Outline Drawing (Size: mm)
Control Pin
Pin
1
Attenuation
10dB
2
20dB
