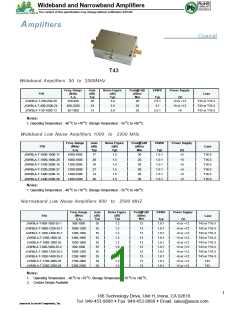

Wideband and Narrowband Amplifiers
The content of this specification may change without notification 8/01/09
A
mplifiers
Coaxial
T43
Wideband Amplifiers 50 to 2500MHz
Freq. Range
(MHz)
Gain
(dB)
Typ
Noise Figure
(dB)
Pout@1dB
(dBm)
VSWR
Power Supply
P/N
Case
fL-fU
Typ
Min
Typ
(V)
JXWBLA-T-250-650-28
JXWBLA-T-400-2500-24
JXWBLA-T-50-1000-13
250-650
400-2500
50-1000
28
24
13
3.0
3.5
5.0
20
20
25
2.5:1
+9 or +12
T43 or T16-3
T43 or T16-3
T43 or T16-3
3:1
+9 or +12
+9
2.5:1
Notes:
1. Operating Temperature : -40 OC to +70 OC. Storage Temperature : -55 OC to +80 OC.
Wideband Low Noise Amplifiers 1000 to 2200 MHz
Freq. Range
(MHz)
Gain
(dB)
Typ
Noise Figure
(dB)
Pout@1dB
(dBm)
VSWR
Power Supply
P/N
Case
fL-fU
Typ
Min
Typ
(V)
JXWBLA-T-1000-1800-17
JXWBLA-T-1000-1800-28
JXWBLA-T-1200-2000-16
JXWBLA-T-1200-2000-27
JXWBLA-T-1400-2200-14
JXWBLA-T-1400-2200-26
1000-1800
1000-1800
1200-2000
1200-2000
1400-2200
1400-2200
17
28
16
27
14
26
1.5
1.5
1.5
1.5
1.5
1.5
20
20
20
20
20
20
1.5:1
+5
T16-3
T16-3
T16-3
T16-3
T16-3
T16-3
1.5:1
1.5:1
1.5:1
1.5:1
1.5:1
+5
+5
+5
+5
+5
Notes:
1. Operating Temperature : -40 OC to +70 OC. Storage Temperature : -55 OC to +80 OC.
Narrowband Low Noise Amplifiers 800 to 2500 MHZ
Freq. Range
(MHz)
Gain
(dB)
Typ
Noise Figure
(dB)
Pout@1dB
(dBm)
VSWR
Power Supply
P/N
Case
Typ
Min
fL-fU
Typ
(V)
JXWBLA-T-800-1000-35-1
JXWBLA-T-1000-1200-35-1
JXWBLA-T-1200-1400-35-1
JXWBLA-T-1400-1600-35
JXWBLA-T-1600-1800-35
JXWBLA-T-800-1000-35-2
JXWBLA-T-1000-1200-35-2
JXWBLA-T-1200-1400-35-2
JXWBLA-T-1700-2000-28
JXWBLA-T-2200-2500-28
800-1000
1000-1200
1200-1400
1400-1600
1600-1800
800-1000
35
35
35
35
35
35
35
35
28
28
1.2
1.2
1.2
1.2
1.2
1.0
1.0
1.1
1.2
1.2
13
13
13
13
13
13
13
13
13
13
1.8:1
+5 or +12
T43 or T16-3
T43 or T16-3
T43 or T16-3
T43 or T16-3
T43 or T16-3
T43 or T16-3
T43 or T16-3
T43 or T16-3
T43
1.8:1
1.8:1
1.8:1
1.8:1
1.8:1
1.8:1
1.8:1
1.8:1
1.8:1
+5 or +12
+5 or +12
+5 or +12
+5 or +12
+5 or +12
+5 or +12
+5 or +12
+5 or +12
+5 or +12
1000-1200
1200-1400
1700-2000
2200-2500
T43
Notes:
1. Operating Temperature : -40 OC to +70 OC. Storage Temperature : -55 OC to +80 OC.
2. Custom Design Available
1
188 Technology Drive, Unit H, Irvine, CA 92618
Tel: 949-453-9888 Fax: 949-453-8889 Email: sales@aacix.com
American Accurate Components, Inc.
