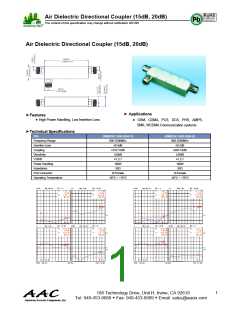

Air Dielectric Directional Coupler (15dB, 20dB)
The content of this specification may change without notification 9/01/09
Air Dielectric Directional Coupler (15dB, 20dB)
► Applications
►Features
● High Power Handling, Low Insertion Loss
● GSM, CDMA, PCS, DCS, PHS, AMPS,
SMR, WCDMA Communication systems
►Technical Specifications
P/N
JXMBOH-T-800-2500-15
800-2500MHz
≤0.4dB
JXMBOH-T-800-2500-20
800-2500MHz
≤0.2dB
Frequency Range
Insertion Loss
Coupling
≤15±1.0dB
≥20dB
≤20±1.0dB
≥20dB
Directivity
VSWR
≤1.3:1
≤1.3:1
Power Handling
Impedance
100W
100W
50Ω
50Ω
Port Connector
Operating Temperature
N-Female
-30°C ~ +70°C
N-Female
-30°C ~ +70°C
1
188 Technology Drive, Unit H, Irvine, CA 92618
Tel: 949-453-9888 Fax: 949-453-8889 Email: sales@aacix.com
American Accurate Components, Inc.
