TZA3030HL

型号：

TZA3030HL

描述：

SDH / SONET STM1 / OC3光接收机[ SDH/SONET STM1/OC3 optical receiver ]

品牌：

NXP[ NXP ]

页数：

20 页

PDF大小：

484 K

下载PDF手册

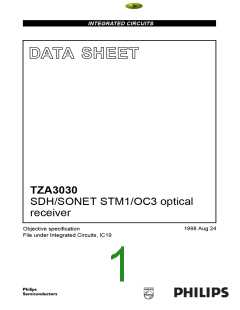

INTEGRATED CIRCUITS
DATA SHEET
TZA3030
SDH/SONET STM1/OC3 optical
receiver
1998 Aug 24
Objective specification
File under Integrated Circuits, IC19
Philips Semiconductors
Objective specification
SDH/SONET STM1/OC3 optical receiver
TZA3030
FEATURES
APPLICATIONS
• Low equivalent input noise, typically 1 pA/√Hz
• Wide dynamic range, typically 0.5 µA to 2 mA
• Digital fibre optic receiver in short, medium and long
haul optical telecommunications transmission systems
or in high speed data networks
• On-chip low-pass filter. The bandwidth can be varied
between 90 and 150 MHz using an external resistor.
Default value is 120 MHz.
• Wideband RF gain block.
GENERAL DESCRIPTION
• Differential transimpedance of 1.8 MΩ
• On-chip Automatic Gain Control (AGC)
The TZA3030 optical receiver is a low-noise
transimpedance amplifier with AGC plus a limiting
amplifier designed to be used in SDH/SONET fibre optic
links. The TZA3030 amplifies the current generated by a
photo detector (PIN diode or avalanche photodiode) and
converts it to a differential output voltage.
• Positive Emitter Coupled Logic (PECL) or
Current-Mode Logic (CML) compatible data outputs
• LOS (Loss Of Signal) detection
• LOS threshold level can be adjusted using a single
external resistor
• On-chip DC offset compensation
• Single supply voltage from 3.0 to 5.5 V
• Bias voltage for PIN diode.
ORDERING INFORMATION
TYPE
PACKAGE
NUMBER
NAME
DESCRIPTION
VERSION
TZA3030HL
TZA3030U
LQFP32
plastic low profile quad flat package; 32 leads; body 5 × 5 × 1.4 mm
naked die in waffle pack carriers; die dimensions 1.58 × 1.58 mm
SOT401-1
−
−
1998 Aug 24
2
Philips Semiconductors
Objective specification
SDH/SONET STM1/OC3 optical receiver
TZA3030
BLOCK DIAGRAM
V
AGC
V
CCA
2
CCD
2
2, 5
31
17, 20
LOS DETECTION
29
28
LOSTH
TTL
LOSTTL
PECL
26 LOS
LOSQ
27
PEAK DETECTOR
2
kΩ
GAIN
CONTROL
DREF
4
7
65 pF
CML 18 OUTCML
19 OUTQCML
IPhoto
1 nF
A1
A2
15
OUTSEL
PECL
22 OUTPECL
PREAMPLIFIER
LIMITING
OUTQPECL
23
AMPLIFIER
DC OFFSET
COMPENSATION
BIASING
11
TESTING
14
TZA3030
1, 3, 6, 8
9, 30, 32
13, 16, 21
24, 25
12
10
MBK857
7
5
V
BWC
SUB AGND
RFTEST
DGND
ref
Fig.1 Block diagram.
3
1998 Aug 24
Philips Semiconductors
Objective specification
SDH/SONET STM1/OC3 optical receiver
TZA3030
PINNING
SYMBOL
PIN
TYPE
ground
DESCRIPTION
AGND
VCCA
1
2
3
4
5
6
7
analog ground
supply
ground
analog supply voltage
analog ground
AGND
DREF
VCCA
analog output bias voltage for PIN diode (VCCA); cathode should be connected to this pin
supply
ground
analog supply voltage
analog ground
AGND
IPhoto
analog input current input; connect the anode of PIN diode to this pin; DC bias level is
1048 mV
AGND
AGND
BWC
8
9
ground
ground
analog ground
analog ground
10
analog input bandwidth control pin; default bandwidth is 120 MHz; a resistor should be
connected between Vref (pin 11) and BWC (pin 10) to decrease bandwidth, or
between BWC (pin 10) and AGND to increase bandwidth
Vref
11
12
13
14
15
analog output band gap reference voltage; nominal value approximately 1.2 V
SUB
substrate
ground
substrate pin; to be connected to AGND
digital ground
DGND
RFTEST
OUTSEL
analog input test pin; not connected; not used in application
CMOS input output select pin; when OUTSEL is HIGH, CML data outputs are active and
PECL data outputs are disabled; OUTSEL is pulled LOW if left unconnected,
PECL data outputs will then be active and CML data outputs disabled
DGND
16
17
18
19
20
21
22
23
24
25
26
ground
digital ground
VCCD
supply
digital supply voltage
OUTCML
OUTQCML
VCCD
CML output
CML output
supply
CML data output; OUTCML goes HIGH when current flows into IPhoto (pin 7)
CML compliment of OUTCML (pin 18)
digital supply voltage
DGND
ground
digital ground
OUTPECL
OUTQPECL
DGND
PECL output PECL data output; OUTPECL goes HIGH when current flows into IPhoto (pin 7)
PECL output PECL compliment of OUTPECL (pin 22)
ground
ground
digital ground
digital ground
DGND
LOS
PECL output PECL-compatible LOS detection pin; LOS output is HIGH when the input signal
is below the user programmable threshold level
LOSQ
27
28
PECL output PECL compliment of LOS (pin 26)
LOSTTL
TTL output
CMOS-compatible LOS detection pin; the LOSTTL output is HIGH when the
input signal is below the user programmable threshold level
LOSTH
29
analog I/O
pin for setting input threshold level; nominal DC voltage is VCCA − 1.5 V;
threshold level set by connecting an external resistor between LOSTH and
VCCA or by forcing a current into LOSTH; default value for this resistor is 400 kΩ
AGND
AGC
30
31
ground
analog ground
analog I/O
AGC monitor voltage; the internal AGC circuit can be disabled by applying an
external voltage to this pin
AGND
32
ground
analog ground
1998 Aug 24
4
Philips Semiconductors
Objective specification
SDH/SONET STM1/OC3 optical receiver
TZA3030
DGND
24
AGND
1
2
3
4
5
6
7
8
V
23 OUTQPECL
22 OUTPECL
21 DGND
CCA
AGND
DREF
TZA3030HL
V
V
CCD
20
19
18
17
CCA
AGND
IPhoto
AGND
OUTQCML
OUTCML
V
CCD
MBK856
Fig.2 Pin configuration.
1998 Aug 24
5
Philips Semiconductors
Objective specification
SDH/SONET STM1/OC3 optical receiver
TZA3030
CHIP DIMENSIONS AND BONDING PAD LOCATIONS
COORDINATES(1)
COORDINATES(1)
SYMBOL
PAD
SYMBOL
PAD
x
y
x
y
OUTQCML
VCCD
19
20
21
22
23
24
25
26
27
28
29
30
31
32
1398
1398
1398
1398
1398
1398
1283
1143
986
543
683
AGND
1
2
102
102
102
102
102
102
102
102
243
383
523
663
803
943
1100
1257
1398
1398
1251
1111
971
814
674
534
395
254
105
105
105
105
105
105
105
105
263
403
VCCA
DGND
823
AGND
DREF
VCCA
3
OUTPECL
OUTQPECL
DGND
963
4
1103
1243
1400
1400
1400
1400
1400
1400
1400
1400
5
AGND
IPhoto
AGND
AGND
BWC
6
DGND
7
LOS
8
LOSQ
9
LOSTTL
LOSTH
AGND
829
10
11
12
13
14
15
16
17
18
671
Vref
514
SUB
AGC
357
DGND
RFTEST
OUTSEL
DGND
VCCD
AGND
217
Note
1. All coordinates (µm) are measured with respect to the
bottom left-hand corner of the die.
OUTCML
32 31
30
29
28
27
26 25
AGND
1
2
3
DGND
24
23
V
OUTQPECL
CCA
AGND
DREF
22
21
20
19
18
17
OUTPECL
DGND
4
5
6
7
8
1.58
mm
TZA3030U
V
V
CCD
CCA
OUTQCML
OUTCML
AGND
IPhoto
AGND
V
CCD
9
10 11 12 13 14
15
16
0
x
0
y
MBK858
1.58 mm
Fig.3 Bonding pad locations of TZA3030U.
6
1998 Aug 24
Philips Semiconductors
Objective specification
SDH/SONET STM1/OC3 optical receiver
TZA3030
FUNCTIONAL DESCRIPTION
Limiting amplifier
The TZA3030 contains five functional blocks:
• Preamplifier input stage
A limiting amplifier boosts the signal up to PECL levels.
The output can be either CML or PECL compatible,
selected by means of pin OUTSEL. When OUTSEL is
HIGH, the CML data outputs are active and the PECL data
outputs are disabled. If OUTSEL is left unconnected, it is
pulled LOW and the PECL data outputs are active while
the CML data outputs are disabled.
• Low-pass filter
• Limiting amplifier stage
• Offset compensation loop
• Loss of signal detection unit.
The logic level symbol definitions for CML and PECL are
shown in Fig.4.
Preamplifier
The CML and PECL output circuits are given in Fig.5.
The preamplifier provides low-noise amplification of the
current generated by a photodiode connected to
pin IPhoto.
Offset compensation loop
A differential amplifier converts the output of the
preamplifier to a differential voltage. An AGC loop
increases the dynamic range of the receiver by reducing
the feedback resistance of the preamplifier. The AGC loop
hold capacitor is integrated on-chip, so an external
capacitor is not needed for AGC. The AGC voltage can be
monitored at pin AGC. This pin can be left unconnected for
normal operation. It can also be used to force an external
AGC voltage. If pin AGC is connected to VCCA, the internal
AGC loop is disabled and the receiver gain is at a
maximum. In this case, the maximum input current is
approximately 10 µA.
A control loop connected between the limiting amplifier
output and the differential amplifier input cancels the
DC offset. The loop bandwidth is fixed internally at 30 kHz.
Loss Of Signal (LOS) detection
The LOS section detects an input signal level below a fixed
threshold. The threshold is determined by the current
through pin LOSTH. If this current is increased, the
threshold level will rise. An external resistor connected
between pin LOSTH and VCCA can be used, or a current
can be forced into pin LOSTH. The default value for the
external resistor is 400 kΩ. In this case, the current
through pin LOSTH will be approximately 3.75 µA since
the voltage at pin LOSTH is regulated at 1.5 V below the
supply voltage. This threshold corresponds to an input
current of 208 nA. The ratio of LOSTH current to input
current is thus approximately 18 : 1. When the input signal
level falls below this threshold, the LOS
Low-pass filter
A low-pass filter controls the bandwidth of the receiver,
which can be varied between 90 and 150 MHz.
The bandwidth is set to 120 MHz by default. It can be
decreased by connecting a resistor between pin BWC and
pin Vref or increased by connecting a resistor between
pin BWC and AGND.
(PECL compatible) and LOSTTL (TTL compatible)
outputs go HIGH. The hysteresis is fixed internally at 3 dB.
Response time is typically less than 20 µs.
1998 Aug 24
7
Philips Semiconductors
Objective specification
SDH/SONET STM1/OC3 optical receiver
TZA3030
V
V
CC
V
O(max)
V
OQH
V
OH
o(p-p)
V
OQL
V
OO
V
OL
V
O(min)
MGR243
Fig.4 Logic level symbol definitions for CML and PECL.
V
V
CC
CC
105 Ω
105 Ω
100 Ω
100 Ω
OUTQCML
OUTCML
OUTPECL
OUTQPECL
0.5 mA
9 mA
0.5 mA
6 mA
MGK886
a. CML.
b. PECL.
Fig.5 Output circuits.
8
1998 Aug 24
Philips Semiconductors
Objective specification
SDH/SONET STM1/OC3 optical receiver
TZA3030
LIMITING VALUES
In accordance with the Absolute Maximum Rating System (IEC 134).
SYMBOL
VCC
Vn
PARAMETER
MIN.
−0.5
MAX.
+6
UNIT
supply voltage
DC voltage
V
pin 7: IPhoto
pin 14: RFTEST
−0.5
−0.5
+2
V
V
V
V
V
V
V
V
V
V
V
VCC + 0.5
pins 22, 23, 26 and 27: OUTPECL, OUTQPECL, LOS and LOSQ
V
CC − 2
CC − 2
VCC + 0.5
VCC + 0.5
pins 18 and 19: OUTCML and OUTQCML
pin 29: LOSTH
pin 10: BWC
V
−0.5
−0.5
−0.5
−0.5
−0.5
−0.5
−0.5
VCC + 0.5
+3.2
pin 31: AGC
VCC + 0.5
pin 11: Vref
+3.2
pin 4: DREF
V
V
V
CC + 0.5
pin 15: OUTSEL
pin 28: LOSTTL
DC current
CC + 0.5
CC + 0.5
In
pin 7: IPhoto
−2.5
−2
+2.5
+2
mA
mA
mA
mA
mA
mA
mA
mA
mA
mA
mA
mW
°C
pin 14: RFTEST
pins 22, 23, 26 and 27: OUTPECL, OUTQPECL, LOS and LOSQ −25
+10
+15
+2
pins 18 and 19: OUTCML and OUTQCML
pin 29: LOSTH
−15
−2
pin 10: BWC
−1
+1
pin 31: AGC
−0.2
−2
+0.2
+2.5
+2.5
+0.5
+16
600
+150
150
+85
pin 11: Vref
pin 4: DREF
−2.5
−0.5
−16
−
pin 15: OUTSEL
pin 28: LOSTTL
Ptot
Tstg
Tj
total power dissipation
storage temperature
junction temperature
operating ambient temperature
−65
−
°C
Tamb
−40
°C
THERMAL CHARACTERISTICS
SYMBOL
PARAMETER
VALUE
tbf
UNIT
K/W
K/W
Rth(j-s)
Rth(j-a)
thermal resistance from junction to solder point
thermal resistance from junction to ambient
tbf
1998 Aug 24
9
Philips Semiconductors
Objective specification
SDH/SONET STM1/OC3 optical receiver
TZA3030
CHARACTERISTICS
For typical values Tamb = 25 °C and VCC = 5 V; minimum and maximum values are valid over the entire ambient
temperature range and process spread.
SYMBOL
PARAMETER
supply voltage
CONDITIONS
MIN.
TYP.
MAX.
UNIT
VCC
ICCD
3
5
5.5
28
−
V
digital supply current
note 1
13
−
20
47
17
36
−
mA
mA
mA
mA
mW
°C
note 2
note 3
11
24
−
24
51
ICCA
Ptot
Tj
analog supply current
total power dissipation
junction temperature
525
−40
−40
−
+110
+85
Tamb
operating ambient
temperature
+25
°C
Rtr
small-signal transresistance
of the receiver
measured differentially
PECL outputs
−
−
−
2000
1000
120
−
−
−
kΩ
CML outputs
kΩ
f−3dB(h)
high frequency −3 dB point
low frequency −3 dB point
pin BWC left
unconnected; note 4
MHz
f−3dB(l)
In(tot)
20
30
40
kHz
total integrated RMS noise
current over bandwidth
referenced to input;
Ci = 1.2 pF; note 5
∆f = 90 MHz
∆f = 120 MHz
∆f = 155 MHz
−
−
−
16
tbf
tbf
−
−
−
nA
nA
nA
PSRR
power supply rejection ratio
AGC loop constant
measured differentially;
note 6
f = 100 kHz to 10 MHz
f = 10 MHz to 100 MHz
−
−
−
0.5
10
1
µA/V
µA/V
dB/ms
∆Rtr/∆t
−
Input: IPhoto
Vbias(IPhoto) input bias voltage
tbf
1048
+1
tbf
mV
µA
µA
Ii(IPhoto)(p-p) input current (peak-to-peak
value)
VCC = 5 V
−2000
−1000
+2000
+1000
VCC = 3.3 V
+1
PECL outputs: OUTPECL and OUTQPECL
VOH
VOL
VOO
tr
HIGH-level output voltage
LOW-level output voltage
output offset voltage
rise time
50 Ω to VCC − 2 V
50 Ω to VCC − 2 V
measured differentially
20% to 80%
V
CC − 1100
CC − 1840
−
V
V
CC − 900
mV
V
−
CC − 1620 mV
−10
−
−
+10
tbf
mV
ps
tbf
tbf
tf
fall time
80% to 20%
−
tbf
ps
1998 Aug 24
10
Philips Semiconductors
Objective specification
SDH/SONET STM1/OC3 optical receiver
TZA3030
SYMBOL
PARAMETER
CONDITIONS
MIN.
TYP.
MAX.
UNIT
PECL outputs: LOS and LOSQ
VOH
VOL
VOO
tr
HIGH-level output voltage
LOW-level output voltage
output offset voltage
rise time
50 Ω to VCC − 2 V
50 Ω to VCC − 2 V
measured differentially
20% to 80%
V
CC − 1100
CC − 1840
−
−
−
−
−
V
V
CC − 900
mV
V
CC − 1620 mV
−10
−
+10
600
200
mV
ns
tf
fall time
80% to 20%
−
ns
CML outputs: OUTCML and OUTQCML
VO
output voltage
measured single-ended;
50 Ω to VCC
V
CC − 260
−
VCC
260
+10
mV
mV
mV
Vo(se)(p-p)
VOO
output voltage single-ended
(peak-to-peak value)
50 Ω to VCC
150
−10
200
output offset voltage
measured differentially;
−
50 Ω to VCC
Ro
tr
output resistance
rise time
measured single-ended
80
100
tbf
120
Ω
20% to 80%;
−
−
ps
RL = 50 Ω; CL = 1 pF
tf
fall time
80% to 20%;
−
tbf
−
ps
RL = 50 Ω; CL = 1 pF
CMOS input: OUTSEL
VIL
VIH
LOW-level input voltage
HIGH-level input voltage
−
0.4
0.8
V
V
V
CC − 1
VCC − 0.5
−
CMOS output: LOSTTL
VOL
VOH
LOW-level output voltage
HIGH-level output voltage
0
−
−
0.2
V
V
V
CC − 0.2
VCC
Notes
1. OUTPECL, OUTQPECL, OUTCML, OUTQCML, LOS and LOSQ outputs are left unconnected. OUTPECL and
OUTQPECL outputs are active.
2. OUTPECL and OUTQPECL outputs are terminated with 50 Ω to VT. VT is an external termination voltage for PECL
outputs and is 2 V below the supply voltage. OUTCML, OUTQCML, LOS and LOSQ outputs are left unconnected.
3. OUTCML and OUTQCML outputs are terminated with 50 Ω to VCCD; CML outputs are active. OUTPECL,
OUTQPECL, LOS and LOSQ outputs are left unconnected.
4. The bandwidth is set to 120 MHz by default. It can be varied between 90 and 150 MHz by adjusting the voltage at
pin BWC.
5. All In(tot) measurements were made with an input capacitance of Ci = 1.2 pF. This was comprised of 0.7 pF for the
photodiode itself, with 0.3 pF allowed for the PCB layout and 0.2 pF intrinsic to the package.
6. PSRR is defined as the ratio of the equivalent current change at the input (∆IIPhoto) to a change in supply voltage:
∆IIPhoto
PSRR =
--------------------
∆VCC
For example, a 4 mV disturbance on VCCat 10 MHz will typically generate the equivalent of 2 nA extra photodiode
current.
1998 Aug 24
11
Philips Semiconductors
Objective specification
SDH/SONET STM1/OC3 optical receiver
TZA3030
APPLICATION INFORMATION
V
CC
680 nF
10 µH
10 µH
22 nF
22 nF
400 kΩ
2
2
V
V
LOSTH
CCA
CCD
2, 5
29
17, 20
LOSQ
LOS
27
26
28
1 nF
LOSTTL
R1
R1
DREF
Z
Z
= 50 Ω
= 50 Ω
o
o
4
7
OUTQPECL
OUTPECL
23
22
TZA3030
IPhoto
OUTQCML
OUTCML
19
18
R2
R2
1, 3, 6, 8
13, 16, 21
24, 25
12 9, 30, 32
31
10
14
11
15
SUB
AGND AGC BWC RFTEST
7
V
OUTSEL DGND
5
MBK859
ref
Fig.6 Application diagram: PECL data outputs active.
V
CC
680 nF
10 µH
10 µH
22 nF
22 nF
400 kΩ
2
2
V
V
LOSTH
CCA
CCD
2, 5
29
17, 20
LOSQ
LOS
27
26
28
1 nF
LOSTTL
DREF
4
7
OUTQPECL
OUTPECL
23
22
TZA3030
R1
R1
IPhoto
Z
Z
= 50 Ω
o
OUTQCML
OUTCML
19
18
1, 3, 6, 8
12 9, 30, 32
13, 16, 21
24, 25
31
10
14
11
15
= 50 Ω
o
SUB
AGND AGC BWC RFTEST
7
V
OUTSEL DGND
5
ref
MBK860
Fig.7 Application diagram: CML data outputs active.
12
1998 Aug 24
Philips Semiconductors
Objective specification
SDH/SONET STM1/OC3 optical receiver
TZA3030
PECL outputs: OUTPECL, OUTQPECL, LOS and LOSQ
PECL outputs can be terminated in different ways depending on the power supply voltage (see Fig.8).
V
= 3.3 V
CC
R1 = 127 Ω
R1 = 127 Ω
V
OQ
V
IQ
V
I
V
O
R2 = 82.5 Ω
R2 = 82.5 Ω
GND
V
= 5 V
CC
R1 = 83.3 Ω
R1 = 83.3 Ω
V
OQ
V
IQ
V
I
V
O
R2 = 125 Ω
R2 = 125 Ω
GND
MGK887
Fig.8 PECL termination schemes.
13
1998 Aug 24
Philips Semiconductors
Objective specification
SDH/SONET STM1/OC3 optical receiver
TZA3030
If the output impedance was 50 Ω rather than 100 Ω,
an 8 mA tail current would be needed to generate the
same voltage swing. This would increase power
dissipation by 33%.
CML outputs: OUTCML and OUTQCML
The output impedance of the CML output driver is 100 Ω
(see Fig.9) which doesn’t match the characteristic
impedance of the strip line. While this means that the
reflections of some incident edges will arrive at the driver
output on the PCB, this value was selected to reduce
power dissipation inside the IC. The parallel combination
of 100 Ω and 50 Ω (33 Ω) will generate a signal swing of
200 mV (peak-to-peak value, single-sided) with a tail
current of 6 mA.
If necessary, the output impedance of the generator can
be matched to the line impedance by connecting an
external 100 Ω resistor in parallel with the output as shown
in Fig.10. The magnitude of the output voltage swing will
not change due to adaptive regulation. However, power
dissipation will increase by 33%.
generator
inside TZA3030
interconnect
PCB
receiver
inside TZA3004
V
CC
V
CC
100 100
Z
Z
= 50 Ω
o
o
Ω
Ω
50 Ω
50 Ω
V
V
I
O
= 50 Ω
V
V
IQ
OQ
MBK861
Fig.9 CML interface circuit without matched impedance; low power dissipation.
generator
inside TZA3030
interconnect
PCB
receiver
inside TZA3004
V
CC
V
CC
100 100
Ω
Ω
100 100
Z
Z
= 50 Ω
= 50 Ω
o
o
Ω
Ω
50 Ω
50 Ω
V
V
I
O
V
V
IQ
OQ
MBK862
Fig.10 CML interface circuit with matched impedance; high power dissipation.
14
1998 Aug 24
Philips Semiconductors
Objective specification
SDH/SONET STM1/OC3 optical receiver
TZA3030
PACKAGE OUTLINE
LQFP32: plastic low profile quad flat package; 32 leads; body 5 x 5 x 1.4 mm
SOT401-1
c
y
X
A
E
17
24
Z
16
25
E
e
A
H
2
E
A
(A )
3
A
1
w M
p
θ
pin 1 index
b
L
p
32
9
L
1
8
detail X
Z
v M
D
A
e
w M
b
p
D
B
H
v
M
B
D
0
2.5
5 mm
scale
DIMENSIONS (mm are the original dimensions)
A
(1)
(1)
(1)
(1)
UNIT
A
A
A
b
c
D
E
e
H
D
H
L
L
v
w
y
Z
Z
E
θ
1
2
3
p
E
p
D
max.
7o
0o
0.15 1.5
0.05 1.3
0.27 0.18 5.1
0.17 0.12 4.9
5.1
4.9
7.15 7.15
6.85 6.85
0.75
0.45
0.95 0.95
0.55 0.55
mm
1.60
0.25
0.5
1.0
0.2 0.12 0.1
Note
1. Plastic or metal protrusions of 0.25 mm maximum per side are not included.
REFERENCES
OUTLINE
EUROPEAN
PROJECTION
ISSUE DATE
VERSION
IEC
JEDEC
EIAJ
95-12-19
97-08-04
SOT401-1
1998 Aug 24
15
Philips Semiconductors
Objective specification
SDH/SONET STM1/OC3 optical receiver
TZA3030
If wave soldering cannot be avoided, for LQFP
packages with a pitch (e) larger than 0.5 mm, the
following conditions must be observed:
SOLDERING
Introduction
There is no soldering method that is ideal for all IC
packages. Wave soldering is often preferred when
through-hole and surface mounted components are mixed
on one printed-circuit board. However, wave soldering is
not always suitable for surface mounted ICs, or for
printed-circuits with high population densities. In these
situations reflow soldering is often used.
• A double-wave (a turbulent wave with high upward
pressure followed by a smooth laminar wave)
soldering technique should be used.
• The footprint must be at an angle of 45° to the board
direction and must incorporate solder thieves
downstream and at the side corners.
During placement and before soldering, the package must
be fixed with a droplet of adhesive. The adhesive can be
applied by screen printing, pin transfer or syringe
dispensing. The package can be soldered after the
adhesive is cured.
This text gives a very brief insight to a complex technology.
A more in-depth account of soldering ICs can be found in
our “Data Handbook IC26; Integrated Circuit Packages”
(order code 9398 652 90011).
Maximum permissible solder temperature is 260 °C, and
maximum duration of package immersion in solder is
10 seconds, if cooled to less than 150 °C within
Reflow soldering
Reflow soldering techniques are suitable for all LQFP
packages.
6 seconds. Typical dwell time is 4 seconds at 250 °C.
Reflow soldering requires solder paste (a suspension of
fine solder particles, flux and binding agent) to be applied
to the printed-circuit board by screen printing, stencilling or
pressure-syringe dispensing before package placement.
A mildly-activated flux will eliminate the need for removal
of corrosive residues in most applications.
Repairing soldered joints
Several methods exist for reflowing; for example,
infrared/convection heating in a conveyor type oven.
Throughput times (preheating, soldering and cooling) vary
between 50 and 300 seconds depending on heating
method. Typical reflow peak temperatures range from
215 to 250 °C.
Fix the component by first soldering two diagonally-
opposite end leads. Use only a low voltage soldering iron
(less than 24 V) applied to the flat part of the lead. Contact
time must be limited to 10 seconds at up to 300 °C. When
using a dedicated tool, all other leads can be soldered in
one operation within 2 to 5 seconds between
270 and 320 °C.
Wave soldering
Wave soldering is not recommended for LQFP packages.
This is because of the likelihood of solder bridging due to
closely-spaced leads and the possibility of incomplete
solder penetration in multi-lead devices.
CAUTION
Wave soldering is NOT applicable for all LQFP
packages with a pitch (e) equal or less than 0.5 mm.
1998 Aug 24
16
Philips Semiconductors
Objective specification
SDH/SONET STM1/OC3 optical receiver
TZA3030
DEFINITIONS
Data sheet status
Objective specification
Preliminary specification
Product specification
This data sheet contains target or goal specifications for product development.
This data sheet contains preliminary data; supplementary data may be published later.
This data sheet contains final product specifications.
Limiting values
Limiting values given are in accordance with the Absolute Maximum Rating System (IEC 134). Stress above one or
more of the limiting values may cause permanent damage to the device. These are stress ratings only and operation
of the device at these or at any other conditions above those given in the Characteristics sections of the specification
is not implied. Exposure to limiting values for extended periods may affect device reliability.
Application information
Where application information is given, it is advisory and does not form part of the specification.
LIFE SUPPORT APPLICATIONS
These products are not designed for use in life support appliances, devices, or systems where malfunction of these
products can reasonably be expected to result in personal injury. Philips customers using or selling these products for
use in such applications do so at their own risk and agree to fully indemnify Philips for any damages resulting from such
improper use or sale.
1998 Aug 24
17
Philips Semiconductors
Objective specification
SDH/SONET STM1/OC3 optical receiver
TZA3030
NOTES
1998 Aug 24
18
Philips Semiconductors
Objective specification
SDH/SONET STM1/OC3 optical receiver
TZA3030
NOTES
1998 Aug 24
19
Philips Semiconductors – a worldwide company
Argentina: see South America
Middle East: see Italy
Australia: 34 Waterloo Road, NORTH RYDE, NSW 2113,
Netherlands: Postbus 90050, 5600 PB EINDHOVEN, Bldg. VB,
Tel. +61 2 9805 4455, Fax. +61 2 9805 4466
Tel. +31 40 27 82785, Fax. +31 40 27 88399
Austria: Computerstr. 6, A-1101 WIEN, P.O. Box 213, Tel. +43 160 1010,
New Zealand: 2 Wagener Place, C.P.O. Box 1041, AUCKLAND,
Fax. +43 160 101 1210
Tel. +64 9 849 4160, Fax. +64 9 849 7811
Belarus: Hotel Minsk Business Center, Bld. 3, r. 1211, Volodarski Str. 6,
Norway: Box 1, Manglerud 0612, OSLO,
220050 MINSK, Tel. +375 172 200 733, Fax. +375 172 200 773
Tel. +47 22 74 8000, Fax. +47 22 74 8341
Belgium: see The Netherlands
Brazil: see South America
Pakistan: see Singapore
Philippines: Philips Semiconductors Philippines Inc.,
106 Valero St. Salcedo Village, P.O. Box 2108 MCC, MAKATI,
Metro MANILA, Tel. +63 2 816 6380, Fax. +63 2 817 3474
Bulgaria: Philips Bulgaria Ltd., Energoproject, 15th floor,
51 James Bourchier Blvd., 1407 SOFIA,
Tel. +359 2 689 211, Fax. +359 2 689 102
Poland: Ul. Lukiska 10, PL 04-123 WARSZAWA,
Tel. +48 22 612 2831, Fax. +48 22 612 2327
Canada: PHILIPS SEMICONDUCTORS/COMPONENTS,
Tel. +1 800 234 7381
Portugal: see Spain
Romania: see Italy
China/Hong Kong: 501 Hong Kong Industrial Technology Centre,
72 Tat Chee Avenue, Kowloon Tong, HONG KONG,
Tel. +852 2319 7888, Fax. +852 2319 7700
Russia: Philips Russia, Ul. Usatcheva 35A, 119048 MOSCOW,
Tel. +7 095 755 6918, Fax. +7 095 755 6919
Colombia: see South America
Czech Republic: see Austria
Singapore: Lorong 1, Toa Payoh, SINGAPORE 319762,
Tel. +65 350 2538, Fax. +65 251 6500
Denmark: Prags Boulevard 80, PB 1919, DK-2300 COPENHAGEN S,
Tel. +45 32 88 2636, Fax. +45 31 57 0044
Slovakia: see Austria
Slovenia: see Italy
Finland: Sinikalliontie 3, FIN-02630 ESPOO,
Tel. +358 9 615800, Fax. +358 9 61580920
South Africa: S.A. PHILIPS Pty Ltd., 195-215 Main Road Martindale,
2092 JOHANNESBURG, P.O. Box 7430 Johannesburg 2000,
Tel. +27 11 470 5911, Fax. +27 11 470 5494
France: 51 Rue Carnot, BP317, 92156 SURESNES Cedex,
Tel. +33 1 40 99 6161, Fax. +33 1 40 99 6427
South America: Al. Vicente Pinzon, 173, 6th floor,
04547-130 SÃO PAULO, SP, Brazil,
Germany: Hammerbrookstraße 69, D-20097 HAMBURG,
Tel. +49 40 23 53 60, Fax. +49 40 23 536 300
Tel. +55 11 821 2333, Fax. +55 11 821 2382
Greece: No. 15, 25th March Street, GR 17778 TAVROS/ATHENS,
Spain: Balmes 22, 08007 BARCELONA,
Tel. +30 1 4894 339/239, Fax. +30 1 4814 240
Tel. +34 93 301 6312, Fax. +34 93 301 4107
Hungary: see Austria
Sweden: Kottbygatan 7, Akalla, S-16485 STOCKHOLM,
Tel. +46 8 5985 2000, Fax. +46 8 5985 2745
India: Philips INDIA Ltd, Band Box Building, 2nd floor,
254-D, Dr. Annie Besant Road, Worli, MUMBAI 400 025,
Tel. +91 22 493 8541, Fax. +91 22 493 0966
Switzerland: Allmendstrasse 140, CH-8027 ZÜRICH,
Tel. +41 1 488 2741 Fax. +41 1 488 3263
Indonesia: PT Philips Development Corporation, Semiconductors Division,
Gedung Philips, Jl. Buncit Raya Kav.99-100, JAKARTA 12510,
Tel. +62 21 794 0040 ext. 2501, Fax. +62 21 794 0080
Taiwan: Philips Semiconductors, 6F, No. 96, Chien Kuo N. Rd., Sec. 1,
TAIPEI, Taiwan Tel. +886 2 2134 2865, Fax. +886 2 2134 2874
Thailand: PHILIPS ELECTRONICS (THAILAND) Ltd.,
209/2 Sanpavuth-Bangna Road Prakanong, BANGKOK 10260,
Tel. +66 2 745 4090, Fax. +66 2 398 0793
Ireland: Newstead, Clonskeagh, DUBLIN 14,
Tel. +353 1 7640 000, Fax. +353 1 7640 200
Israel: RAPAC Electronics, 7 Kehilat Saloniki St, PO Box 18053,
Turkey: Talatpasa Cad. No. 5, 80640 GÜLTEPE/ISTANBUL,
TEL AVIV 61180, Tel. +972 3 645 0444, Fax. +972 3 649 1007
Tel. +90 212 279 2770, Fax. +90 212 282 6707
Italy: PHILIPS SEMICONDUCTORS, Piazza IV Novembre 3,
Ukraine: PHILIPS UKRAINE, 4 Patrice Lumumba str., Building B, Floor 7,
20124 MILANO, Tel. +39 2 6752 2531, Fax. +39 2 6752 2557
252042 KIEV, Tel. +380 44 264 2776, Fax. +380 44 268 0461
Japan: Philips Bldg 13-37, Kohnan 2-chome, Minato-ku,
United Kingdom: Philips Semiconductors Ltd., 276 Bath Road, Hayes,
TOKYO 108-8507, Tel. +81 3 3740 5130, Fax. +81 3 3740 5077
MIDDLESEX UB3 5BX, Tel. +44 181 730 5000, Fax. +44 181 754 8421
Korea: Philips House, 260-199 Itaewon-dong, Yongsan-ku, SEOUL,
United States: 811 East Arques Avenue, SUNNYVALE, CA 94088-3409,
Tel. +82 2 709 1412, Fax. +82 2 709 1415
Tel. +1 800 234 7381
Malaysia: No. 76 Jalan Universiti, 46200 PETALING JAYA, SELANGOR,
Tel. +60 3 750 5214, Fax. +60 3 757 4880
Uruguay: see South America
Vietnam: see Singapore
Mexico: 5900 Gateway East, Suite 200, EL PASO, TEXAS 79905,
Tel. +9-5 800 234 7381
Yugoslavia: PHILIPS, Trg N. Pasica 5/v, 11000 BEOGRAD,
Tel. +381 11 625 344, Fax.+381 11 635 777
For all other countries apply to: Philips Semiconductors,
Internet: http://www.semiconductors.philips.com
International Marketing & Sales Communications, Building BE-p, P.O. Box 218,
5600 MD EINDHOVEN, The Netherlands, Fax. +31 40 27 24825
© Philips Electronics N.V. 1998
SCA60
All rights are reserved. Reproduction in whole or in part is prohibited without the prior written consent of the copyright owner.
The information presented in this document does not form part of any quotation or contract, is believed to be accurate and reliable and may be changed
without notice. No liability will be accepted by the publisher for any consequence of its use. Publication thereof does not convey nor imply any license
under patent- or other industrial or intellectual property rights.
Printed in The Netherlands
425102/200/01/pp20
Date of release: 1998 Aug 24
Document order number: 9397 750 04069
厂商 型号 描述 页数 下载

RHOMBUS-IND

 		TZA1-10 TZA / TYA系列5抽头高性能无源延时模块[ TZA / TYA Series 5-Tap High Performance Passive Delay Modules ] 1 页

RHOMBUS-IND

 		TZA1-20 TZA / TYA系列5抽头高性能无源延时模块[ TZA / TYA Series 5-Tap High Performance Passive Delay Modules ] 1 页

RHOMBUS-IND

 		TZA1-5 TZA / TYA系列5抽头高性能无源延时模块[ TZA / TYA Series 5-Tap High Performance Passive Delay Modules ] 1 页

RHOMBUS-IND

 		TZA1-7 TZA / TYA系列5抽头高性能无源延时模块[ TZA / TYA Series 5-Tap High Performance Passive Delay Modules ] 1 页

RHOMBUS-IND

 		TZA10-10 TZA / TYA系列5抽头高性能无源延时模块[ TZA / TYA Series 5-Tap High Performance Passive Delay Modules ] 1 页

RHOMBUS-IND

 		TZA10-20 TZA / TYA系列5抽头高性能无源延时模块[ TZA / TYA Series 5-Tap High Performance Passive Delay Modules ] 1 页

RHOMBUS-IND

 		TZA10-5 TZA / TYA系列5抽头高性能无源延时模块[ TZA / TYA Series 5-Tap High Performance Passive Delay Modules ] 1 页

RHOMBUS-IND

 		TZA10-7 TZA / TYA系列5抽头高性能无源延时模块[ TZA / TYA Series 5-Tap High Performance Passive Delay Modules ] 1 页

NXP

 		TZA1000 QIC读写放大器[ QIC read-write amplifier ] 24 页

NXP

 		TZA1000T/N3 [ IC 1 CHANNEL READ WRITE AMPLIFIER CIRCUIT, PDSO24, 7.50 MM, PLASTIC, SOT-137-1, SOP-24, Drive Electronics ] 26 页

购物指南

支付方式

配送服务

售后服务

发票须知

优惠券使用规则

特色服务

PCBA制造

国产品牌推荐

国产料号替代

质量保证

技术资料

行业资讯

关于我们

关于达普

联系我们

联系我们

服务热线：400-618-9990

企业邮箱：smail@ic72.com

服务时间：周一至周六 8:30-17:30

达普官方微信号

PDF索引：

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

X

Y

Z

0

1

2

3

4

5

6

7

8

9

IC型号索引：

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

X

Y

Z

0

1

2

3

4

5

6

7

8

9

Copyright 2024 gkzhan.com Al Rights Reserved 京ICP备06008810号-21 京

深圳网络警察报警平台
公共信息安全网络监察
经营性网站备案信息
不良信息举报中心
工商网监电子标识
全国公安机关备案
0.231363s
