1SMB5925

型号：

1SMB5925

描述：

表面贴装硅稳压二极管[ SURFACE MOUNT SILICON ZENER DIODE ]

品牌：

PANJIT[ PAN JIT INTERNATIONAL INC. ]

页数：

4 页

PDF大小：

58 K

下载PDF手册

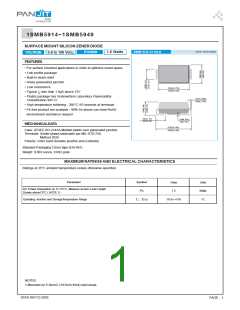

1SMB5914~1SMB5949
SURFACE MOUNT SILICON ZENER DIODE
PEAR
Unit: inch (mm)
SMB/DO-214AA
1.5 Watts
POWER
VOLTAGE
3.6 to 100 Volts
FEATURES
• For surface mounted applications in order to optimize board space.
• Low profile package
• Built-in strain relief
• Glass passivated junction
• Low inductance
.185(4.70)
.160(4.06)
• Typical IR less than 1.0µA above 12V
• Plastic package has Underwriters Laboratory Flammability
Classification 94V-O
.012(.305)
.006(.152)
• High temperature soldering : 260°C /10 seconds at terminals
• Pb free product are available : 99% Sn above can meet RoHS
environment substance request
.050(1.27)
.030(0.76)
.008(.203)
.002(.051)
MECHANICALDATA
.220(5.59)
.200(5.08)
Case: JEDEC DO-214AA,Molded plastic over passivated junction.
Terminals: Solder plated,solderable per MIL-STD-750,
Method 2026
Polarity: Color band denotes positive end (cathode)
Standard Packaging:12mm tape (EIA-481)
Weight: 0.003 ounce, 0.093 gram
MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS
Ratings at 25°C ambient temperature unless otherwise specified.
Parameter
L
=75OC ,Measure at Zero Lead Length
Symbol
Value
1.5
Units
Watts
OC
DC Power Dissipation on T
Derate above75OC ( NOTE 1)
P
D
Operating Junction and StorageTemperature Range
-55 to +150
TJ , TSTG
NOTES:
1.Mounted on 5.0mm2 (.013mm thick) land areas.
STAD-SEP.23.2005
PAGE . 1
1SMB5914~1SMB5949
Maximum Zener Impedance
Leakage Current
V
Z @ IZT
Marking
Code
Part Number
Z
ZT @ IZT
Z
ZK @ IZK
I
R
VR
Min. V
Max. V
mA
mA
µΑ
V
Nom. V
3.6
Ω
Ω
1SMB5914
1SMB5915
1SMB5916
1SMB5917
1SMB5918
1SMB5919
1SMB5920
1SMB5921
1SMB5922
1SMB5923
1SMB5924
1SMB5925
1SMB5926
1SMB5927
1SMB5928
1SMB5929
1SMB5930
1SMB5931
1SMB5932
1SMB5933
1SMB5934
1SMB5935
1SMB5936
1SMB5937
1SMB5938
1SMB5939
1SMB5940
1SMB5941
1SMB5942
1SMB5943
1SMB5944
1SMB5945
1SMB5946
1SMB5947
1SMB5948
1SMB5949
3.42
3.78
9
104.2
96.1
87.2
79.8
73.5
66.9
60.5
55.1
50.0
45.7
41.2
37.5
34.1
31.2
28.8
25.0
23.4
20.8
18.7
17.0
15.6
13.9
12.5
11.4
10.4
9.6
500
500
500
500
350
250
200
200
400
400
500
500
550
550
550
600
600
650
650
650
700
700
750
800
850
900
950
1000
1100
1300
1500
1700
2000
2500
3000
3100
1.00
1.00
1.00
1.00
1.00
1.00
1.00
1.00
0.50
0.50
0.50
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
75.00
1.00
1.00
914B
915B
916B
917B
918B
919B
920B
921B
922B
923B
924B
925B
926B
927B
928B
929B
930B
931B
932B
933B
934B
935B
936B
937B
938B
939B
940B
941B
942B
943B
944B
945B
946B
947B
948B
949B
3.9
4.3
4.7
5.1
5.6
6.2
6.8
7.5
8.2
9.1
10
11
3.71
4.09
4.10
4.52
8
6
25.00
5.00
5.00
5.00
5.00
5.00
5.00
5.00
5.00
5.00
5.00
1.00
1.00
1.00
1.00
1.00
1.00
1.00
1.00
1.00
1.00
1.00
1.00
1.00
1.00
1.00
1.00
1.00
1.00
1.00
1.00
1.00
1.00
1.00
1.00
1.00
4.47
4.94
5
1.50
4.85
5.36
4
2.0
5.32
5.88
2
3.00
5.89
6.51
2
4.00
6.46
7.14
3
5.20
7.13
7.88
3
6.00
7.79
8.61
4
6.50
8.65
9.56
4
7.00
9.50
10.50
11.55
12.60
13.65
15.75
16.80
18.90
21.00
23.10
25.20
28.35
31.50
34.65
37.80
40.95
45.15
49.35
53.55
58.80
65.10
71.40
78.75
86.10
95.55
105.00
5
8.00
10.45
11.40
12.35
14.25
15.20
17.10
19.00
20.90
22.80
25.65
28.50
31.35
34.20
37.05
40.85
44.65
48.45
53.20
58.90
64.60
71.25
77.90
86.45
95.00
6
8.40
12
13
15
16
18
20
22
24
27
30
33
36
39
43
47
51
56
62
68
75
82
91
100
7
9.10
7
9.90
9
11.40
12.20
13.70
15.20
16.70
18.20
20.60
22.80
25.10
27.40
29.70
32.70
35.80
38.80
42.60
47.10
51.70
56.00
62.20
69.20
76.00
10
12
14
18
19
23
26
33
38
45
53
67
70
86
8.7
8.0
7.3
6.7
100
120
140
160
200
250
6.0
5.5
5.0
4.6
4.1
3.7
STAD-SEP.23.2005
PAGE . 2
1SMB5914~1SMB5949
10
8
2.5
2
V
@I
ZT
Z
6
4
2
0
1.5
1
0.5
0
-2
-4
2
4
6
8
10
12
0
20
40 60
80 100 120 140 150 180
O
T ,LEADTEMPERATURE( C)
V , ZENER VOLTAGE (VOLTS)
L
Z
Fig.1 Steady State Power Derating
Fig.2 Zener Voltage - to 12 volts
1K
200
T
I
= 25OC
(rms) =0.1
500
J
Z
I (dc)
Z
V
@I
ZT
V
Z
Z=150V
200
100
50
100
70
91V
62V
50
30
20
10
5
22V
12V
20
2
1
6.8V
10
10
20
30
50 70 100
200
0.5
1
2
5
10 20 50 100 200 500
Vz, ZENER VOLTAGE (VOLTS)
Iz, ZENER TEST CURRENT (mA)
Fig.3 Zener Voltage - 14 to 200 Volts
Fig.4 Effect of Zener Current
1K
RECTANGULAR
NONREPETITIVE
200
100
I
(dc)=1mA
500
Z
WAVEFORM
T
=25OC PRIOR
J
TO INTIAL PULSE
300
200
70
50
30
20
100
50
10mA
10
7
5
30
20
I
(rms)=0.1I (dc)
Z
20mA
3
2
Z
5
7
10
20 30
40 50 60 70
100
10
0.1 0.20.3 0.5
1
2 3
5
10 2030 50 100
Vz, ZENER VOLTAGE (VOLTS)
PW, PULSE WIDTH (ms)
Fig.6 Maximum Surge Power
Fig.5 Effect of Zener Voltage
STAD-SEP.23.2005
PAGE . 3
1SMB5914~1SMB5949
100
100
50
50
30
20
30
20
10
10
5
5
3
2
3
2
1
1
0.5
0.3
0.2
0.5
0.3
0.2
0.1
0.1
0
1
2
3
4
5
6
7
8
9
10
0
10 20 30 40 50 60 70 80 90 100
Vz, ZENER VOLTAGE (VOLTS)
Vz, ZENER VOLTAGE (VOLTS)
Fig.7 Vz = 6.8 thru 10 Volts
Fig.8 Vz = 12 thru 82 Volts
NOTE 3. ZENER VOLTAGE (Vz) MEASUREMENT
Nominal zener voltage is measured with the device function in thermal equilibrium with ambient
temperature at 25OC
NOTE 4. ZENER IMPEDANCE (Zz) DERIVATION
Zzt and Zzk are measured by dividing the ac voltage drop across the device by the accurrent applied.
The specified limits are for Iz(ac) = 0.1 Iz, (dc) with the ac freqency = 60Hz
STAD-SEP.23.2005
PAGE . 4
