AZ88923

型号:

AZ88923

描述:

高速限幅后置放大器[ High-Speed Limiting Post Amplifier ]

品牌:

AZM[ ARIZONA MICROTEK, INC ]

页数:

5 页

PDF大小:

57 K

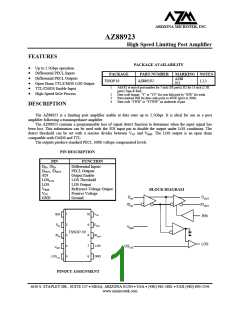

ARIZONA MICROTEK, INC.
AZ88923
High-Speed Limiting Post Amplifier
FEATURES
PACKAGE AVAILABILITY
Up to 2.5Gbps operation
Differential PECL Inputs
Differential PECL Outputs
Open Drain TTL/CMOS LOS Output
TTL/CMOS Enable Input
High-Speed SiGe Process
PACKAGE
PART NUMBER
MARKING NOTES
AZ88
1,2,3
923
TSSOP 10
AZ88923U
1
Add R1 at end of part number for 7 inch (1K parts), R2 for 13 inch (2.5K
parts) Tape & Reel.
Date code format: “Y” or “YY” for year followed by “WW” for week.
Parts marked JNB for date codes prior to 4WW (prior to 2004).
Date code “YWW” or “YYWW” on underside of part.
2
3
4
DESCRIPTION
The AZ88923 is a limiting post amplifier usable at data rates up to 2.5Gbps. It is ideal for use as a post
amplifier following a transimpedance amplifier.
The AZ88923 contains a programmable loss of signal detect function to determine when the input signal has
been lost. This information can be used with the /EN input pin to disable the output under LOS conditions. The
detect threshold can be set with a resistor divider between VCC and VREF. The LOS output is an open drain
compatible with CMOS and TTL.
The outputs produce standard PECL 100K voltage compensated levels.
PIN DESCRIPTION
PIN
DIN, /DIN
DOUT, /DOUT
/EN
FUNCTION
Differential Inputs
PECL Outputs
Output Enable
LOSLVL
LOS
LOS Threshold
LOS Output
VREF
VCC
GND
Reference Voltage Output
Positive Voltage
Ground
BLOCK DIAGRAM
DIN
DOUT
/DIN
/DOUT
/EN
DIN
1
2
3
4
5
10
9
VCC
/EN
DOUT
/DOUT
LOS
GND
VREF
TSSOP-10
/DIN
8
LOS
7
LOSLVL
VREF
LOSLVL
6
PINOUT ASSIGNMENT
1630 S. STAPLEY DR., SUITE 127 MESA, ARIZONA 85204 USA (480) 962-5881 FAX (480) 890-2541
www.azmicrotek.com
AZ88923
Absolute Maximum Ratings are those values beyond which device life may be impaired.
Symbol
VCC
Parameter
DC Supply Voltage (Referenced to GND)
Value
4.5
Unit
V
TA
TSTG
DIN, /DIN
/EN
Operating Temperature Range (In Free-Air)
Storage Temperature Range
Input Voltage
-40 to +85
-65 to +150
0 to VCC
°C
°C
V
Input Voltage
0 to VCC
V
LOSLVL
VREF
DOUT, /DOUT Output Voltage
Input Voltage
Output Voltage
0 to VCC
VCC-2V to VCC
VCC-2V to VCC
V
V
V
DC Characteristics (VCC = 3.0V to 3.6V, RLOAD = 50Ω to VCC-2V)
-40°C
0°C
25°C
Typ
30
85°C
Symbol
Characteristic
Unit
Min
Max
40
Min
Max
40
Min
Max
40
Min
Max
IEE
Power Supply Current1
Output HIGH Voltage
45
VCC-
880
mA
mV
VCC
1085
VCC
-
VCC
-
VCC
1025
VCC
-
VCC
-
VCC
1025
VCC
-
VCC
-
VCC
-
VCC
1025
VCC
-
VOH
VOL
VIH
880
880
955
880
-
VCC
-
-
VCC
-
-
VCC
-
VCC
-
-
VCC-
1620
Output LOW Voltage
mV
mV
mV
V
1830
1555
1810
1620
1810
1705
1620
1810
/EN Input HIGH
Voltage
2.0
2.0
2.0
2.0
/EN Input LOW
Voltage
VIL
0.8
0.8
0.8
0.8
LOS Output LOW
VOL
VREF
0.5
0.5
0.5
0.5
Voltage2
Reference Voltage
VCC
1.38
-
VCC
-
VCC
1.38
-
VCC
-
VCC
1.38
-
VCC
-
VCC
1.38
-
VCC-
V
1.26
100
VCC
1.26
100
VCC
1.26
100
VCC
1.26
100
VCC
/EN Input HIGH
Current
Common Mode Range
IIH
μA
VCMR
GND+2
GND+2
GND+2
GND+2
V
1.
2.
No output load.
IOL = +2mA.
AC Characteristics (VCC = 3.0V to 3.6V, RLOAD = 50Ω to VCC-2V)
-40°C
0°C
25°C
Typ
85°C
Symbol
Characteristic
Unit
Min
5
Max
1800
150
Min
5
Max
1800
150
Min
5
Max
1800
150
Min
5
Max
1800
150
VID
Input Voltage Range
Rise/Fall Time
mV
ps
tr / tf
VOD
Diff
Out
VID=15 mVp-p
VID=5 mVp-p
600
200
4.6
MVp-p
dB
HYS
tOFFL
LOS Hysteresis
LOS Release Time
Minimum Input
LOS Release Time
Maximum Input
LOS Assert Time
2
5
8
2
5
8
2
5
8
2
5
8
0.5
0.5
0.1
0.5
0.5
μs
tOFFH
0.5
0.5
0.1
0.2
0.5
0.5
μs
0.5
50
0.5
50
0.5
50
0.5
50
tONL
VSR
μs
MVp-p
LOS Sensitivity Range
November 2006 * REV - 2
www.azmicrotek.com
2
AZ88923
0.1μF
DIN
FROM
TRANSIMPEDANCE
AMPLIFIER
{
/DIN
0.1μF
50Ω
50Ω
VREF
0.1μF
DIFFERENTIAL INPUT CONFIGURATION
VCC
VCC
>
4.7kΩ
R1
LOS
LOSLVL
R2
VREF
LOS OUTPUT
LOSLVL CIRCUIT
R2 x 1.32V
NOTES:
LOSLVL = VCC – 1.32V +
R1 + R2
R1 + R2 2.6kΩ
November 2006 * REV - 2
www.azmicrotek.com
3
AZ88923
PACKAGE DIAGRAM
TSSOP 10
MILLIMETERS
DIM
MIN
MAX
1.10
0.15
0.95
A
A1
A2
A3
bp
c
0.05
0.80
0.25
NOTES:
1.
2.
3.
DIMENSIONS D AND E DO NOT
0.15
0.15
2.90
2.90
0.30
0.23
3.10
3.10
INCLUDE MOLD PROTRUSION.
MAXIMUM MOLD PROTRUSION
FOR D IS 0.15mm.
MAXIMUM MOLD PROTRUSION
FOR E IS 0.25mm.
D1
E2
e
0.50
0.95
HE
L
Lp
v
w
y
4.80
0.40
5.00
0.70
0.10
0.10
0.10
Z
θ
0.34
0O
0.67
6O
November 2006 * REV - 2
www.azmicrotek.com
4
AZ88923
Arizona Microtek, Inc. reserves the right to change circuitry and specifications at any time without prior notice. Arizona Microtek, Inc.
makes no warranty, representation or guarantee regarding the suitability of its products for any particular purpose, nor does Arizona
Microtek, Inc. assume any liability arising out of the application or use of any product or circuit and specifically disclaims any and all
liability, including without limitation special, consequential or incidental damages. Arizona Microtek, Inc. does not convey any license
rights nor the rights of others. Arizona Microtek, Inc. products are not designed, intended or authorized for use as components in systems
intended to support or sustain life, or for any other application in which the failure of the Arizona Microtek, Inc. product could create a
situation where personal injury or death may occur. Should Buyer purchase or use Arizona Microtek, Inc. products for any such
unintended or unauthorized application, Buyer shall indemnify and hold Arizona Microtek, Inc. and its officers, employees, subsidiaries,
affiliates, and distributors harmless against all claims, costs, damages, and expenses, and reasonable attorney fees arising out of, directly
or indirectly, any claim of personal injury or death associated with such unintended or unauthorized use, even if such claim alleges that
Arizona Microtek, Inc. was negligent regarding the design or manufacture of the part.
November 2006 * REV - 2
www.azmicrotek.com
5
