DZ80

型号:

DZ80

描述:

8位微处理器[ 8-bit Microprocessor ]

品牌:

DCD[ DIGITAL CORE DESIGN ]

页数:

3 页

PDF大小:

134 K

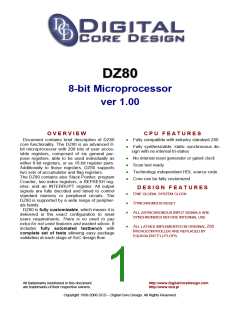

DZ80
8-bit Microprocessor
ver 1.00
O V E R V I E W
C P U F E A T U R E S
Document contains brief description of DZ80
core functionality. The DZ80 is an advanced 8-
bit microprocessor with 208 bits of user acces-
sible registers, composed of six general pur-
pose registers, able to be used individually as
either 8-bit registers, or as 16-bit register pairs.
Additionally to those registers, DZ80 supports
two sets of accumulator and flag registers.
The DZ80 contains also Stack Pointer, program
Counter, two index registers, a REFRESH reg-
ister, and an INTERRUPT register. All output
signals are fully decoded and timed to control
standard memory or peripheral circuits. The
DZ80 is supported by a wide range of peripher-
als family.
DZ80 is fully customizable, which means it is
delivered in the exact configuration to meet
users requirements. There is no need to pay
extra for not used features and wasted silicon. It
includes fully automated testbench with
complete set of tests allowing easy package
validation at each stage of SoC design flow.
Fully compatible with industry standard Z80
Fully synthesizable, static synchronous de-
sign with no internal tri-states
No internal reset generator or gated clock
Scan test ready
Technology independent HDL source code
Core can be fully customized
D E S I G N F E A T U R E S
ONE GLOBAL SYSTEM CLOCK
SYNCHRONOUS RESET
ALL ASYNCHRONOUS INPUT SIGNALS ARE
SYNCHRONIZED BEFORE INTERNAL USE
ALL LATHES IMPLEMENTED IN ORIGINAL Z80
MICROCONTROLLER ARE REPLACED BY
EQUIVALENT FLI-FLOPS.
All trademarks mentioned in this document
are trademarks of their respective owners.
http://www.DigitalCoreDesign.com
http://www.dcd.pl
Copyright 1999-2006 DCD – Digital Core Design. All Rights Reserved.
D E L I V E R A B L E S
P I N S D E S C R I P T I O N
Source code:
VHDL Source Code or/and
VERILOG Source Code or/and
Encrypted, or plain text EDIF
VHDL & VERILOG test bench environment
Active-HDL automatic simulation macros
ModelSim automatic simulation macros
Tests with reference responses
Technical documentation
Installation notes
HDL core specification
Datasheet
Synthesis scripts
PIN
ACTIVE TYPE
DESCRIPTION
clk
-
input Global system clock
input Global reset input
input Interrupt request
input Non-Maskable Interrupt Request
input WAIT input
rst
Low
Low
Low
Low
Low
-
int
nmi
wait
busreq
input Bus Request
datai[7:0]
datao[7:0]
addr[15:0]
wr
input Memory bus input
output Data memory & UFR bus output
output Data memory address bus
output Write enable
-
-
Low
Low
Low
Low
Low
Low
Low
Low
Example application
Technical support
IP Core implementation support
3 months maintenance
rd
output Read enable
busack
m1
output Bus Acknowledge
output Machine Cycle One
output Memory Request
output Input/Output Request
output Refresh
Delivery the IP Core updates, minor and
major versions changes
mreq
iorq
Delivery the documentation updates
rfsh
Phone & email support
halt
output Halt State
L I C E N S I N G
Comprehensible and clearly defined licensing
methods without royalty fees make using of IP
Core easy and simply.
S Y M B O L
clk
rst
halt
Single Design license allows use IP Core in
single FPGA bitstream and ASIC implementa-
tion.
datai(7:0)
datao(7:0)
Unlimited Designs, One Year licenses allow use
IP Core in unlimited number of FPGA bit-
streams and ASIC implementations.
addr(15:0)
wr
rd
In all cases number of IP Core instantiations
within a design, and number of manufactured
chips are unlimited. There is no time restriction
except One Year license where time of use is
limited to 12 months.
m1
mreq
iorq
rfsh
busack
int
nmi
busrq
wait
Single Design license for
VHDL, Verilog source code called HDL Source
Encrypted, or plain text EDIF called Netlist
Unlimited Designs license for
HDL Source
B L O C K D I A G R A M
Control Unit - Performs the core synchroniza-
tion and data flow control. This module man-
ages execution of all instructions. The Control
Unit also manages execution of HALT state and
waking-up the processor from the HALT mode.
Netlist
Upgrade from
Opcode Decoder - Performs an instruction
opcode decoding and the control functions for
all other blocks.
HDL Source to Netlist
Single Design to Unlimited Designs
All trademarks mentioned in this document
are trademarks of their respective owners.
http://www.DigitalCoreDesign.com
http://www.dcd.pl
Copyright 1999-2006 DCD – Digital Core Design. All Rights Reserved.
ALU - Arithmetic Logic Unit performs the arith-
metic and logic operations during execution of
an instruction. Contains accumulator CPU reg-
isters and related logic such as arithmetic and
logic unit. ALU communicates with internal reg-
isters and the external data bus by using inter-
nal data bus. Functions performed by the ALU
include:
C O N T A C T S
For any modification or special request
please contact to Digital Core Design or local
distributors.
Headquarters:
Wroclawska 94
41-902 Bytom, POLAND
Addition
Subtraction
i
l
l
info@dcd.pl
e-mail: i
Logical AND
Logical OR
Logical Exclusive OR
Compare
tel. : +48 32 282 82 66
fax : +48 32 282 74 37
Distributors:
l
l
http://www.dcd.pl/apartn.php
Left or Right Shifts or Rotates
Increment
Please check
Decrement
Set/Reset and Test Bit
clk
rst
wait
Opcode
Decoder
datai
datao
addr
BUS
Controller
m1
wr
mreq
Control
Unit
rd
iorq
busrq
rfsh
halt
busack
int
nmi
Interrupt
Controller
ALU
Bus Controller –Data Memory & SFR’s (Spe-
cial Function Register) interface controls access
into the program and data memories and spe-
cial registers. It contains Program Counter
(PC), Stack Pointer (SP) register, Index regis-
ters and related logic.
Interrupt Controller – manages execution of
maskable and nonmaskable interrupts. It con-
tains a Interrupt Enable register. Interrupt con-
troller is responsible for the special M1 Cycle
generation and wait states implementation dur-
ing interrupt service.
All trademarks mentioned in this document
are trademarks of their respective owners.
http://www.DigitalCoreDesign.com
http://www.dcd.pl
Copyright 1999-2006 DCD – Digital Core Design. All Rights Reserved.
